5.11. Swing function - for the unit with auto swing function only

5.11. 1. Up-Down swing
5.11. 2. Left-Right swing

9.12. Swing function - for the unit without auto swing 4D function models

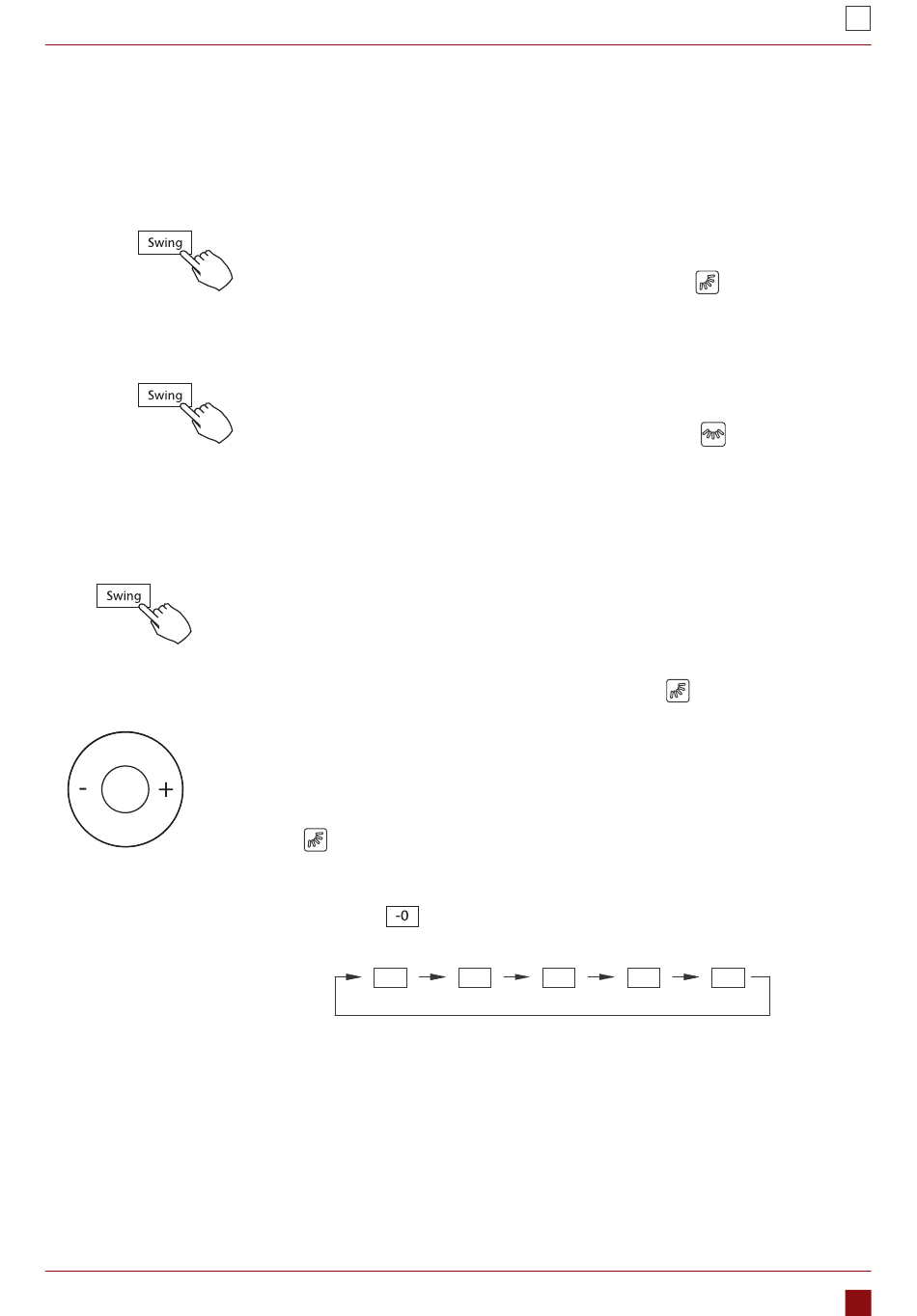

Press the Swing button to start up-down swing function.
Press it again to stop.
When the Up-Down swing function is activated,the
Press the Swing button long to start Left-Right swing function.
Press it again to stop.
When the Left-Right swing function is activated, the
• Use SWING to adjust the up and down airflow direction.
1. Every time the user presses SWING, the louver swings six degrees.
2. Press and hold SWING for 2 seconds, it changes to the UP−DOWN SWING mode.
Press SWING again to stop.
When the Up-Down swing function is activated, the
• The operation can refer to the following instructions for the unit with four Up-
Down louvers can be operated individually.
1. Press the Swing button to activate the Up-Down adjusting louver function.
The mark will flash. (Not applicable to all the models)
2. Pressing the button "+" or"-" can select the movement of four louvers. Each
time you push the button,the wire controller select in a sequence that goes
from: (the icon
-0
3. And then use Swing button to adjust the Up-Down airflow direction of the
selected louver.
WIRED CONTROLLER SUPPORT
means the four louvers move at the same time.)
-1 -2
SAVA wired controller
mark appears.
mark appears.
mark appears.
-3 -4
User manual
EN
