SAVA wired controller
EN

WIRED CONTROLLER SUPPORT

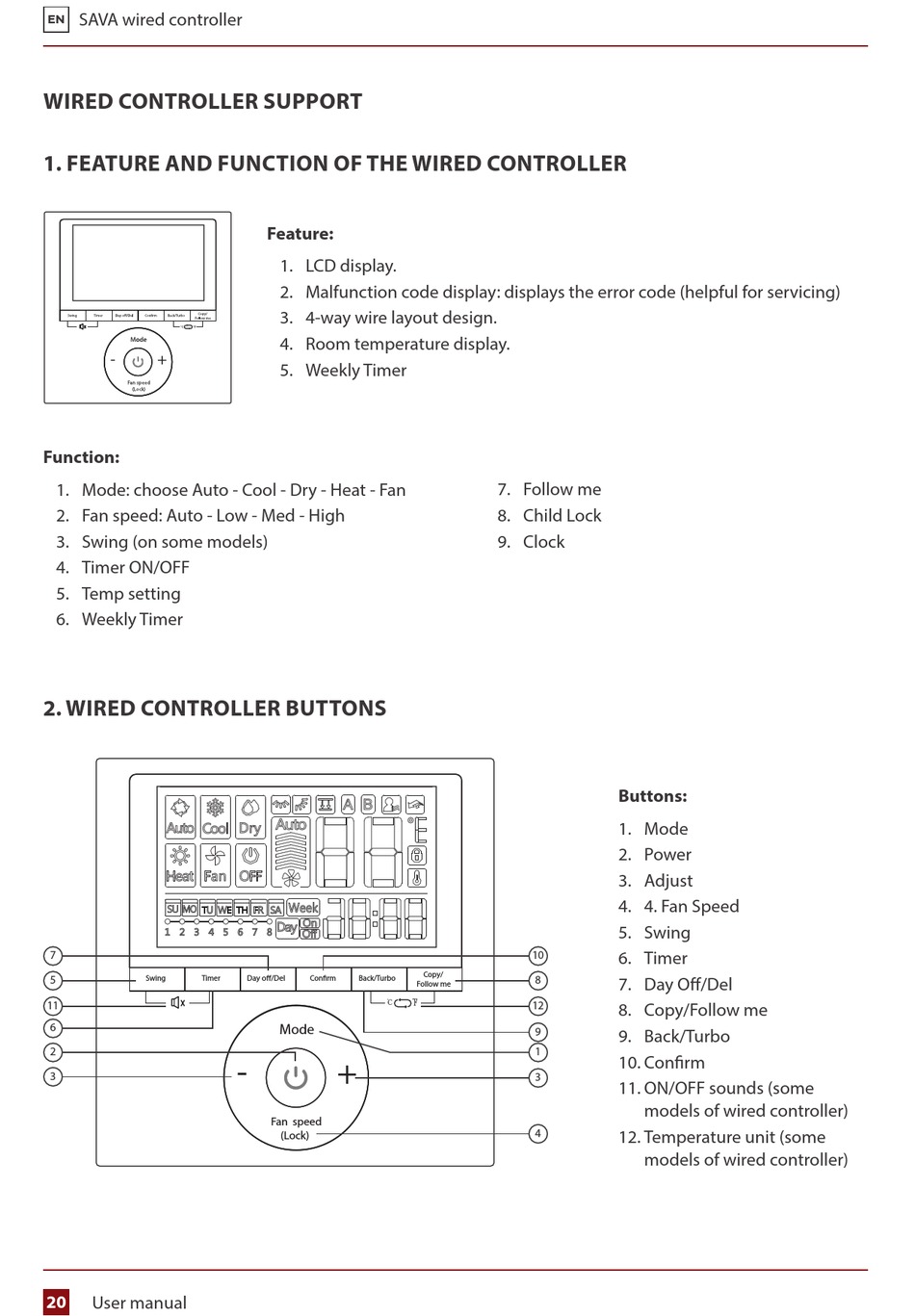

1. FEATURE AND FUNCTION OF THE WIRED CONTROLLER

- +
Function:
1. Mode: choose Auto - Cool - Dry - Heat - Fan
2. Fan speed: Auto - Low - Med - High
3. Swing (on some models)
4. Timer ON/OFF
5. Temp setting
6. Weekly Timer

2. WIRED CONTROLLER BUTTONS

7
5
Swing Timer
11
6
2
3
20
User manual
Feature:
1. LCD display.
2. Malfunction code display: displays the error code (helpful for servicing)
3. 4-way wire layout design.
4. Room temperature display.
5. Weekly Timer
Day o /Del Con rm Back/Turbo
℉
℃
Mode
-
+
Fan speed
(Lock)
7. Follow me
8. Child Lock
9. Clock
10
Copy/
8
Follow me
12
9
1
3
4
Buttons:
1. Mode
2. Power
3. Adjust
4. 4. Fan Speed
5. Swing
6. Timer
7. Day Off/Del
8. Copy/Follow me
9. Back/Turbo
10. Confirm
11. ON/OFF sounds (some
models of wired controller)
12. Temperature unit (some
models of wired controller)
