SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT
Made in Indonesia | INS-2107014-A-ACACIA FARMHOUSE PORCH SWING-ENG 2-15-22

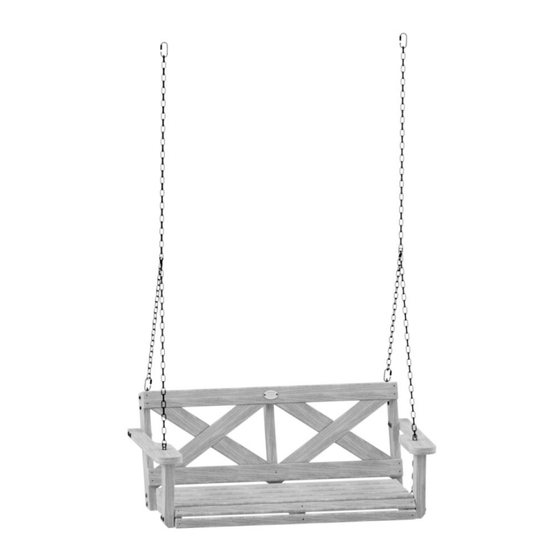

ACACIA FARMHOUSE PORCH SWING
Model # 2107014
assembly time may vary based on skill level
For the most up to date assembly manual,
to register your set, or to order replacement parts please visit
www.backyarddiscovery.com
YOU NEED TO ORDER REPLACEMENT PARTS.
Owner's Manual & Assembly Instructions
average 2 person assembly time
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
800-856-4445

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2107014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery 2107014

Summary of Contents for Backyard Discovery 2107014

  • Page 1 For the most up to date assembly manual, to register your set, or to order replacement parts please visit www.backyarddiscovery.com SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT YOU NEED TO ORDER REPLACEMENT PARTS. Made in Indonesia | INS-2107014-A-ACACIA FARMHOUSE PORCH SWING-ENG 2-15-22...
  • Page 2 INSTALLATION SERVICES AVAILABLE! Need a helping hand? Let our team of professionals handle the installation for you! *Installation services are only available to U.S. customers. With Go Con gure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver &...
  • Page 3 Owner’s Manual Please Read This Before Starting Assembly MISSING A PART? CALL US BEFORE GOING BACK TO THE STORE The store where you made your purchase does not stock parts for this item. If you have assembly questions or you are missing or have damaged parts, please call 1-800-856-4445 you can also visit www.backyarddiscovery.com...

  • Page 4: Limited Warranty

    Backyard Discovery Wood Patio Structure Backyard Discovery warrants this wood patio product to be free from defects in materials and workmanship for a period of two (2) years from the original date of purchase. All wood carries a five (5) year warranty against rot and decay from the original purchase date. LIMITED WARRANTY...
  • Page 5 Owner’s Manual Safety Warnings and Maintenance Instructions WARNING IT IS IMPORTANT TO CHECK AND TIGHTEN ALL HARDWARE AT THE BEGINNING AND DURING THE SEASON AS THEY MAY LOOSEN DUE TO WOOD EXPANSION AND CONTRACTION. • DO NOT climb or walk on the roof for any reason •...
  • Page 6 About Our Wood Your Backyard Discovery product is made out of 100% Acacia wood. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
  • Page 7 Owner’s Manual Assembly Tips Protrusion Hazard Incorrect Correct If you see exposed threads and your bolt protrudes beyond the T-Nut you may have over tightened the bolt or used incorrect hardware. If you’ve overtightened, remove the bolt and add washers to eliminate the protrusion.

  • Page 8: Assembly Tip

    Owner’s Manual Assembly Tips ASSEMBLY TIP: Keep and eye out for these boxes which will contain helpful pictures and information making the assembly process as quick and painless as possible. Sorting Wood When removing the wood from the boxes we recommend arranging them by part number before you begin assembly.
  • Page 9 Owner's Manual Tools Required for Installation...
  • Page 10 Owner's Manual Basic Setup Dimensions & Assembly Notes It is critically important that you start with level ground or surface to ensure safety and your product’s longevity Check carefully for overhead lines and ensure there is at least 6ft-7in (2m) clearance from the roof to any overhead lines.

  • Page 11: Parts Identification

    Parts Identification Owner's Manual Wood Components (Not to Scale) LEFT ARM REST - W4L15586 RIGHT ARM REST - W4L15584 1 1/8"x4 5/8"x26 1/8" (27x118x665) (x1) 1 1/8"x4 5/8"x26 1/8" (27x118x665) (x1) BACK REST SUPPORT - W4L15580 BENCH SUPPORT - W4L15581 1 1/8"x3 3/8"x23 1/4"...

  • Page 12: Hardware Components

    Owner's Manual Parts Identification Hardware Components H100408 SCREW PWH BLK (x2) 8x1/2 H100816 SCREW PFH BLK (x4) 8x7/8 H100385 SCREW PFH BLK (x17) H100479 NUT LOCK BLK (x18) 5/16 H100391 SCREW PFH BLK (x44) H100198 WASHER LOCK EXT BLK (x15) 8x19 H100761 BOLT HEX BLK...
  • Page 13 Parts Identification Hardware Components A100041 TORX WRENCH (x2) T-40 A100042 TORX BIT (x2) T-40 H100764 SCREW SETTER (x1)
  • Page 14 Owner's Manual Parts Identification Accessory Components (Not to Scale) A4M00631 TIE STRAP PLATE BLK (x2) A4M00632 CHAIN SUPPORT BRACKET BLK (x2) A4M00633 QUICK LINK BLK (x6) A100241 BYD ID TAG (SMALL) WITHOUT AGES (x1) A4M00988 PORCH SWING CHAIN (x2)
  • Page 15 STEP 1 BENCH SUPPORT - W4L15581 BACK REST SUPPORT - W4L15580 CENTER BACK REST SUPPORT - W4L15588 1 1/8"x3 3/8"x20 1/4" (27x86x515) 1 1/8"x3 3/8"x23 1/4" (27x86x590) 1 1/8"x3 3/8"x23 1/4" (27x86x590) (x2) (x2) (x1) CENTER BENCH SUPPORT - W4L15587 1 1/8"x3 3/8"x20 1/4"...
  • Page 16 STEP 2 FRONT BENCH SEAT BOARD - W4L15585 FRONT BENCH SEAT BOARD ASSEMBLY - W2A03255 BENCH SEAT BOARD - W4L15582 (x1) 11/16"x1 3/4"x47 3/16" (18x45x1198) 3/4"x1 3/4"x47 1/8" (18x45x1198) (x1) 3/4"x3 3/8"x47 1/8" (18x86x1198) (x4) H100391 SCREW PFH BLK (x26) NOTE: USE PILOT HOLES IN SUPPORTS TO MOUNT BENCH SEAT BOARDS.
  • Page 17 STEP 3 BACK REST BOARD - W4L15591 H100391 SCREW PFH BLK 1 1/8"x3 3/8"x49 1/4" (27x86x1252) (x10) (x2) NOTE: USE PILOT HOLES IN SUPPORTS TO MOUNT BACK REST BOARDS. (x10) SCREW - 2" (x1) (x1)
  • Page 18 STEP 4 H100385 SCREW PFH BLK (x16) RIGHT X-FRAME - W4L15589 LEFT X-FRAME - W4L15590 15/16"x3 3/8"x29 5/16" (24x86x745) 1"x3 3/8"x29 5/16" (24x86x745) (x2) (x2) H100816 SCREW PFH BLK (x4) 8x7/8 NOTE: ATTACH E6 BOARDS BEFORE ATTACHING E5 BOARDS. (x1) (x1) (x1) (x1)
  • Page 19 STEP 5 H100408 SCREW PWH BLK (x2) 8x1/2 A100241 BYD ID TAG (SMALL) WITHOUT AGES (x1) (x2) BYD ID TAG (SMALL) WITHOUT AGES NOTE: CENTER THE ID TAG ON THE BACK REST BOARD. (x2) SCREW - 1/2"...
  • Page 20 STEP 6 ARM REST SUPPORT - W4L15583 H100484 BOLT WH BLK 2 3/4"x1 3/8"x13" (70x35x330) A4M00632 (x2) (x4) 5/16x3 1/4 CHAIN SUPPORT BRACKET BLK (x2) H100761 BOLT HEX BLK H100479 NUT LOCK BLK H100198 WASHER LOCK EXT BLK (x2) H100474 WASHER FLAT BLK 5/16x2 (x6)

  • Page 21: Nut Barrel

    STEP 7 D1 - RIGHT ARM REST - W4L15584 D2 - LEFT ARM REST - W4L15586 1 1/8"x4 5/8"x26 1/8" (27x118x665) 1 1/8"x4 5/8"x26 1/8" (27x118x665) H100391 SCREW PFH BLK H100192 NUT BARREL WH BLK H100416 BOLT WH BLK (x4) (x4) 5/16x7/8 (x4)
  • Page 22 STEP 8 A4M00631 TIE STRAP PLATE BLK (x2) H100761 BOLT HEX BLK H100479 NUT LOCK BLK H100474 WASHER FLAT BLK (x4) 5/16x2 (x4) 5/16 (x8) 9x18 (x2) TIE STRAP PLATE BLK (x4) BOLT - 5/-16x2" BLK (x4) NUT - 5/16" (x4) (x4) WASHER - 9x18...
  • Page 23 STEP 9 SHORT MEDIUM LONG A4M00633 QUICK LINK BLK (x4) A4M00988 PORCH SWING CHAIN (x2) LONG LONG (x2) PERGOLA SWING CHAIN SHORT MEDIUM SHORT MEDIUM (x2) QUICK LINK BLK (x2) QUICK LINK BLK...
  • Page 24 STEP 10 A4M00633 QUICK LINK BLK (x2) • Before hanging the swing, make sure the support beam or joists in the ceiling will TIP: support the weight of the swing and its occupants. If you ’ re unsure of the ceiling strength please get the advice of an experienced carpenter.
