用户手册
User's Manual
SIGM-2650
Ver.: A0.1
Date：2020-06-24

Advertisement

Table of Contents
loading

Related Manuals for JHCTech SIGM-2650

Summary of Contents for JHCTech SIGM-2650

  • Page 1 用户手册 User’s Manual SIGM-2650 Ver.: A0.1 Date：2020-06-24...
  • Page 2 User’s Manual Version Note Ver. Note Date Writer A0.1 first publish 20200624 Echo Guo...
  • Page 3 User’s Manual Copyright The documentation and the software included with this product are copy- righted 2020 by Shenzhen JHC Technology Development Co.,Ltd. All rights are reserved. Shenzhen JHC Technology Development Co.,Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
  • Page 4 User’s Manual Product Warranty (2 years) JHC warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for 2 years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper installation.
  • Page 5 Technical Support and Assistance Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the product. Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical support if you need additional assistance.

  • Page 6: Table Of Contents

    User’s Manual CONTENTS General Information ................... 4 1.1 Introduction ..........................5 1.2 Features ........................... 5 1.3 Specifications ........................... 6 1.3.1 General ............................6 1.3.2 Display ............................6 1.3.3 Ethernet ............................7 1.3.4 Audio ............................. 7 1.3.5 Power Consumption ........................7 1.4 Environmental Specifications ....................
  • Page 7 User’s Manual 2.3.6 Smart Display ..........................20 2.3.7 COM1/2 ............................21 2.3.8 Option CAN /AUDIO ........................21 2.3.9 DIO .............................. 22 2.3.10 Remote Switch .......................... 22 2.3.11 Mini PCIe1/3 ..........................22 2.3.12 Mini PCIe2 ..........................24 2.3.13 mSATA ............................25 2.3.14 LED ............................
  • Page 8 User’s Manual 4.1 Follow the sequence below to install the drivers: ..............60 4.2 Installation: ..........................60 4.3 CPU TEMP LED driver....................... 61 4.4 Utility Software Reference ...................... 61 SYSTEM RESOURCE ..................62 5.1 WDT and GPIO ........................63...

  • Page 9: General Information

    User’s Manual General Information...

  • Page 10: Introduction

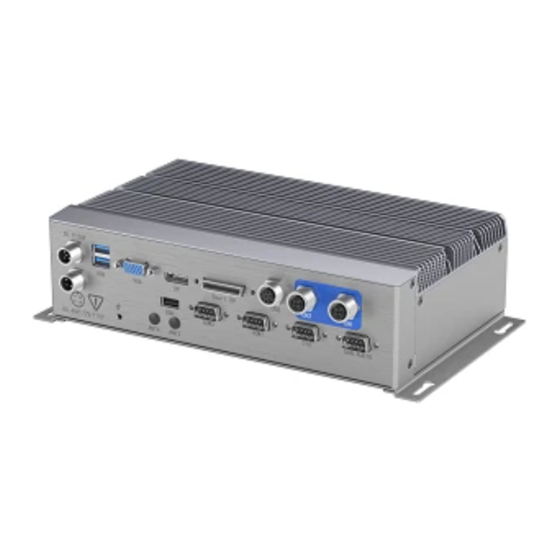

    SIGM-2650 is a fan-less reinforced on-board computer, and the mainboard and sub-board are designed with an all-in-one no-wire architecture. The SIGM-2650 is equipped with Intel® Apollo Lake E3950 CPU, dual channel (on-board +SODIMM) DDR3L, 1866MHz, up to 8GB, and the 9th generation Intel® HD core display.

  • Page 11: Specifications

    User’s Manual Line out mSATA 2.5” SATA bay Power input DC 9~36V, ITPS DC 48/72/110V Table 1.1: Features 1.3 Specifications 1.3.1 General CPU: Intel® Apollo Lake E3950 CPU System Memory: Dual channel (on-board +SODIMM) DDR3L, 1866MHz, up to 8GB Watchdog Timer: 255-level interval timer, setup by software USB: 2*USB3.0 (Type A);...

  • Page 12: Ethernet

    User’s Manual 1.3.3 Ethernet Chipset: 2*Intel I210AT Speed: 10/100/1000 Mbps with POE 802.3af Interface: 1.3.4 Audio Chipset: Realtek ALC662VD Interface:1*Line out，1*Mic，3.5mm phone jack 1.3.5 Power Consumption Input Voltage: DC 9-36V，with ITPS power management (S001) Railway standard power input DC 48/72/110V（S002） Power Consumption: TDP 12V/3.76A (Intel®...

  • Page 13: Mechanical Specifications

    User’s Manual 1.5 Mechanical Specifications The SIGM-2650 is a fan-less reinforced on-board computer, consists of a mainboard (STX-I720), a sub-card (ECB-243). STX-I720 Front Picture 1.1: STX-I720 Front STX-I720 Rear Picture 1.2: STX-I720 Rear...
  • Page 14 User’s Manual ECB-243 Front Picture 1.3: ECB-243 SIGM-2650 Front Panel Picture 1.4: SIGM-2650 Front Panel SIGM-2650 Rear Panel Picture 1.5: SIGM-2650 Rear Panel...
  • Page 15 User’s Manual SIGM-2650 Dimension： Unit: mm Picture 1.6 SIGM-2650 Dimension...

  • Page 16: Hardware Installation

    User’s Manual Hardware Installation...

  • Page 17: Introduction

    2.2 Switches The SIGM-2650 box computer has a number of switches inside the chassis that allows you to configure your system to suit your application. The table below shows the function of each of the board’s switches: Switcher...

  • Page 18: At/Atx Power On Mode Selection

    Picture 2.2: AT/ATX The SIGM-2650 provides an AT/ATX SW, which users can set Power-on mode by it. When you dial it at AT, it means power on by AC Power; When you dial it at ATX, it means power on by Power button.

  • Page 19: I/O/Button/Led Indication

    User’s Manual 2.3 I/O/Button/LED Indication SIGM-2650 Front： Picture 2.4: SIGM-2650 Front The front panel contains the I/O interface：  1*DC-in Power: M12 A-Code 5-pole terminal DC9~36V（S001）  1*DC-in Power: M12 A-Code 4-pole terminal DC 48/72/110V（S002）  2*USB3.0 Type A,1*USB2.0 Type A,2*USB2.0 M12 A-Code ...

  • Page 20: Ethernet Connector (Poe)

     1*Remote SW  2*Antenna 2.3.1 Ethernet Connector (POE) The SIGM-2650 is equipped with 2*Intel® I210AT, the Ethernet provides M12 interface, with POE function, and supports 802.3af (15.4w). Table 2.1 for pin assignments. Picture 2.6: POE Table 2.1: POE Connector Pin Assignments...

  • Page 21: Power Input (Dc-In)

    TXD3- 2.3.2 Power input (DC-IN) SIGM-2650-S001 power input adopts DC 9~36V, ITPS, SIGM-2650-S002 power input adopts railway standard power DC 48/72/110V. The DC 9~36V equipped 5-Pin M12 A-code power socket can support up to 60W power. This is a low power solution that uses a 12V AC to DC adapter for input DC power to the socket.

  • Page 22: Usb

    VIN- 2.3.3 USB SIGM-2650 supports 2*USB3.0 (Type A); 1*USB2.0 (Type A); 1*USB2.0 (8-pin M12 A-code), These USB connectors support plug and play and hot plug capabilities. Interface comply with the USB UHCI version 3.0 and 2.0 protocols and can be disabled through the system BIOS Settings.These USB can be connected to any other device with a USB interface and are suitable for many new digital devices.
  • Page 23 User’s Manual Picture 2.10: USB2.0 Type A Table 2.5: USB3.0 Type A Connector Pin Assignments Signal USB_VCC USB_D- USB_D+ USB_GND Picture 2.11: USB2.0 M12 A-Code Table 2.6: USB2.0 M12 A-Code Connector Pin Assignments Signal VBUS VBUS...

  • Page 24: Vga

    Signal GREEN BLUE 2.3.5 DP The SIGM-2650 provides a high resolution DP interface that supports up to a maximum resolution of 4096* 2160@60Hz. Detailed pin assignment is described in table 2.7. Picture 2.12: DP Table 2.7: DP Connector Pin Assignments...

  • Page 25: Smart Display

    CTRL DATA2_P 2.3.6 Smart Display The SIGM-2650 provides a Smart Display interface through a SCSI socket, supporting up to a maximum resolution of 1920* 1200@60 Hz. Detailed pin assignment is described in table 2.8. Picture 2.13: Smart Display Table 2.8: Smart Display Connector Pin Assignments...

  • Page 26: Com1/2

    User’s Manual 2.3.7 COM1/2 SIGM-2650 provides 2 COM1/2 isolated serial ports through the 2* d-sub 9-pin connector. COM1 can only be configured as RS485, COM2 can only be configured as RS232. Table 2.9 is a detailed description of pin assignment.

  • Page 27: Dio

    User’s Manual CAN2H 2.3.9 DIO SIGM-2650 provides 8-bit isolation DIO, 2.5KV photoelectric isolation input (H: 5-24V, L: 0-1.5V) and photoelectric isolation output (200Ma) through 1* d-sub 9-pin connector. Picture 2.16: DIO Table 2.11: DIO Connector Pin Assignments Signal Signal 2.3.10 Remote Switch The remote switch signal interface for switching machine is a 2-pin terminal at the end of the sub-card coastline, pin definition is shown in table 2.12.
  • Page 28 User’s Manual Picture 2.18: Mini PCIe1/3 Table 2.13: Mini PCIe 1/3 Connector Pin Assignments Signal Signal PCIE_WAKE_N V3P3_S V1P5_S V3P3_S SIM3_DISABLE PLTRST_N V3P3_S +V1.5 SMB_SCL SMB_SDA USB2_DN9 USB2_DP9 V3P3_S...

  • Page 29: Mini Pcie2

    V3P3_S 2.3.12 Mini PCIe2 The SIGM-2650 mainboard (STX-I720) also provides 1*Mini PCIe pin spacing 5.2mm interface (Mini PCIe2) with USB signal. When 2*CAN is selected, this Mini PCIe slot is occupied. Devices with USB signals can be extended, such as CAN Bus. The Mini PCIe2 interface definition is shown in table 2.14.

  • Page 30: Msata

    The SIGM-2650 mainboard (STX-I720) provides a standard mSATA interface with SATA+USB signal. Picture 2.19: mSATA 2.3.14 LED The SIGM-2650 panel has one power indicator, one hard disk indicator, three network connection status indicators, and three CPU operating temperature indicators. When the CPU operating temperature ≤85℃,...
  • Page 31 User’s Manual the green light; When the CPU temperature is between 86℃ and 95℃, the yellow light is on, and when the CPU operating temperature is ≥96℃, the red light is on. If you keep the CPU running at a red light, it will affect the life of the machine.

  • Page 32: Installation

    User’s Manual 2.4 Installation 2.4.1 HDD/SSD installation Step 1: unscrew the 2 screws on the HDD/SSD bracket of the rear panel. Step 2: remove the HDD/SSD stent. Step 3: load the HDD/SSD into the bracket and tighten the 4 screws on the left and right sides to fix the HDD/SSD.
  • Page 33 User’s Manual Picture 2.22: HDD/SSD installation（3） Picture 2.23: HDD/SSD installation（4）...

  • Page 34: Sim1/Sim2 Installation

    User’s Manual 2.4.2 SIM1/SIM2 installation Step 1: unscrew the 2 screws of the rear panel SIM1/SIM2 and remove the SIM1/SIM2 baffle Step 2: push the SIM card into the corresponding SIM card slot Step 3: fix the SIM1/SIM2 baffle with 2 screws Picture 2.24: SIM1/SIM2 installation（1）...

  • Page 35: Msata Installation

    User’s Manual 2.4.3 mSATA installation Step 1: unscrew the 2 screws on the HDD/SSD bracket in the back panel, and remove the HDD/SSD bracket Step 2: unscrew the 6 screws on the bottom cover and remove the mounting bracket and bottom cover Step 2: unscrew 12 screws on left and right sides and back panel Step 3: remove the back panel cover, insert the mSATA module, and screw Step 5: complete the installation of the panel cover and bottom cover with the reverse step...
  • Page 36 User’s Manual Picture 2.28: mSATA installation（3） Picture 2.29: mSATA installation（4）...

  • Page 37: Mini Pcie Installation

    User’s Manual 2.4.4 Mini PCIe installation Step 1: it is consistent with mSATA module installation steps. For details, please refer to "2.4.3 mSATA installation". Picture 2.30: Mini PCIe installation（1）...

  • Page 38: Bios Setup

    User’s Manual BIOS Setup...

  • Page 39: Bios Description

    User’s Manual 3.1 BIOS Description BIOS is the communication bridge between hardware and software. How to correctly set the BIOS parameters is crucial for the system to work stably and whether the system works at its best. This chapter describes how to change the system settings through the BIOS settings. Note: For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual.

  • Page 40: Bios Parameter Settings

    User’s Manual 3.2 BIOS parameter settings When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options.

  • Page 41: Bios Navigation Keys

    User’s Manual ▶ ． In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.
  • Page 42 User’s Manual...
  • Page 43 User’s Manual BIOS Vendor (American Megatrends) This item shows the information of the BIOS vendor. Core Version (5.13) This item shows the information of the Core Version. Project Version (V720S 0.06 X64) This item shows the information of the motherboard Version. Build Date and Time This item shows the information of the BIOS build date and time Processor Information...

  • Page 44: Advanced Menu

    User’s Manual IGFX VBIOS Version This item shows the Current VBIOS version of the CPU integrated graphics. Total Memory This item shows the total memory size of the current motherboard. Memory Frequency This item shows the current memory operating frequency. PCH Information This item shows the basic information about PCH, including name, PCH SKU, etc.
  • Page 45 User’s Manual ▶ CPU Configuration The configuration of the central processor, enter this sub-menu, there will be detailed details of the CPU, as well as various settings of the CPU.
  • Page 46 User’s Manual ▶ Power & Performance This item in the menu shows how to set the Power Management Control of CPU and GT.
  • Page 47 User’s Manual...
  • Page 48 User’s Manual ▶ Trusted Computing Trusted computing, enter this sub-menu, there will be the setting of the encryption security module (the motherboard will install the encryption module hardware will take effect)
  • Page 49 User’s Manual ▶ ACPI Settings Advanced configuration and power management interface settings, enter this submenu, there will be ACPI related settings.
  • Page 50 User’s Manual ACPI Sleep State (S3 (Suspend to RAM)) This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default). Press <Esc> to return to the Advanced Menu page.
  • Page 51 User’s Manual ▶ SIO Configuration setting Super IO Configuration settings, enter this sub-menu, there will be set COM working mode or disabled the Serial port function. COM1 can be set as RS485. COM2 can be RS232.
  • Page 52 User’s Manual ▶ CSM Configuration CSM (Compatibility Support Module) configuration, enter this sub-menu, there will be various settings to support UEFI startup and non-UEFI startup. If you need to start the traditional MBR device, you need to enable CSM. Turning off the CSM turns it into a pure UEFI boot.
  • Page 53 User’s Manual CSM Support Compatibility Support Module, which is a compatibility module, is a special module of UEFI and provides compatibility support for system that do not support UEFI. GateA20 Active This item indicates whether to disable GA20 through the BIOS server or keep the activation status all the time.

  • Page 54: Chipset Menu

    User’s Manual This item is used to set the EFI storage Option ROM boot or the traditional storage Option ROM boot. Video This item is used to set EFI display Option ROM startup or traditional display Option ROM startup. Other PCI devices This item is used to set the EFI PCI device Option ROM boot or the traditional PCI device Option ROM boot.
  • Page 55 User’s Manual ▶ LCD Control PCH-IO Configuration (South Bridge Configuration) ▶ PCI Express Configuration...
  • Page 56 User’s Manual ▶ SATA And RST Configuration SATA hard disk and fast storage configuration, enter this sub-menu, there will be related settings of the hard disk.
  • Page 57 User’s Manual ▶ USB Configuration...

  • Page 58: Security Menu

    User’s Manual 3.2.5 Security menu...
  • Page 59 User’s Manual Administrator Password This item sets the information of the administrator password. User Password This item sets the information of the normal user password.

  • Page 60: Boot Menu

    User’s Manual 3.2.6 Boot menu Setup Prompt Timeout Setup prompts for waiting time. This option is to set the time to wait for the Del key to enter the BIOS setup after booting. Bootup NumLock State Set the state of the small numeric keypad at startup. Quiet Boot Switch full screen logo control Fast Boot...

  • Page 61: Save & Exit Menu

    User’s Manual 3.2.7 Save & Exit menu...
  • Page 62 User’s Manual Save changes and Exit; This item enables you to save the changes that you have made and exit. Discard Changes and Exit; This item enables you to discard the changes that you have made and exit. Save Changes and Reset; This item enables you to save the changes that you have made and reset.

  • Page 63: Updating The Bios

    User’s Manual Save as User Defaults; This item enables you to save the changes as user defaults that you have made. Restore User Defaults; This item enables you to restore the user defaults. 3.3 Updating the BIOS The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters.

  • Page 64: Driver Installation

    User’s Manual Driver Installation...

  • Page 65: Follow The Sequence Below To Install The Drivers

    User’s Manual The SIGM-2650 comes with a CD-ROM that contains all drivers and utilities that meet your needs. 4.1 Follow the sequence below to install the drivers: Figure 5.1 win10 drivers Step 1 – Install Audio Driver Step 2 – Install Chipset Driver Step 3 –...

  • Page 66: Cpu Temp Led Driver

    3. The system will help you install the driver automatically 4.3 CPU TEMP LED driver The SIGM-2650 provides temperature showing in LEDs, economic and reliable. Users can monitor the working state of the CPU according to the display of the LED. Please perform the following operations, making LEDs work normally.

  • Page 67: System Resource

    User’s Manual SYSTEM RESOURCE...

  • Page 68: Wdt And Gpio

    User’s Manual 5.1 WDT and GPIO /* ====================================================================== * void jhctech_init(); * function description: library initialization, This function must be called before calling other functions * parameter description： * creation date： 5*======================================================================*/ /* ====================================================================== * void jhctech_init(); * function description: library release, Pair with jhctech_init, release the library's occupied resources when not needed * parameter description：...
  • Page 69 User’s Manual Parameter:port fill in subcard GPIO number, 1 or 2 Level 8 bit of aByte, each bit controls a GPIO pin output value, Bit=1, means output high level Bit =0, means output low level Level Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1...
