用户手册
User's Manual
KGEC-6301
Ver.: A0.1
Date：2020-09-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KGEC-6301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JHCTech KGEC-6301

Summary of Contents for JHCTech KGEC-6301

  • Page 1 用户手册 User’s Manual KGEC-6301 Ver.: A0.1 Date：2020-09-08...
  • Page 2 User’s Manual Version Note Ver. Note Date Writer A0.1 first publish 20200908 Echo Guo...
  • Page 3 User’s Manual Copyright The documentation and the software included with this product are copy- righted 2020 by Shenzhen JHC Technology Development Co.,Ltd. All rights are reserved. Shenzhen JHC Technology Development Co.,Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
  • Page 4 User’s Manual Product Warranty (2 years) JHC warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for 2 years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper installation.
  • Page 5 Technical Support and Assistance Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the product. Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical support if you need additional assistance.

  • Page 6: Table Of Contents

    User’s Manual CONTENTS General Information ................... 4 1.1 Introduction ..........................5 1.2 Features ........................... 5 1.3 Specifications ........................... 7 1.3.1 General ............................7 1.3.2 Display ............................7 1.3.3 Ethernet ............................7 1.3.4 Power Consumption ........................7 1.4 Environmental Specifications ....................8 1.5 Order information ........................
  • Page 7 User’s Manual 2.3.7 MIO ............................. 20 2.3.8 DIO .............................. 21 2.3.9 SATA ............................. 21 2.3.10 SATA Power ..........................22 2.3.11 Mini PCIe ........................... 22 2.3.12 mSATA ............................23 2.3.13 PCI （T001） ........................... 25 2.3.14 PCIeX4（T001） ........................25 2.3.15 LED ............................27 2.4 Installation ..........................
  • Page 8 User’s Manual Driver Installation ..................60 4.1 Follow the sequence below to install the drivers: ..............61 4.2 Installation: ..........................61 4.3 CPU TEMP LED driver....................... 62 4.4 Utility Software Reference ...................... 63 SYSTEM RESOURCE ..................64 5.1 WDT and GPIO ........................65...

  • Page 9: General Information

    User’s Manual General Information...

  • Page 10: Introduction

    User’s Manual 1.1 Introduction The KGEC-6301 is a new edge controller by JHC, and the mainboard and sub-board are designed with ® an all-in-one architecture without connection. The KGEC-6301 is equipped with Intel Skylake-S/ Kabylake-S Core I3/I5/I7 CPU, support for 1* DDR4 2133/2400Mhz, up to 16GB, and the 9th ®...
  • Page 11 User’s Manual Model No. KGEC-6301-S001 KGEC-6301-T001 Specification ® ® Intel Skylake- Intel Skylake- S/Kabylake-S LGA1151 S/Kabylake-S LGA1151 ® ® Chipset Intel H110 Intel H110 Mermory 1*DDR4 up to 16GB 1*DDR4 up to 16GB USB3.0 16-bit Iso. DIO 16-bit Iso. DIO DVI-I with CAN、Uart signal...

  • Page 12: Specifications

    User’s Manual 1.3 Specifications 1.3.1 General CPU: Intel® Skylake-S/Kabylake-S Core I3/I5/I7 CPU System Memory: 1*DDR4, 2133/2400MHz, up to 16GB Watchdog Timer: 255-level interval timer, setup by software USB: 4*USB3.0, Type A Serial Ports: 2*RS232/422/485 with TVS isolated (DB9 ) DIO：16-bit isolated (DB9), 2.5KV opto-isolated input(H: 5-24V, L:0-1.5V) , opto- isolated output(200mA） Expansion Interface: 1*Mini PCIe with PCIe X1+USB signal, 1*SIM slot, support 1*4G/LTE/Wifi/BT/GPS 1*PCIe X4 slot with PCIe X1 signal (T001)

  • Page 13: Environmental Specifications

    AC/DC power adapter, DC19V/6.32A 120W 1.6 Mechanical Specifications The KGEC-6301 edge controller is assembled by the splice of The OSBC (single-board computer STX- I952) and the Sub-card (ECB-252 and ECX-253) of JHC, and installed in the universal aluminum rectangular profile housing. Among them, sub-card ECX-253 is only assembled in T001.
  • Page 14 User’s Manual STX-I952 Front Picture 1.1: STX-I952 Front STX-I952 Rear Picture 1.2: STX-I952 Rear ECB-252 Front...
  • Page 15 User’s Manual Picture 1.3: ECB-252 ECX-253 Front (T001) Picture 1.4: ECX-253...

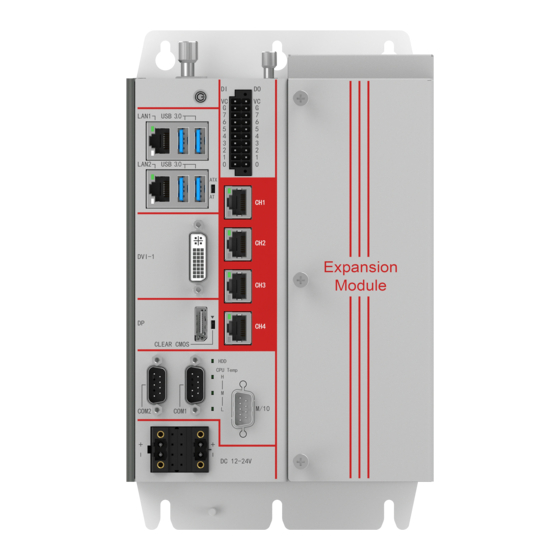

  • Page 16 User’s Manual KGEC-6300-T001 Front Panel Picture 1.4: KGEC-6301-T001 Front Panel KGEC-6300-T001 Rear Panel Picture 1.5: KGEC-6301-T001 Rear Panel...
  • Page 17 User’s Manual KGEC-6301-S001 Dimension： Unit: mm Picture 1.6 KGEC-6301-S001 Dimension KGEC-6301-T001 Dimension： Unit: mm Picture 1.7 KGEC-6301-T001 Dimension...

  • Page 18: Hardware Installation

    User’s Manual Hardware Installation...

  • Page 19: Introduction

    2.2 Switches The KGEC-6301 edge controller has a number of switches inside the chassis that allows you to configure your system to suit your application. The table below shows the function of each of the board’s switches: Switcher...

  • Page 20: At/Atx Power On Mode Selection

    Picture 2.2: AT/ATX The KGEC-6301 provides an AT/ATX SW, which users can set Power-on mode by it. When you dial it at AT, it means power on by AC Power; When you dial it at ATX, it means power on by Power button.
  • Page 21  4*USB3.0 Type A  1*DP,1*DVI-I  4*POE:RJ45  2*LAN:RJ45  2*COM: DB9  16-bit DIO: DB9  1*MIO:DB9 KGEC-6301-T001 Rear： Picture 2.4: KGEC-6301-T001 Rear The rear panel contains the I/O interface：  1*2.5” SATA bay  1*PCIe X4 slot(T001)  2*32bit-PCI slot(T001)

  • Page 22: Ethernet Connector

    The USB device allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. The KGEC-6301 provides 4*USB3.0, 1*USB2.0 for dongle. The USB interface can be disabled in the system BIOS setup. Table 2.2 for USB3.0 pin assignments.

  • Page 23: Dvi-I

    DATA2_P 2.3.4 DVI-I The KGEC-6301 provides a DVI-I display port with DVI-D and VGA signal. The DVI-D can support the most resolution up to 1920*1200@60Hz, The VGA can support the most resolution up to 2560*1600@ 60Hz. Table 2.5 for DVI-I pin assignments.

  • Page 24: Power Input (Dc-In)

    2.3.5 Power input (DC-IN) The KGEC-6301 provides a 2*2Pin Phoenix for DC 12-24V power input. The power input use a double- layer power socket, and the upper and lower layers can be used as power input or output separately, and it is also connected in parallel with the built-in DC_OUT circuit.

  • Page 25: Com

    Signal DC_6_48 DC_6_48 2.3.6 COM The KGEC-6301 provides 2*COM1/2 with TVS isolated serial ports through the 2* d-sub 9-pin connector. COM1/2 can be configured as RS232/422/485, Table 2.1 for COM pin assignments. Picture 2.11: COM Table 2.7: COM1/COM2 Pin Assignments...

  • Page 26: Dio

    Picture 2.13: DIO Table 2.9: DIO Pin Assignments Signal Signal ECOM1 E_GND VCC_ISO PCOM1 2.3.9 SATA The KGEC-6301 provides a standard SATA3.0 interface with a data transfer rate up to 6Gb/s for connecting SATA devices. Table 2.10 for SATA pin assignments.

  • Page 27: Sata Power

    Signal Signal 2.3.11 Mini PCIe The KGEC-6301 mainboard (STX-I952) provides 1*Mini PCIe pin spacing 9.9mm interface, with PCIe X1+USB signal, with dual SIM card slot, support for dual 4G LTE/Wifi/BT/GPS. The Mini PCIe interface definition is shown in table 2.12.

  • Page 28: Msata

    CLK_PE_PORT7_N SIM1_CLK CLK_PE_PORT7_P SIM1_RESET +VUIM_VPP PERST PCIE7_RX_N PCIE7_RX_P 1.5V_1 SMBCLK PCIE7_TX_N SMBDAT PCIE7_TX_P USB_D- USB_D+ 1.5V 2.3.12 mSATA The KGEC-6301 provides a standard full- mSATA interface with SATA+USB signal for storage. Table 2.13 provides a detailed description of pin assignment.
  • Page 29 User’s Manual mSATA Picture 2.17: mSATA Table 2.13: mSATA Pin Assignments Signal Signal 1.5V_2 LCP_FRAME- L_AD3 L_AD2 L_AD1 L_AD0 PLTRST1_N DEBUG_CARD_CL1 SATA3_RX_P1 SATA3_RX_N1 1.5V_1 SMBCLK SATA3_TX_N1 SMBDAT SATA3_TX_P1...

  • Page 30: Pci （T001

    USB_D- USB_D+ 1.5V 2.3.13 PCI （T001） The KGEC-6301-T001 provides 2* PCI extension slots through the sub-card ECX-253 for connecting PCI extension devices, such as motion control cards、Data acquisition cards, etc., with an extension card length not exceeding 300mm. 2*32bit-PCI Picture 2.18: PCI 2.3.14 PCIeX4（T001）...
  • Page 31 User’s Manual 1*PCIeX4 Picture 2.19: PCI Table 2.14: PCIe X4 Pin Assignments Signal Signal 12V_1(P) PRSNT1#(B) 12V_2(P) 12V_4(P) 12V_3(P) 12V_5(P) GND_1(P) GND_3(P) SMCLK(B) JTAG2(B) SMDAT(B) JTAG3(B) GND_2(P) JTAG4(B) 3_3V_1(P) JTAG5(B) JTAG1(B) 3_3V_2(P) 3_3VAUX(I) 3_3V_3(P) WAKE*(B) PERST# RSVD_1(B) GND_7(P) GND_4(P) REFCLK+(I) HSOP0(I) REFCLK-(I) HSON0(I)

  • Page 32: Led

    User’s Manual GND_11(P) HSIN1(O) HSOP2(I) GND_17(P) HSON2(I) GND_18(P) GND_12(P) HSIP2(O) GND_13(P) HSIN2(O) HSOP3(I) GND_19(P) HSON3(I) GND_20(P) GND_14(P) HSIP3(O) RSVD_2(B) HSIN3(O) PRSNT2#_2(I) GND_21(P) GND_15(P) RSVD_4(B) 2.3.15 LED The KGEC panel has one power indicator, one hard disk indicator, three network connection status indicators, and three CPU operating temperature indicators.

  • Page 33: Installation

    User’s Manual 2.4 Installation 2.4.1 HDD/SSD installation Step 1: unscrew the 2 screws on the HDD/SSD bracket of the rear panel. Step 2: remove the HDD/SSD stent. Step 3: load the HDD/SSD into the bracket and tighten the 4 screws on the left and right sides to fix the HDD/SSD.
  • Page 34 User’s Manual Picture 2.22: HDD/SSD installation（2） Picture 2.23: HDD/SSD installation（3）...

  • Page 35: Msata Installation

    User’s Manual Picture 2.24: HDD/SSD installation（4） 2.4.2 mSATA installation Step 1: Unscrew 2 screws on the side panel fan baffle and remove the fan baffle Step 2: Unscrew the 20 screws on the left and right panel, front panel and back panel Picture 2.25: mSATA installation（1）...
  • Page 36 User’s Manual Picture 2.26: mSATA installation（2） Picture 2.27: mSATA installation（3） Picture 2.28: mSATA installation（5）...
  • Page 37 User’s Manual Step 3: Unscrew 3 screws from the bottom cover and remove the cover plate Picture 2.29: mSATA installation（6） Step 4: Unscrew the 3 screws on the hard disk support and remove the hard disk cover Picture 2.30: mSATA installation（7）...

  • Page 38: Mini Pcie Installation

    User’s Manual Step 5: Unscrew 1 screw on the down clamp and take out the down clamp. Picture 2.31: mSATA installation（8） Step 6: Insert the mSATA module and turn the screws. Picture 2.32: mSATA installation（9） Step 7: Complete the installation of the machine in reverse steps. 2.4.3 Mini PCIe installation Step 1: it is consistent with mSATA module installation steps.

  • Page 39: Pci Installation（T001

    User’s Manual Picture 2.33: Mini PCIe installation（1） 2.4.4 PCI installation（T001） Step 1: Unscrew the 3 screws on the extension module and remove the cover plate. Picture 2.34: PCI installation（1） Step 2: Unscrew the 1/2 screw on the expansion slot baffle and remove the baffle bar. (If only one PCI expansion card is inserted, select only one of the baffles, unscrew the screw above, and remove the baffles.
  • Page 40 User’s Manual Picture 2.35: PCI installation（2） Step 3: Insert the PCI extension module into the extension slot. Step 4: Close the cover plate of the extension module and tighten the 3 screws. Picture 2.36: PCI installation（3）...

  • Page 41: Pcix4 Installation（T001

    User’s Manual 2.4.5 PCIX4 installation（T001） Step 1: it is consistent with PCIeX4 module installation steps. For details, please refer to "2.4.4 PCI installation". Picture 2.37: PCIeX4 installation（1）...

  • Page 42: Bios Setup

    User’s Manual BIOS Setup...

  • Page 43: Bios Description

    User’s Manual 3.1 BIOS Description BIOS is the communication bridge between hardware and software. How to correctly set the BIOS parameters is crucial for the system to work stably and whether the system works at its best. This chapter describes how to change the system settings through the BIOS settings. Note: For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual.

  • Page 44: Bios Parameter Settings

    User’s Manual 3.2 BIOS parameter settings When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options.

  • Page 45: Bios Navigation Keys

    User’s Manual 3.2.1 BIOS Navigation Keys Enter the SETUP settings interface, The BIOS navigation keys are listed below: Table 3.1: The BIOS navigation keys FUNCTION Exit the current menu ↑↓→← Scrolls through the items on a menu Change Opt. Enter Select General Help Previous Values...
  • Page 46 User’s Manual BIOS Vendor (American Megatrends) This item shows the information of the BIOS vendor. Core Version (5.13) This item shows the information of the Core Version. Project Version (V909S 0.01 X64) This item shows the information of the motherboard Version.

  • Page 47: Advanced Menu

    User’s Manual Build Date and Time This item shows the information of the BIOS build date and time Processor Information This item shows the basic information about the currently used processor, including name, type, speed. IGFX VBIOS Version This item shows the Current VBIOS version of the CPU integrated graphics. Total Memory This item shows the total memory size of the current motherboard.
  • Page 48 User’s Manual ▶ CPU Configuration The configuration of the central processor, enter this sub-menu, there will be detailed details of the CPU, as well as various settings of the CPU.
  • Page 49 User’s Manual ▶ Power & Performance This item in the menu shows how to set the Power Management Control of CPU and GT.
  • Page 50 User’s Manual ▶ Trusted Computing Trusted computing, enter this sub-menu, there will be the setting of the encryption security module (the motherboard will install the encryption module hardware will take effect)
  • Page 51 User’s Manual ▶ ACPI Settings Advanced configuration and power management interface settings, enter this submenu, there will be ACPI related settings. ACPI Sleep State (S3 (Suspend to RAM)) This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default). Press <Esc>...
  • Page 52 User’s Manual ▶ SIO Configuration setting Super IO Configuration settings, enter this sub-menu, there will be set COM working mode or disabled the Serial port function. ▶ Hardware Monitor Hardware monitoring, enter this sub-menu, there will be CPU temperature, System temperature, status display of each common working voltage.
  • Page 53 User’s Manual ▶ CSM Configuration CSM (Compatibility Support Module) configuration, enter this sub-menu, there will be various settings to support UEFI startup and non-UEFI startup. If you need to start the traditional MBR device, you need to enable CSM. Turning off the CSM turns it into a pure UEFI boot. CSM Support Compatibility Support Module, which is a compatibility module, is a special module of UEFI and provides compatibility support for system that do not support UEFI.
  • Page 54 User’s Manual This item is used to set the EFI storage Option ROM boot or the traditional storage Option ROM boot. Video This item is used to set EFI display Option ROM startup or traditional display Option ROM startup. Other PCI devices This item is used to set the EFI PCI device Option ROM boot or the traditional PCI device Option ROM boot.

  • Page 55: Chipset Menu

    User’s Manual 3.2.4 Chipset Menu The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system. ▶ Memory Configuration Memory configuration, enter this submenu, there will be detailed memory information.
  • Page 56 User’s Manual ▶ Memory Thermal Configuration Memory Power and Thermal Throttling This item contains the configuration of the Memory Power and Thermal Throttling. Memory Thermal Management This item sets the Memory Thermal Management on(Enabled) or off(Disabled). ▶ Memory Training Algorithms This item shows the information of the Memory Training Algorithms.
  • Page 57 User’s Manual ▶ Graphics Configuration Image processing configuration, enter this sub-menu, there will be CPU-integrated graphics related settings.
  • Page 58 User’s Manual ▶ External Gfx Card Primary Display Configuration...
  • Page 59 User’s Manual ▶ LCD Control Primary IGFX Boot Display This item sets IGFX main display device on POST stage, not affected by external graphics card, options are HDMI, LFP, EFP3, DP, EFP4. It defaults by VBIOS. LCD Panel Type This item sets resolution of the motherboard LVDS screen. It defaults by VBIOS.
  • Page 60 User’s Manual VT-d This item sets the VT-d technology to open or close. The default is Enabled. PCH-IO Configuration (South Bridge Configuration) ▶ PCI Express Configuration ▶ SATA And RST Configuration SATA hard disk and fast storage configuration, enter this sub-menu, there will be related settings of the hard disk.

  • Page 61: Security Menu

    User’s Manual ▶ USB Configuration 3.2.5 Security menu Administrator Password This item sets the information of the administrator password.

  • Page 62: Boot Menu

    User’s Manual User Password This item sets the information of the normal user password. ▶ Secure Boot 3.2.6 Boot menu Setup Prompt Timeout Setup prompts for waiting time. This option is to set the time to wait for the Del key to enter the BIOS setup after booting.

  • Page 63: Save & Exit Menu

    User’s Manual 3.2.7 Save & Exit menu Save changes and Exit; This item enables you to save the changes that you have made and exit. Discard Changes and Exit; This item enables you to discard the changes that you have made and exit. Save Changes and Reset;...

  • Page 64: Updating The Bios

    User’s Manual This item enables you to save the changes that you have made and reset. Discard Changes and Reset; This item enables you to discard the changes that you have made and reset. Save Changes; This item enables you to save the changes that you have made. Discard Changes;...

  • Page 65: Driver Installation

    User’s Manual Driver Installation...

  • Page 66: Follow The Sequence Below To Install The Drivers

    User’s Manual The KGEC-6301 comes with a CD-ROM that contains all drivers and utilities that meet your needs. 4.1 Follow the sequence below to install the drivers: Figure 5.1 win7 drivers Step 1 – Install Audio Driver Step 2 – Install Chipset Driver Step 3 –...

  • Page 67: Cpu Temp Led Driver

    User’s Manual 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically Step 4 –Install Chipset Driver 1. Double click on the Chipset folder and double click on the Setup.exe 2. Follow the instructions that the window shows 3.

  • Page 68: Utility Software Reference

    User’s Manual 4.4 Utility Software Reference All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

  • Page 69: System Resource

    User’s Manual SYSTEM RESOURCE...

  • Page 70: Wdt And Gpio

    User’s Manual 5.1 WDT and GPIO /* ====================================================================== * void jhctech_init(); * function description: library initialization, This function must be called before calling other functions * parameter description： * creation date： 5*======================================================================*/ /* ====================================================================== * void jhctech_init(); * function description: library release, Pair with jhctech_init, release the library's occupied resources when not needed * parameter description：...
  • Page 71 User’s Manual Bit =1, means output high level Bit =0, means output low level Note: Value Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 GPIO pin PIN8 PIN7 PIN6 PIN5 PIN4 PIN3 PIN2 PIN1 creation date： 5*========================================================================*/ /*========================================================================== * void I952_MB_gpio_init (); * function description: initialization function of the motherboard gpio, this function must be called once before using it * parameter description：...
  • Page 72 User’s Manual Note: The output value is valid only when the pin is in output mode. 4*creation date： 5*========================================================================*/ /*========================================================================== 2* void I952_2nd_gpio_output (int port,int level); 2* function description：high and low levels output of the subcard 3*parameter description: Parameter: port fill in subcard GPIO number, 1 or 2 Level 8 bit of a Byte, each bit controls a GPIO pin output value, Bit=1, means output high level Bit =0, means output low level...
  • Page 73 User’s Manual Note: If you want more programs of the motherboard’s watchdog and subcard’s GPIO, please call +86- 0755-86021176-(8021)/+86-0755-86021176-(8023) for more information.
