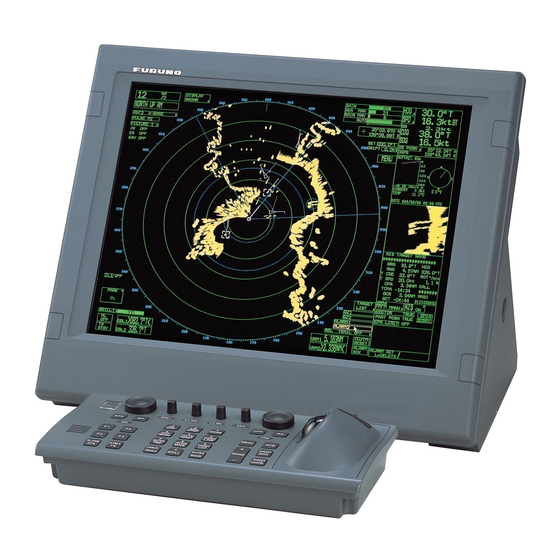

FAR-2167DS/2167DS-BB/2167DS-D
SAFETY INSTRUCTIONS....................... i
SYSTEM CONFIGURATION ................. iii
EQUIPMENT LISTS .............................. iv
1. MOUNTING ..................................... 1-1
1.1 Antenna Unit ........................................ 1-1
1.2 Monitor Unit ........................................ 1-7
1.3 Control Unit ........................................ 1-10
1.4 Processor Unit .................................. 1-15
1.5 Power Supply Unit ............................ 1-16
2. WIRING ........................................... 2-1
2.1 Wiring Overview................................... 2-1
2.2 Antenna Unit ........................................ 2-2
2.4 Processor Unit ..................................... 2-8
2.5 Power Supply Unit ............................. 2-13
3. ADJUSTMENTS .............................. 3-1
3.1 Initializing tuning .................................. 3-1
3.2 Heading Alignment............................... 3-2
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
MARINE RADAR
Installation manual
3.3 Adjustment Sweep Timing .................... 3-5
3.4 Suppressing Main Bang ....................... 3-6
3.5 Other Settings ...................................... 3-7
4. OPTIONAL EQUIPMENT ................4-1
4.1 Gyro Converter GC-10 ......................... 4-1
4.2 Memory Card Interface Unit ............... 4-10
4.3 DVI-RGB Conversion Kit .................... 4-13
4.4 BNC Connector Converter ................. 4-16
PACKING LISTS ................................ A-1
OTLINE DRAWINGS .......................... D-1
www.furuno.co.jp

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAR-2167DS-BB and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno FAR-2167DS-BB

Summary of Contents for Furuno FAR-2167DS-BB

  • Page 1: Table Of Contents

    4.1 Gyro Converter GC-10 ... 4-1 4.2 Memory Card Interface Unit ... 4-10 4.3 DVI-RGB Conversion Kit ... 4-13 4.4 BNC Connector Converter ... 4-16 5. IO DATA...5-1 PACKING LISTS ... A-1 OTLINE DRAWINGS ... D-1 INTERCONNECTION DIAGRAM ... S-1 www.furuno.co.jp...
  • Page 2 : +81-(0)798-65-4200 Printed in Japan All rights reserved. Pub. No. IME-35230-E (HIMA ) FAR-2167DS/BB The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer A : FEB E : FEB . 10, 2011 *00014869014* *00014869014* *00014869014* *00014869014*...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The installer must read and follow all the safety instructions before attempting to install the equipment. WARNING CAUTION Warning, Caution Radio Frequency Radiation Hazard The radar antenna emits electromagnetic radio frequency (RF) energy which can be harmful, particularly to your eyes. Never look directly into the antenna aperture from a close distance while the radar is in operation or expose yourself to the transmitting antenna at a close distance.
  • Page 4 WARNING Do not open the equipment unless totally familiar with electrical circuits and service manual. Only qualified personnel should work inside the equipment. Wear a hard hat and safety belt when mounting the antenna unit. Serious injury or death can result if someone falls from the radar antenna mast.

  • Page 5: System Configuration

    (Input) Gyrocompass AD-100 Track Controller MEMORY CARD INTERFACE UNIT CU-200-FAR : Standard supply : Optional supply : Local supply * FAR-2167DS-BB is not equipped with a monitor unit. Procure one locally. RADIATOR SN30AF SN36AF CHASSIS RSB-111/112 PSU-006 PROCESSOR UNIT RPU-013...

  • Page 6: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Type Antenna Unit SN30AF SN36AF RSB-111 RSB-112 Power Supply PSU-006 Unit Monitor Unit MU-201CR MU-190 Processor Unit RPU-013 Control Unit RCU-014 RCU-015 Installation CP03-31501 Materials* CP03-25700 CP03-25710 CP03-25730 CP03-25720 CP03-25800 CP03-25602 CP03-31401 CP03-25604 Accessories* FP03-09810 FP03-09850 FP03-09860 FP03-10101...
  • Page 7 Optional equipment Name Type Gyro Converter GC-10-2 Stepdown RU-1803 Transformer RU-5693 Unit RU-6522 RU-5466-1 Memory Card CU-200-FAR Interface Unit External Alarm OP03-21 Buzzer Control Unit RCU-016 RAM Card O0RAM08MC-005 DVI-RGB OP03-180-1 Converter Kit OP03-180-2 Cable Assy. XH10P-W-6P L=20M XH10P-W-6P L=30M XH10P-W-5P-A L=10M XH10P-W-5P-A L=20M XH10P-W-5P-A L=30M...
  • Page 8 This page is intentionally left blank.

  • Page 9: Mounting

    1. MOUNTING Do not apply paint, anti-corrosive sealant or contact spray to coating or plastic parts of the equipment. Those items contain organic solvents that can damage coating and plastic parts, especially plastic connectors. 1.1 Antenna Unit Mounting considerations The antenna unit is generally installed either on top of the wheelhouse, on the radar mast, or on a suitable platform.
  • Page 10 Installation precaution for S-band antenna unit If an S-band antenna unit is mounted near the end of a platform to provide sufficient rotation clear- ance for the radiator, the antenna unit, because of its weight, will swing up and down by ship's vibration and rolling.
  • Page 11 Assembling the antenna unit The antenna unit should be assembled before mounting it. Follow the procedure below to assemble the antenna unit. 1. Screw the guide pins (2 pcs.) in the radiator. 2. Remove the protective cap from the choke guide and radiator. 3.
  • Page 12 How to hoist the antenna unit 1. Fix the antenna radiator to the antenna unit chassis as shown on page 1-3. 2. Attach the lifting fixtures and collars as shown below. 3. Position the radiator as shown below and arrange the ropes A and B. Lifting hook (2 pcs.) Attachment of lifting fixtures, collar and ropes Lifting fixture...
  • Page 13 Fastening the antenna unit to the mounting platform Note: The antenna is made of cast aluminum, which is subject to electrolytic corrosion if the mounting platform is steel or iron. To prevent electrolytic corrosion, use the supplied seal washers and corrosion-proof rubber mat. Fix the antenna unit to the mounting location, referring to the procedure below and the illustration on the next page.
  • Page 14 2. Lay the corrosion-proof rubber mat (supplied) on the mounting platform, aligning the holes on the rubber mat with the fixing holes on the mounting platform. 3. Lay the antenna unit on the rubber mat, orienting it so the cable gland is directed toward ship's bow.

  • Page 15: Monitor Unit

    The monitor unit is can flush mounted in a panel or mounted on a desktop (requires optional accessories). The FAR-2167DS-BB is not equipped with a monitor unit. Procure a suitable monitor unit locally. Recommended monitor: SXGA (1280×1024), aspect ratio 5:4.
  • Page 16 How to attach panel hook and panel cover Note: If you need to remove the monitor unit from the console, remove the four panel covers with your fingernail and use two panel hooks supplied as accessories to lift the monitor unit. Desktop mounting Use the optional desktop mouting kit (Type: FP03-09820, Code No.: 008-535-560) to mount the monitor unit on a desktop.
  • Page 17 Panel cover Hex bolt (M6x25) Attaching hand grips Hand grips are optionally available for the desktop-mount monitor unit. Attach them as follows: 1. Remove the snap buttons attached at step 5 on the previous page. 2. Fix hand grips with wave washers, rosette washers and flat head screws. Attaching hood When it is too bright in the daytime, use the optional hood (Type: FP03-11500, Code No.: 001- 020-090) to shade the screen.

  • Page 18: Control Unit

    1. Desktop mounting: Fasten the fixing plates to the fixing holes with the hex head bolts (sup- plied). Flush mounting: Fasten the display unit to the mounting location, and then attach the fixing plates with four self-tapping screws. 2. Attach the hood to the display unit (the hood is outside of the fixing plates). 3.
  • Page 19 Fixing without KB fixing plate 1. Drill four mounting holes of 5 mm diameter, referring to the outline drawing at the back of this manual. 2. Fix the control unit with four screws (M4) from the under side of the desktop. (M4 screws with a sufficient length for the thickness of the desktop should be provided locally.) # Minimum recommended service space Mounting dimensions for control unit RCU-014...
  • Page 20 Flush mounting Use the optional flush mount kit FP03-09870 (Code No. 008-535-630) to flush mount the control unit RCU-014, RCU-015 and/or RCU016 in a console. Contents of flush mount kit for RCU-014/015/016 Name Mounting plate 03-163-7531 Hex bolt Wing screw M5 ×...
  • Page 21 Connecting RCU-016 in series with RCU-014 1. Pass the cable from RCU-016. 2. Plug in connector to J502. 3. Clamp the copper part of the cable with the cable clamp. Control unit RCU-014, inside view 1-13...
  • Page 22 Changing the cable entrance on control unit RCU-015/RCU-016 To change the cable entrance from the side (default) to the bottom, modify the unit as shown below. Screw M3X8 (torque: 10.78 Nm) 3. Pass cable thru this hole. 4. In here, clamp copper part of cable with cable clamp removed at step 1.

  • Page 23: Processor Unit

    1.4 Processor Unit Mounting considerations When selecting a mounting location, keep in mind the following points: • Locate the processor unit away from heat sources because of heat that can build up inside the cabinet. • Locate the unit away from places subject to water splash and rain. •...

  • Page 24: Power Supply Unit

    1.5 Power Supply Unit Mounting considerations The power supply unit may be mounted on a bulkhead or a deck. Because it has no operation requirements it can be located almost anywhere, provided the location is well ventilated. Mounting procedure Fix the unit to the mounting location with four 6×20 self-tapping screws (local supply). For mounting on a bulkhead, do the following: 1.

  • Page 25: Wiring

    2. WIRING 2.1 Wiring Overview POWER SUPPLY UNIT φ 200 VAC, 3 , 50 Hz φ 220 VAC, 3 , 60 Hz φ 380 VAC, 3 , 50 Hz φ 440 VAC, 3 , 60 Hz 110 VAC, 3φ, RU-5693 60 Hz 220 VAC, 3φ, RU-6522...

  • Page 26: Antenna Unit

    2.2 Antenna Unit Gland for power cable (TPYCY-2.5) Fabricating signal cable RW-9600 and HV cable TYPCY-1.5 1. Use a ratchet or box wrench (diagonal 13 mm) to open port- and starboard-side covers on the antenna unit. 2. Unfasten the gland nut for the signal cable and remove the gasket, flat washers (3 pcs.) and gland cap.
  • Page 27 4. In the order shown in the figure below, pass the gland nut, flat washers (3 pcs.) and gasket onto the signal cable. 5. As shown in the figure below, fold back the armor onto flat washer (2) and insert remaining armor through flat washer (3).
  • Page 28 7. Using the terminal opener provided, connect cores (except coaxial cable) to their appropriate locations on TB801 on the TB Board. Refer to the interconnection diagram for wiring details. 8. Connect the coaxial cable to TB802, referring to the right-hand illustration below.. Wiring WAGO connector Push down.
  • Page 29 13.In the order shown in the figure below, pass the gland nut, flat washers (3 pcs.) and gasket onto the HV cable. 14.As shown in the figure below, fold back the armor onto the flat washer and insert it thru the other flat washer.
  • Page 30 4. In the order shown in the figure below, pass the gland nut, flat washers (3 pcs.) and gasket onto the power cable. 5. As shown in the figure below, fold back armor onto flat washer and insert it thru the other flat washer.

  • Page 31: Monitor Unit (For Far-2167Ds)

    2.3 Monitor Unit (for FAR-2167DS) Two cables are terminated at the monitor unit: the signal cable from the processor unit (5 m or 10 m cable) and the power cable from the ship's mains. The signal cable comes with a connector pre- attached to it for connection to the monitor unit.

  • Page 32: Processor Unit

    2.4 Processor Unit Four cables are terminated at the processor unit: the antenna unit cable, monitor unit cable (FAR- 2167DS only), control unit cable and the power cable. Cables other than the power cable come with a connector preattached to them. Fabricate the power cable as below. Note: Pass the AC line through a double-contact breaker (shipyard supply).
  • Page 33 Connection of cables The power cable is connected to the terminal board on the rear panel and the signal cable from the monitor unit is connected to the DVI-D connector. Other cables are connected to the printed circuit board 03P9342. Be sure to ground the unit, with IV-8sq wire (local supply). Monitor unit Network Power cable...
  • Page 34 Location of connectors Open the processor unit as shown below to access the 03P9342 board, which is for connection of external equipment. J621 External alarm J620 Track control J619 ECDIS To Sub display * (SEMI-LOG) To Sub display * (FULL-LOG) From Master radar J614 +12V for card I/F...
  • Page 35 Cable fabrication for the cables connected to the 03P9342 board Signal cable RW-9600 (Between antenna unit and processor unit) Vinyl sheath Vinyl tape Fasten cable clamp here. Power cable TPYC-1.5 Armor Cables for optional equipment (use TTYCS-1 or TTYCS-4, or equivalent) 60: Peel paint.
  • Page 36 Wiring WAGO connector Push down. Wire WAGO connector Twist Procedure 1. Twist core. 2. Insert terminal opener as shown and push down. 3. Insert core into hole. 4. Release terminal opener. 5. Pull wire to confirm that it is firmly in place.

  • Page 37: Power Supply Unit

    2.5 Power Supply Unit Wire the power supply unit referring to the interconnection diagram. Be sure to ground the unit, with IV-8sq wire (local supply). Note 1: Motor specification cannot be changed in the field. Note 2: Pass the AC line through a double-contact breaker (shipyard supply). Further, for vessels where the power line is grounded, connect one end of the line to the C (common) terminal and the other end to the H terminal.
  • Page 38 Terminal TB2: cable TPYC-2.5 (for antenna motor) Terminal TB3: #11-#13, cable TYPC-1.5 (between power control section and processor) See page 2-5 for sectional views of these cables if using equivalent cables. Armor Terminal TB3: #1-#3 TPYCY-2.5 (between power control section and antenna) Terminal TB3: #6, #8, #9 TPYCY-1.5 (between power control section and antenna) Vinyl sheath = TYPCY-1.5: 14.5 mm...

  • Page 39: Changing Ac Power Specification

    2.6 Changing AC Power Specification To change AC power specification from 100 VAC to 220 VAC and vice versa, change fuse and jumper wire settings and adjust the overvoltage detection circuit, following the instructions in this section. Processor unit Add or remove jumper connector P108 from the PWR board 03P9339 and change the fuse in the processor unit according to ship's mains.
  • Page 40 PWR board (OVER) P108/J108 8 7 6 5 4 3 2 1 Jumper connector (VH8P) How to adjust the overvoltage detection circuit: 1. Add or remove the jumper connector P108 as appropriate and change the fuse, referring to the table on the previous page for details. 2.
  • Page 41 Power supply unit Refer to the illustration and table below to add (or remove) jumper connector P8 from the TX-HV Board (03P9350) and change fuse. After completing jumper and fuse arrangements, adjust the overvoltage detection circuit, using a variable transformer. Note: When switching from 220 VAC to 100 VAC, construct a jumper connector locally, referring to the illustration below.
  • Page 42 How to adjust the overvoltage detection circuit 1. Add or remove the jumper connector P8 as appropriate and change the fuse, referring to the table above for details. 2. On the PWR board, set R21 fully clockwise. 3. Connect a variable transformer between ship's mains and the input power terminal board TB-1 in the processor unit.

  • Page 43: Adjustments

    3. ADJUSTMENTS This section provides the information necessary for setting and adjusting the radar, which is car- ried out from the radar's menu system. Menus may be accessed from the keyboard or on-screen menu in case of Control Unit RCU-014, or on-screen menu in case of Control Unit RCU-015. The menu illustrations in this chapter show default settings in bold face.

  • Page 44: Heading Alignment

    3.2 Heading Alignment You have mounted the antenna unit facing straight ahead in the direction of the bow. Therefore, a small but conspicuous target dead ahead visually should appear on the heading line (zero degrees). In practice, you will probably observe some small bearing error on the display because of the difficulty in achieving accurate initial positioning of the antenna unit.
  • Page 45 6. For Control Unit RCU-014: a) While pressing and holding down the [HL OFF] key, press the [MENU] key five times. b) Press the [0] key to show the INITIALIZE menu. For Control Unit RCU-015: See the procedure on the next page for how to show the INITIALIZE menu. 7.
  • Page 46 How to access the INITIALIZE Menu with Control Unit RCU-015 How to adjust heading of external radar from this radar 1. Put the cursor in the ANT box at the top left corner then push the right button. 2. Press the [8] key to select SUB MONITOR. 3.

  • Page 47: Adjusting Sweep Timing

    3.3 Adjusting Sweep Timing Sweep timing differs with respect to the length of the signal cable between the antenna unit and the processor unit. Adjust sweep timing to prevent the following symptoms: • The echo of a "straight" target (for example, pier), on the 0.25 m range, will appear on the dis- play as being pulled inward or pushed outward.

  • Page 48: Suppressing Main Bang

    3.4 Suppressing Main Bang If main bang appears at the screen center, suppress it as follows. 1. Transmit the radar on a long range and then wait ten minutes. 2. Adjust gain to show a slight amount of noise on the display. 3.

  • Page 49: Other Settings

    3.5 Other Settings ECHO menu setting Open the ECHO ADJ menu as described on page 3-3 and 3-4. CABLE ATT ADJ Before adjusting, set the radar as follows: IR: 2, ES: off, EAV: off, 24nm range, long pulse (Same as default setting of PICTURE1) To adjust the cable attenuation manually, choose MANUAL and push the thumbwheel.
  • Page 50 No use. ANT SW and ANT STOPPED This is used for antenna maintenance by service personnel. M SPEC No use. BB TYPE Choose type of radar. Select "BB" for FAR-2167DS-BB. [SCANNER] 1 BACK 2 BLIND SECTOR 1 START 000° ANGLE 000°...
  • Page 51 INSTALLATION menu Open the INSTALLATION menu by choosing 4 INSTAL- LATION from the INITIALIZE menu. RADAR Automatically selected to MAIN when 4 RADAR NO is selected to 1-4; SUB when the same item is selected to 5-8. RANGE UNIT Choose NM, SM, km or kyd (kilo yard) as appropriate. For the IMO- and A-type radars the range unit is fixed at "NM".
  • Page 52 OWN SHIP INFO menu Open the OWN SHIP INFO menu by choosing 5 OWN SHIP INFO from the INITIALIZE menu. LENGTH/WIDTH, SCANNER POSN and SUB SCANNER POSN To accurately inscribe own ship marker on the screen, enter length and width of the ship and scanner position from the bow and left sides, for both main and sub scanners.
  • Page 53 ARPA PRESET menu Open the ARPA PRESET menu by choosing 6 ARP PRESET from the INITIALIZE menu. [ARP PRESET] 1 BACK 2 TTM OUTPUT OFF/REL/TRUE 3 MAX RANGE 24/32 4 ECHO LEVEL 5 QV DISPLAY OFF/ON 6 ARP W/O GYRO* OFF/ON 7 [ACQ PRESET] 8 [TRACK PRESET]...
  • Page 54 LAND SIZE Set the minimum echo size to be considered a landmass. The setting range is 100 to 1000 m, in increments of 100 m. ANT SELECT Set the model of antenna radiator used. AUTO ACQ CORRE Set the number of consecutive echoes to receive from a target before initiating automatic acqui- sition on it.
  • Page 55 OTHER menu Open the OTHER menu by choosing 8 OTHERS from the INITIALIZE menu. EAV w/o GYRO Echo averaging can be used without a gyrocompass. Choose ON to use echo averaging without a gyrocompass. ARP SELECT Choose ARPA or ATA depending on your radar system. Choose appropriate item according to the ECDIS connected.
  • Page 56 This page intentionally left blank. 3-14...

  • Page 57: Optional Equipment

    4. OPTIONAL EQUIPMENT 4.1 Gyro Converter GC-10 The Gyro Converter GC-10, incorporated inside the processor unit, converts analog gyrocompass reading into digital coded bearing data for display on the radar screen. This section explains how to install the GC-10 (mainly consisting of the GYRO CONVERTER board) and set it up according to the gyrocompass connected.
  • Page 58 2. Fasten the GYRO CONVERTER board inside the processor unit with five washer head screws. 3. Fix connector 231-607/019-FUR (called J602) with two screws. Screw M3X8 5 pcs Fixing GYRO CONVERTER board inside the processor unit 4. Connect the GYRO CONVERTER board to the 03P9342 board with XH-PH 03-2088 connector assy.
  • Page 59 5. Connect J602 (attached at step 3) to the GYRO CONVERTER board with two VH connector assemblies 03-2089 (3P) and 03-2090 (5P). Connection for J602 From J4 From J5 VH connector assy. 03-2089 (5P) VH connector assy. 03-2090 (3P) Connecting connector assemblies inside processor unit 6.
  • Page 60 7. Pass the gyrocompass cable through the cable clamp and connect it to connector J602 as shown in the figure below. 8. Attach the clamps to the plastic cover and then attach the cover to the GYRO CONVERTER board as shown in the figure below. Pass cables thru the clamp ED-1. Clamp EDS-1 Insert cables to these clamp.
  • Page 61 Connection of external power supply An external power supply is necessary when the repeater signal is step-by-step type and the step voltage is below 20 V or output voltage is less than 5 W. 1. Cut jumper wire JP1 on the GYRO CONVERTER board when an external power supply is used.
  • Page 62 Setting method 1: DIP switch settings and gyrocompass specifications 1) Gyrocompass type Gyrocompass type AC synchronous DC synchronous DC step Full-wave pulsating current Half-wave pulsating current 3) Rotor voltage (between R1 & R2) Rotor Voltage SW2-1 20 to 45 VAC 30 to 70 VAC 40 to 90 VAC 60 to 135 VAC...
  • Page 63 Setting method 2: by make and model of gyrocompass a t l a t l a t l a t l ) - ( a t l a t l CMZ-700 DC step 24V 180x COM(+), 3-wire(-) ) - ( a t l a t l See note below.
  • Page 64 Location of DIP switches, jumper wires on the GYRO CONVERTER board (Stator voltage) (Rotor voltage) (Gyro type) Fuse (2A) (Stator signal input) (Rotor signal input, external power input) JP5, JP4 (Supply voltage) 64P1106 DIP switch (IEC-61162-1 output port) GYRO CONVERTER board DIP switch (Data output port #6)
  • Page 65 Setting the heading readout on the radar display Confirm that the gyrocompass is giving a reliable readout. Then, set the heading readout on the radar display with the gyrocompass readout as follows: 1. Right-click the HDG box at the top right corner on the screen. 2.

  • Page 66: Memory Card Interface Unit

    4.2 Memory Card Interface Unit Mounting considerations When selecting a mounting location, observe the following points: • Locate the unit away from heat sources because of heat that can build up inside the cabinet. • Locate the unit away from places subject to water splash and rain. •...
  • Page 67 Desktop mount Requires the optional desktop mount kit FP03-10201. Refer to the packing list at the back of this manual for further information about this kit. 1. Fix the mounting bracket 19-023-3081 to the unit with four screws. 2. Mount the above assembly on a desktop with four self-tapping screws. Connections One memory card IF unit and one processor unit Connect as shown below.
  • Page 68 Type Code No. OP03-28900 000-082-658 OP03-28910 000-082-689 OP03-28920 000-082-660 Note: When two memory card interface units are connected via a network, change ID code for the second unit. 1. Remove the cover and set the IP0 bit of the DIP switch S1 on the CARDCPU board (03P9333) to ON.

  • Page 69: Dvi-Rgb Conversion Kit

    4.3 DVI-RGB Conversion Kit This information provides the procedure necessary for the installation of the DVI-RGB conversion kit. This kit is installed in the processor unit to enable connection of an RGB monitor or VDR (Voyage Data Recorder). Name: DVI-RGB conversion kit Type: OP03-180-2 Code no.: 008-536-070...
  • Page 70 1. Remove the top cover and open the upper part of the processor unit. 2. Fix the RGB-BUFF board (03P9229B board) with four screws. (See the figure below.) 3. Attach the connector assemblies to J1 and J3 on the 03P9229B board as follows. J1: 13-pin connector of the connector assembly 03-2094 J3: 3-pin connector of the connector assembly 03-2093 4.
  • Page 71 5. Attach the DVI-RGB CONVERSION board to the location shown below. DVI-RGB CONVERSION board Fixing the DVI-RGB conversion board inside the processor unit 6. Attach the 10-pin connector from J1 on the 03P9229B board to J9 on the DVI-RGB board. 7.

  • Page 72: Bnc Connector Converter

    4.4 BNC Connector Converter To connect the FURUNO Voyage Data Recorder VR-5000 to this radar, the DVI-RGB conversion kit (mentioned at previous paragraph) and the BNC connector converter are required. Also VGA cable (between the processor unit and the BNC connector converter) and five 75 ohm coaxial cables (between the BNC connector converter and VR-5000) are required.

  • Page 73: Io Data

    5. IO DATA Available input and output data are shown in the tables below and input and output sentences are shown on the next page. Note: This radar accepts position data fixed by WGS-84 geodetic datum only. Set the datum to WGS-84 on the EPFS (GPS, etc.) connected to this radar.
  • Page 74 IEC 61162 input sentence and priority Item Speed (STW) Speed (SOG Speed (position) Heading (True) Position Waypoint Date Depth Water temperature Wind IEC 61162 output sentence Item Target L/L TLL (Not on IMO radar) Radar system data Own ship data ARPA target data HDT is IEC61162-2, all other sentences are IEC61162-1 ed2.

  • Page 88: Packing Lists
