Installing the Device
2.7 Connecting the Device to the Network
Connecting to a Local Area Network
In this application, the device operates as a switch on a Local Area Network (LAN).
Connect the device as follows:
A
B
5 (Coupler)
1 to 4
Connecting to a PRP Network
In this application, the device operates as a PRP RedBox on a PRP network. Connect
the device as follows:
A
B
5 (Coupler)
1 to 4
20
Port Connect To...
Not used
Not used
Connect to an
Ethernet-capable
device if the
RUGGEDCOM RSG907R
is configured as an HSR
or PRP RedBox
Connect to an
Ethernet-capable
device
Port Connect To...
Connect to LAN A
Connect to LAN B
Connect to one or
more Singly Attached
Nodes (SANs)
1
1
2
2
3
Ethernet-Capable Device
1
Switch (RUGGEDCOM RSG907R)
2
Router
3

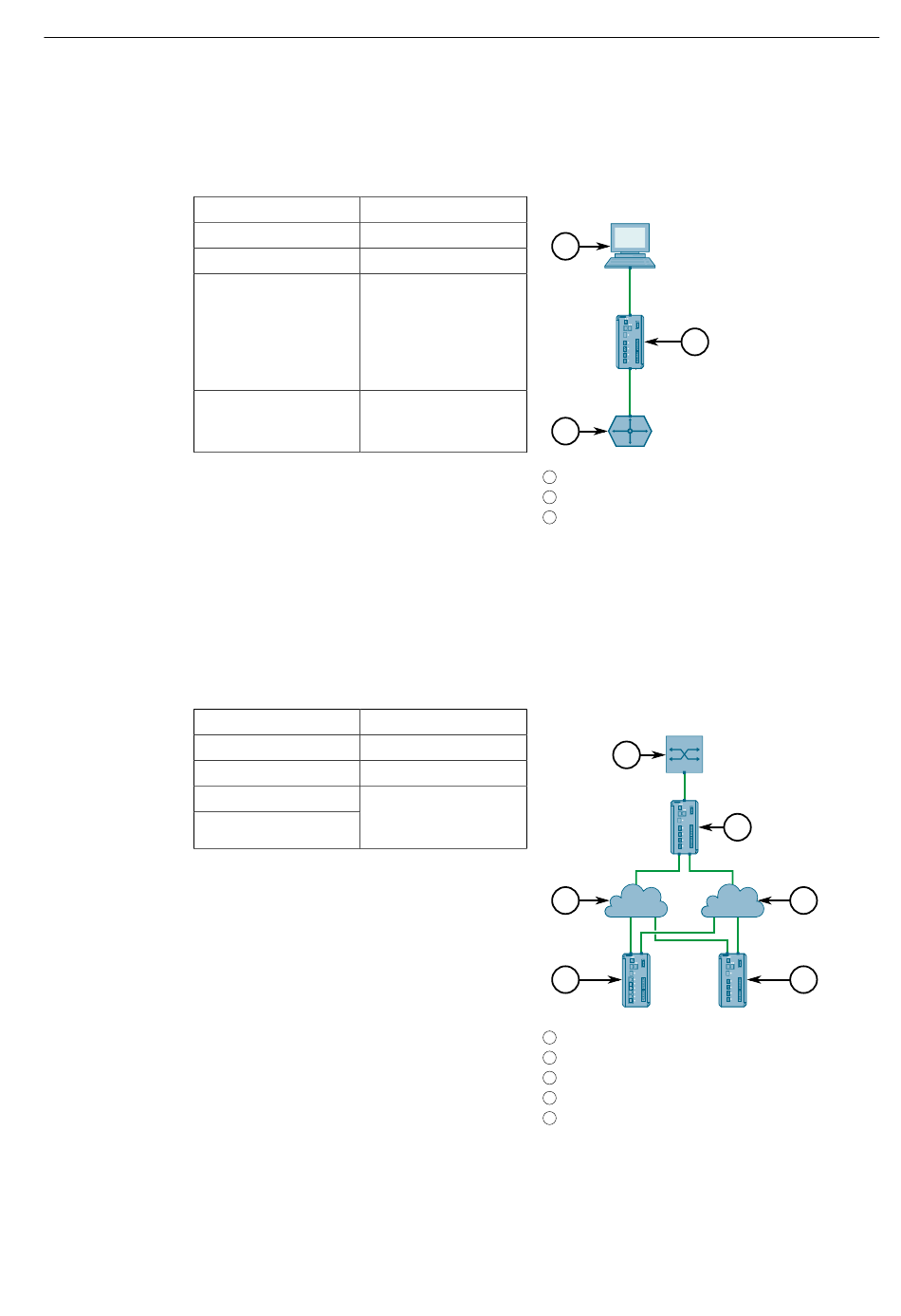

Figure 2.17 LAN
1
1
B A
B
3
B A
5
VDAN
1
PRP RedBox (RUGGEDCOM RSG907R)
2
LAN B
3
LAN A
4
DAN (RUGGEDCOM RSG907R
5
RSG909R;RSG908C;RSG910C)
