- Page 1 VWR Rocking Platform INSTRUCTION MANUAL North American Catalog Number US Cord: 10860-660 (Single) 115V 10860-662 (Single) 230V 10860-780 (Double) 115V 10860-658 (Double) 230V Version: Issued: 31, 03, 2016 ...
- Page 2 Legal Address of Manufacturer United States VWR International Radnor Corporate Center, Building One, Suite 200 100 Matsonford Road Radnor, PA 19087 USA 610-386-1403 http://www.vwr.com Country of origin SLOVENIA ...
-
Page 3: Table Of Contents
Table of Contents Warning Safety information Package Contents Unpacking Installation Intended Use Symbols and conventions Specifications Instructions for use Overview Control Panel Operation Adjusting tilt angle Installation of double platform General maintenance Replacing the fuses Cleaning Troubleshooting Accessories Technical Service Warranty Disposal ... -
Page 4: Warning
Warning Configuring and operation VWR Rocking Platform requires knowledge and observance of the instructions in this manual. Please read this manual thoroughly before using the device. The equipment is designed only for its intended applications. This equipment is designed for 115V (50/60Hz) or 230V (50/60Hz). -
Page 5: Safety Information
VWR. Also verify that all accessories are included and that the unit is in good working order before discarding the shipping packaging. -
Page 6: Installation
Intended use VWR Rocking Platform is a general purpose shaker, intended for shaking (rocking) of samples at speeds from 10 to 120 rocks Per Minute. It is driven by the asynchronous gear motor, which enables reliable operation and constant rocking speed, independent of the load or power supply oscillations. -
Page 7: Symbols And Conventions
This symbol indicates a risk of fingers crush hazard between moving platform and housing. Product Specifications The casing of rocker is made of plastic and steel plate varnished with high resistant polyurethane lacquer. Specifications VWR Rocking Platform 115V VWR Rocking Platform 230V Electrical 115V ± 10%, 50/60Hz, 0.3A 230V ±... -
Page 8: Instructions For Use

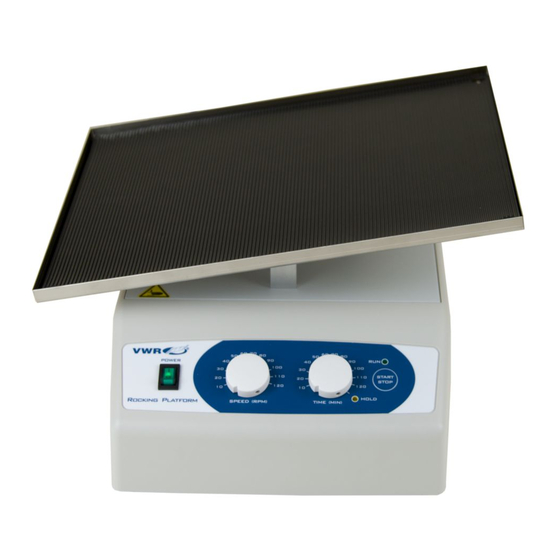

Instructions for use Overview Complete understanding of this equipment is required for your safety and satisfaction. Read the instructions thoroughly and be sure all operators are given adequate training before attempting to put the unit in use. Main parts of the rocker are designated on the following pictures Platform with rubber pad Control panel Fuse compartment... -
Page 9: Control Panel
Description of Buttons and Switches Control panel POWER switch - to turn the rocker ON (power switch illuminates) or OFF. SPEED knob - to set the rocker speed. TIME knob - to set the time of operation. HOLD yellow signal light - illuminates when the rocker is set to HOLD (continuous operation). START/STOP key - to START or STOP the rocking operation. -
Page 10: Adjusting Tilt Angle
Getting Started Adjusting tilt angle Before you adjust the tilt angle, unplug power cord from power supply! 1. Unscrew two wing nuts (A) from the cover (B) on the back side of the rocker and remove the cover (B). 2. Unscrew the screw (C) at the end of the shaft. 3. -
Page 11: Replacing The Fuses
4. Screw four nuts (E) on the threads of four posts, to fix the upper platform. The following fuses are required for VWR Rocking Platform: Replacing the fuses 2 x 1 AT (115V and 230V) ... -
Page 12: General Maintenance
(2) years from date of purchase. If a defect is present, VWR will, at its option, repair, replace, or refund the purchase price of this product at no charge to you, provided it is returned during the warranty period.
