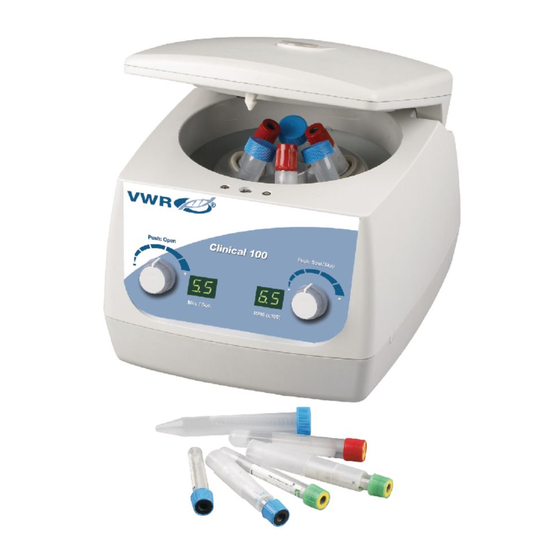

- Page 1 VWR Clinical 100 & VWR Compact Star CS4 INSTRUCTION MANUAL North American Catalog Number US Cord: 97011-432 European Catalogue Number(s): Euro Plug: 521-2853 UK Plug: 521-2854 Swiss Plug: 521-2855 Version: Issued: 28,2,2011 VWR Collection Manual ver 1, rev 4 28.2.2011...
- Page 2 The centrifuge is supplied with a 6 x 15ml rotor. Adapters are available for tubes smaller than 10ml. The centrifuge reaches speeds of up to 6,500rpm/4,000 x g. VWR Collection Manual ver 1, rev 4 28.2.2011...
-
Page 3: Table Of Contents
Package Contents Unpacking Installation Intended Use Symbols and conventions Specifications Overview Instructions for use Troubleshooting General maintenance Accessories and spares Use of Adapters Tube Compatibility Chart Determination of G-Values Technical Service Warranty Disposal VWR Collection Manual ver 1, rev 4 28.2.2011... -
Page 4: Warning
Warning: Please read this manual carefully prior to operating your VWR Centrifuge. Safety Information: NEVER use the centrifuge in any manner not specified in these instructions. NEVER operate the centrifuge without a rotor properly attached to the shaft. NEVER fill tubes while they are in the rotor. Liquid spillage may harm unit. -
Page 5: Package Contents
Power Cord Operations Manual Unpacking: When unpacking your VWR Centrifuge, be sure to remove the protective foam from the rotor chamber prior to operation. DO NOT RUN THE CENTRIFUGE UNTIL THE FOAM HAS BEEN REMOVED. The accessories supplied with the centrifuge should be kept with the instruction manual near the centrifuge’s place of installation. -
Page 6: Symbols And Conventions
EN 61010: Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements. - Part 2 -020: Particular requirements for laboratory centrifuges - Part 2-101: Particular requirements for in vitro diagnostic (IVD) medical equipment VWR Collection Manual ver 1, rev 4 28.2.2011... -
Page 7: Overview
Overview: This manual provides important safety information for the VWR Laboratory centrifuge. It should be kept near the centrifuge for quick and easy reference. Instructions for Use: ATTENTION: Never attempt to operate the centrifuge with rotors or adapters that show signs of corrosion or mechanical damage. -
Page 8: Troubleshooting
Lid lock will not release Possible reason: Defective lid lock Solution: Open manually and have unit serviced Possible reason: No power from PC board Solution: Call for service Possible reason: Lid lock is jammed VWR Collection Manual ver 1, rev 4 28.2.2011... -
Page 9: General Maintenance
(maximum temperature 50ºC). Cleaning the rotor The rotor should be cleaned after each use. When spinning samples containing phenol or phenol chloroform, the rotor should be cleaned immediately after use. Disinfection VWR Collection Manual ver 1, rev 4 28.2.2011... - Page 10 Where the density of the liquid is 1.7, the new maximum speed would be calculated as follows: x 6,500 = 5,461 rpm If in doubt concerning maximum speeds, please contact the manufacturer for assistance. VWR Collection Manual ver 1, rev 4 28.2.2011...
-
Page 11: Accessories And Spares
8.5cm RCF (g-value): 4,000 x g Rotor angle: 30° Adapter for 5ml(12x75mm) and 7ml (13x100mm) tubes Order no.: 521-2856 (Included with CS4 model) Tube measurement: 12x75mm, 13x100mm, or common Sarstedt style tubes VWR Collection Manual ver 1, rev 4 28.2.2011... -
Page 12: Use Of Adapters
90mm. - Take the larger half of the combination adapter and place it in the rotor shield with the double line mark up the single line mark down (per figure B.) VWR Collection Manual ver 1, rev 4 28.2.2011... -
Page 13: Tube Compatibility Chart
The estimated RCF can then be read from the RCF scale where the ruler edge passes through it. This chart can also be used to determine the proper speed for the desired RCF value. VWR Collection Manual ver 1, rev 4 28.2.2011... - Page 14 VWR Collection Manual ver 1, rev 4 28.2.2011...
-
Page 15: Technical Service
(2) years from date of purchase. If a defect is present, VWR will, at its option, repair, replace, or refund the purchase price of this product at no charge to you, provided it is returned during the warranty period. -
Page 16: Disposal
By doing so, you will help to conserve natural and environmental resources and you will ensure that your equipment is recycled in a manner that protects human health. Thank you VWR Collection Manual ver 1, rev 4 28.2.2011... - Page 17 Fax: 01455 55 85 86 VWR International GmbH E-mail: uksales@uk.vwr.com Hilpertstrasse 20a D - 64295 Darmstadt Tel.: 0180 570 20 00* Fax: 0180 570 22 22* E-mail: info@de.vwr.com *14 Cent/Minute aus d. dt. Festnetz VWR Collection Manual ver 1, rev 4 28.2.2011...
