Classic Pine Monkey Bars
SPECIAL NOTES AND INSTRUCTIONS
The addition of Monkey Bars to a Creative Playthings
gym will increase the safe play zone required of the gym.
No obstructions of any kind should be within 6'
of any part of the Monkey Bars. Please review the in-
structions and manual provided with the gym for safety
information and instructions on proper ground cover.
All hardware on this set is specially coated for corro-
sion resistance. If non-Creative Playthings hardware
is used, it must be galvanized or stainless steel.

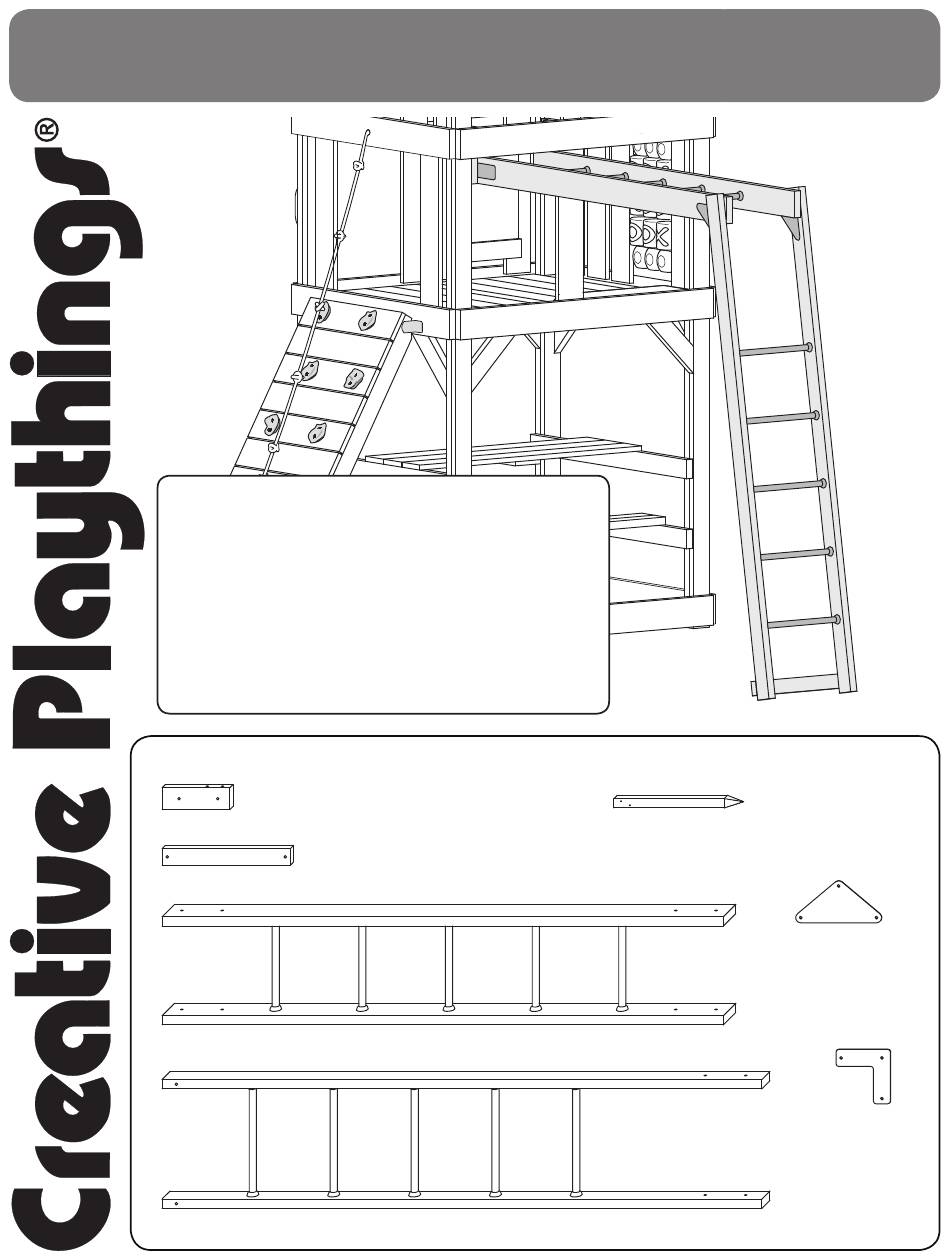

Parts:
A 2 35453-102
B 1 35320-102
C 1 40629-102
D 1 40628-102
Mounting Block 2 x 4 x 10-1/2"
Base Rail 2 x 3 x 19-1/4"
Top Ladder Assembly
End Ladder Assembly
63082-102
E 2 36515-102
Ground Stake
F 2 14099-400
6" Triangle Brace
Model:
G 2 14100-400
6" L-Brace
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Creative Playthings 63082-102
Summary of Contents for Creative Playthings 63082-102
- Page 1 Monkey Bars. Please review the in- structions and manual provided with the gym for safety information and instructions on proper ground cover. All hardware on this set is specially coated for corro- sion resistance. If non-Creative Playthings hardware is used, it must be galvanized or stainless steel. Parts: A 2 35453-102 Mounting Block 2 x 4 x 10-1/2"...
-
Page 2: Lock Washer 5/16
Do not position the Monkey Bars near enough to a slide that a child encounters the Monkey Bars with any part of the body while sliding. Classic Pine Monkey Bar Instructions - 19932-200A (09/17) Page 2 Copyright 2016, Creative Playthings - Printed in U.S.A. - Page 3 Hex Bolt Assembly. Top Ladder. Bolt the top holes of the End Ladder assembly to the Triangle Braces and the end holes on the Top Ladder using two 5/16 x 3" Hex Bolt Assemblies. 3" 1-1/2" 1-1/2" Depending on model, the top ladder may look different. Classic Pine Monkey Bar Instructions - 19932-200A (09/17) Page 3 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 4 Mark the position of the holes in the Mounting Block onto the Wall Support. Drill 3/8" diameter holes through the Wall Support at the marks. Secure using four 5/16 x 4-1/2" Hex Bolt Assemblies as shown. This post has a seam that interferes with mounting directly to the post Wall Support Parts omitted for clarity. Classic Pine Monkey Bar Instructions - 19932-200A (09/17) Page 4 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 5 Secure the Mounting Block using four 5/16 x 4-1/2" Hex Bolt Assemblies as shown. Secure the other rail of the Top Ladder to the corner post using one 5/16 x 3-1/2" Lag Screw and Flat Washer. Secure the L-Brace to the post using one 5/16 x 2" Lag Screw and one Flat Washer. Use a 1/4" diameter drill to create pilot holes for the Lag Screws. Corner Post Wall Support Parts omitted for clarity. Classic Pine Monkey Bar Instructions - 19932-200A (09/17) Page 5 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 6 WARNING: To avoid serious injury or death, the space between Wall Slats or any other members MUST be less than 3-1/2" or greater than 9". Avoid creating gaps less than 1/2"; the gaps may cause finger entrapment. Classic Pine Monkey Bar Instructions - 19932-200A (09/17) Page 6 Copyright 2016, Creative Playthings - Printed in U.S.A.
