Space Saver Beam
All hardware on this set
is specially coated for
corrosion resistance. If
non-Creative Playthings
hardware is used, it must
be galvanized or stainless
steel.
G
J
D
A or B
J
C
E
Parts:

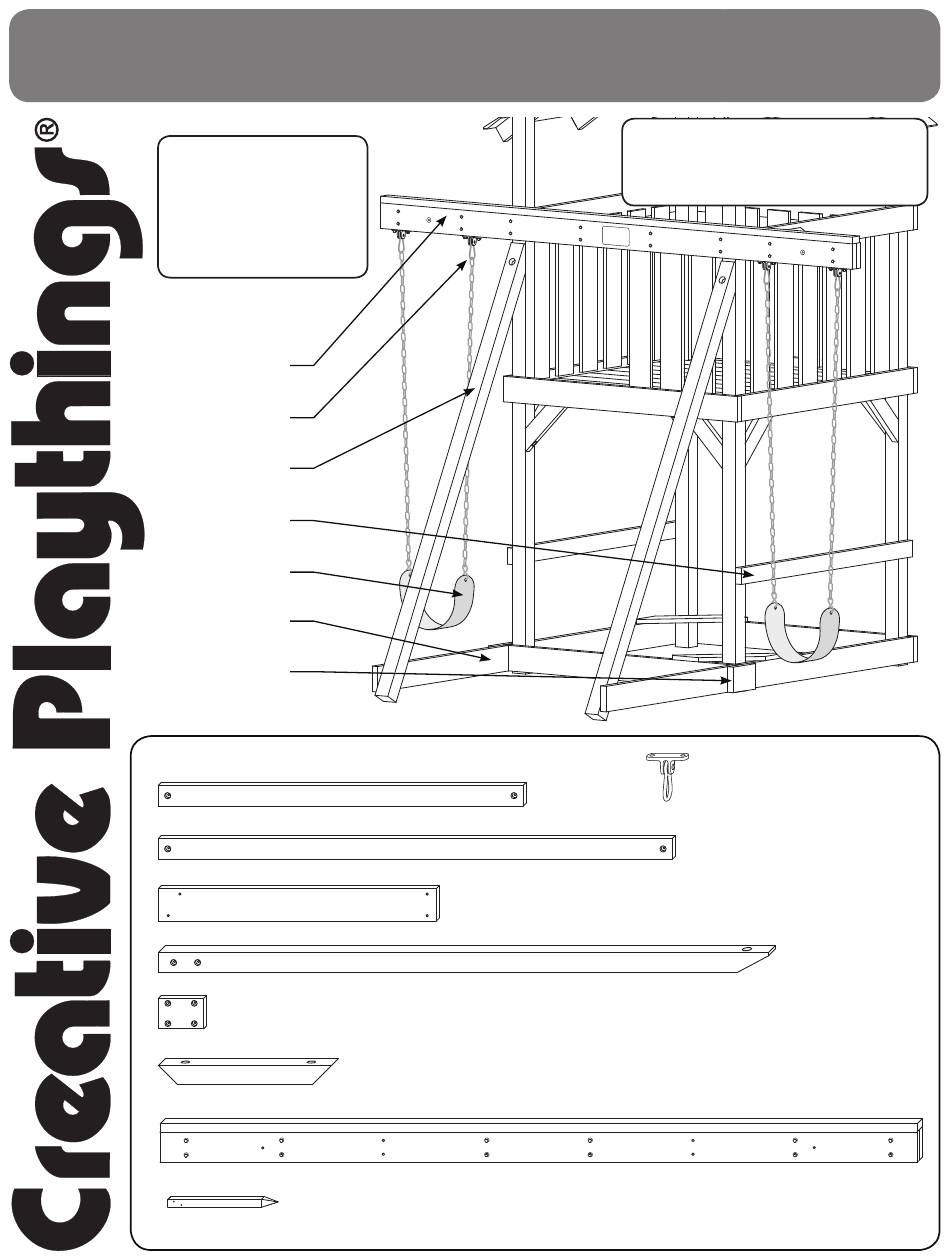

A 1 31448-102 Safety Rail 2 x 4 x 59-1/4"
B 1 31465-102 Safety Rail 2 x 4 x 83-1/4"
C 2 32621-102 Base Extension 2 x 6 x 45-3/16"
D 2 32622-102 Gym Brace 4 x 4 x 99-3/8"
E 2 32623-102 Base Rail Anchor 2 x 6 x 7-13/16"
F 2 35360-102 Beam Brace 4 x 4 x 29"
G 1 40623-102 Beam Assembly
H 2 36515-102 Ground Stake 2 x 2 x 18"
63087-101
The Space Saver Beam is meant for
use with single-occupant swings. Do not
use with the back-to-back glider or other
multiple occupant swings.
J 1 50144-700 HD Swing Hangers (4)
K 2 40321-400 Chained Sling Swing
1 50563-700 Fasteners
1 50563-706 Hole Caps
1 50470-100 Nameplate Bag
4 12038-103 1/4" Quick Link
4 14057-006 6" Extension Chain
Model:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Creative Playthings 63087-101
Summary of Contents for Creative Playthings 63087-101
- Page 1 Space Saver Beam Model: 63087-101 The Space Saver Beam is meant for All hardware on this set use with single-occupant swings. Do not is specially coated for use with the back-to-back glider or other corrosion resistance. If multiple occupant swings. non-Creative Playthings hardware is used, it must be galvanized or stainless steel. A or B Parts: A 1 31448-102 Safety Rail 2 x 4 x 59-1/4" J 1 50144-700 HD Swing Hangers (4) B 1 31465-102 Safety Rail 2 x 4 x 83-1/4" K 2 40321-400 Chained Sling Swing C 2 32621-102 Base Extension 2 x 6 x 45-3/16" D 2 32622-102 Gym Brace 4 x 4 x 99-3/8"...
- Page 2 Lag Screw 3/8 x 4" Lock Washer 3/8" Flat Washer 3/8" Lag Screw 3/8 x 3-1/2" Weld Nut 3/8" Hex Bolt 3/8 x 6" Space Saver Beam Instructions - 19939-100C (08/17) Page 2 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 3 STEP ONE - Prepare for Installation The Space Saver Beam mounts to either the front or the back of the gym. The position of the swings require that there are no accessories mounted to the sides of the gym. Before assembly remove the Access Ladder or any other items that are on the sides of the tower. Wall Slats Remove the Wall Slats and End Wall Support from the end of the gym where the Beam is to be mounted. Space Saver Beam Instructions - 19939-100C (08/17) Page 3 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 4 * Note: a Hex Bolt Assembly consists of one Hex Bolt passing through one Lock Washer and one Flat Washer, threaded onto one Weld Nut. Space Saver Beam Instructions - 19939-100C (08/17) Page 4 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 5 Remove the Hex Bolt Assemblies on one side Base Sup- side of the gym port. Locate one Base Rail Anchor (E) and one Base Ex- tension (C). Fasten the Base Rail Anchor to the outside of the side Base Support and the Corner Post using two 5/16 x 5-1/2" Hex Bolt Assemblies, as shown. Fasten the Base Exten- sion to the Base Rail Anchor using two 5/16 x 2" Hex Bolt Assemblies. Base Support Repeat with the other Base Extension and Base Rail An- chor on the other side of the gym. Space Saver Beam Instructions - 19939-100C (08/17) Page 5 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 6 Fasten the Safety Rail to the Corner Posts on the side of the gym adjacent to one swing position using two 5/16 x 3" Lag Screws with 5/16" Flat Washers as shown. If the other Safety Rail is not yet in place, install it in the same way on the other side of the gym, adjacent to the other swing. Use the Posts have pre-drilled pilot holes 24" above the ground. A or B Space Saver Beam Instructions - 19939-100C (08/17) Page 6 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 7 WARNING: To avoid serious injury or death, the space between Wall Slats or any other members MUST be less than 3-1/2" or greater than 9". Avoid creating gaps less than 1/2"; the gaps may cause finger entrapment. Space Saver Beam Instructions - 19939-100C (08/17) Page 7 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 8 Swing Accessory and the ground. The height of each Swing Accessory is adjusted by using a different link in the chain. Be sure to hang the Swings Accessories with ground clear- ance greater than or equal to the safety standard for your region. STEP TWELVE - Hole Caps Make a final check and make sure all the bolts and screws have been tightened. Locate the 1" and 1-1/2" Hole Caps. Install Hole Caps into all the counter-bored holes to cover and protect the hardware. Please note: the counter-bored holes in the Beam Brace are angled and a Hole Cap will not fit. Leave these holes uncov- ered. Space Saver Beam Instructions - 19939-100C (08/17) Page 8 Copyright 2016, Creative Playthings - Printed in U.S.A.
