Classic Pine Swing Beam
CPSC recommends a safe play
zone in front of and behind the
swings that is twice the height of
the swing pivot, and clear space ex-
tending 6' around the play structure.
Please review the instructions and
manual provided with the gym for
safety information and instructions
on proper ground cover.
All hardware on this set is specially coated for corrosion resistance. If non-Creative Playthings
Parts:

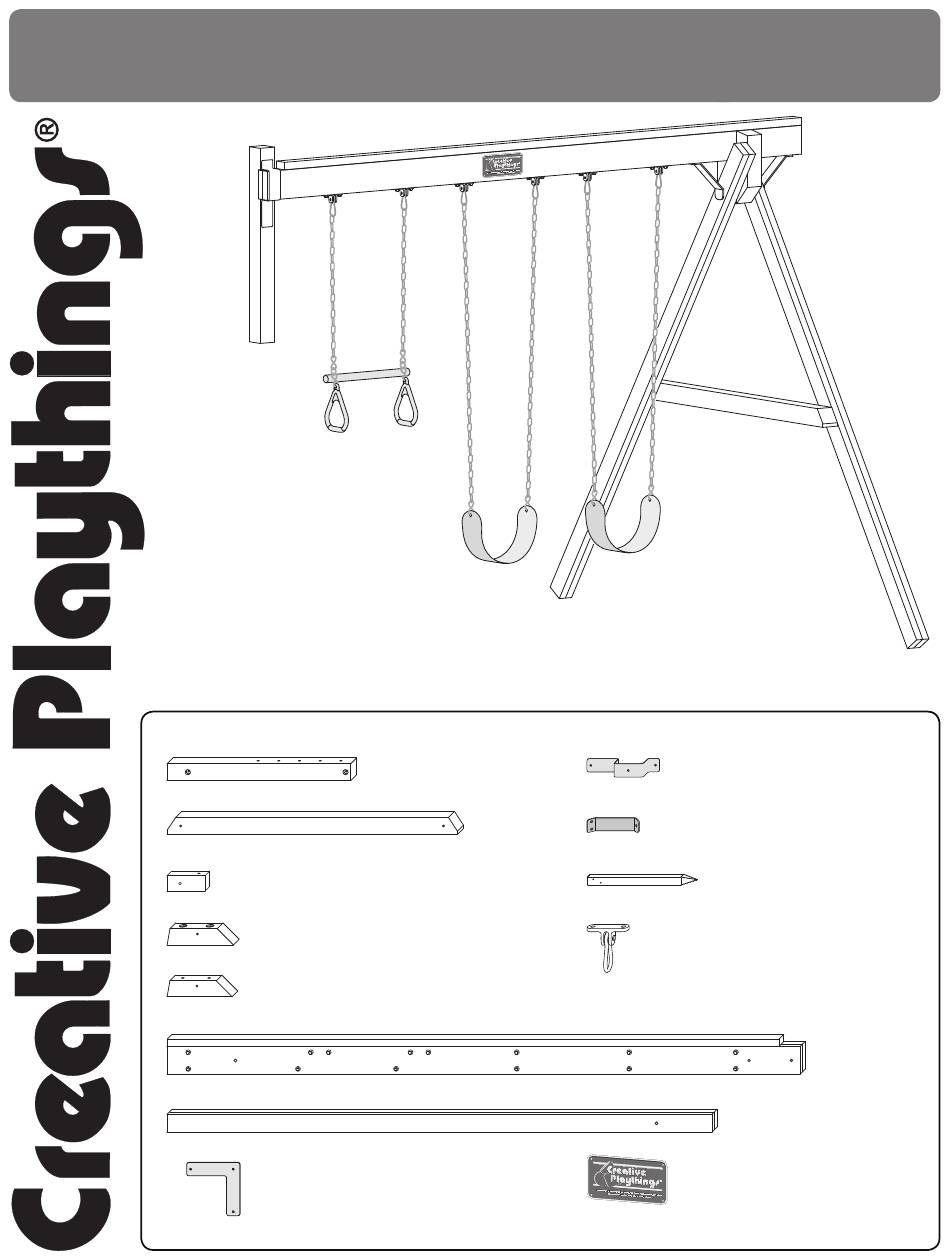

A 1 35200-102 Swing Mount 4 x 4 x 35-1/2"
B 1 35242-102 Leg Brace 4 x 4 x 55-1/2"
C 1 35303-102 Center Block 2-3/4 x 3-1/4 x 8"
D 1 35304-102 Side Block One 4 x 4 x 13-1/4"
E 1 35305-102 Side Block Two 4 x 4 x 13-1/4"
F 1 40594-102 3 Position Beam Assembly
G 2 40595-102 Leg Assembly
H 1 14162-400 8" L-Brace, Green, Large Holes
hardware is used, it must be galvanized or stainless steel.
AA934-204 2 Swings, 1 Trapeze
I 1 14233-400 Beam Retainer, Green
J 2 14234-400 HD Angle Bracket, Green
K 3 36515-102 Ground Stake 2 x 2 x 18"
L 1 50229-700 Ny-Glide Swing Hangers
M 1 14209-100 Creative Nameplate
Model:
63080-101
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Creative Playthings 63080-101
Summary of Contents for Creative Playthings 63080-101
- Page 1 All hardware on this set is specially coated for corrosion resistance. If non-Creative Playthings hardware is used, it must be galvanized or stainless steel. Parts: I 1 14233-400 Beam Retainer, Green A 1 35200-102 Swing Mount 4 x 4 x 35-1/2"...
- Page 2 Screw #10 x 2-1/2" Hex Bolt 3/8 x 3-1/2" Hex Bolt 3/8 x 6-1/2" Hex Bolt 1/2 x 10" (Truncated to fit on page) Classic Pine Swing Beam Instructions - 19928-100A (01/16) Page 2 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 3 Place the Beam (F) on the ground with the holes for the Swing Hangers face up. Place the Beam approximately 90" from the side of the gym with the Swing Mount. Carefully follow the instruction included with the Swing Hang- ers to install the Swing Hangers in the positions shown. 90" STEP THREE - Block Assembly Fasten Side Block One (D), Center Block (C), and Side Block Two (E) to the Beam at the gym end as shown. Use one 1/2 x 10" Hex Bolts, two 1/2" Flat Washers, and one Nylon Lock Nut for each connection. Classic Pine Swing Beam Instructions - 19928-100A (01/16) Page 3 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 4 Swing Beam. STEP FIVE - Secure Brackets Adjust the legs so they project 90° out from the Beam. Align the holes in the HD Angle Brackets with the pre-drilled holes in the Beam. Secure the Brackets to the Beam using four 5/16 x 2-1/2" Lag Screws and four 5/16" Flat Washers. Classic Pine Swing Beam Instructions - 19928-100A (01/16) Page 4 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 5 NOTE: If the ground falls away on the Beam side of the gym, the Beam can be shifted to a lower hole on the Swing Mount. Classic Pine Swing Beam Instructions - 19928-100A (01/16) Page 5 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 6 Blocks, Legs and Angle Braces. Make sure the end of the Bolts protrude through the Lock Nuts approximately two threads. STEP ELEVEN - Secure Beam Retainer Secure the Beam Retainer and L-Brace to the Swing Mount using 3/8 x 3-1/2" Hex Bolt Assemblies. Tighten all three Bolts securing the Beam to the Swing Mount. Classic Pine Swing Beam Instructions - 19928-100A (01/16) Page 6 Copyright 2016, Creative Playthings - Printed in U.S.A.
- Page 7 When using this Beam with the Northbridge gym, which has a tire swing, always hang the Ring Trapeze closest to the gym to reduce the possibil- ity of conflict. Classic Pine Swing Beam Instructions - 19928-100A (01/16) Page 7 Copyright 2016, Creative Playthings - Printed in U.S.A.
