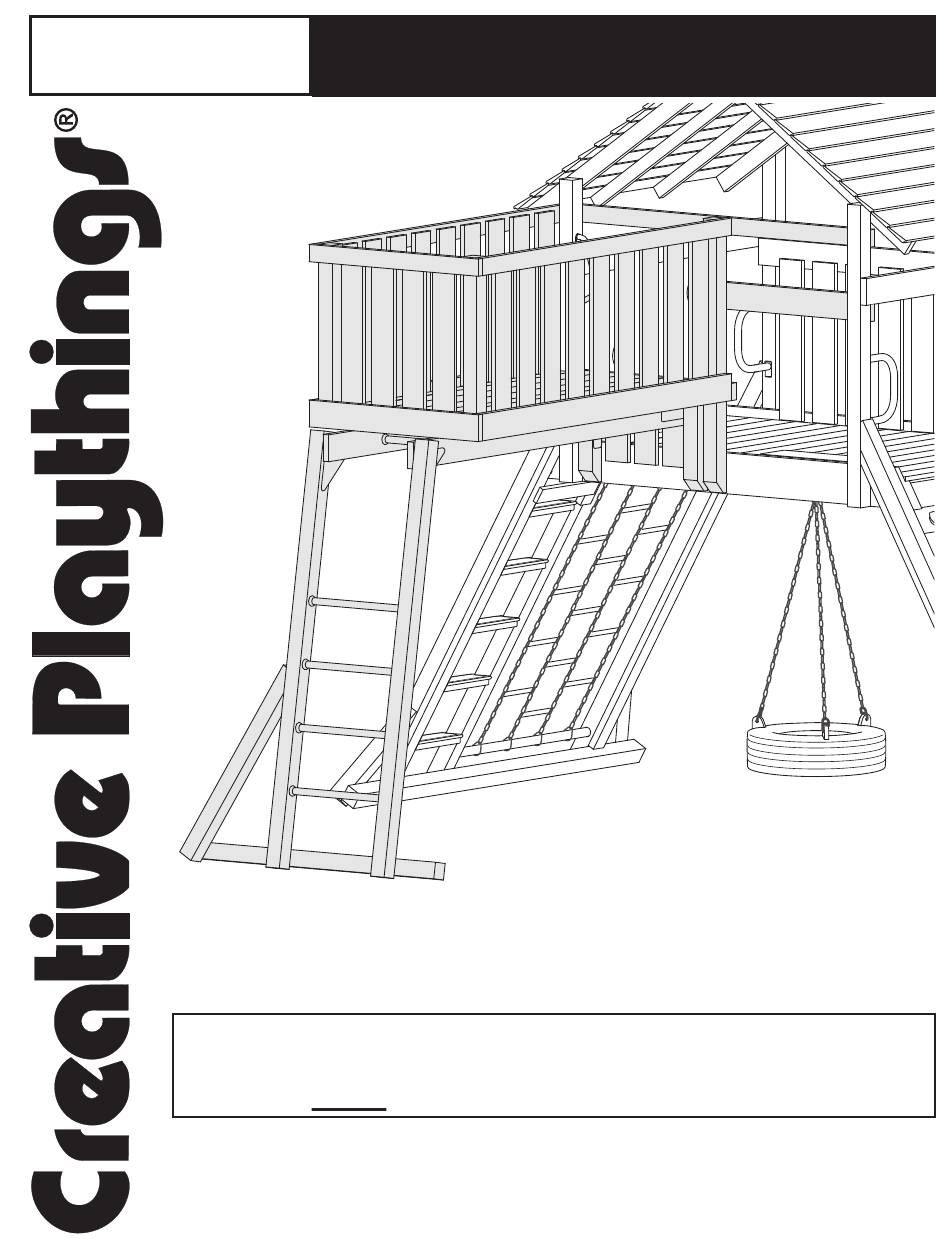

mAnchester Fun Deck
Assembly mAnuAl
Please read the owner's manual before assembling your Play set.
It provides additional information on the care and use of your Play set
you must carefully read the entire instruction manual before proceed-
ing with the assembly or use of your new Play set.
All hardware on this set is specially coated for corrosion
resistance. If non-creative Playthings hardware is used, it
must be galvanized or stainless steel.
creative Playthings takes great care to design its products with your
child's safety in mind. however, only with careful supervision and
proper safety instructions, can you be assured of safe play time on
any product designed for children.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Manchester Fun Deck and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Playthings Manchester Fun Deck

Summary of Contents for Creative Playthings Manchester Fun Deck

  • Page 1 If non-creative Playthings hardware is used, it must be galvanized or stainless steel. creative Playthings takes great care to design its products with your child’s safety in mind. however, only with careful supervision and proper safety instructions, can you be assured of safe play time on...
  • Page 2 • until assembly is complete, DO nOt let your children use the Play set. • never fasten anything not approved by creative Playthings to your Play set. Accessories or items not ap- proved by creative Playthings include; Dog runs, clothes lines, electrical devices, or bird feeders etc.

  • Page 3: Safe Play Area

    • the manchester Fun Deck Assembly has ground dimensions of 7'-0" x 5’-0" • the manchester Fun Deck Play set Accessory adds 7'-0" to the safe Play Area at the end of your gym. • Additional accessories may increase the size of the safe Play Area.

  • Page 4: Hardware Bag Contents

    Lag screw 5/16 x 3-1/2" 17036-1602 Lag screw 5/16 x 4" 17036-1803 Lag screw 3/8 x 4 1/2" We have packaged more hardware than is required for assembly. ManChester Fun DeCk Page 4 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)

  • Page 5: Pre Assembly Information

    Assembly Pre Assembly InFOrmAtIOn creAtIVe PlAythInGs PlAy sets use A FeW stAnDArD cOnnectIOns. becOmInG FAmIlIAr WIth these cOnnectIOns WIll sImPlIFy Assembly AnD Insure A sAFer PlAy PrODuct FOr yOur chIlDren. hex bolt & Weld nut Assembly Procedure: Assembly layout: align the holes in the parts to be fastened. start prelimi- nary tightening of bolt into weld nut by hand.
  • Page 6 Assembly PlAy set VIeW ManChester Fun DeCk Page 6 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)

  • Page 7: Component Parts

    33587-102 side Wall support 2 x 4 x 82" 32929-102 Base rail 4 x 4 x 59"(3) 33589-102 top Post Connector 2 x 4 x 72-3/4" 50504-700 hardware, Manchester Fun Deck 19807-100 instructions, Manchester Fun Deck 32930-102 side support 4 x 4 x 43"...

  • Page 8: Maintenance Instructions

    Do not over tighten. • Check structure twice monthly during usage for any evidence of deterioration. if upon inspection, hardware has sharp edges, rusted or structural pieces have signs of premature failure; replace them through Creative Playthings Customer service.
  • Page 9 Corner Post. Measurements register from the top of the Corner Post. 36-1/2" 39-1/2" 40" ManChester Fun DeCk Page 9 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 10 * a hex Bolt assembly consists of one hex Bolt, one Lock Washer, one Flat Washer, and one Weld nut. roof shown cut away for clarity. ManChester Fun DeCk Page 10 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 11 Gym end support offset to the top. When installed correctly, the Platform entry sup- port and the Gym end stringer align at the bottom edge. ManChester Fun DeCk Page 11 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 12 3/8 x 4-1/2" Lag screw and one 7/16" Flat Washer. tighten all fasteners. note: Your gym may in- clude 3/8 x 4" lag screws instead of 4-1/2" lags, both will work. ManChester Fun DeCk Page 12 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 13 Corner Post. With the counter-bored holes facing up, fasten the end stringer using two 5/16 x 5-1/2" hex Bolt assemblies through the Platform end and Corner Posts. ManChester Fun DeCk Page 13 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 14 Fasten each stringer to the left and right Platform sup- ports using two 5/16 x 3-1/2" Lags screws and two 5/16" Flat Washers. ManChester Fun DeCk Page 14 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 15 5/16 x 4" hex Bolt assemblies as shown. Fasten the other side Wall support to the left Corner Post and the gym Post using two 5/16 x 4" hex Bolt assemblies. ManChester Fun DeCk Page 15 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 16 Fasten the Deck Boards (C) using ten #8 x 2" screws each. Fasten the narrow Deck Board (h) using five #8 x 2" screws. ManChester Fun DeCk Page 16 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 17 Fasten one Climbing rock (s) to each of the three short slats (Q) using two 1/4 x 1-1/2" hex Bolts, two 1/4" Lock Washers, two 8MM Flat Washers and two 1/4" Weld nuts for each rock. ManChester Fun DeCk Page 17 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 18 Find a good place on the gym Corner Post to re-mount the hand Grip removed in step one. Drill 1/8" diameter pilot holes before fastening with the original hardware ManChester Fun DeCk Page 18 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 19 Wall slats removed in step one. Make sure that there are no gaps wider than 3-1/2". at least 24" ManChester Fun DeCk Page 19 © Copyright 2011, Creative Playthings 19807-100 rev D (07-16)
  • Page 20 Playthings for warranty service and/or part replacement. the warranty can be found in your Owner’s manual. Please fill out the warranty card on the back of your owners manual. your completed warranty card will allow us to quickly process warranty claims.
