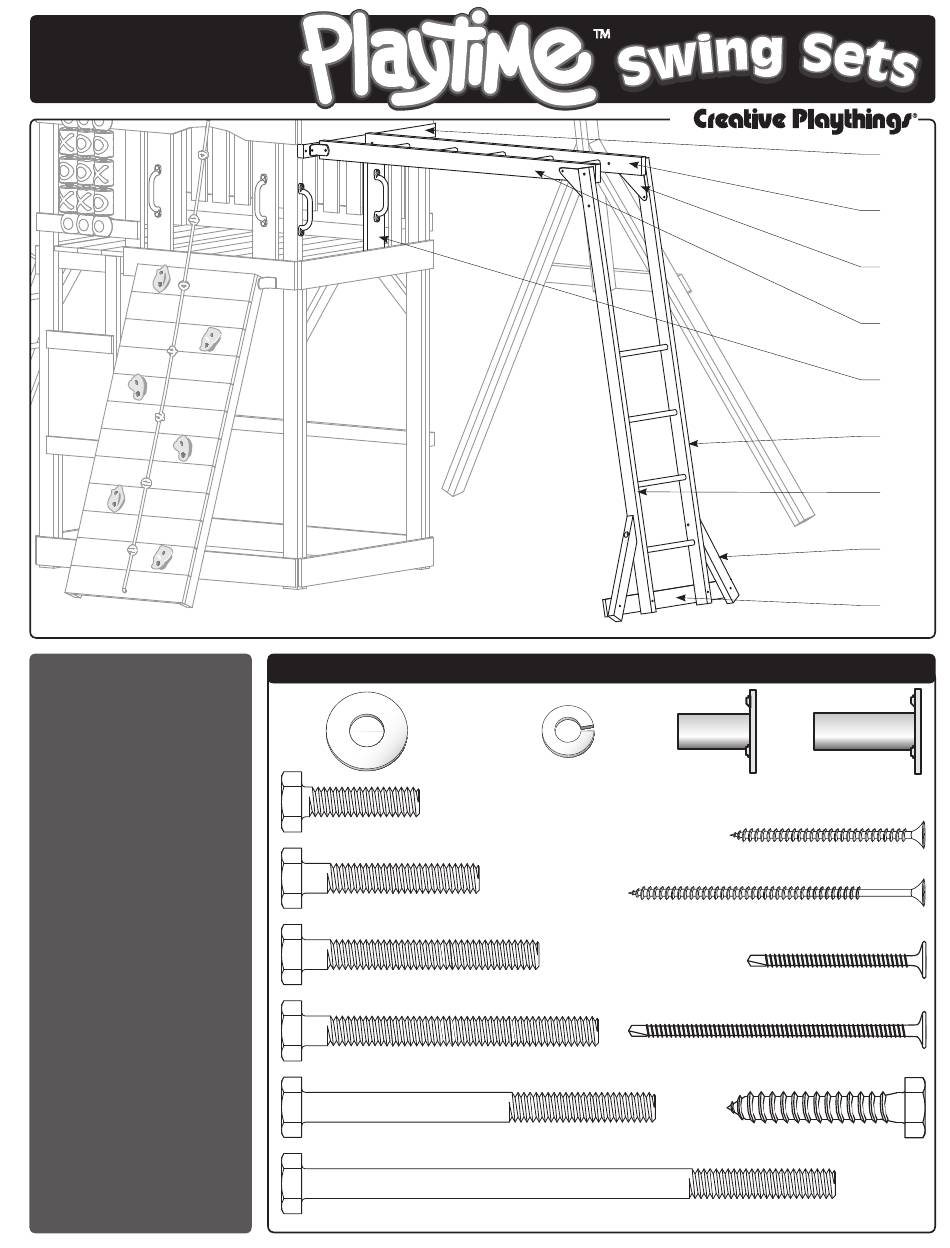

MODEL 60084-101
MOnkEy Bar
Your gym may have different
features than shown.
This Monkey Bar is
designed to be mounted
to gym model MQSEM,
60082 or PS18SPH.
refer to the instructions
provided with your gym
for extensive safety
information.
read the owner's manual
before assembling your
play set, it provides
additional information on
care and use.
Carefully read all
instructions before
proceeding with the
assembly or use of your
new play set.
We take great care to
design our products
with your child's safety
in mind. Only with
supervision and proper
safety instruction, can
you be assured of safe
play on any children's
product.
1/4" Flat
Washer
1/4 x 1" Hex Bolt
1/4 x 1-1/2" Hex Bolt
1/4 x 2" Hex Bolt
1/4 x 2-1/2" Hex Bolt
1/4 x 3" Hex Bolt
1/4 x 4-1/2" Hex Bolt
™
By
Parts list on next page
Hardware
1/4" Lock
1/4" Weld
Washer
nut, Short
#10 x 1-1/2" Self-Drill Screw
#10 x 2-1/2" Self-Drill Screw
G
E
J
F
H
C
B
D
A
1/4" Weld
nut
#8 x 1-5/8" Screw
#8 x 2-1/2" Screw
1/4 x 1-1/2" Lag Screw
Advertisement
Related Manuals for Creative Playthings Playtime 60084-101
Summary of Contents for Creative Playthings Playtime 60084-101
- Page 1 ™ MODEL 60084-101 MOnkEy Bar Your gym may have different Parts list on next page features than shown. Hardware This Monkey Bar is designed to be mounted to gym model MQSEM, 1/4" Flat 60082 or PS18SPH. Washer refer to the instructions provided with your gym 1/4"...
- Page 2 Throughout this guide a Hex Bolt Assembly consists of one Hex Bolt, one Lock Washer, one Flat Washer and one Weld nut. Long Weld nuts are used unless otherwise noted. 60084-101 MonkEY BArS Page 2 © Copyright 2014, Creative Playthings, Printed in U.S.A. 19865-100 rev C (09-17)
- Page 3 Fasten the Base rail (A) to the End Ladder using 1/4 x 3" Hex Bolt Assemblies with Short Weld nuts as shown at right. 1/4 x 3" Hex Bolt w/ Short Weld nuts 60084-101 MonkEY BArS Page 3 © Copyright 2014, Creative Playthings, Printed in U.S.A. 19865-100 rev C (09-17)
- Page 4 Hex Bolt Assemblies. Fasten the Triangle Braces to the End Ladder using two 1/4 x 1-1/2" Hex 1/4 x 1-1/2" Bolt Assemblies. Hex Bolts 60084-101 MonkEY BArS Page 4 © Copyright 2014, Creative Playthings, Printed in U.S.A. 19865-100 rev C (09-17)
-
Page 5: Step 9 - Hand Grips
Fasten the hand grip using two 1/4 x 1-1/2" Lag Screws and Flat Washers. 1/4 x 1-1/2" Lag Back Platform Screws w/ 3/16" Support pilot drill 60084-101 MonkEY BArS Page 5 © Copyright 2014, Creative Playthings, Printed in U.S.A. 19865-100 rev C (09-17) -
Page 6: Step 10 - Ground Stakes
Check all Fasteners and clear the area of all tools or other obstructions before allowing children to use the play structure. 2" Hex Bolts with Short Weld nuts 60084-101 MonkEY BArS Page 6 © Copyright 2014, Creative Playthings, Printed in U.S.A. 19865-100 rev C (09-17)
