Extron electronics RGB 460xi Series Specification Sheet

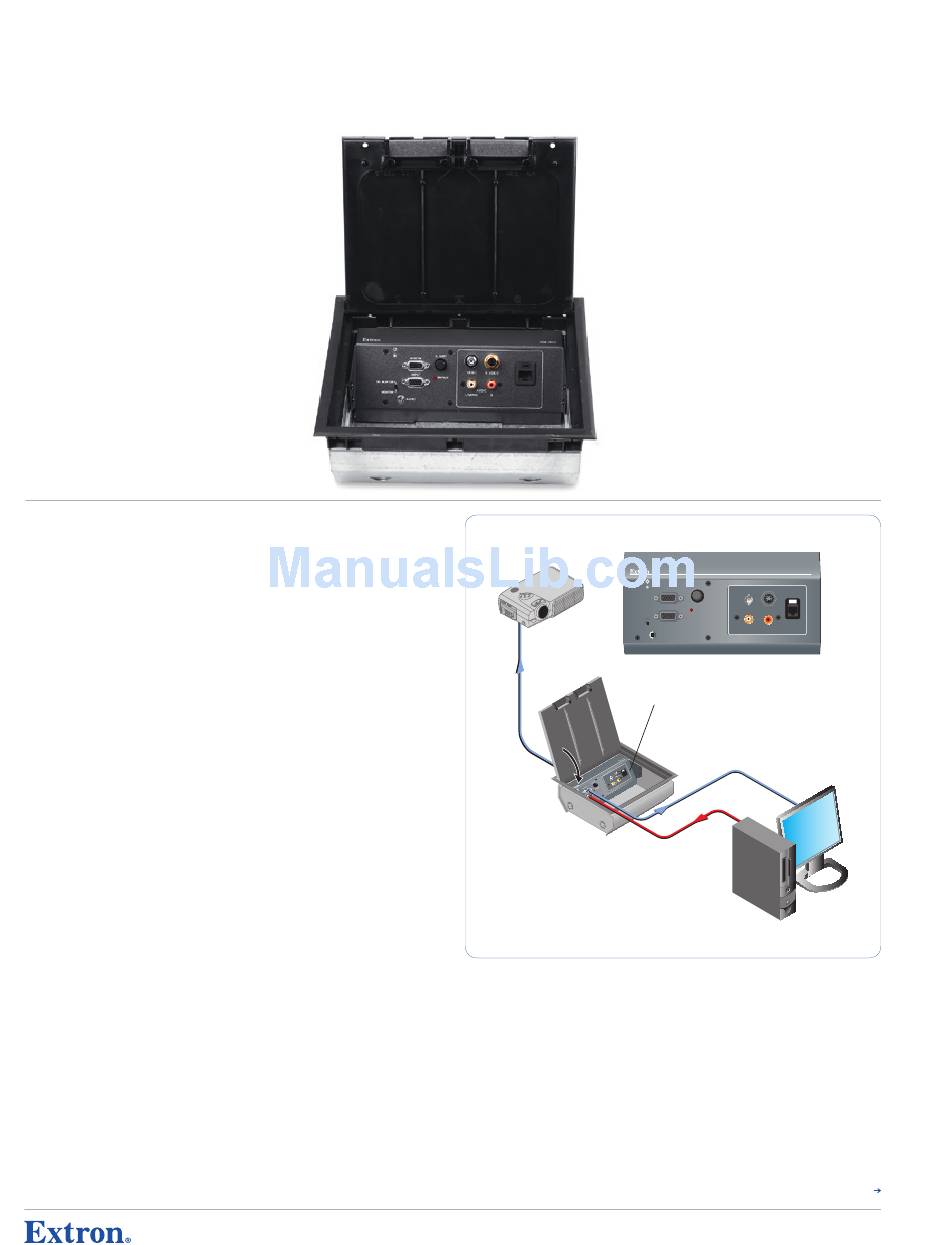

RGB 460xi Series Floor Box Interfaces
Architectural Interfaces for FSR, Steel City, and Ackermann Floor Boxes

Common features

Input: RGB video on female 15-pin HD connectors; audio on 3.5 mm stereo
•
mini jacks
Output: RGB video on female 5-BNC pigtail; audio on captive screw connector
•
Universal, analog computer-video interface
•
Compatible with VGA-QXGA, Mac, Sun
•
300 MHz (-3 dB) RGB video bandwidth
•
ADSP - Advanced Digital Sync Processing
• ™
Active PC audio to balanced audio interfacing
•
Three-position level/peaking control
•
Horizontal Shift Control
•
Buffered female 15-pin HD local monitor output
•
• External universal power supply included, part # 70-055-01
desCription
The Extron RGB 460xi Series Floor Box Interfaces are architectural interfaces that can be
mounted in FSR, Steel City, and Ackermann brand floor boxes. A low-profile design provides
ample space for cables and connectors within the floor box. Each mounting plate is engineered
to fit easily into any of the floor box configurations, making installations quick and clean.
With a 15-150 kHz horizontal frequency range, and 300 MHz (-3 dB) of RGB video bandwidth,
each interface features a female 15-pin HD connector for connecting computers to display
devices, as well as Extron's ADSP
all-digital processing of sync signals, avoiding the tearing and other image distortions
encountered when using poor sync processing methods with digital display devices such as
DLP, LCD, D-ILA /LCoS plasma, etc.
™
46
, and SGI computers
® ®
- Advanced Digital Sync Processing. ADSP provides
™
