Section 1: MECHANICAL INSTALLATION
1.0 INTRODUCTION
This document is intended to give details and guidance for a boat builder or equipment installer to
properly install the Seakeeper 1. The Seakeeper 1 can produce forces of up to 1,515 lbs. (6.74 KN) in
the vertical direction, 2,248 lbs. (10.0 KN) in the longitudinal direction, and 1,697 lbs. (7.55 KN) in the
lateral direction at each of the four mounts. Careful consideration should be given to foundation
design to ensure it is capable of safely transferring these loads into the hull. These loads represent a
worst-case operating condition that includes a 6G acceleration evaluated in each direction
independently. The responsible party for designing the supporting structure (boat builder, installer,
or hired sub-contractor) must accommodate the above forces plus a reasonable factor of safety.
Seakeeper recommends a minimum safety factor of 2.0 (yielding a safety margin of 2.0).
It is assumed that the installer is familiar with mounting using mechanical fasteners to marine
structures and has performed structural analysis to ensure the structure to which the Seakeeper
mounts can properly transfer the loads the Seakeeper exerts into the hull structure. If the installer
has any doubt about the ability of the structure to transfer the loads to the hull, then the installer
should contact a licensed naval architect or engineer to perform a structural analysis.
The installer should review the following list of reference drawings to ensure the mechanical
installation procedure is fully understood.
Reference Documents & Drawings:
90510 – Seakeeper 1 Hardware Scope of Supply
•
90515 – Seakeeper 1 Crate Unpacking Instructions
•
90516 – Seakeeper 1 Bolt-in Installation Details
•
90514 – Seakeeper 1 Bolt-in Clearances
•
90559 – Seakeeper 1 Generic Installation Guide
•
90517 – Seakeeper 1 Installation Fixture Kit
•

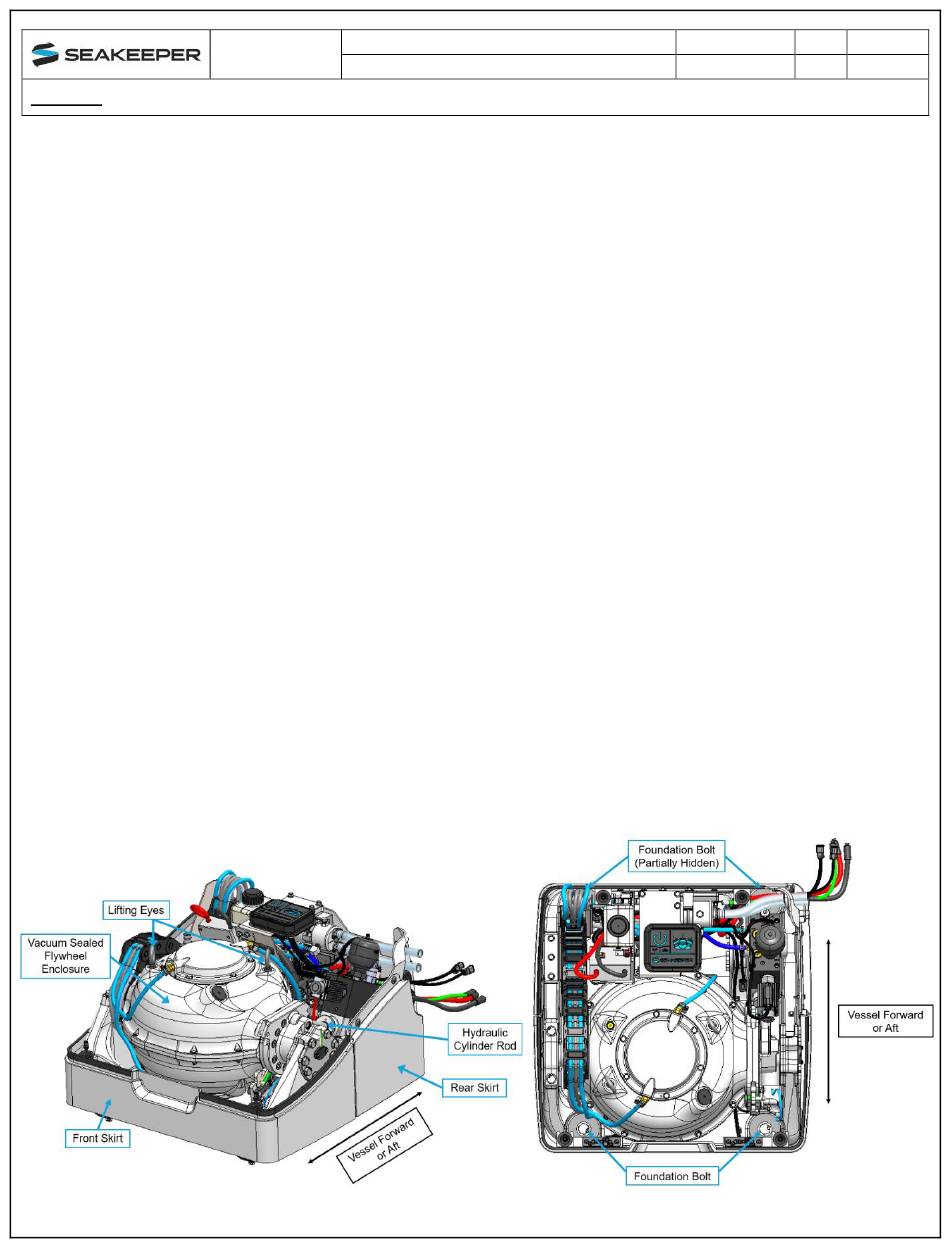

Figure 1: Seakeeper 1 Components – Isometric (left) / Top-Down (right)
