Summary of Contents for Premier Mounts GB-AVSTOR4

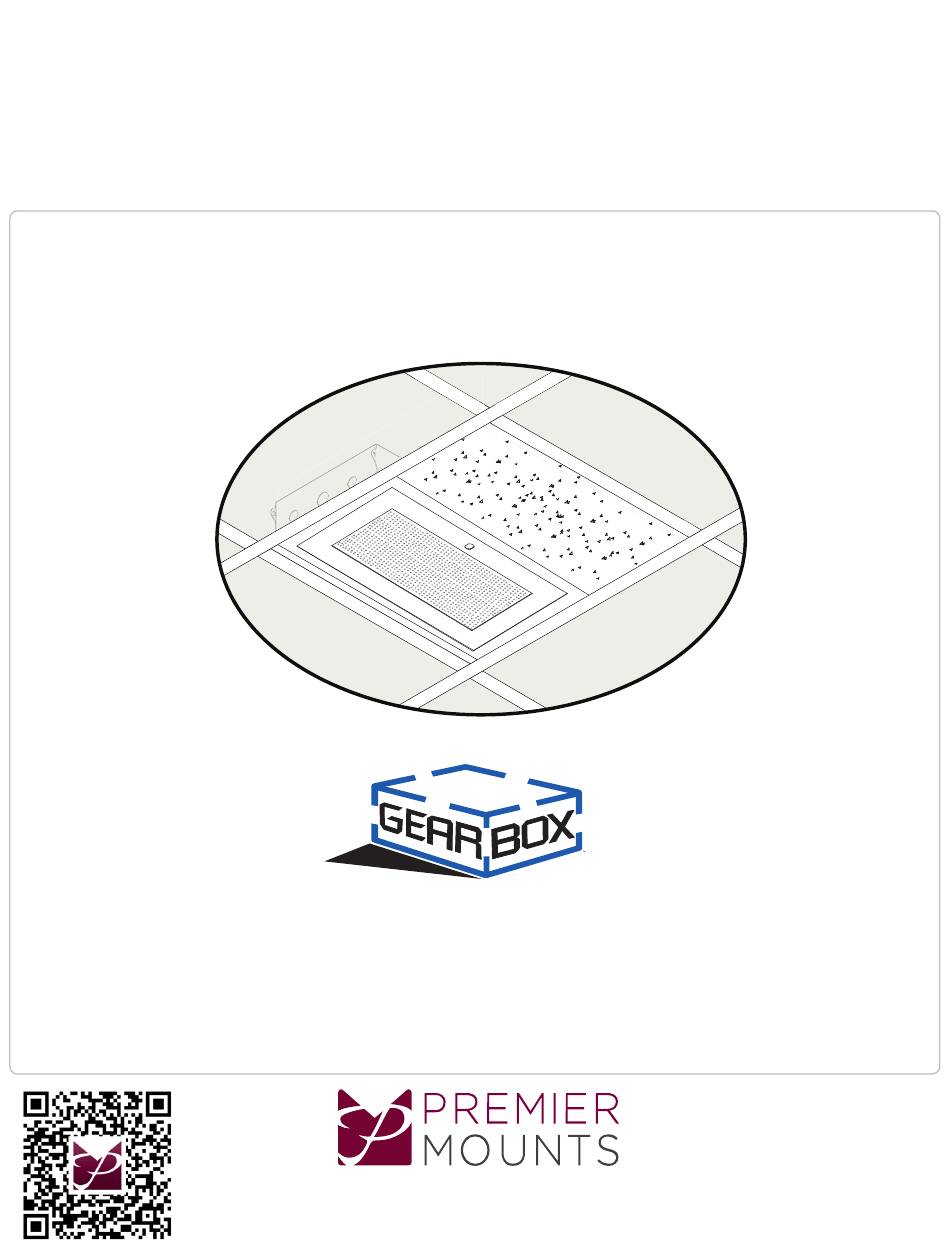

- Page 1 GB-AVSTOR4 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
-
Page 2: Required For Installation
EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR... - Page 3 The GB-AVSTOR4 Ceiling Equipment Storage GearBox™ is a secure and discreet storage solution. Simply replace half of a standard 2’ x 2’ ceiling tile with the GB-AVSTOR4 to hide your electronic and electrical components above the room. The perforated lid looks like a standard HVAC return register when closed to blend in with the rest of the ceiling.
-
Page 4: Lid Removal
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Introduction Please read these installation instructions thoroughly before installing your Premier Mounts product. Please take a minute to familiarize yourself with the contents of the package and make sure you have all the parts and tools you need to safely complete the installation. - Page 5 Remove screws from around the desired electrical Knockouts (Figure 1) to detach their covers. Remove the knockout covers from the top of the GB-AVSTOR4 (Figure 2). Remove the knockouts. Figure 1 If you have opened a knockout and no longer want to use it, re-attach its cover to prevent airflow into the ceiling.
-
Page 6: Concrete Ceiling
GB-AVSTOR4 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Ceiling Attachment The ceiling box must be secured using the Quick Lock and 1/16" braided cables (supplied). Wood Stud Ceiling 1. Determine the mounting location. 2. Use a 1/8" drill bit to pre-drill the mounting holes. - Page 7 GB-AVSTOR4 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Truss Ceiling 1. Loop the braided cable around the truss. 2. Run the open end 1/16" braided cable Ceiling Truss through the loop. 3. Pull the open end down until the 1/16"...
- Page 8 GB-AVSTOR4 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Quick Lock Operation Please follow the steps below in numerical order (1), (2), (3), Cable Output and (4) to correctly install the Quick Lock Cable Kit.
- Page 9 Attachment 6" Excess 1/16" Braided Cable Quick Lock If you are installing the GB-AVSTOR4 through a Figure 2 24" x 48" ceiling tile opening, attach a 24" T-bar frame (commerically available) in the 24" x 48" ceiling tile frame for support and place a 2' x 2' ceiling tile adjacent to the GB-AVSTOR4 (Figure 3 and 4).
-
Page 10: Mounting Tray Installation
For ease of installation, the mounting tray comes packaged in a separate box within the master carton. Installers may pre-wire the mounting tray prior to the GB-AVSTOR4 ceiling box installation. Zip ties (included), small screws and flat washers are strongly recommended to hold all equipment in place. - Page 11 GB-AVSTOR4 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Securing the Lid 1. Re-attach the ceiling box lid to the ceiling box. 2. Swing the ceiling box lid up into place. 1. Hold the lid in place.
-
Page 12: Technical Specifications
GB-AVSTOR4 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Technical Specifications All measurements are in inches (mm). 553.47 21.790 546.10 21.500 128.21 5.048 1.21 .048 553.47 21.790 114.30 4.500 www.mounts.com | North America 800.368.9700 | International +1-714-632-7100... - Page 13 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
