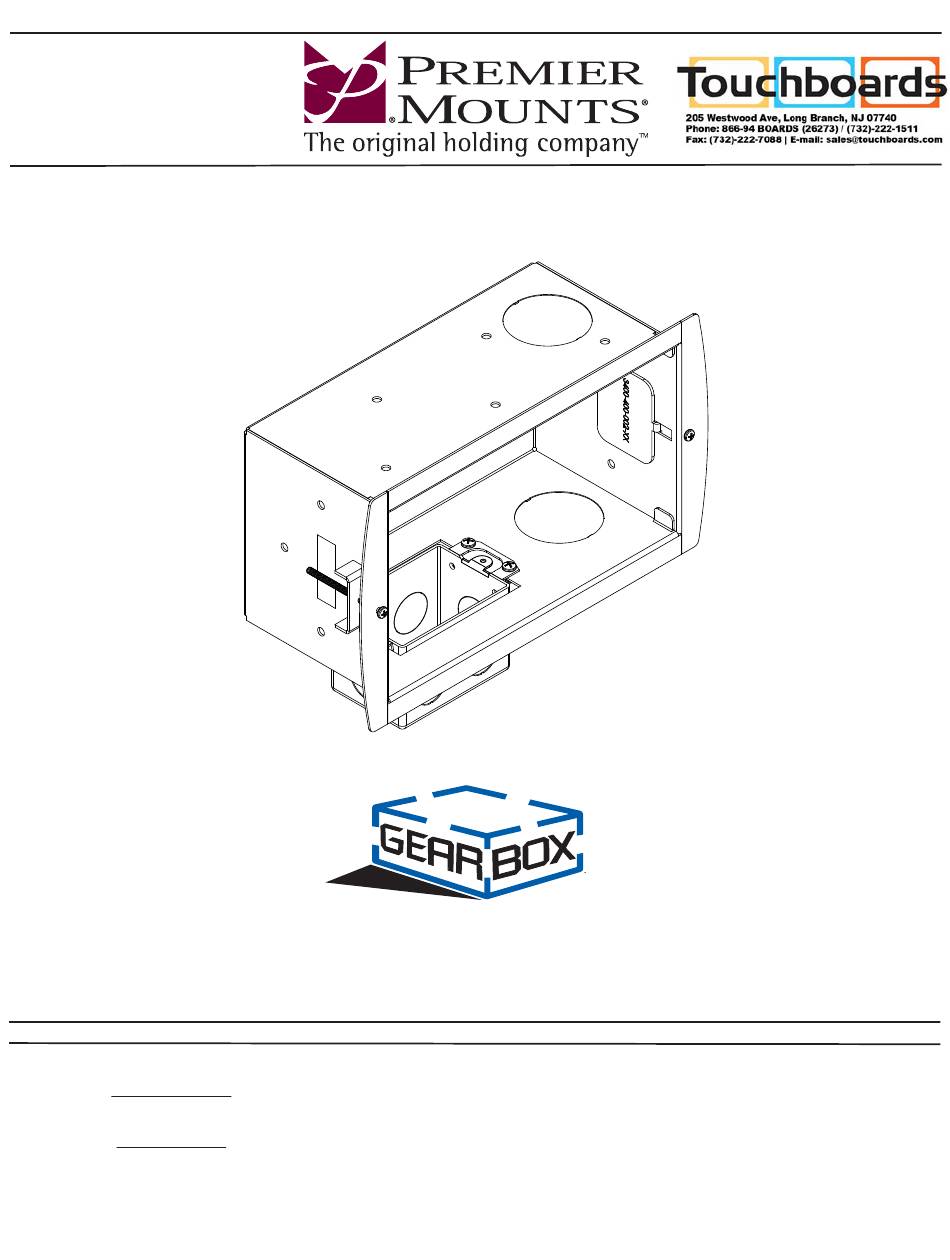

INSTALLATION INSTRUCTIONS Gear Box In-Wall Audio / Video / Power Mount Model: GB-INWAVP NORTH AMERICA EUROPE AUSTRALIA AND OCEANIA 3130 East Miraloma Avenue Swallow House, Distributed by Amber Technology Limited Anaheim, CA 92806 USA Shilton Industrial Estate, Unit B, 5 Skyline Place...
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY...
Drywall Saw Parts List Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700.
fl at panel without the need horizontally, vertically, or even for unsightly cords running down upside-down to accommodate your the wall to a nearby receptacle. specifi c power and audio/video cabling needs. Page 4 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com...
If you will be mounting your GB-INWAVP directly to drywall, proceed to the “Drywall Installation” section. If you will be mounting your GB-INWAVP to a wooden stud, or if after cutting the hole in your drywall you discover that you are too close to a wall stud, proceed to the “Wood Stud Installation (Optional)”...
Page 6
If you do locate any hazards, their presence may require you to relocate either the hazard or your GB-INWAVP. Consult a qualifi ed professional prior to relocating electrical lines, gas lines, or water pipes.
Page 7
GB-INWAVP Drywall Installation (cont’d) Step 5 Insert your GB-INWAVP into the cutout. Step 6 Insert one (1) In-Wall Clamp through the T-notch and pull it forward. Fasten with one (1) 6-32 x 2″ Panhead Screw. Do not overtighten the 6-32 x 2″ Panhead Screw.
GB-INWAVP directly behind the fl at panel. Step 2 Place your GB-INWAVP against the wall with one edge of your GB-INWAVP aligned with the edge of a stud. Level your GB-INWAVP. ...
Page 9
1½″ Knockouts for Audio / Video / Data Connections Step 5 Insert your GB-INWAVP into the cutout. Step 6 Drill a ¼″ pilot hole in each of the three (3) mounting points. Insert one (1) commercially available wood screw into each of the pilot holes and hand tighten.
Place the Outlet Box into your GB-INWAVP. Step 2 Secure the Outlet Box to your GB-INWAVP using four (4) 6-32 x ½" screws. Do not overtighten the 6-32 x ½” screws. Proceed to the “Installing the Cable Bushings”...
Run your audio, video, and data cables through the cable bushings. Proceed with installing your fl at panel mount. Technical Specifi cations All measurements are in inches(mm). Installation Instructions Page 11 Visit Premier Mounts website at http://www.mounts.com...
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
