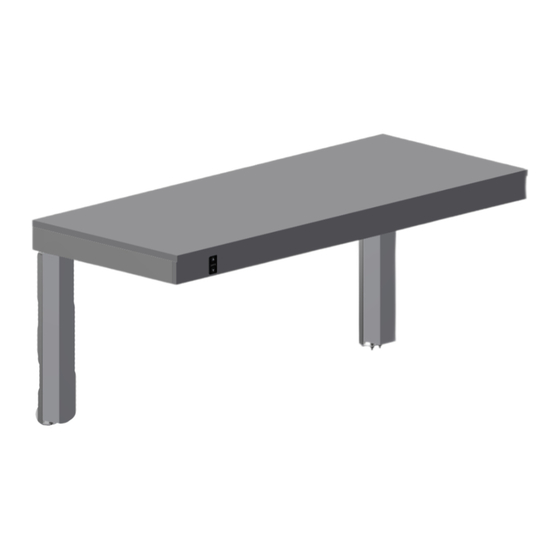

- Page 1 Ropox FlexiPlus User manual This manual should always be in close proximity to the product TF 200.01.0020 / Date 01-03-2022 TF 200.01.0020_ENG...
-
Page 2: Table Of Contents
Complaints and adverse events .................... 7 Instructions for use..........................8 Installation of product ......................8 Installation of countertop ......................12 Installation of Bluetooth adapter ...................13 Electrical component diagram ....................14 Ropox Connect App ......................14 Operating the product ......................14 Accessories ............................15 Installation of accessories ....................15 Troubleshooting..........................21 Cleaning .............................21 Maintenance ............................21... -
Page 3: Symbols Used In This Manual
Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notice Symbol This symbol is used to notify correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way, that differs from stated in this manual and/or installation instruction.
-
Page 5: Product Unit Label
Product Unit label This product is CE-marked in accordance with: Council Directive 2006/42/EC on machinery Council Directive 2011/65/EU, RoHS Manufacturer name and address Date of production Stock number Serial number Consult manual before use Operating interval of electrically operated equipment. The use of electrical height adjustable equipment can run at maximum 1 minute, followed by a 9-minute break. -
Page 6: General Requirements
Additionally, it’s possible to buy what’s called a safety-stop. This is a safety system that works in tandem with Ropox Sicuro, that is especially sensitive and is better at registering soft material. The safety-stop is placed underneath the table, at the edge, which makes it optimal for seated users. -
Page 7: Product Dimensions
Product dimensions Aluminum profile is always 50mm (2in) shorter than tabletop. It is recommended to keep 50mm (2in) of clearance below the wall bracket. 60 – 240cm (23.5 – 94.5in) Sideview 245 – 300cm (96.5 – 118in) Complaints and adverse events Any serious incident that has occurred in relation to the use of the product, should be reported to the manufacturer and the competent authority of the Member State in which the user is located. -
Page 8: Instructions For Use
Instructions for use Installation of product Page | 8 TF 200.01.0020_ENG... - Page 9 4.1.1A 4.1.1C Plumb the wall brackets and attach top Mark these two points for leg installation screws Keep a minimum distance of 80mm (3in) to fixed objects next to tabletop. Be aware of countertop overhang. 4.1.1D 4.1.1B Slide motor columns in wall brackets Attach wall brackets in the points marked If needed, use rawlplugs.
- Page 10 4.1.2A 4.1.2C Mount support arms on profile Mount the adjustment screws on the leg, At each motor column, a support arm should in line with where the support arm will be be placed on top of the adjustment screw. placed. Do note, that the inner support arms must not be more than 60cm (23.5in) apart.
- Page 11 4.1.2E 4.1.2G Level out the system by adjusting the nut Attach the control box to the profile at the bottom of each motor column 4.1.2H Connect cables to the control box and do a test run Zero out the system by holding the down button until the columns have initiated a reset.
-
Page 12: Installation Of Countertop
4.2.1C Installation of countertop Level the system by adjusting the adjustment screw and set screw on each 4.2.1A leg by means of a hex key Place countertop and secure it to the support arms Keep a safe distance of 5mm (0.2in) to the wall. -
Page 13: Installation Of Bluetooth Adapter
With a purchase of Ropox FlexiPlus, as a standard component, a Bluetooth adapter will always accompany the product. This Bluetooth adapter allows the user to remotely connect to FlexiPlus using our app, Ropox Connect, or with the wireless control, that can be acquired as an accessory. -
Page 14: Electrical Component Diagram
Bluetooth adapter Ropox Connect App As an option for operating Ropox FlexiPlus, it’s possible to download the free Ropox Connect App, which makes it possible to operate the product wirelessly. The Ropox Connect App allows you to operate the product upwards or downwards and has the option of saving height settings, allowing users to easily change from a standing height to a sitting height. -
Page 15: Accessories
Accessories Accessories Item Number Model/specification 30-92xxx Safety strip 30-90550-1 Control with lock function 30-90540-1 Wireless control 30-67610-1 Extra leg 30-67635 Cover for plumbing 30-67760 Bracket for coverplates 30-67705 Supporting Foot 49cm/19in Long 30-90530 70mm/3in distance bracket 30-93050 – 30-93660 Height adjustable programming, 50 – 660mm (2 – 26in) Installation of accessories 5.1.1 Installation of safety strip... - Page 16 5.1.2 Installation of control with lock function • For ease of installation, before mounting a front fascia, pre-drill two holes in the tabletop for the control. • Mount the control with lock function on the bottom side of the table, by means of two Ø 4.5mm countersink screws.
- Page 17 5.1.3 Use of the control with lock function • UNLOCKING THE CONTROL WITH LOCK FUNCTION Unless otherwise specified, the control cannot activate the motor columns, without ® �� Bluetooth ⭐ unlocking the control. This is done by pressing , then , within one second.
- Page 18 5.1.4 Installation of wireless control • Before the wireless control can be connected to FlexiPlus, the Bluetooth adapter must be in pairing mode, see 4.3.1. • If the Bluetooth adapter has been inserted into the control box, but isn’t in pairing mode, demount the Bluetooth adapter, then reinsert it.
- Page 19 If the chosen height adjustment is greater than standard (300mm (11.8in)), it is not recommended to use this accessory. • To mount coverplates with the brackets, see Concealment panels for Ropox Flexi, PDF 6163 5.1.7 Installation of support foot •...
- Page 20 5.1.8 Installation of 70mm/3in distance bracket • To mount the distance bracket, see 70mm/3in distance bracket, TF 200.01.0021. Page | 20 TF 200.01.0020_ENG...
-
Page 21: Troubleshooting
Troubleshooting Check all cables and plugs for loose connections If a safety strip has been fitted: The frame cannot be height adjusted Check that the safety strip has not been activated Check connection of cables for safety strip to control unit and safety strip Resetting the frame: Press the DOWN button and adjust the frame to The frame only goes down... -
Page 22: Component Part List
Component part list Notice! Ropox will make part lists available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. Parts included 2-3x Motor column incl. - Page 23 1x Control box 2ch incl. mounting bracket -For 2x motor columns 30*67608-220 Includes press pad, cable, and adapter 97000244 97000256 97001778 1x Control box 3ch incl. mounting bracket -For 3x motor columns 30*67608-221 Includes press pad, cable, and adapter 97000244 97000256 97001778 4x Angle fitting...
-
Page 24: Spare Parts List
Spare parts list Page | 24 TF 200.01.0020_ENG... -
Page 25: Environmental Protection
Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Aluminum profile Aluminum Motor column Electronics Support arms Steel waste Control box Electronics Electromagnetic compatibility... -
Page 26: Rf Portable Equipment
12.4 RF portable equipment Warning! Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the device, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment can occur.
