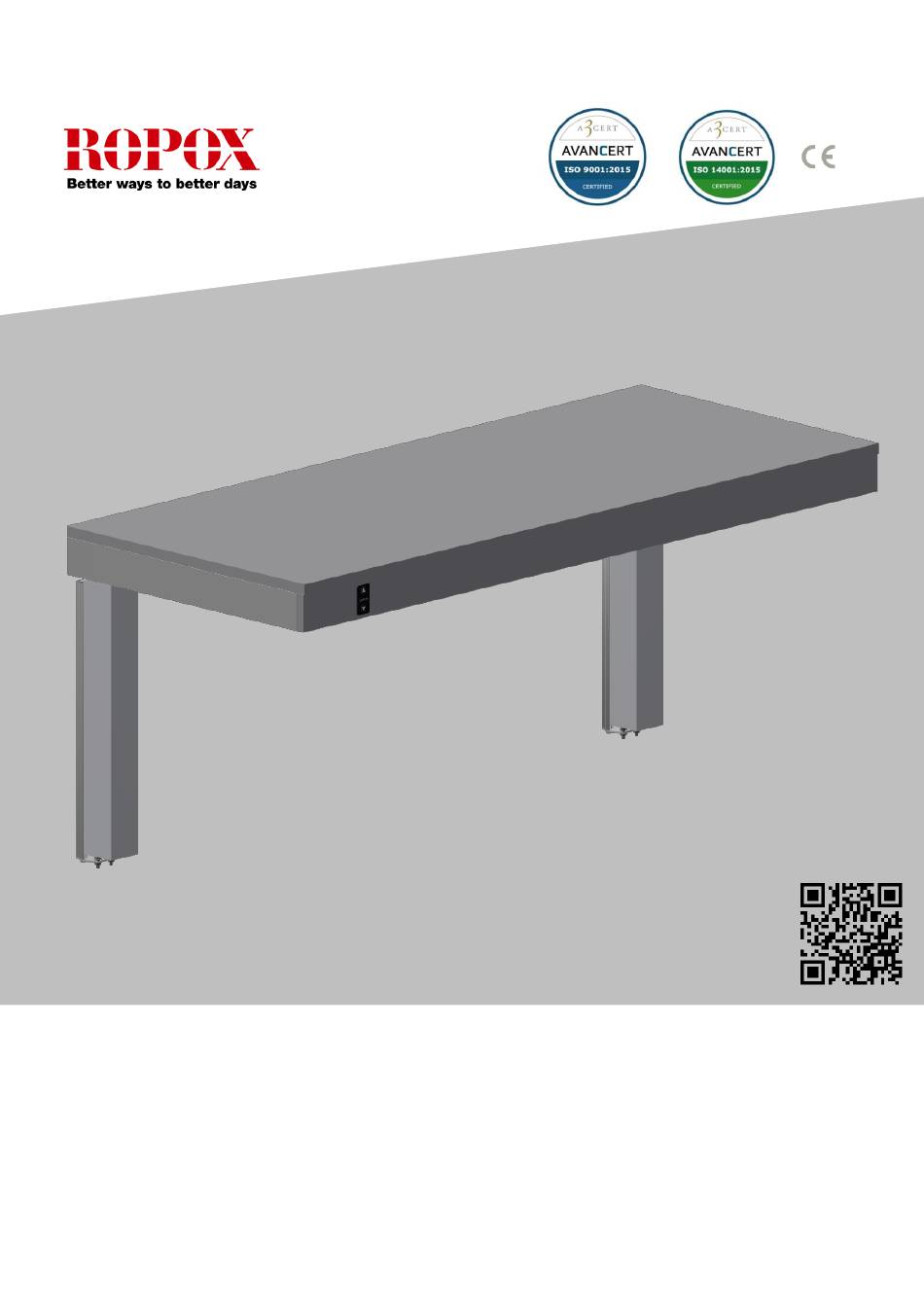

- Page 1 Ropox Flexi+ User manual This manual should always be in close proximity to the product TF 200.01.0020 / Date 04-10-2021 TF 200.01.0020_ENG...
-
Page 2: Table Of Contents
Table of Contents Symbols used in this manual ......................3 General safety ............................. 3 Product Unit label........................5 General requirements ......................... 6 Product information ....................... 6 Product description ....................... 6 Intended use ......................... 6 Intended population ......................6 Intended operator........................6 Basic safety .......................... -
Page 3: Symbols Used In This Manual
Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notice Symbol This symbol is used to notify correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way, that differs from stated in this manual and/or installation instruction.
-
Page 5: Product Unit Label
Product Unit label This product is CE-marked in accordance with: Council Directive 2006/42/EC on machinery Council Directive 2011/65/EU, RoHS Manufacturer name and address Date of production Stock number Serial number Consult manual before use Operating interval of electrically operated equipment. The use of electrical height adjustable equipment can run at maximum 1 minute, followed by a 9 minute break. -
Page 6: General Requirements
Additionally, it’s possible to buy what’s called a safety-stop. This is a safety system that works in tandem with Ropox Sicuro, that is especially sensitive and is better at registering soft material. The safety-stop is placed underneath the table, at the edge, which makes it optimal for seated users. -
Page 7: Product Dimensions
Product dimensions Aluminum profile is always 50mm shorter than tabletop. 60 – 244cm 245 – 300cm Complaints and adverse events Any serious incident that has occurred in relation to the use of the product, should be reported to the manufacturer and the competent authority of the Member State in which the user is located. Page | 7 TF 200.01.0020_ENG... -
Page 8: Instructions For Use
Instructions for use Installation of product Check that there is 50mm free space above the floor, so the legs can be attached directly to the wall. Page | 8 TF 200.01.0020_ENG... - Page 9 4.1.1A 4.1.1C Plumb the wall brackets and attach top Mark these two points for leg installation screws Keep a minimum distance of 8cm to fixed objects next to tabletop. Be aware of countertop overhang. 4.1.1D 4.1.1B Slide motor columns in wall brackets Attach wall brackets the points marked If needed use rawlplugs.
- Page 10 4.1.2A 4.1.2C Mount support arms on profile Mount the adjustment screws on the leg, Do note, that the support arms must not be in line with where the support arm will be more than 60cm apart. Also note that the placed outermost support arms must face inwards with their outer bracket.
- Page 11 4.1.2E 4.1.2G Level out the system by adjusting the nut Attach the control box to the profile at the bottom of each motor column 4.1.2F 4.1.2H Lock the system by securing the retainer Connect cables to the control box and do nut at the bottom of each motor column a test run Zero out the system by holding the down...
-
Page 12: Installation Of Countertop
Installation of countertop 4.2.1A 4.2.1C Place countertop and secure it to the Level the system by adjusting the support arms adjustment screw and set screw on each Keep a safe distance of 5mm to the wall. leg by means of a hex key 4.2.1B Attach front fascia and side fascia if needed... -
Page 13: Electrical Component Diagram
4.2.1D Mounting the press pad • Drill a Ø12-15 hole in the front fascia • Pull cable through hole in front fascia and connect the press pad, via the press pad cable, to the control box • Carefully remove the protection paper, on the back of the press pad, while keeping your finger between the cable-ribbon and the adhesive, as these mustn’t stick to each other •... -
Page 14: Accessories
Accessories Accessories Item Number Model/specification 30-92xxx Safety strip 93000213 Control with lock function 30-90540-1 Wireless control incl. bluetooth adapter 30-67610-1 Extra leg 30-67635 Cover for plumbing 30-67760 Bracket for coverplates 30-67705 Supporting Foot 49cm Length 30-90530 70mm distance bracket 30-93050 – 30-93660 Height adjustable programming, 50 –... - Page 15 5.1.2 Installation of control with lock function • BEFORE MOUNTING THE FRONT FASCIA, pre-drill holes in the tabletop. • Mount the control with lock function on the bottom side of the table, by means of two Ø 4.5mm countersink screws. It is recommended that the tilted part of the control is outside the fascia, as shown below.
- Page 16 5.1.3 Use of the control with lock function • UNLOCKING THE CONTROL WITH LOCK FUNCTION Unless otherwise specified, the control cannot activate the motor columns, without ® �� Bluetooth ⭐ unlocking the control. This is done by pressing , then , within one second.
- Page 17 5.1.4 Installation of wireless control incl. bluetooth adapter • The Bluetooth adapter is plug&play – simply insert the adapter in the control box as shown. Page | 17 TF 200.01.0020_ENG...
- Page 18 To mount the cover for plumbing, see Mounting Instructions: Installation cover for Flexi, PDF 6134. 5.1.6 Installation of brackets for coverplates • To mount coverplates with the brackets, see Concealment panels for Ropox Flexi, PDF 6163 Page | 18 TF 200.01.0020_ENG...
- Page 19 5.1.7 Installation of support foot • BEFORE MOUNTING THE MOTOR COLUMNS ON WALL BRACKET, place the foot on the bottom of the motor columns. • Mount the foot with the supplied M8x20 bolts in the two holes. 5.1.8 Installation of 70mm distance bracket •...
-
Page 20: Troubleshooting
Troubleshooting Check all cables and plugs for loose connections If a safety strip has been fitted: The frame cannot be height adjusted Check that the safety strip has not been activated Check connection of cables for safety strip to control unit and safety strip Resetting the frame: Press the DOWN button and adjust the frame to The frame only goes down... -
Page 21: Component Part List
Component part list Notice! Ropox will make part lists available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. Parts included 2-3x Motor column incl. - Page 22 1x Control box 3ch incl. mounting bracket, for 3x motor columns 30*67608-221 4x Angle fitting 97002730 2x Motor cable 100 cm 93000068 1x Motor cable 200 cm, for worktop length 245- 300cm 93000069 1x Power cable 320 cm 93000006 1x Press pad 97000244 1x Press pad cable 150 cm 97000256...
- Page 23 2-3x Tightening plate 30*67608-167 4-6x INSEX screw M6x12 95010612 14x INSEX Set screw M8x10 95030810 4-6x Flange nut M6 95180067 Page | 23 TF 200.01.0020_ENG...
-
Page 24: Spare Parts List
Spare parts list Page | 24 TF 200.01.0020_ENG... -
Page 25: Environmental Protection
Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Aluminum profile Aluminum Motor column Electronics Support arms Steel waste Control box Electronics Electromagnetic compatibility... -
Page 26: Rf Portable Equipment
12.4 RF portable equipment Warning! Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the device, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment can occur.
