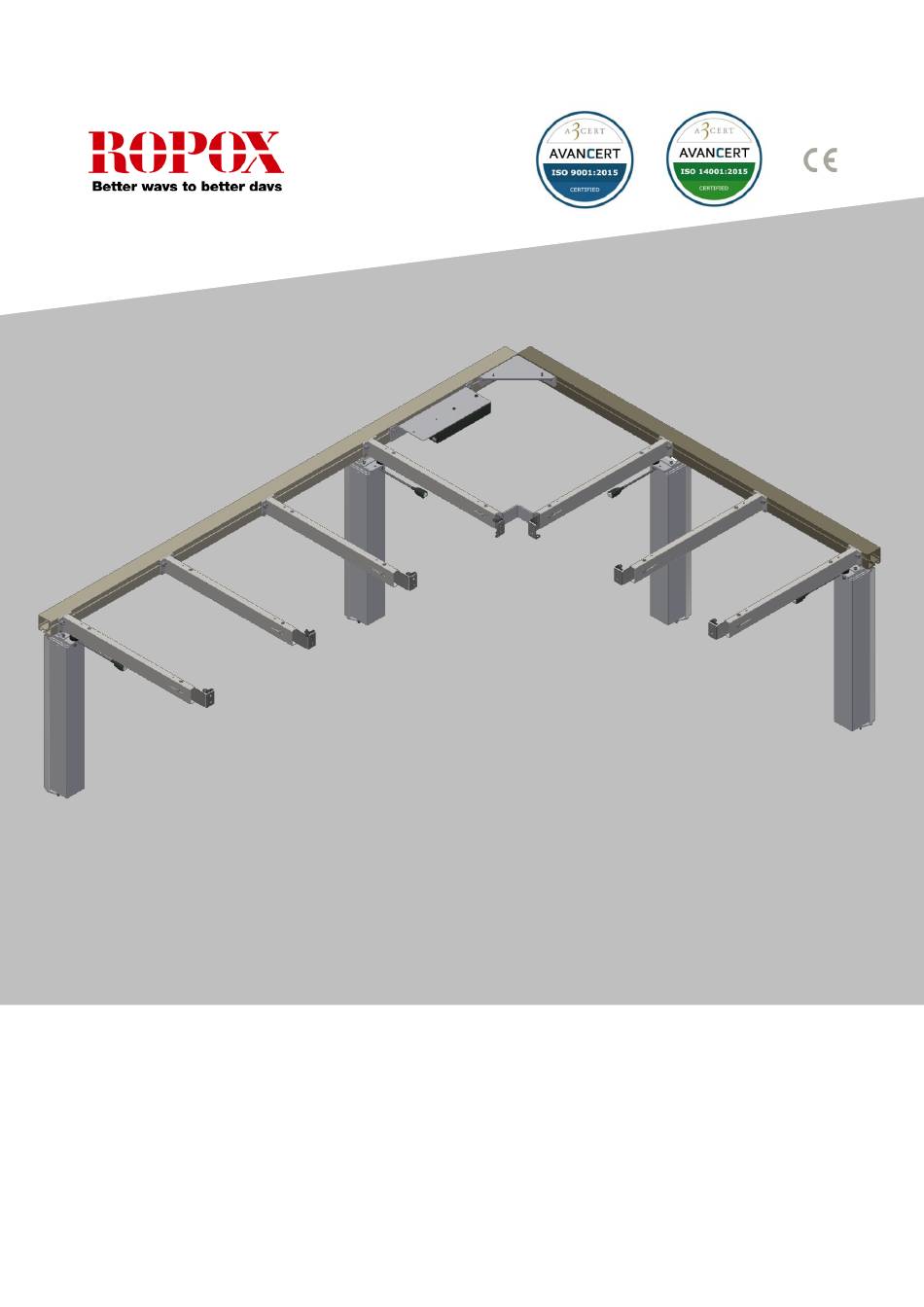

- Page 1 Ropox FlexiPlus CORNER User manual This folder should always be in close proximity to the product TF 200.01.0014 / Date 01-03-2022 TF 200.01.0014_eng...
-
Page 2: Table Of Contents
Complaints and adverse events .................... 7 Instructions for use..........................8 Installation of product ......................8 Installation of countertop .....................12 Installation of Bluetooth adapter ...................14 Electrical component diagram ....................15 Ropox Connect App ......................15 Operating the product ......................15 Accessories ............................16 Installation of accessories ....................16 Troubleshooting..........................22 Cleaning .............................22 Maintenance ............................22... -
Page 3: Symbols Used In This Manual
1. Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notice Symbol This symbol is used to notify correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way, that differs from stated in this manual and/or installation instruction.
-
Page 5: Product Unit Label
Product Unit label This product is CE-marked in accordance with: Council Directive 2006/42/EC on machinery Council Directive 2011/65/EU, RoHS Manufacturer name and address Date of production Stock number Serial number Consult manual before use Operating interval of electrically operated equipment. The use of electrical height adjustable equipment can run at maximum 1 minute, followed by a 9-minute break. -
Page 6: General Requirements
Additionally, it’s possible to buy what’s called a safety-stop. This is a safety system that works in tandem with Ropox Sicuro, that is especially sensitive and is better at registering soft material. The safety-stop is placed underneath the table, at the edge, which makes it optimal for seated users. -
Page 7: Product Dimensions
Product dimensions It is recommended to keep 50mm (2in) of clearance below the wall bracket. Sideview Minimum area for reinforcement of wall. Wall must be suitable for screw mounting. Area for electrical and plumbing installations. Complaints and adverse events Any serious incident that has occurred in relation to the use of the product, should be reported to the manufacturer and the competent authority of the Member State, in which the user is located. -
Page 8: Instructions For Use
4. Instructions for use Installation of product Page | 8 TF 200.01.0014_eng... - Page 9 4.1.1 4.1.3 Plumb the wall brackets and attach top Mark out points for bottom screws for screws fastening of wall brackets Keep a minimum distance of 80mm (3in) to fixed objects next to countertop. Be aware of countertop overhang. 4.1.2 4.1.4 Attach wall brackets in the points marked Slide motor columns in wall brackets...
- Page 10 4.1.5 4.1.7 Mount the bracket with flatnut on the Mount profile and adjustment screws on profile, in line with where the motor columns motor columns are placed. Use tightening plate and two M6x12 screws. Tighten the bottom screws to fasten the bracket.
- Page 11 4.1.9 Lock the system by securing the retainer nut at the bottom of each motor column Mount the angled bracket in the suggested order. Fasten it with two M6x12 buttonhead screws. 4.1.11 4.1.10 Mount the control box by tightening the Mount support arms on profile evenly screws distributed and place angled bracket on...
-
Page 12: Installation Of Countertop
4.1.12 Installation of countertop Connect cables to the control box and do a test run 4.2.1 Zero out the system by holding the down Place countertop and secure it to the button until the columns have initiated a support arms reset. - Page 13 4.2.3 Level the system by adjusting the adjustment screw and set screw on each leg by means of a hex key Page | 13 TF 200.01.0014_eng...
-
Page 14: Installation Of Bluetooth Adapter
With a purchase of Ropox FlexiPlus, as a standard component, a Bluetooth adapter will always accompany the product. This Bluetooth adapter allows the user to remotely connect to FlexiPlus using our app, Ropox Connect, or with the wireless control, that can be acquired as an accessory. -
Page 15: Electrical Component Diagram
4. Find the Ropox Connect App, and press ‘Get’. Operating the product The product is operated with the up / down button provided, or wirelessly with the Ropox Connect App. Alternatively, if a control with lock function is installed, see 5.1.3. -
Page 16: Accessories
5. Accessories Accessories Item Number Model/specification 30-92xxx Safety strip 30-90550-1 Control with lock function 30-90540-1 Wireless control 30-67610-1 Extra leg 30-67635 Cover for plumbing 30-67760 Bracket for coverplates 30-67705 Supporting Foot 49cm/19in Length 30-90530-1 70mm/3in distance bracket 30-90570-1 Corner bracket adjustable 30-93050 –... - Page 17 5.1.2 Installation of control with lock function • BEFORE MOUNTING THE FRONT FASCIA, pre-drill holes in the tabletop. • Mount the control with lock function on the bottom side of the table, by means of two Ø 4.5mm countersink screws. It is recommended that the tilted part of the control is outside the fascia, as shown below.
- Page 18 5.1.3 Use of the control with lock function • UNLOCKING THE CONTROL WITH LOCK FUNCTION Unless otherwise specified, the control cannot activate the motor columns, without ® �� Bluetooth ⭐ unlocking the control. This is done by pressing , then , within one second.
- Page 19 5.1.4 Installation of wireless control • Before the wireless control can be connected to FlexiPlus, the Bluetooth adapter must be in pairing mode, see 4.3.1. • If the Bluetooth adapter has been inserted into the control box, but isn’t in pairing mode, demount the Bluetooth adapter, then reinsert it.
- Page 20 If the chosen height adjustment is greater than standard (300mm (11.8in)), it is not recommended to use this accessory. • To mount coverplates with the brackets, see Concealment panels for Ropox Flexi, PDF 6163. 5.1.7 Installation of support foot •...
- Page 21 5.1.8 Installation of 70mm/3in distance bracket • To mount the distance bracket, see 70mm/3in distance bracket, TF 200.01.0021. 5.1.9 Installation of adjustable corner bracket • To mount the adjustable corner bracket, see installation manual 2x Bend Special, TF 200.01.0022. Page | 21 TF 200.01.0014_eng...
-
Page 22: Troubleshooting
6. Troubleshooting Check all cables and plugs for loose connections If a safety strip has been fitted: The frame cannot be height adjusted Check that the safety strip has not been activated Check connection of cables for safety strip to control unit and safety strip Resetting the frame: Press the DOWN button and adjust the frame to... -
Page 23: Component Part List
9. Component part list Notice! Ropox will make part lists available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. - Page 24 1x Control box 4ch incl. mounting bracket 30*67608-222 Includes press pad, cable, and adapter 97000244 97000256 97001778 4x Angle fitting 97002730 1x Motor cable 100 cm (39.5in) 93000068 3x Motor cable 200 cm (78.5in) 93000069 1x Power cable 320 cm (126in) 93000006 0-2x Extension cable 200 cm (78.5in) -For tabletop lengths greater than 220 cm (86.5in)
-
Page 25: Spare Parts List
10. Spare parts list Page | 25 TF 200.01.0014_eng... -
Page 26: Environmental Protection
11. Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Aluminum profile Aluminum Motor column Electronics Support arms Steel waste Control box Electronics 12. -
Page 27: Rf Portable Equipment
RF portable equipment 12.4 Warning! Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the device, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment can occur.
