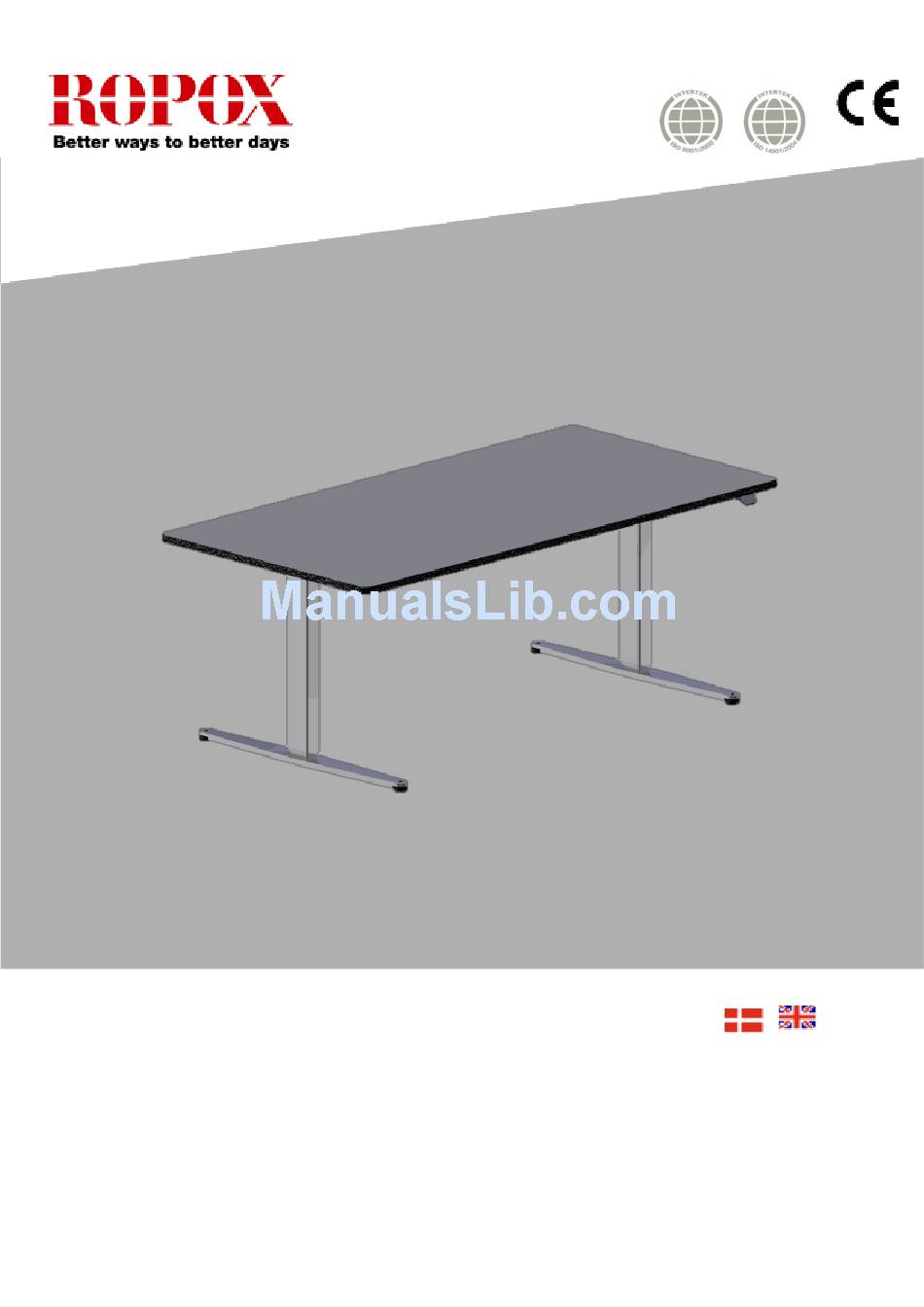

  • Page 1 Ropox ErgoSkrivebord Montagevejledning Brugermanual Denne folder skal altid opbevares ved produktet PDF 6132/ 17.08.2016...

  • Page 2: Table Of Contents

    9. Fejlsøgning ..............................14 9.1 Bordet virker løst eller ustabilt ......................14 9.2 Bordet kan ikke justeres i højden (virker meget svært at justere) ............14 9.3 Stellet kører skævt ..........................14 10. CE-erklæring .............................. 15 11. Reklamation ............................... 16 ROPOX 2014 ©...

  • Page 3: Tekniske Data

    Stål 37 Div. Kunststofemner Bordplade: Laminat Overfladebehandling: Pulverlakering Chromating Maks. belastning på stel: 130 kg jævnt belastet over hele bordpladen Garanti: Se afsnittet: Reklamation Producent: Ropox A/S, DK-4700 Næstved, Tlf.: +45 55 75 05 00 E-mail: info@ropox.dk, www.ropox.dk ROPOX 2014 ©...

  • Page 4: Introduktion

    Vores ErgoSkrivebord er designet til at opnå en for brugeren optimal arbejdshøjde. Det er et aktivitetsbord og må derfor ikke benyttes som løftebord eller personløfter. Anvendelsen skal ske indendørs, under normal rum temperaturer og fugtighed i boligen. ROPOX 2014 ©...

  • Page 5: Komponentliste

    5. Komponentliste Overramme venstre *14307050-20 1 stk. Overramme højre *14307050-30 1 stk. Fod 20*60800-109 2 stk. Monteret med stilleskruer Bordplade 1 stk. Varenummer: 160x80cm: 60102394 180x90cm: 60102395 200x90cm: 60102396 Motor 93000175: 2 stk. Styring 93000179: 1 stk. ROPOX 2014 ©...
  • Page 6 Håndkontakt 93000039: 1 stk. Skrue M6x25 95010625: 8 stk. Skrue M6x40 95011640: 12 stk. Spånpladeskrue 5x45 95125045: 8 stk. Strips 3,5/140mm 96000165: 6 stk. Kabelbøjle 95000022: 6 stk. Spånpladeskrue 3,5x12 95123515: 6 stk ROPOX 2014 ©...

  • Page 7: Montagevejledning

    6.2. Placer rammen på pladen, de to pinol skruer løsnes og rammen forskydes så den passer ud for de for borede huller. Husk at spænde rammen igen efter den er skruet fast i bordpladen. Skru rammen fast med 8 stk. skruer. ROPOX 2014 ©...
  • Page 8 6.3. Placer benende i rammen og skru dem fast med 12 stk. M6x40 bolte. 6.4. Monter fødder og skru dem fast med 8 stk. M6x25 bolte. ROPOX 2014 ©...
  • Page 9 6.5. Placer kontrol box og håndkontakt på de for borede huller og skru dem fast med 6 stk. spånskruer 4x17mm. OBS. Håndkontakt kan placeres i begge ender af bordet hvor det er mest hensigtsmæssigt at have den. Håndkontakt kan placeres i begge sider...
  • Page 10 6.6. Monter kabelbindere på de for borede huller. ROPOX 2014 ©...
  • Page 11 6.7. Monter kabler efter nedenstående diagram og bind dem op under bordet ved hjælp af kabel bindere. Ledning til betjeningspanel Ledning til ben 2 Ledning til ben 1 Strømledning ROPOX 2014 ©...

  • Page 12: Sikker Anvendelse

    Installation, service og reparationer må kun udføres af personale, som har tilstrækkelig kompetence. Såfremt monteringen af stellet ikke er udført ifølge denne montageanvisning, kan reklamationsretten ophæves. Kun Ropox´s originale reservedele må benyttes ved udskiftning af dele. Benyttes andre reservedele kan reklamationsretten ophæves. ROPOX 2014 ©...

  • Page 13: Rengøring/ Vedligeholdelse

    Brug aldrig ståluld, skurepulver og lignende slibende materialer eller rengøringsmidler, der afsætter en hinde på overfladen, f.eks. brun sæbe. Efter hver rengøring anbefales det, at vaske af med en klud opvredet i rent vand, herefter aftørring med en tør klud. ROPOX 2014 ©...

  • Page 14: Vedligeholdelse

    Vær opmærksom på, at netledningen skal kunne bevæge sig frit. Check at alle ledninger er monteret korrekt og er I ubeskadiget stand. Kun Ropox´s originale reservedele må benyttes ved udskiftning af dele. Benyttes andre reservedele kan garantien ophæves. 9. Fejlsøgning 9.1 Bordet virker løst eller ustabilt...

  • Page 15: Ce-Erklæring

    DS/EN ISO 12100-2: 2003 DS/EN 55014-2: 1997 DS/EN 527-2: 2002 DS/EN 60335-1 : 2002 DS/EN 61000-6-3:2001, EN 55022 Klasse B DS/EN 61000-3-2:2001, EN 61000-3-3:1995, A1:2001 DS/EN 61000-6-2:2001, EN 61000-4-2, -3, -4, -5, -6, -8, -11. Dato: ___02.01.15____ ROPOX 2014 ©...

  • Page 16: Reklamation

    11. Reklamation Se generelle salgs- og leveringsbetingelser på www.ropox.dk ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk ROPOX 2014 ©...

  • Page 17: Mounting Instructions

    Ropox Ergo Desk Table Mounting Instructions User Manual Keep this manual with the product at all times PDF 6132/ 01.02.2016 ROPOX 2014 ©...
  • Page 18 The frame seems loose or unstable .................... 31 The frame cannot be adjusted in height (adjustment very difficult) .......... 31 The frame does not move straight ....................31 10. CE Declaration ............................32 11. Complaints ............................... 33 ROPOX 2014 ©...

  • Page 19: Technical Data

    Various plastic components Table top: Laminate Surface treatment: Powder coating Chromate Max. Load: 130 kg evenly distributed over the tabletop Complaints: See Complaint Manufacturer: Ropox A/S, DK-4700 Næstved, Tlf.: +45 55 75 05 00 E-mail: info@ropox.dk, www.ropox.dk ROPOX 2014 ©...

  • Page 20: Introduction

    Introduction The Ergo Desk Table is a multi-function table, which may be electrically adjusted to suit seated or standing activities. The unique design offers a variety of applications and makes the table ideal for wheelchair users. This document must ALWAYS accompany the product and must be read by and available to the user.

  • Page 21: Conformity With Eu Directives

    CE Marking. Application The Ergo Desk Table is designed to obtain optimum working height for the user. It is an activity table and should not be used as a lifting table or person lifter. The product is intended for indoor use under normal temperature and humidity conditions as stated in section 4.

  • Page 22: List Of Components

    Left frame *14307050-20 1 pc. Right frame *14307050-30 1 pc. Foot 20*60800-109 2 pcs. Provided with adjustment screws Tabletop 1 pc. Item number: 160x80cm: 60102394 180x90cm: 60102395 200x90cm: 60102396 Legs 93000175: 2 pcs. Controlbox 93000179: 1 pc. ROPOX 2014 ©...

  • Page 23: Strips 3,5/140Mm

    Control switch 93000039: 1 pc. Screw M6x25 95010632: 8 pcs. Screw M6x40 95010642: 12 pcs. Chipboard screw 5x45 95125045: 8 pcs. Strips 3,5/140mm 96000165: 6 pcs. Cable clips 95000022: 6 pcs. Chipboard screw 3,5x12 95123515: 6 pcs. ROPOX 2014 ©...

  • Page 24: Mounting Instruction

    6.2. Place the frame on the tabletop. Loosen the two pivot screws and move the frame so that it fits the predrilled holes. Do not forget to tighten the frame after fastening to the tabletop. Fasten the frame with 8 screws. ROPOX 2014 ©...
  • Page 25 6.3. Place the legs in the frame and fasten them with 12 M6x40 bolts. 6.4. Mount the feet and fasten them with 8 M6x25 bolts. ROPOX 2014 ©...
  • Page 26 6.5. Place the control unit and hand control switch on the predrilled holes and fasten them with chipboard screws 4x17mm. NOTE: The hand control switch may be located at either end of the table, as appropriate. Hand control switch may be located at either end ROPOX 2014 ©...
  • Page 27 6.6. Fit cable clips in the predrilled holes. ROPOX 2014 ©...
  • Page 28 6.7. Mount cables according to the diagram below and fasten them under the table by means of the cable clips. Control switch Leg 2 Leg 1 Mains Cable ROPOX 2014 ©...

  • Page 29: Safety In Use

     The Ergo Desk Table is an activity table and should not be used as a lifting table or person lifter.  Always use the table in a manner excluding the risk of damage to persons or property. The person operating the table is responsible for avoiding damage or injury.

  • Page 30: Cleaning/ Maintenance

    Never use steel wool, scouring powder or cleaning materials, which leave a film on the surface, e.g. yellow soap. After cleaning, it is recommendable to wash the surface with a cloth wrung in clean water and dry with a soft cloth. ROPOX 2014 ©...

  • Page 31: Fault Finding

    Make sure that the mains cable moves freely. Check that all cables have been mounted correctly and are undamaged.. Only use Ropox original spare parts for replacement. If other spare parts are used, the right to complain may become void.

  • Page 32: Ce Declaration

    10. CE declaration Ropox Ergo Desk Table Item numbers: 160x80cm: 20-34200 180x90cm: 20-34201 200x90cm: 20-34202 Are in accordance with the following directive and standards: DIRECTIVES EU Council Directive No. 89/392/EEC concerning Machinery, modified by Directive No. 98/37/EC The Executive Order of the Danish Working Environment Service No. 561 of 24 June 1994 with subsequent modifications 73/23/EEC, the Low Voltage Directive, modified by Directive No.

  • Page 33: Complaints

    11. Complaints See General Terms of Sale and Delivery on www.ropox.dk ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk ROPOX 2014 ©...
