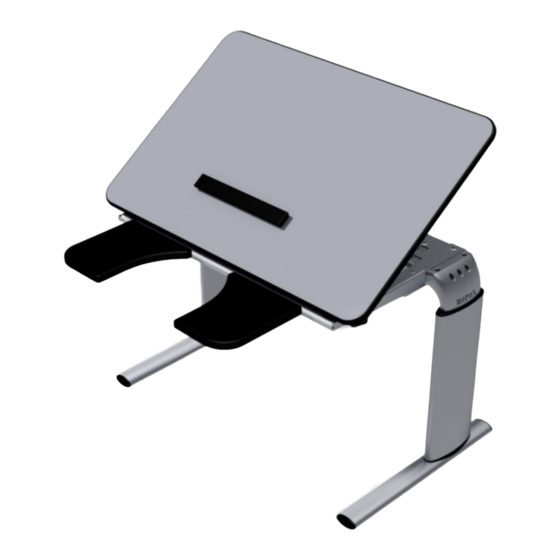

Ropox Vision Electric
User manual
Mountinginstruction
Keep always this folder with product!
PDF 6188 / 01.03.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision Electric A and is the answer not in the manual?

Questions and answers

Summary of Contents for Ropox Vision Electric A

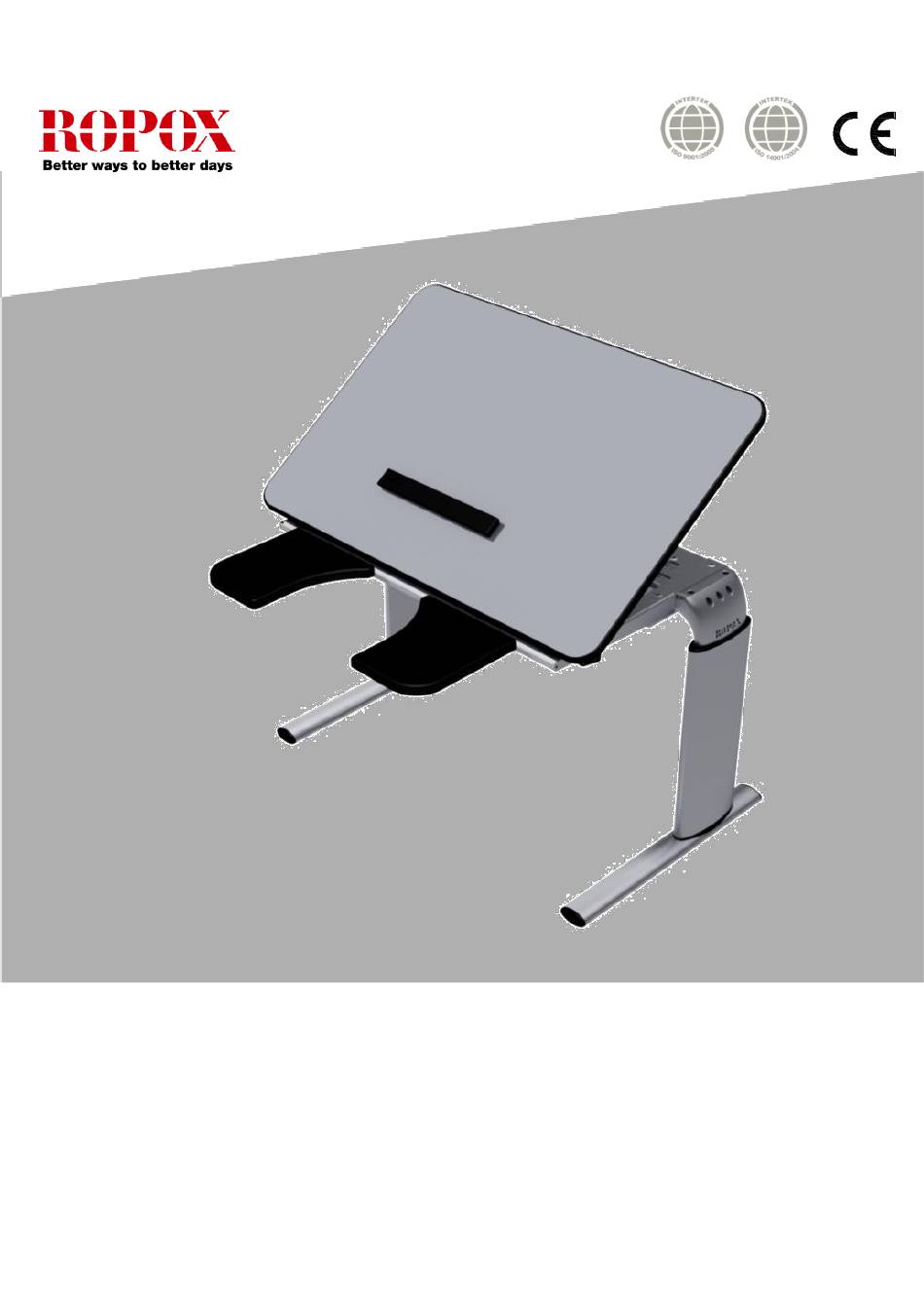

  • Page 1 Ropox Vision Electric User manual Mountinginstruction Keep always this folder with product! PDF 6188 / 01.03.2018...
  • Page 2 Warning: KEEP TABLETOP IN BOX during assembly of leg section, otherwise tabletop will be damaged & right to complain becomes void. © ROPOX 2015...
  • Page 3: Table Of Contents

    15.3 Maintenance .......................... 21 16. FAULT FINDING ..............................22 16.1 The table seems loose or unstable ..................22 16.2 The height/tilting cannot be adjusted (adjustment is very difficult) ........22 17. ACCESSORIES ...............................23 18. CE-MARKING ................................24 19. COMPLAINTS ...............................25 © ROPOX 2015...
  • Page 4: Technical Data

    1. Technical data Product name: Ropox Vision Electric Type A, B, C, D, E, F, G Tabletop: 90x60 cm, 120x60 cm og 90x90 cm Item numbers: 20-60XXX-21 Height range: 50–70 cm (electric) incl. tabletop 60–90 cm (electric) incl. tabletop Frame material: Aluminium leg.
  • Page 5 Complaints: See complaints, section 25 Manufacturer: Ropox A/S, DK-4700 Naestved, Tlf.: +45 55 75 05 00 E-mail: info@ropox.dk, www.ropox.com © ROPOX 2015...
  • Page 6: Introduction

    2. Introduction VISION is the new range of modern height-adjustable Ropox tables. In our opinion a product must be functional and beautiful – no matter who is going to use it. That’s what we call VISION. Vision is available in several sizes to suit individuals and carers needs. Sufficient legspace makes the table ideal for wheelchair users and gives the therapist optimum working conditions in a training situation.
  • Page 7: Models

    5. Models Model name Description Size Height 50-70cm Height 60-90cm Vision Electric A Without tilting 90x60cm 20-60010-21 20-60020-21 of tabletop Vision Electric A Without tilting 120x60cm 20-60210-21 20-60220-21 of tabletop Model name Description Size Height 50-70cm Height 60-90cm Vision Electric B...
  • Page 8 90cm Vision Electric G Devided 120x60cm 20-60216-21 20-60226-21 tabletop, left Fixed plate: 60cm side tilt section Adjustable plate: 60cm Model name Description Size Height 50-70cm Height 60-90cm Vision Electric A Without tilting of 90x90cm 20-60310-21 20-60320-21 tabletop © ROPOX 2015...
  • Page 9: Components

    A: 96000553, 2 pcs. B-G: 96000553, 3 pcs. Motorcable: A: 96000573, 2 pcs. B-G: 96000573, 3 pcs. Control unit: A: 20-60320-576, 1 pc. B-G: 20-60320-578, 1 pc. Power cable 30-30002, 1 pc. Split print: B-G: 98002081, 1 pc. © ROPOX 2015...
  • Page 10 F + G 120x60cm: 64112065 A 90x90cm: 64109090 Support arms 90x60/120x60 cm: Right: 20-60320-168 1 pc. Left: 20-60320-165 1 pc. Support arms 90x90cm: 20-60320-187 2 pcs. Front profile: 90x60cm: 20-60320-077 1 pc. 90x90cm: 20-60320-077 2 pcs. 120x60cm: 20-60320-108 1 pc. © ROPOX 2015...
  • Page 11 B: 96000656, 2 pcs. C+D+E: 96000656, 1 pc. Gearbox for tilting 120x60cm: B-G: 96000656, 2 pcs. Handcontrol: A: 93000039 1 pc. B-G: 93000039 2 pcs. Allen key 4mm 95001019: 1 pc. Allen key 6 mm 95000006: 1 pc. © ROPOX 2015...
  • Page 12: Mounting Instruction

    7. Mounting instruction Mounting of legsection 4x M6x16 © ROPOX 2015...
  • Page 13 Mounting of tilting fitting of tabletop (not table A) M5x16 © ROPOX 2015...
  • Page 14 Mounting of feet 4x M8x16 © ROPOX 2015...
  • Page 15 Mounting of control panel for height adjustment and tilting. © ROPOX 2015...
  • Page 16 Connecting of safety strip (for C + D + E + F + G models) Remove yellow resistor Connect the safety strip (the picture show Vision type E with 2 safety strips) © ROPOX 2015...
  • Page 17: Height Adjustment Of Table

    8. Height adjustment of table 9. Operation of tilting facility © ROPOX 2015...
  • Page 18: Moving The Table

    10. Moving the table By lifting the table slightly in the front, it can easily be pushed around. 11. Magrule (accessories) © ROPOX 2015...
  • Page 19: Mounting Of Armsupport (Accessories)

    12. Mounting of armsupport (accessories) © ROPOX 2015...
  • Page 20: Performance Test

    If the table has not been assembled according to these mounting instructions, the guarantee may become void.  Only use Ropox original spare parts for replacement. If other spare parts are used, the guarantee may become void. © ROPOX 2015...
  • Page 21: Cleaning/ Maintenance

    Check that all bolts have been securely fastened.  Check that the table moves from bottom to top position without problems. Only use Ropox original spare parts for replacement. If other spare parts are used, the guarantee may become void. © ROPOX 2015...
  • Page 22: Fault Finding

     If tabletop has tilt function it has to be moved to max adjustable angle position before a reset. Afterwards moved table into top height adjustment for resetting. If tabletop cannot be tilted  Move table into top height adjustment and press/hold switch down for further 10 seconds. © ROPOX 2015...
  • Page 23: Accessories

    Item no. 20-60541 Magnet white: Item no. 50200-000 Castors 4 pcs, increase the height by 8 cm: Mounted by Ropox, item no.: 20-60570 For remounting, item no.: 20-60575 Castors without height increase: Mounted by Ropox, item no.: 20-60573 For remounting, item no.: 20-60572 Armsupport standard Item no.
  • Page 24: Ce-Marking

    Risk analyses according to the Machinery Directive 2006/42/EC DS/EN 60335-1: 2012 Household and similar electrical appliances – Safety – Part 1: General requirements DS/EN 9999: 2011: Assistive products for functionally disabled persons – Classification and terminology Dato: 15-09-2015 © ROPOX 2015...
  • Page 25: Complaints

    19. Complaints We refer to our general Terms of sale and delivery on our homepage www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk © ROPOX 2015...
