Page 1: Contents

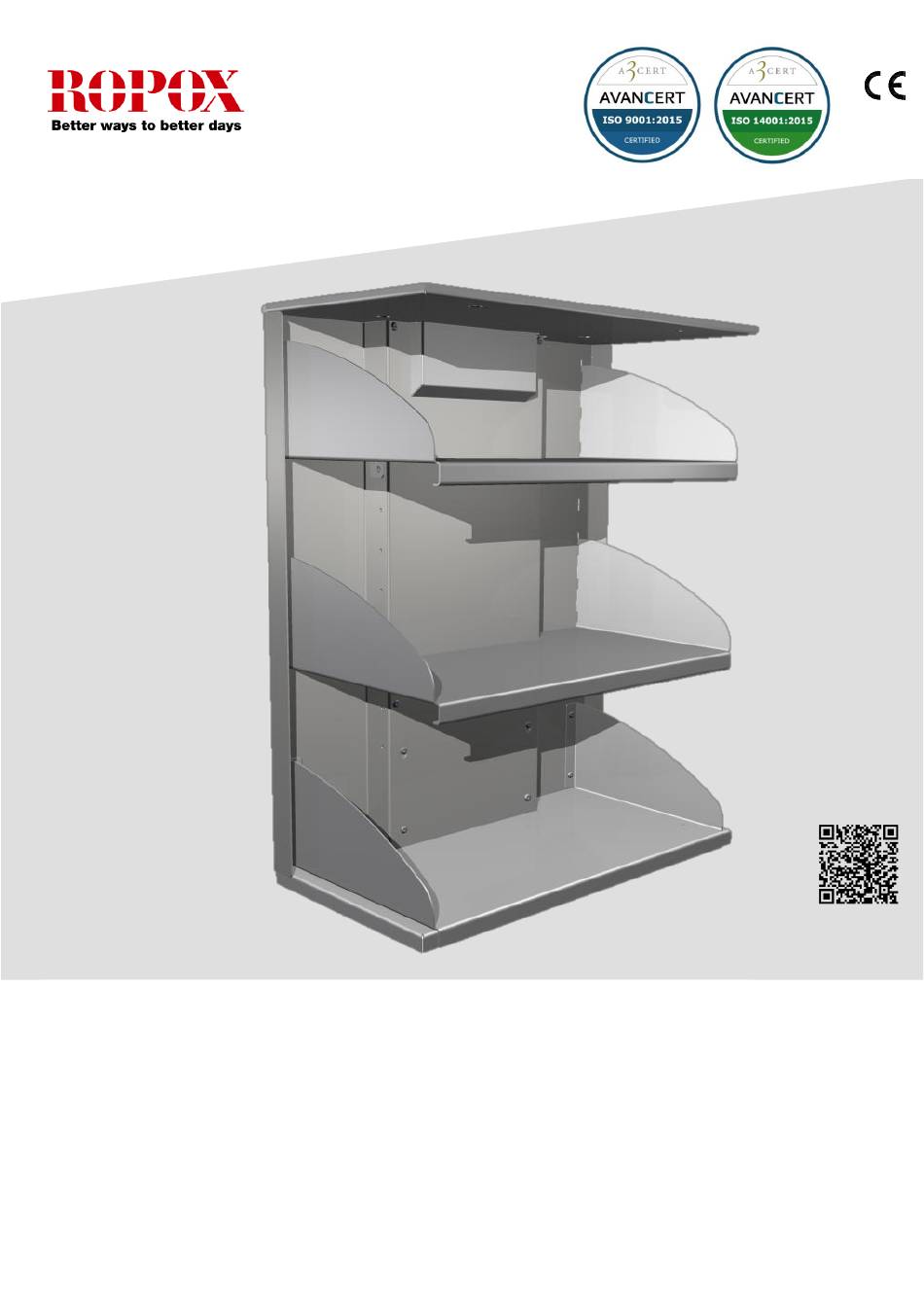

QR code to mounting video Ropox Verti-Inside User Manual Mounting Instructions Service Manual Keep this folder with the product at all times! PDF 6116 / 01.07.2019 Page 1 © ROPOX 2017... -
Page 2: Table Of Contents
INTRODUCTION .............................. 3 CONFORMITY WITH EU DIRECTIVE ......................3 APPLICATION ..............................3 TECHNICAL DATA ............................4 DIMENSION SKETCH OF VERTI-INSIDE ....................5 Construction see dimensions on the following page ................. 5 5.1.2 Cupboard sizes ............................6 5.1.3 Operation of Verti-InsideElectric ......................8 5.1.4 Wiring diagram ............................ -
Page 3: Introduction
Application Verti-Inside is designed to obtain optimum working height for the user. Verti-Inside is designed to adjust the height of wall cupboards. Verti-Inside must NOT be used as a lifting unit or person lifter. The product must be used indoor, under normal room temperature and humidity conditions as stated in Section 4. -
Page 4: Technical Data
Speed/time for lifting: Approx. 33 sec. Travel 495mm Temperature: 5-45° C Air humidity: 5-85% (non-condensing) Complaints: See Complaints page 30 Manufacturer: Ropox A/S, DK-4700 Næstved, Tel.: +45 55 75 05 00 e-mail: info@ropox.dk - www.ropox.dk Page 4 © ROPOX 2017... -
Page 5: Dimension Sketch Of Verti-Inside
Dimension sketch of Verti-Inside It is important that cables to the control unit are flexible and can move freely within the height adjustment range of the unit. Depth 265mm or 310mm 350/450/550/650/750/850/950mm iincrementsval Travel: 495mm 495mm The cupboard is mounted on the wall with min. -
Page 6: Construction See Dimensions On The Following Page
We recommend the installation of an empty conduit in the wall to accommodate the cable (ø3.5cm). If a high cabinet stands in the immediate vicinity of Verti-Inside, the cable may be run through the cabinet to avoid the conduit in the wall. - Page 7 Cabinet height of 70.4 cm Cabinet height above 70.4 cm electric installation Fixed shelf for mounting electric the top safety stop installation Page 7 © ROPOX 2017...
-
Page 8: Operation Of Verti-Insideelectric
DOWN symbol of the control switch. As soon as you let go of the control switch, the movement of the unit will stop. 5.1.4 Wiring diagram Page 8 © ROPOX 2017... -
Page 9: Mounting Instructions
The back may remain in place if it is fastened to the wall by bolts Mark up for upper safety stop (see Mount 2 x 30-40400-021 Mount cupboard on wall flush with rear edge of cupboard 14 x Ø3.5x12 wood screw Page 9 © ROPOX 2017... - Page 10 Mount suspension fixture 30-40400-103 on wall When installing the verti-Inside in a cabinet height of 704 mm. the safety stop will be 20mm lower than the cabinet. 20mm Lift lifting unit 30-40400-042 into the cupboard and hook it onto the suspension fixture Drill holes in wall.
- Page 11 2. Pull mains cable behind the motor and through the hole at the top of the cupboard, connect and turn on power Connect the motor cable 96000814 to M1 Mains cable Page 11 © ROPOX 2017...
- Page 12 Connect safety stop to control unit, to Mount upper safety stop on top of the the cable marked: S1. cupboard. (Illustration shows cupboard (See wiring diagram page 8) viewed from below) 4 x Ø5x20 4 x 96121409, wood screw plastic bushing Page 12 © ROPOX 2017...
- Page 13 The bottom of the cover plate has a flange “keyholes” fitting the pre-mounted fitting around the lifting unit. When the ”keyhole” and flange “catch”, push bolts of the lifting unit the plate upward and tighten the bolts. Page 13 © ROPOX 2017...
- Page 14 Lift front plate into the cupboard and hook it onto the pre-mounted bolts of the lifting unit. Now mount the remaining 6 bolts 6 x M6x10 Page 14 © ROPOX 2017...
- Page 15 Connect safety stop and spiral cable Page 15 © ROPOX 2017...
- Page 16 Mount cable relief for mains cable on wall Page 16 © ROPOX 2017...
- Page 17 Place control switch acc. to customer’s wish and connect by means of cable: 97000245. If required, use extension cord: 93000162 Mount 97701-841 and 97701-842 shielding for control switch 2 x M3x8 Page 17 © ROPOX 2017...
-
Page 18: Performance Test
The unit must now stop the upward movement, move 1-2 cm downwards and stop. When all these tests have been carried out successfully, the unit is ready for use. See ”Safety in use” Section 11. Page 18 © ROPOX 2017... -
Page 19: List Of Components, Verti-Insideelectric
Safety stop bottom, for 31cm cupboard 1 (one) 30-40215-2 (50cm) 30-40216-2 (60cm) 30-40217-2 (70cm) 30-40218-2 (80cm) 30-40219-2 (90cm) 30-40220-2 (100cm) 30-40304-1 (40cm) Safety stop top, for 26.5cm cupboard 1 (one) 30-40305-1 (50cm) 30-40306-1 (60cm) 30-40307-1 (70cm) Page 19 © ROPOX 2017... -
Page 20: Options, Verti-Insideelectric
Disabled press pad incl. 150 cm cable 1 (one) Control switch 40-14701-9: Control switch with spiral cable 1 (one) Smartbox 30-69002-1: 1 pc. Option for safety stop plate To be ordered if Diagonal is mounted above a FlexiElectric Page 20 © ROPOX 2017... - Page 21 30-40455 Led for 50cm safety stop 30-40456 Led for 60cm safety stop 30-40457 Led for 70cm safety stop 2pcs 30-40458 Led for 80cm safety stop 2pcs 30-40459 Led for 90cm safety stop 2pcs 30-40460 Led for 100cm safety stop 2pcs Page 21 © ROPOX 2017...
-
Page 22: Placing Of Led Spot
10. Placing of LED spot. Verti-InsideElectric with depth of 26,5cm Verti-InsideElectric with depth of 31cm Page 22 © ROPOX 2017... - Page 23 11. Cables for LED spot. Spiral cable male/femaleer is prepared for mounting of light. For detailed instuctions see the folder that comes with the med LED spot. Page 23 © ROPOX 2017...
-
Page 24: Safety In Use
If the unit has not been mounted according to these instructions, the right to complain may become void. ➢ Only use Ropox original spare parts for replacement. If other spare parts are used, the right to complain may become void. Be careful not to get jammed... -
Page 25: Cleaning/ Maintenance
Check that all cables have been mounted correctly and are undamaged. After each inspection, complete the service schedule. Only use Ropox original spare parts for replacement. If other spare parts are used, the right to complain may become void. Page 25... -
Page 26: Service Schedule, Operation And Maintenance
6. If none of the above has helped reset the unit: − Remove all weight from Verti-InsideElectric − Disconnect motorcables − Disconnect mains cable and wait 5 sec − Connect mains cable − Connect motor cable − Move the unit to topposition for reset. Page 26 © ROPOX 2017... -
Page 27: Label
This manual must be read prior to use. Waste must be sorted – if possible for recycling. Ropox is the manufacturer of the product in question. CE marking. This product meets the requirements for General Safety and Functionality of the current EU Directives and Standards. -
Page 28: Eu - Declaration Of Conformity
Assistive devices for persons with functional disabilities - Classification and terminology Household and similar electrical appliances – DS/EN 60335: 2012 : Safety - Part 1: General requirements Tested by Nemko, Certificate number: NO72164 Date: ___02-01-2017_____ Page 28 © ROPOX 2017... -
Page 29: Complaints
Complaints See General Terms of Sale and Delivery on www.ropox.dk Page 29 © ROPOX 2017...
