U-Line H-1036 Manual page 4

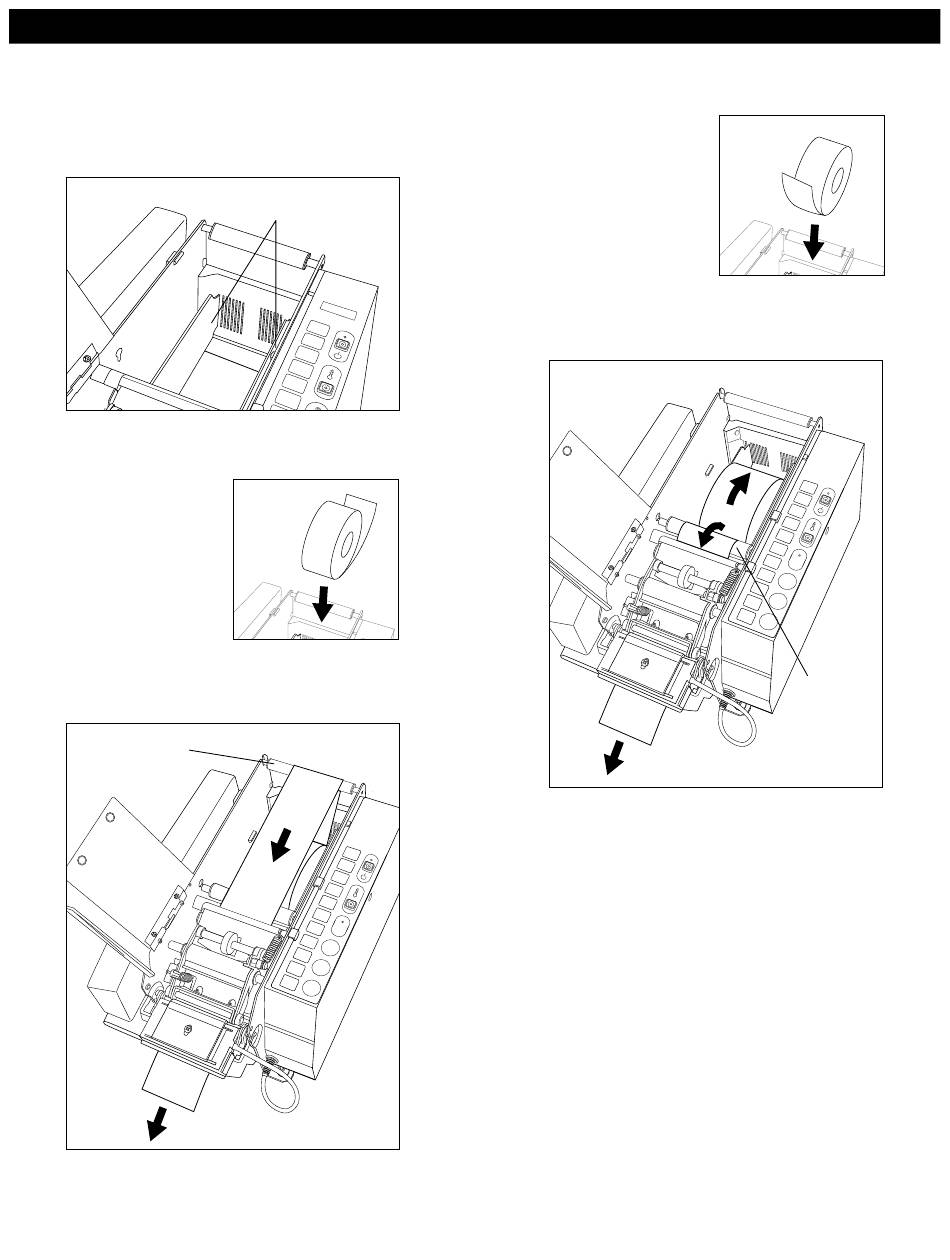

LOAD TAPE ROLL
1. Adjust roll guide plates to fit tape width.
(See Figure 9)
Figure 9
GUMMED IN TAPE
1. Insert tape roll.
(See Figure 10)
2. Feed tape over the upper roller and under the lower
paper guide and white wheel. (See Figure 11)
Upper Roller
PAGE 4 OF 20
SETUP CONTINUED
Roll Guide Plates
Figure 10
Figure 11
GUMMED OUT TAPE
1. Insert tape roll.
(See Figure 12)
2. Feed tape over lower roller and under the lower
paper guide and white wheel. (See Figure 13)
Figure 13
Figure 12
Lower
Roller
0122 IH-1036
