SMC Networks EX260-SPN1 Original Instructions page 2

EX260-TF2Z167EN
5 Setting
5.1 Configuration
An applicable GSD file is required to configure the SI unit in the
PROFINET network. Please download the latest GSD file from the SMC
website (URL: https://www.smcworld.com).
Product number GSD file
EX260-SPN1 / -SPN2
GSDML-V2.3-SMC-EX260-∗∗∗∗∗∗∗∗.xml
EX260-SPN3 / -SPN4
Technical documentation giving detailed configuration information can
be found on the SMC website (URL: https://www.smcworld.com)).

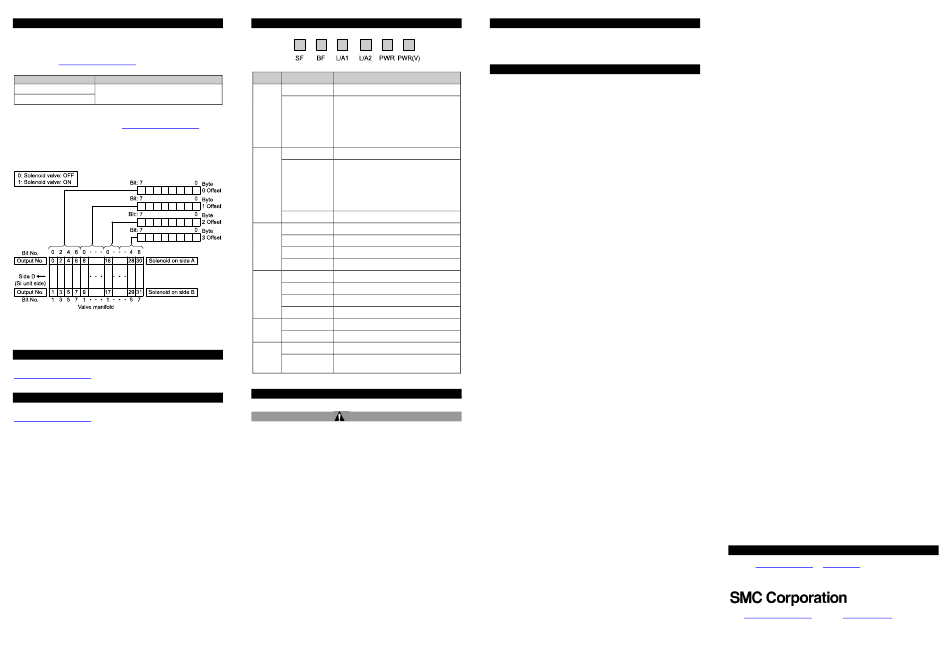

5.2 Output number assignment
Output numbering starts at zero and refers to the solenoid position on
the manifold.
6 How to Order
Refer to the operation manual on the SMC website (URL:
https://www.smcworld.com) for How to order information.
7 Outline Dimensions (mm)
Refer to the operation manual on the SMC website (URL:
https://www.smcworld.com) for outline dimensions.
8 LED Display
LED Status Description
OFF Operating normally
• SI unit related diagnostic error detected
(load voltage for valve not supplied or
SF
outside specification.
Red ON
• Configuration data registered in master
and the number of output points does
not match.
OFF Operating normally
• PROFINET communication is not
established.
• IP address / device name duplicated.
BF Red Flashing
• Configuration data registered in master
and the profile of the SI unit does not
match.
Red ON Both BUS IN and BUS OUT are not linked.
Green ON BUS IN: Link
Green OFF BUS IN: No Link
L/A1
Yellow Flashing BUS IN: Activity
Yellow OFF BUS IN: No Activity
Green ON BUS OUT: Link
Green OFF BUS OUT: No Link
L/A2
Yellow Flashing BUS OUT: Activity
Yellow OFF BUS OUT: No Activity
Green ON SI unit operating voltage supplied
PWR
OFF SI unit operating voltage not supplied
Green ON Load voltage for valves supplied.
PWR(V)
Load voltage for valves not supplied or
OFF
outside tolerance range (19 V or less).
9 Maintenance
9.1 General Maintenance
Caution
• Not following proper maintenance procedures could cause the
product to malfunction and lead to equipment damage.
• If handled improperly, compressed air can be dangerous.
• Maintenance of pneumatic systems should be performed only by
qualified personnel.
• Before performing maintenance, turn off the power supply and be
sure to cut off the supply pressure. Confirm that the air is released to
atmosphere.
• After installation and maintenance, apply operating pressure and
power to the equipment and perform appropriate functional and
leakage tests to make sure the equipment is installed correctly.
• If any electrical connections are disturbed during maintenance,
ensure they are reconnected correctly and safety checks are carried
out as required to ensure continued compliance with applicable
national regulations.
• Do not make any modification to the product.
• Do not disassemble the product, unless required by installation or
maintenance instructions
• Stop operation if the product does not function correctly.
10 Limitations of Use
10.1 Limited warranty and Disclaimer/Compliance Requirements
Refer to Handling Precautions for SMC Products.
11 Product Disposal
This product shall not be disposed of as municipal waste. Check your
local regulations and guidelines to dispose of this product correctly, in
order to reduce the impact on human health and the environment.
12 Contacts
Refer to www.smcworld.com or www.smc.eu for your local distributor /
importer.
URL: https://www.smcworld.com (Global) https://www.smc.eu (Europe)
SMC Corporation, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, Japan
Specifications are subject to change without prior notice from the manufacturer.
© 2021 SMC Corporation All Rights Reserved.
