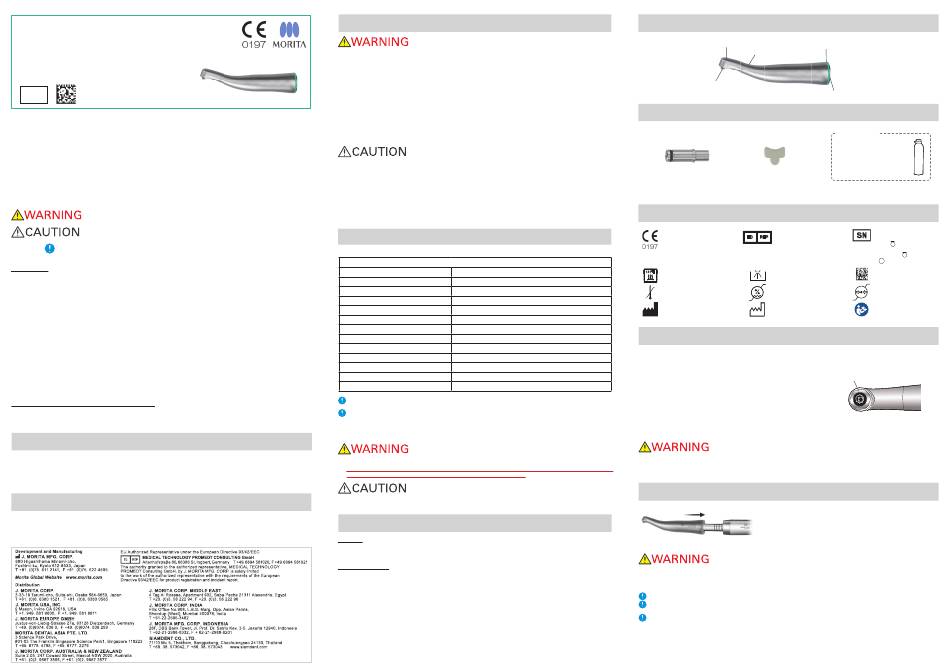

Morita Torqtech CA-4R-PP Series Operating Instructions

Operation 1/2 2018-05-21 Pub.No.: L115-62001-501
Operation Instructions
TORQTECH
CA-4R-PP

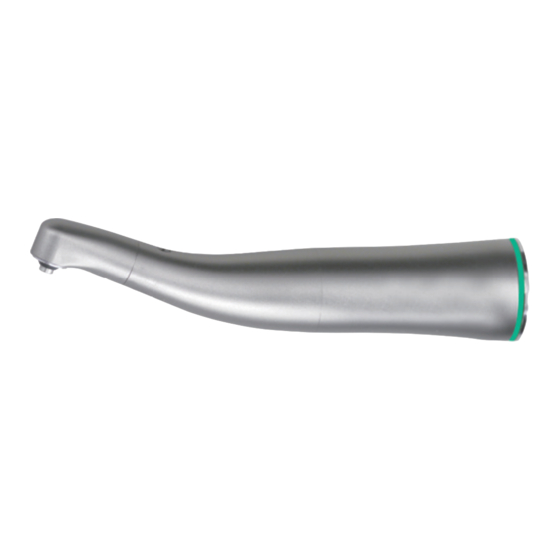

Geared Contra Angle Handpiece Attachment
(4:1 Reduction Prophy Contra-angle)
PP
Thank you for purchasing a TORQTECH geared contra angle motor handpiece attachment.
This instrument is intended for drilling and polishing teeth and dental prosthetics. For optimum performance,
effi ciency, avoiding hazards, preventing patient injury, and safety, read the instruction maul thoroughly before use,
and follow all cautionary remarks and usage instructions.
Keep this manual in a handy place for ready reference.
The user (e.g., healthcare facility, hospital, clinic, etc.) is responsible for supervising the use and maintenance of medical
devices.
This instrument must not be used by anyone other than a dentist, doctor or other legally qualifi ed professional.
This instrument must not be used for any purpose other than the provision of dental treatment.
Federal law restricts this device to sale by or on the order of a dentist (for U.S.A.).
The following symbols and expressions indicate the degree of danger and harm that could result from ignoring the instructions
they accompany:
This warns the user of the possibility of serious injury or death to the patient, damage or complete
destruction of the instrument or other valuable property, and fi re.
This warns the user of the possibility of slight or moderate injury to the patient.
This alerts the user of important points concerning operation of the instrument or the risk of dam-
age to it.
Disclaimer
J. MORITA MFG. CORP . will not be responsible for the following matters, even during the warranty period.
1. Malfunction or damage resulting from repairs made by personnel not authorized by J. MORITA MFG. CORP .
2. Any unauthorized modifi cations to its products
3. Malfunction or damage resulting from maintenance or repairs carried out using parts or components other than those specifi ed
by J. MORITA MFG. CORP .
4. Malfunction of or damage to MORITA products caused by products made by other manufacturers unless they were supplied by
J. MORITA MFG. CORP .
5. Malfunction or damage resulting from failure to observe the safety precautions or operating procedures described in these
Operating Instructions
6. Malfunction or damage resulting from ambient conditions that do not conform to the operating conditions specifi ed in these
Operating Instructions, such as an improper electrical power supply or installation environment
7 . Malfunction or damage resulting from a natural disaster, such as a fi re, earthquake, fl ood or lightning
J. MORITA MFG. CORP . maintains supplies of service parts for 10 years after discontinuation of their production.
For the duration of this period, we will supply replacement parts and be able to repair the product.
* Replacement parts and consumable parts are described in the Regular Inspection List. Replace parts as necessary based on the
degree of wear and length of use.
* Motor usage and handling: Read all instruction materials thoroughly before use and follow all cautionary remarks and usage
instructions.
Standards and Procedures for the Disposal of Medical Devices
If there is a possibility that a medical device is contaminated, the dentist or doctor responsible for the patient's treatment must
confi rm that it is uncontaminated, and must then have it disposed of by a healthcare facility or an agent licensed and qualifi ed to
handle standard industrial waste and industrial waste requiring special treatment.
Maintenance and Inspection
* This instrument should be inspected every 3 months in accordance with the inspection items listed below.
* Maintenance and inspection are generally consider to be the duty and obligation of the user, but if, for some reason, the user is
unable to carry out these duties, he may rely on a qualifi ed medical device serviceman. Contact your local dealer or J. MORITA
OFFICE for details. Inspect the following items: 1. Motor connection. 2. Cup and brush insertion. 3. Handpiece rotation.
4. Overheating.
* For repairs, contact your local dealer or J. MORITA OFFICE.
Service and Contacts
TORQTECH may be repaired and serviced by
• The technicians of J. MORITA's subsidiaries all over the world.
• Technicians employed by authorized J. MORITA dealers and specially trained by J. MORITA.
• Independent technicians specially trained and authorized by J. MORITA.
For repairs or other types of service, contact your local dealer or J. MORITA OFFICE.
Warnings and Cautions
• Do not run the handpiece in reverse; the cup or brush will come off.
• Operate the handpiece outside the oral cavity before actually using it to make sure it does not
overheat and the cup or brush does not wobble. Also make sure it runs at the right speed in the
right direction and does not operate abnormally in any way.
• If a cup or brush comes out during use, stop using the handpiece immediately and have the
handpiece repaired.
• Never use the handpiece with no or too little cooling air; this could cause it to heat up and possibly
burn the doctor's hand or the patient's mouth.
• Wait for the cup or brush to stop moving before taking the handpiece out of or putting into the oral
cavity.
• To avoid cutting your fi nger etc., wait until the handpiece has completely stopped rotating before
inserting or removing a cup or brush.
• Do not use any cups or brushes different from specifi ed screw length. Otherwise the cup or brush
could come out.
• Wear safety glasses to prevent injury to your eyes.
• Never switch rotation direction from forward to reverse or vice versa while the motor is actually run-
ning.
• Remove the cup or brush before returning the handpiece to its holder in the dental treatment unit;
otherwise, there is a risk of injury or damage.
• If the handpiece makes abnormal noise or vibration, take out the cup or brush and replace it with a
new one. If the same problem persists, have the handpiece repaired.
• Follow all recommendations of the cup or brush manufacturer concerning rotation speed and direc-
tion.
• There is no spray for this handpiece. Turn off the spray switch on the dental treatment unit.
Specifi cations
[Specifi cations may be changed without notice due to improvements.]
Use this instrument with dental treatment units that conform to IEC 60601-1.
Geared Contra Angle Handpiece Attachment
Type
Light
Rotation Speed Ratio 4 : 1 (reduction)
Maximum Motor Speed [rpm]
Length [mm]
Weight [g]
Cups & Brushes PMTC Attachment (cup or brush)
Chuck Type Screw-in Type
Cooling Air Flow [NL/min] Minimum 6 (from motor)
Connection Type Conforms to
ISO 3964 and DIN 13940
Connectable Motors Conforms to
Cup or Brush Screw Length [mm]
Usable Cups and Brushes No. 1-72 UNF Screw
If the screw is not clean (is covered with dust or other debris), it will not hold the cup or brush securely
and will wear out quickly.
Some bur detergents contain components that cause metals to rust. Be sure to wash away the bur deter-
gent before inserting a cup or brush into the chuck.
* If any bur detergent, dust, or other foreign matter enters the chuck, contact your local dealer or J. MORITA
OFFICE to request an inspection.
• Never use the following types cups and brushes; they could come out and injure the patient or be swallowed:
Those with scratched or bent heads or shanks. Those which are rusty, chipped or broken. Those which
have been modifi ed or altered such as those having shortened shanks.
• Use only cups and brushes that do not wobble.
Operating, Transport and Storage Environments
Operating
Temperature: +10°C to +40°C (+50°F to +104°F)
Humidity: 30% to 75% (without condensation)
Atmospheric Pressure: 70 kPa to 106 kPa
Transport and Storage
Temperature: -10°C to +70°C (+14°F to +158°F)
Humidity: 10% to 85% (without ondensation)
Atmospheric pressure: 70 kPa to 106 kPa
* Do not expose the handpiece to direct sunlight for an extended period of time.
* If the handpiece will not be used for an extended period of time, store it in a clean, dry place after autoclav-
ing it.
* The useful life of the TORQTECH is 7 years (based on self-certifi cation) from the date of shipment pro-
vided it is regularly and properly inspected and maintained.
Parts Identifi cation
Accessories
Spray Nozzle
Code No. 5071343
(Ethanol disinfectable)
* For parts that wear out and need periodic replacement, refer to the Inspection Items and replace parts whenever
necessary.
Symbols
CE(0197) marking
Conforms with the European
Directive, 93/42/EEC.
CE marking
Conforms with the European
Directive, 2011/65/EU.
CA-4R-PP
Autoclavable up to 135°C
(275°F)
No light
Temperature limitation
10,000
94 Manufacturer
67
1. Before Use
* The TORQTECH is not sterilized before shipping. It must be autoclaved before it is used for the fi rst time.
Pre-use inspection: Check for the following before using the handpiece.
ISO 14457
• Cap, body and screw tightness
4
• No conspicuous rust around chuck opening.
• No dirt or scratches etc. on the joint
• No bent or deformed components
• Motor connects properly and securely. Motor runs smoothly when
foot control is depressed. No air or water leakage from motor joint. No
abnoraml noise or vibration. Head does not overheat.
If an abnormality is found, refrain from using the handpiece and have it professionally repaired.
• Do not use if cap, body or screw is loose.
• If the cap is loose, worn, or damaged, it could come off inside the oral cavity.
• Do not use the handpiece if the head or body is bent, warped or otherwise deformed or damaged.
2. Motor Connection
• Give the handpiece a light tug before using it to make sure it is securely connected.
• Wait for the motor to come to a complete stop before connecting or disconnecting the handpiece.
• Do not use any type of motor other than it conforms to ISO 14457 .
Use at speeds of no more than 10,000 rpm and with forward rotation only.
Check that there is no dust or other debris on the motor's connection cylinder. The handpiece might malfunction if
there is.
Do not expose the handpiece to strong physical shocks such as by dropping it or swinging it against the dental
treatment unit when it is connect to its tube. This could impair rotation performance.
Identifi cation Ring
Head
(Green: reduction)
Screw
Cap
Joint
Cup Support Jig
Sold separately
Code No. 7396252
LS SPRAY
Code No.7927568 or 5071340
MORITA MULTI SPRAY
Code No.7914113 or 5010201
(Ethanol disinfectable)
(Ethanol disinfectable)
[Some symbols may not be used.]
EU Authorized Serial Number
Representative under the
E.g., G00001
European Directive 93/42/
EEC
E.g., L115G00001K
1
Supports high-temperature
GS1 DataMatrix
cleaning and disinfection.
Atmospheric pressure
Humidity limitation
limitation
Refer to instructions for
Date of manufacture
use
Cap
Push the handpiece straight onto the motor's connection cylinder until
you hear it snap into place.
* Refer to the user manual for the motor.
* Make sure the O-rings on the motor's connection cylinder are OK.
1
1
Year of Manufacture
(G: 2018, H: 2019...)
