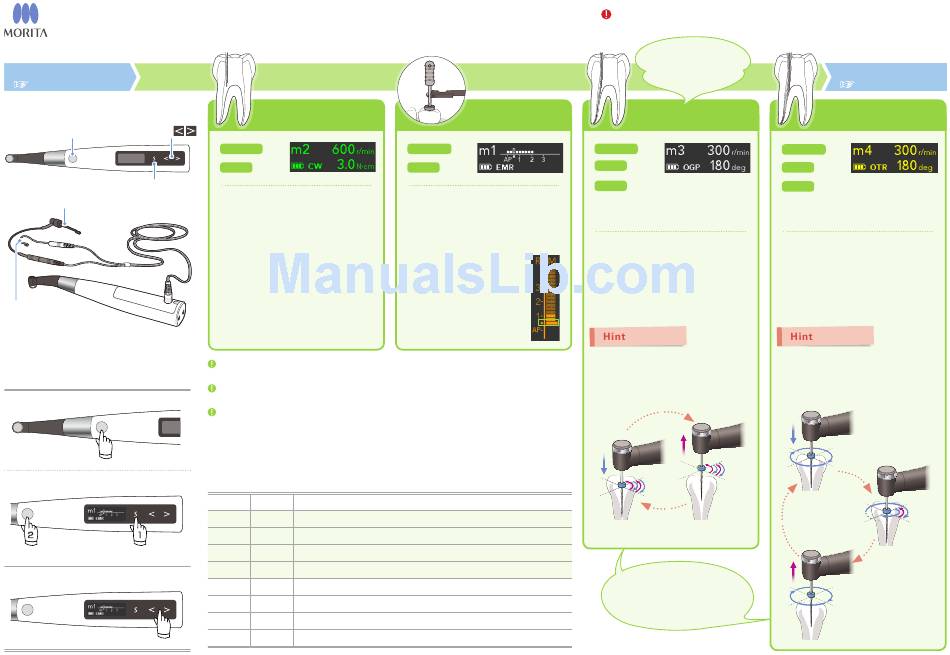

Tri Auto ZX2 Quick Guide
Treatment
see back page
⹅ Parts Identification
Set Switches (
Main Switch
Select Switch
File Holder
Contrary Electrode
⹅ Basic Operations
● Turn Power On
● Turn Power Off
Hold down
● Memory Selection
1. Shape Upper Part
of Canal
)
m2
Memory
CW
Mode
1. Turn power on.
2. Select memory "m2" .
3. Install a file.
4. Shape upper part of the canal.
The Main switch is used to start and stop
the motor.
For canals that are hard to measure, refer to "Canal Shaping (for
Instructions.
Use only files that are designed for clockwise filing. Use files very carefully and follow all the recom-
mendations of the manufacturer.
These instructions are for the default settings. If you change the settings, use the instrument accord-
ing to your own treatment procedures.
⹅ Default Settings
Almost all canals can be treated with the memories from m1 to m4.
● Default Memory Settings and Main Uses
Memory
Mode
EMR
m1
Canal measurement
m2
CW
Shape the upper part of canal.
m3
OGP
Negotiation and making a glide path for a normal canal.
m4
OTR
Canal shaping for a normal canal.
m5
OGP
Negotiation and making a glide path for a complex canal
m6
OGP
Making a glide path for a complex canal
m7
OTR
Canal shaping for a complex canal.
m8
CCW
Injection solutions such as calcium hydroxide, etc.
2. Canal
Measurement
m1
Memory
EMR
Mode
1. Select memory "m1" .
2. Hook the contrary electrode in
the corner of the patient's mouth.
3. Clip the file in the file
holder.
4. Advance the file to 0.5
meter bar, and then po-
sition a rubber stopper.
complex
canals)" in the Operation
Main Uses
Do not fail to read the Operation Instructions before using this instrument.
To create a smooth path
for canal shaping.
3. Glide Path
m3
Memory
OGP
Mode
Files
• Nickel-Titanium: #10 – 20(t02)
• Stainless Steel: #10 – 15(t02)
• Glide path files
1. Select memory "m3" .
2. Install a file.
3. Hook the contrary electrode in
the corner of the patient's mouth.
4. Make the glide path.
● Pecking Motion (for OGP)
Repeat pressing lightly for 1 sec-
ond and then pulling back.
Press lightly
Pull back
Thoroughly wipe off all debris
stuck to the file.
Maintenance
see back page
4. Canal Shaping
m4
Memory
OTR
Mode
Files
• Nickel-Titanium:
#20 and larger shaping files
1. Select memory "m4" .
2. Install a file.
3. Hook the contrary electrode in
the corner of the patient's mouth.
4. Perform canal shaping.
● Pecking Motion (for OTR)
Pull back when OTR action is trig-
gered and then repeat.
Inserted in canal
With light load
(normal CW rotations)
With heavy
load, OTR action
is triggered.
Pull back quickly
