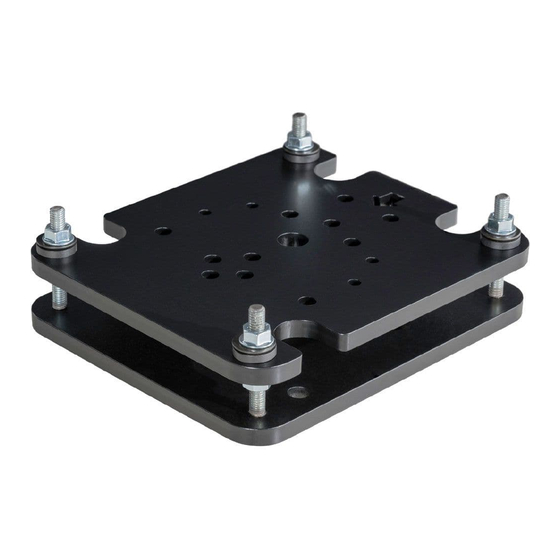

BT8380-afb
FIXED FLOOR BASE
with level adjustment
INSTALLATION GUIDE
SPECIFICATIONS
• Heavy duty floor base with level adjustment
suitable for use on uneven floors
• Compatible with a variety of B-Tech columns (BT8380 /
BT8381 / BT8385), poles (BT4116 / BT4118) and rails (BT8390)
• Max load per base: 150kg (330lbs)
• Adjustment: +/- 13.5mm (0.5") in each corner
www.btechavmounts.com
Advertisement
Related Manuals for B-Tech BT8380-AFB
Summary of Contents for B-Tech BT8380-AFB
- Page 1 • Heavy duty floor base with level adjustment suitable for use on uneven floors • Compatible with a variety of B-Tech columns (BT8380 / BT8381 / BT8385), poles (BT4116 / BT4118) and rails (BT8390) • Max load per base: 150kg (330lbs) •...
-
Page 2: Installation Safety Instructions
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 4 BT4116/BT4118 11mm x4 M16 x1 BT8385 x4 BASE 45.5mm 92mm 45.5mm FRONT VIEW SIDE VIEW 213mm 183mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION TOOLS REQUIRED BOLT BASE ONTO FLOOR i. Pre-drill holes in floor and using suitable ground anchor Drill Pencil 13mm fixings (not supplied), fix item 1 to the floor. Spanner 11mm x4 Level GROUND ANCHORS (not supplied) GROUND ANCHORS CONCRETE FLOOR FLOOR ii. - Page 6 ATTACH COLUMN/POLE/RAIL TO PLATE A. BT8380 COLUMN B. BT8385 COLUMN FRONT OF PLATE FRONT OF PLATE M8 x 40mm Hex Socket Button Head M6 x 40mm Cap Head Socket Screw BT8380 x4 BT8385 x4 C. BT8381 COLUMN D. BT4116/BT4118 POLE E.
- Page 7 FIX PLATE & COLUMN ONTO BASE i. Mount item 2 onto item 1. ii Fix items 3, 4 & 5 to item 1. 13mm SPANNER LEVEL BASE Using a 13mm spanner, loosen the top nut (item 3) and adjust the bottom nut (item 3) up or down to level item 2.
- Page 8 ©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
