B-Tech BT8351 Installation Manual & Parts List

BT8351

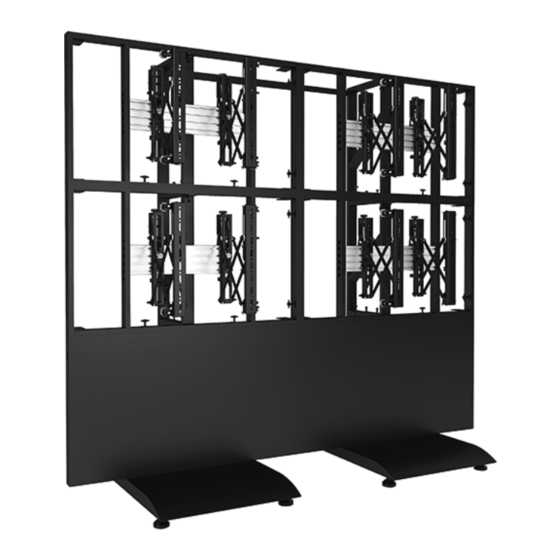

POP-OUT, MODULAR FREESTANDING
VIDEOWALL MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Stand
PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE
Installation Safety Notes............................................................................................ 2
Parts List.................................................................................................................... 4
Floorstand Stability....
Base Position.................................
Installation Instructions.............................................................................................10
Accessories................................. ..............................................................................18
B-Tech Contact Details................................................................................... . ..........20
INSTALLATION TOOLS REQUIRED
Crosshead
screwdriver
B-TECH AV MOUNTS
FEATURES
• Designed for narrow bezel monitors of 46", 49" and 55"
up to 50kg (110lbs) per monitor
• Modular design allows quick and easy assembly and
disassembly of videowalls
• System X interface mounts up to VESA 600 x 400mm
• Features pop-in, pop-out function to aid installation and to
allow easy service access to rear of screens
• Tool-less micro-adjustments for seamless display alignment
• Suitable for landscape or portrait screen mounting
• Captive, fast fit nuts and screws for quick assembly / disassembly
• Safety screws help prevent unauthorised removal of screens
• Strong steel structure
• Bases can be reversed to save space at the front of the stand*
*Additional ballast may be required
• Covers on floor spacers and base as standard
CONTENTS
.......................................................................... ......................8
...........................................................
Level
www.btechavmounts.com
55"
50kg
140cm
Per Screen
6AF Hex Key
. .................9
