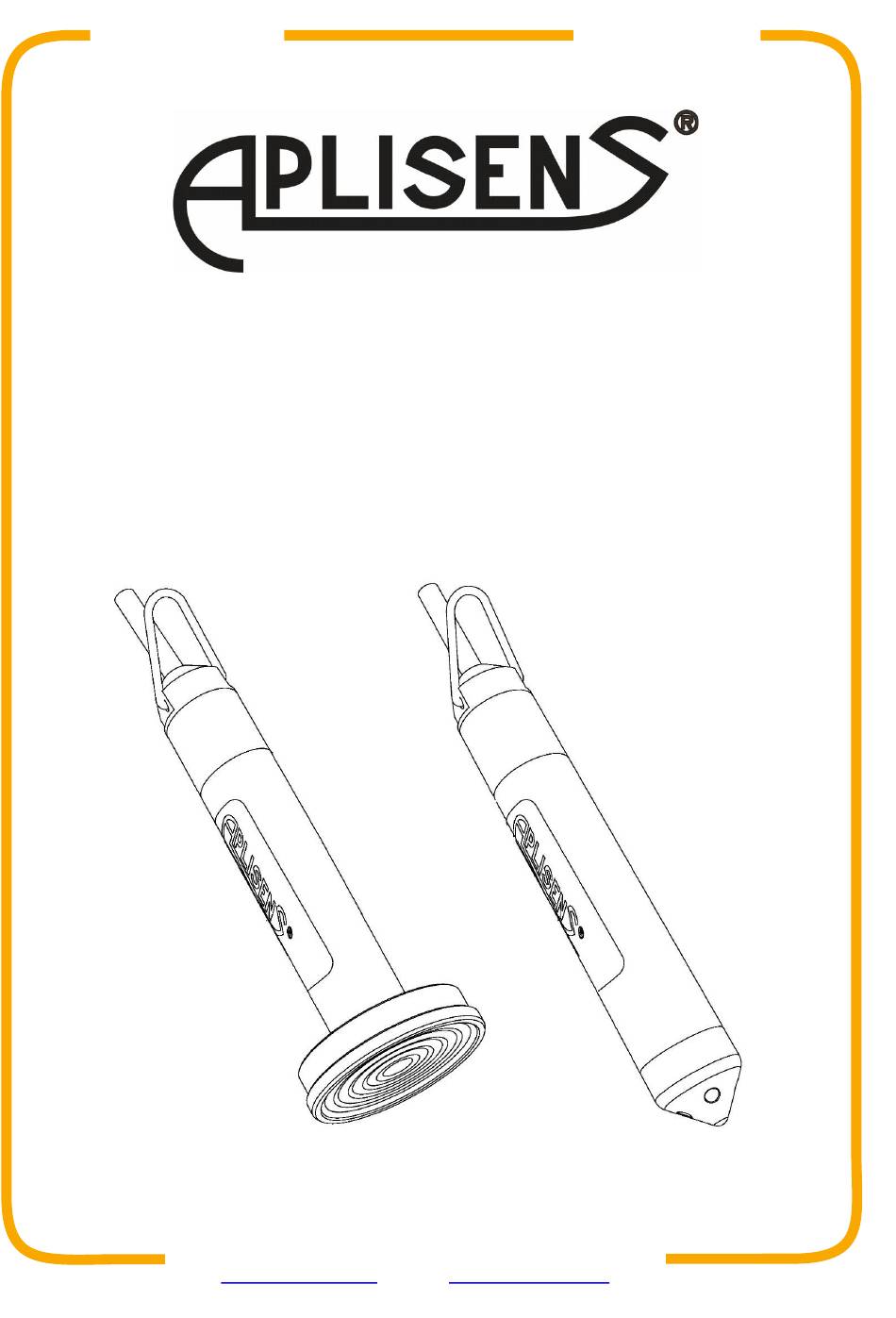

EN.IO.SGE
Revision 01.A.001
SEPTEMBER 2021
USER'S MANUAL

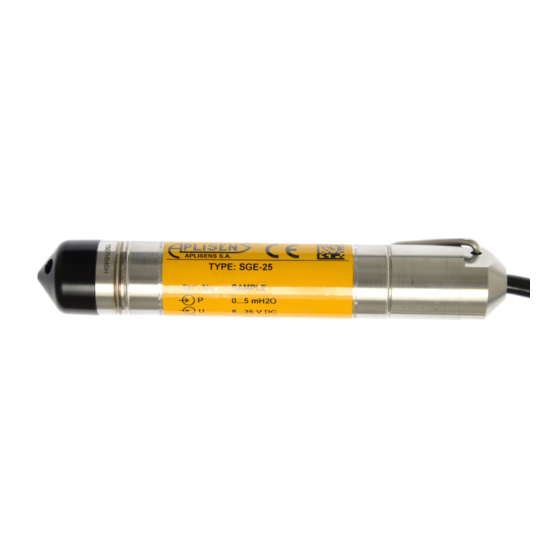

HYDROSTATIC LEVEL PROBES
SGE-25, SGE-25/Hastelloy,
SGE-25S, SGE-25C, SGE-16
APLISENS S.A., 03-192 Warsaw, Morelowa 7 St
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.com, e-mail:
export@aplisens.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGE-25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aplisens SGE-25

  • Page 1 EN.IO.SGE Revision 01.A.001 SEPTEMBER 2021 USER’S MANUAL HYDROSTATIC LEVEL PROBES SGE-25, SGE-25/Hastelloy, SGE-25S, SGE-25C, SGE-16 APLISENS S.A., 03-192 Warsaw, Morelowa 7 St tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.pl...
  • Page 2 SGE-25 ID: 0039 0001 0000 0000 0000 0000 0001 20 https://www.aplisens.pl/ID/003900010000000000000000000120/ SGE-25 (Exi) ID: 0039 0002 0000 0000 0000 0001 0001 37 https://www.aplisens.pl/ID/003900020000000000000001000137/ SGE-25/Hastelloy ID: 0039 0001 0000 0001 0000 0000 0001 28 https://www.aplisens.pl/ID/003900010000000100000000000128/...
  • Page 3 SGE-25S (Exi) ID: 0040 0002 0000 0000 0000 0001 0001 34 https://www.aplisens.pl/ID/004000020000000000000001000134/ SGE-25C ID: 0041 0001 0000 0000 0000 0000 0001 14 https://www.aplisens.pl/ID/004100010000000000000000000114/ SGE-25C (Exi) ID: 0041 0002 0000 0000 0000 0001 0001 31 https://www.aplisens.pl/ID/004100020000000000000001000131/ SGE-16 ID: 0046 0001 0000 0000 0000 0000 0001 96...
  • Page 4 − possible mechanical impacts, excessive shocks and vibration; − excessive temperature fluctuation; − freezing of the medium Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer’s website: www.aplisens.com...
  • Page 5: Table Of Contents

    EN.IO.SGE TABLE OF CONTENTS 1. INTRODUCTION ..................6 1.1. Purpose of the document ....................... 6 2. SAFETY ...................... 6 3. TRANSPORT AND STORAGE ..............7 3.1. Delivery check ........................7 3.2. Transport ..........................7 3.3. Storage and use ........................7 4.
  • Page 6: Introduction

    Data on the hydrostatic level probes SGE-25, SGE-25S and SGE-25C in intrinsically safe version according to IECEx and ATEX are included in the Explosion-proof De- vice Manual marked as EN.IX.SGE .
  • Page 7: Transport And Storage

    Avoid cable kinks at the point where it exits the gland. Permissible medium temperature range: • -25 … 40°C (-13 … 104°F) SGE-25, SGE-25C, SGE-25S, SGE-25/Hastelloy • -25 … 75°C (-13 … 167°F Special execution ETFE / PTFE •...
  • Page 8: Identification

    EN.IO.SGE IDENTIFICATION 5.1. Manufacturer address APLISENS S.A. 03-192 Warsaw Morelowa 7 St. Poland 5.2. Probe Identification. Depending on the version of the probe, the nameplates may differ in the amount of information and parameters. Table 1. Symbols appearing on the probe’s nameplate.
  • Page 9: Installation

    The probe can be hung on the power cable, e.g. by using Aplisens SG cable hanger (item 1 in Fig. 1). In the event of frequent removal of the probe or when there is a risk of catching on protruding elements during pulling up, it is recommended to hang the probe on a steel cord using the carrying eye (item 2 in Fig.
  • Page 10: Electrical Connection

    PP by Aplisens S.A., in order to connect the probe cable with the rest of the transmission line. The box should have an IP65 protection degree and at the same time be unsealed enough to ensure "breathing"...
  • Page 11: Power Supply

    Output signal voltage voltage SGE-25, SGE-25/Hastelloy, 4…20 mA 8 V DC 39 V DC SGE-25S, SGE-25C SGE-25, SGE-25S, SGE-25C 4…20 mA 9 V DC 28 V DC – Ex version 0…10 V SGE-25, SGE-25S, SGE-25C 13 V DC 30 V DC...
  • Page 12: Shielding

    Exi probes. In the SA version, they are equipped with additional protection in the form of overvoltage limiters. Additionally, an external protective device can be used, e.g. the UZ-2 system by APLISENS S.A. 7.4. Final Inspection of cabling After completing the electrical installation of the probe it is necessary to check the following: −...
  • Page 13: Maintenance

    EN.IO.SGE MAINTENANCE 8.1. Periodic inspections Periodic inspections should be carried out in accordance with the standards applicable to the user. During the inspection it is necessary to check the condition of the head (absence of loosening and leakage), separating diaphragms (tarnish, corrosion) and the electrical connection (checking the condition of the cable), as well as the stability of the holder (if used).
  • Page 14: Scrapping, Disposal

    (2012/19/EU) on waste electrical and electronic equipment or returned to the manufacturer. 10. HISTORY OF REVISIONS Revision Document revision Description of changes Edition E4/2019.04 Figure and description of SGE-25/Hastelloy probe was added. 01.A.001/2021.09 New version of the document. Prepared by DBFD. Revision 01.A.001/2021.09...
  • Page 15: Explosion-Proof Device Manual En.ix.sge

    INTRINSICALLY SAFE VERSION 1. Introduction Explosion-proof Device Manual EN.IX.SGE applies only to hydrostatic level probes SGE-25, SGE-25S, SGE-25C in intrinsically safe version with marking as in point 2 on the nameplate and Ex in the Product Certificate. When installing and using Ex probes, the User’s Manual EN.IO.SGE and Explosion-proof Device Manual EN.IX.SGE should be used.
  • Page 16 EN.IO.SG EN.IX.SGE Table Z1. Temperature class dependence on ambient temperature Ta and total amount of input power Pi. Ta [ºC] Pi [W] Temperature class T5, T4, group I T4, group I Ta- ambient temperature (i.e. of measured medium). 4. Connection of probes in Ex version Connections of the probe and devices in the probe measuring loop must be made in accordance with intrinsic safety and explosion protection standards and conditions of use in hazardous areas.
