INSTRUCTION MANUAL
CS-27/W; CS-27/BAK
HYDROSTATIC FUEL LEVEL PROBE
FOR INSTALLATION ON THE FUEL FILLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-27/W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aplisens CS-27/W

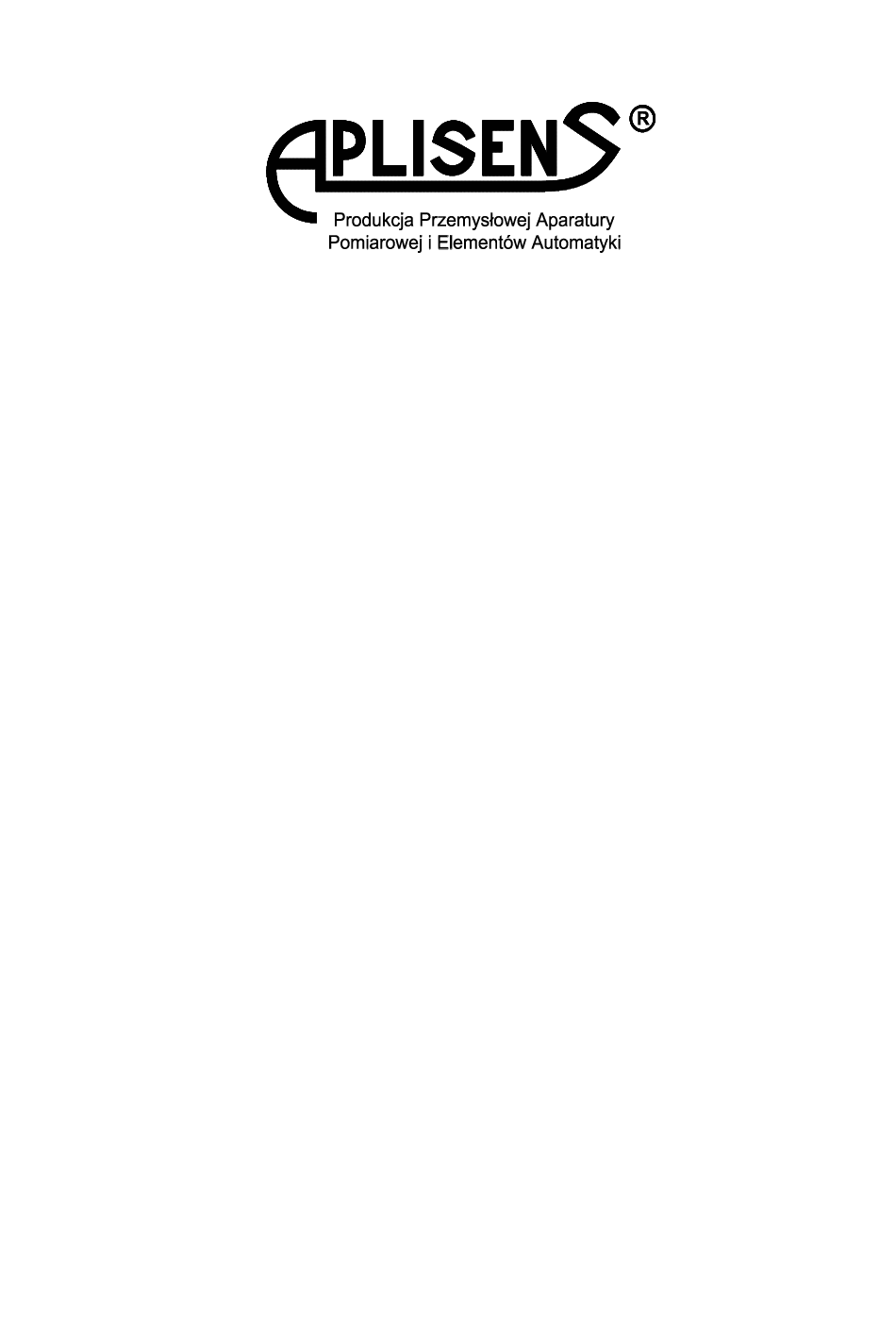

  • Page 1 INSTRUCTION MANUAL CS-27/W; CS-27/BAK HYDROSTATIC FUEL LEVEL PROBE FOR INSTALLATION ON THE FUEL FILLER...
  • Page 2 Installation of intrinsically safe devices must be conducted very carefully, following all standards and laws applicable for installations of this kind. Changes and alterations introduced in production documents may anticipate the update of user's paper documents. Up-to-date instruction manuals are available on producer's website www.aplisens.pl...
  • Page 3: Table Of Contents

    12 ADDITIONAL INFORMATION ................ 11 INTRODUCTION The subject of this instruction manual is the CS-27/W and CS-27/BAK hydrostatic fuel level probe for installation on the fuel filler. The manual includes data, hints, and recommended action for installation and usage of the device, as well as troubleshooting tips.
  • Page 4: Introduction

    SET LIST Along with the device, the user receives the following: Product certificate, functioning as a warranty card; b) Declaration of conformity (on customer's request); Instruction Manual designated “IO.CS-27/W.CS-27/BAK” Items b), c) are available from the website www.aplisens.pl 02.B.003...
  • Page 5: Transport And Storage

    3.1. Purpose and features The CS-27/W hydrostatic fuel probe is designed for fuel level measurement in fuel tanks on vehicles, machinery and locomotives. The CS-27/BAK is a combination of the CS-27/W probe with a BAK filler security for monitoring access to the fuel filler on trucks, machinery, construction vehicles and others, optionally with additional event signaling system for the driver.
  • Page 6: Overall Dimensions

    The ‘CABIN SIGNALLING MODULE’ generates two signals for removing the cap: normal open NO and normal connected NC. All signals are OC type (open collector). 3.3. Overall dimensions Pic. 1. CS-27/BAK/80, CS-27/W/80 hydrostatic fuel level probe – overall dimensions 02.B.003...
  • Page 7: Installation

    IO.CS-27/W.CS-27/BAK Pic. 2. CS-27/BAK/60, CS-27/W/60 hydrostatic fuel level probe – overall dimensions INSTALLATION CS-27/BAK/80; CS-27/W/80 mechanical installation 02.B.003...
  • Page 8  Screw the cap on. Unscrew and screw the cap back on several times to verify the stability of mounting on the tank filler. CS-27/BAK/60; CS-27/W/60 mechanical installation  Unscrew the original filler cap.  Degrease the filler surface and lower body (1) with a cloth included in installation kit.
  • Page 9: Connection

    IO.CS-27/W.CS-27/BAK  Screw the bottom body (1) with three screws (5) to tank filler.  Screw the upper body (2) with seal II (4) to lower body (1) with two M4x25 screws (6).  Secure the wire with protective pipe, clamp the pipe at wire outlet with cable tie, lead the wire into driver’s cabin in such a way as to minimize possible thermal and mechanical...
  • Page 10 IO.CS-27/W.CS-27/BAK 02.B.003...
  • Page 11: Technical Parameters

    IO.CS-27/W.CS-27/BAK TECHNICAL PARAMETERS 9.1. Electrical parameters : Uzas = 8…32VDC Power voltage Power intake: - with BAK fuel filler security : < 75mA - without BAK fuel filler security : < 25mA : U/CS = (0,05…10)V Analogue output signal for probe :U/BAK = (0,002…0.9) Uzas...
  • Page 12: Housing Protection Class

    Example marking: CS-27/BAK/80/1/RS-485/R Fuel level probe with filler security, filler diameter ø80, body with gland, with RS-485 digital output, adjustable arm. CS-27/W/80/2/U-0-10V/P Fuel level probe without filler security, filler diameter ø80, body with coupling, with voltage output 0…10V, bendable rod. 02.B.003...
  • Page 13: Inspection

    IO.CS-27/W.CS-27/BAK INSPECTION 10.1 Periodical inspection Periodical inspection must be conducted according to standards in force. While inspecting, check the condition of electrical connections on clamps (firmness of connections) and the stability of device fixing. 10.2 Non-periodical inspection If the device is exposed to mechanical damage, electrical overvoltage or it works improperly –...
