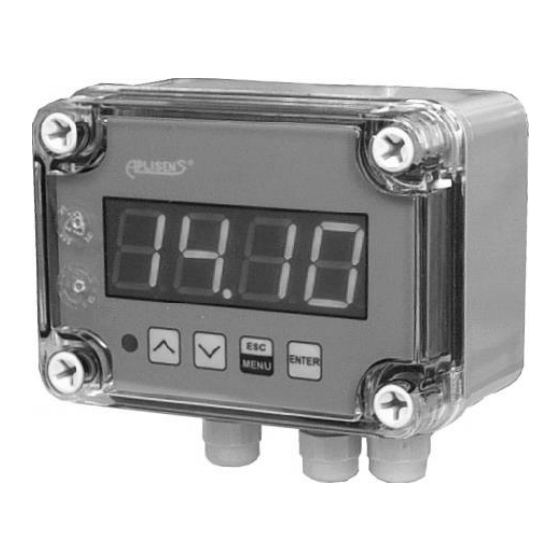

Aplisens PMS-620N User Manual

Digital indicator with relay outputs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

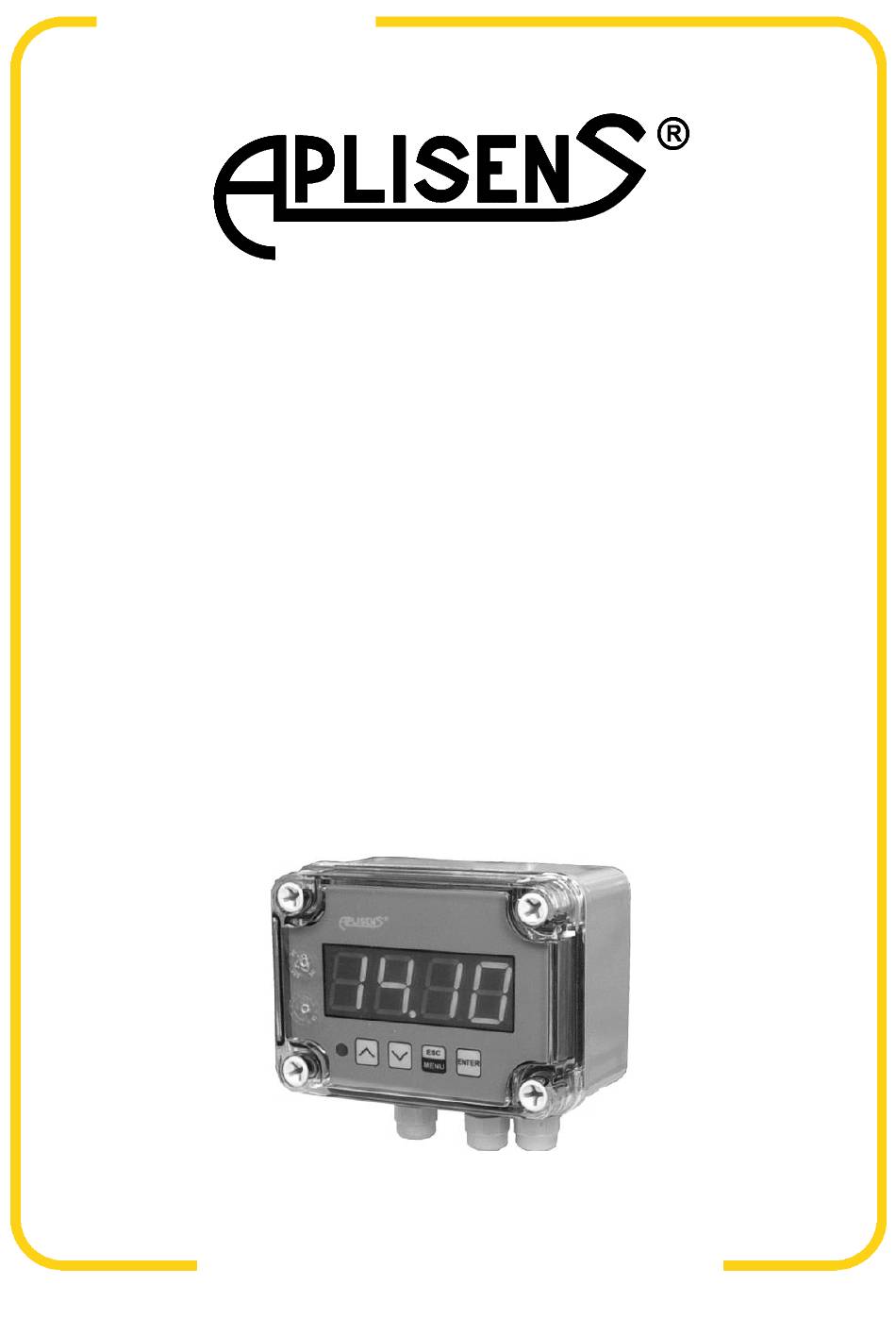

IO.PMS-620N(ENG)
Edition 01.A.002/06.16
USER MANUAL
DIGITAL INDICATOR WITH RELAY OUTPUTS
PMS-620N
Firmware: from 5.23
APLISENS S.A., 03-192 Warszawa, ul. Morelowa 7
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.pl, e-mail: aplisens@aplisens.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMS-620N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplisens PMS-620N

Summary of Contents for Aplisens PMS-620N

  • Page 1 IO.PMS-620N(ENG) Edition 01.A.002/06.16 USER MANUAL DIGITAL INDICATOR WITH RELAY OUTPUTS PMS-620N Firmware: from 5.23 APLISENS S.A., 03-192 Warszawa, ul. Morelowa 7 tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.pl, e-mail: aplisens@aplisens.pl...
  • Page 2  If a device is not functioning correctly, disconnect it and send it for repair to the manufacturer or to a firm authorized by the manufacturer. Changes to the products manufacturing documentation may forestall a paper user updating. Current Instruction Manual is available at Producer http. on www.aplisens.pl...

  • Page 3: Table Of Contents

    9.2. EXAMPLES OF CALCULATIONS..................34 THE MODBUS PROTOCOL HADLING ..................37 10.1. LIST OF REGISTERS ......................38 10.2. TRANSMISSION ERRPRS DESCRIPTION ................. 40 10.3. EXAMPLES OF QUERY/ANSWER FRAMES ..............41 DEFAULT AND USER’S SETTINGS LIST ................. 43 IO.PMS-620N Edition 01.A.002/06.16...

  • Page 4: General Characteristics

    GENERAL CHARACTERISTICS The PMS-620N meter is equipped with one current input 0-20 / 4-20mA and one voltage input 0-5 / 1-5 / 0-10 / 2-10V. Current input has additionally overcurrent protection circuit, which protects standard resistor. The selection of active input is realized by software, and selected input can be changed at any time.

  • Page 5: Device Installation

    - The load must correspond to the requirements listed in the technical data. - All installation works must be conducted with a disconnected power supply. - Protecting the power supply connections against unauthorized persons must be taken into consideration. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 6: Unpacking

    (recommended bipolar, max. 2A) and a power supply circuit breaker located near the unit. In the case of using a monopolar fuse it must be mounted on the phase cable (L). Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 7 The cables connected to the filter output must not be run with cables with interference (e.g. circuits controlling relays or contactors). IO.PMS-620N Edition 01.A.002/06.16...
  • Page 8 Figure 3.2. Method of cable insulation replacing and cable terminals All connections must be made while power supply is disconnected! Figure 3.3. Terminals description (relay outputs) Figure 3.4. Terminals description (OC-type outputs) Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 9 Figure 3.5. Connection of 2-wire current converters Figure 3.6. Connection of 3-wire current converters Figure 3.7. Connection of voltage converters IO.PMS-620N Edition 01.A.002/06.16...
  • Page 10 (better) directly on the load. In consequence of using the suppression circuit, the level of generated electromagnetic disturbances is lower, and the life of relay contacts rises. Figure 3.9. Examples of suppression circuit connection: a) to relay terminals; b) to the inductive load Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 11 (Figure 3.12, 3.13). If RS-485 interfaces are isolated or not used then the separators are not necessary. Figure 3.12. Serial connection of active 2-wire sensor with PMS-620N unit and other current measurement device (e.g. PLC controller) IO.PMS-620N...
  • Page 12 Figure 3.13. Serial connection of passive 2-wire sensor with PMS-620N unit and other current measurement device (e.g. PLC controller) If device B (Figure 3.12 , 3.13) is equipped with galvanic separated input or if different potentials between A and B devices signal grounds are allowed (e.g. if RS- 485 interface is separated or unused), current loop can be closed without separator G.

  • Page 13: Maintenance

    Symbol used in the manual: [ESC/MENU] Functions:  Enter to main menu (press and hold by at least 2 sec.);  Exit the current level and Enter to previous menu (or measure mode);  Cancel the changes made in parameter being edited. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 14: Principle Of Operation

    Figure. 5.2. Definitions of measurement ranges in mode 0 ÷ 20mA If the measurement value do not exceeds permissible measurement range but displayed value exceeds range -999 ÷ 9999, the warning ”-Ov-” is displayed rather than the calculated result. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 15: Detection Of The Peak Values

    Configurations of the device (via menu or RS-485 interface) do not stop measures. 5.2. DETECTION OF THE PEAK VALUES The PMS-620N controller is equipped with peaks detection function. It can detect peaks of the input signal and display their values. Presets connected with this function are placed in ”HOLd” menu (see description of ”HOLd”...

  • Page 16: Control Of The Relay Outputs

    Figure 5.5. Two threshold control of the relay/LED outputs The relay outputs and LEDs (named R) can be controlled depend on both – the current value and the peak value (when peak detection is active) of the input signal. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 17: One Threshold Mode

    The parameter “AL” allow user to set the relay output behaviour in critical situations (e.g. input values exceeds permissible measurement range). User can select that the relays will be turned on, turned off, or not changed in critical situations. All parameters connected with relay outputs are described in paragraph ”rEL1” menu. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 18: Two Thresholds Mode

    The sequence of thresholds “SEtP” and “SEt2” can be set in any order, due to the control of relay outputs is done depend on difference between thresholds values (zone A ) and outside of threshold values (zone B). Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 19: Device Programming

    After about 1 min. since last use of the buttons, device exits the menu mode and returns to the measurement mode (only if no parameters are in editing mode). 6.2. PARAMETERS EDITION To start edition of any parameter user should select name of desired one using [^] [v] buttons and then press [ENTER]. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 20: Numeric Parameters (Digit Change Mode)

    EEPROM memory. Pressing this button operator can cancel the changes done up to now (if they were not approved by [ENTER] button after the ”SEt?” ask) and come back to menu. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 21: Menu Description

    - the relay is not active (permanent turned off). “on” - one threshold mode, the relay is turned ON when input signal exceeds SEtP + HYSt value, and is turned off back when the input signal became lower than SEtP – HYSt. IO.PMS-620N Edition 01.A.002/06.16...
  • Page 22 If parameter “modE” is set to “on” , “oFF”, “in” or “Out” the “critical situation” means that allowable measurement range is exceeded. If parameter “modE” is set to “modb”, the “critical situation” means communication delay (when no data is received) longer than “mbtO” parameter (see description: “rS” menu). Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 23: Inpt" Menu

    '-' sign on the first position (by use of [^], [v] buttons). If volume characteristics of a cylindrical tank is selected (parameter “CHAr” = ”tn v” or “CHAr” = ”tn h”) the parameters „Lo C” and „Hi C” are not available. IO.PMS-620N Edition 01.A.002/06.16...
  • Page 24  If in the volume characteristics of a cylindrical tank is exceeded the value of the volume of the tank sets by parameters available in menu "inPt" instead of the calculated result will be display warning “-Hi-”. Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 25 Figure 6.1. Parameters of cylindrical tank in vertical position Figure 6.2. Parameters of cylindrical tank in horizontal position IO.PMS-620N Edition 01.A.002/06.16...
  • Page 26 The permissible range allow user to exceed the nominal range of input signal. If input value is contained in the permissible range a proper result is displayed. If input signal exceeds this range (defined by “Lo r” and “Hi r”), “-Lo-” or “-Hi-” warning is displayed depend on input signal value. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 27: Bri" Parameter

    - peaks, peak and next drop of the input signal of value equal at least “PEA”; ”norm” ”inv” - drops, drop and next peak of the input signal of value equal at least “PEA”. “PEA” - minimal detected signal change classified as peak or drop (see Figure 5.3) IO.PMS-620N Edition 01.A.002/06.16...

  • Page 28: Secu" Menu

    1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 bit/s respectively. ”mbAc” - this parameter sets the access to the configuration registers of the device. Possible values: ”on” - configuration registers can be set via RS-485 interface; ”oFF” - configuration registers cannot be set via RS-485 interface. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 29: Edit" Parameter

    This setting allows to restore the factory settings of the device. To get the access to this option special password is required: „5465”, next the device displays acknowledge question „SEt?”. Press [ENTER] to acknowledge the restoring of factory settings or [ESC] to cancel. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 30: Menu Structure

    6.4. MENU STRUCTURE Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 31 IO.PMS-620N Edition 01.A.002/06.16...

  • Page 32: The Alarm Led

    9.1. ADDITIONAL CALCULATIONS (USED CONVERSION CHARACTERISTIC) The manner of the additional computation of the displayed result depends on selected conversion characteristic. All presented charts are connected with the input range 4 - 20 mA. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 33: Linear Characteristic

    The normalized result is squared and further conversion is done as for linear characteristic. Conversion is made accordingly with the expression: where W means the displayed value. Figure 9.2 Normal („Lo C” < ”Hi C) and inverted („Lo C” > ”Hi C) characteristic IO.PMS-620N Edition 01.A.002/06.16...

  • Page 34: Square Root Characteristic

    If the normalized result exceeds the user defined characteristic values, then specific utmost segment, defined by two next points, is used for calculations. If characteristic from figure below is used, and if In>1 then segment defined by points X(PL) = “90.0.”, X(PH) = “100.0.” will be used. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 35: Volume Characteristic Of A Cylindrical Tank

    ·"t Sh"+"t Sn" where 'h' is level of liquids, gases or solids in the tank, see Figure 6.1, 6.2. Figure 9.5 The characteristic of level of liquids, gases or solids in tank depending on input current in 4÷20mA range. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 36: Examples Of Calculations

    0,375 × [1200 -(- 300)] ≈ 562 and next, the “Lo C” value is added to the result, so the displayed value: W ≈ 562 + (-300) = 262 b) I = 2,5 mA and I = -0,0938 W ≈ -441 c) I = 20,5 mA and I = 1,0313 W ≈ 1247 Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 37 X1 = “00.0.”, Y1 = “-50.0”, X 2= “10.0.”, Y2 = “-30.0”, ..X6 = “30.0.”, Y6 = “30.0”, X7 = “40.0.”, Y7 = “80.0”, ..X10 = “90.0.”, Y10 = “900.0”, X11 = “100.0.”, Y11 = “820.0”, IO.PMS-620N Edition 01.A.002/06.16...
  • Page 38 Next we defined the parameters of tank dimension and location of sensor: „t Sn”=00,00 „t Sh”=10,00 „t h1”=00,00 „t h2”=10,00 „t h3”=00,00 „t d”=04,00 Figure 9.6 The volume characteristic of tank depending on input current in 4÷20mA range. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 39: The Modbus Protocol Hadling

    (group of the registers) accordingly to Modbus RTU specification. Maximum group size for 03h and 10h functions cannot exceed 5 registers (for single frame). The device interprets the broadcast messages, but then do not send the answers. IO.PMS-620N Edition 01.A.002/06.16...

  • Page 40: List Of Registers

    2 - “A r3” parameter; bit 3 - “A r4” parameter “rESP” parameter in “rS” menu (additional response delay); 0 ÷ 5 0 - no additional delay; 1 - ”10c” option; 2 - ”20c” option; 3 - ”50c” option; 4 - ”100c” option; 5 - ”200c” option; Edition 01.A.002/06.16 IO.PMS-620N...
  • Page 41 0 - peaks; 1 - drops “PEA” parameter in “HOLd” menu (minimum detectable change, no 0 ÷ 9999 decimal point included) “timE” parameter in “HOLd” menu, maximum peaks' (or drops') 1 ÷ 199 display time expressed in seconds IO.PMS-620N Edition 01.A.002/06.16...

  • Page 42: Transmission Errprs Description

    - no write permission ( see: “mbAc” parameter) - exceed of upper border of input range - exceed of lower border of input range A0h and 60h codes can appear only during reg. 01h is reading by 03h function (read of a single register). Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 43: Examples Of Query/Answer Frames

    Data byte count in answer frame DATA H,L Data byte (Hi and Lo byte) CRC L,H CRC error check (Hi and Lo byte) 1. Read of the displayed value (measurement), PMS-620N device address = 01h: ADDR FUNC REG H,L COUNT H,L...
  • Page 44 DATA H2, L2 - reg. 02h (0 - no errors); DATA H3, L3 - reg. 03h (1 - decimal point position ” 0.0”). There is no full implementation of the Modbus Protocol in the device. The functions presented above are available only. Edition 01.A.002/06.16 IO.PMS-620N...

  • Page 45: Default And User's Settings List

    Maximum displayed value (for nominal range) 100.0 Lo r Extension of the bottom of the nominal input range 5.0 (%) Hi r Extension of the top of the nominal input range 5.0 (%) Display parameters Display brightness bri6 IO.PMS-620N Edition 01.A.002/06.16...
  • Page 46 RS 485 interface configuration (menu “rS”) Addr Device address bAud Baud rate mbAc Permission to changes of configuration registers mbtO Maximum delay between received messages rESP Additional delay of answer transmission Configuration of numerical parameters edition Edit Numerical parameters edit mode Edition 01.A.002/06.16 IO.PMS-620N...
