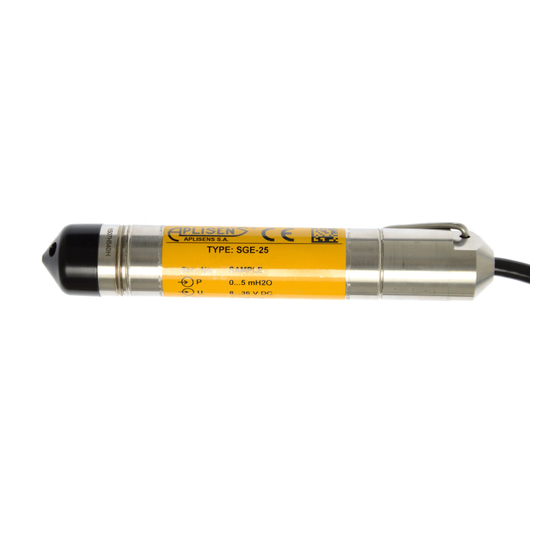

- Page 1 EN.IO.SGE.25.SMART Revision 01.A.001 SEPTEMBER 2021 USER’S MANUAL SMART LEVEL PROBES SGE-25.Smart, SGE-25S.Smart, SGE-25C.Smart, SGE-25S.Smart/Titan APLISENS S.A., 03-192 Warsaw, Morelowa 7 St tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 SGE-25.SMART ID: 0042 0001 0001 0000 0000 0000 0001 83 https://www.aplisens.pl/ID/004200010001000000000000000183/ SGE-25.SMART (Exi) ID: 0042 0002 0001 0000 0000 0001 0001 03 https://www.aplisens.pl/ID/004200020001000000000001000103/ SGE-25S.SMART ID: 0043 0001 0001 0000 0000 0000 0001 80...
- Page 3 SGE-25S.SMART (Exi) ID: 0043 0002 0001 0000 0000 0001 0001 97 https://www.aplisens.pl/ID/004300020001000000000001000197/ SGE-25C.SMART ID: 0055 0001 0001 0000 0000 0000 0001 44 https://www.aplisens.pl/ID/005500010001000000000000000144/ SGE-25C.SMART (Exi) ID: 0055 0002 0001 0000 0000 0001 0001 61 https://www.aplisens.pl/ID/005500020001000000000001000161/ SGE-25S.SMART/TITAN ID: 0042 0001 0001 0001 0000 0000 0001 91...
- Page 4 Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer’s website: www.aplisens.com.
-
Page 5: Table Of Contents
EN.IO.SGE.25.SMART TABLE OF CONTENTS 1. INTRODUCTION ..................7 1.1. Purpose of the document ....................... 7 1.2. Registered trademarks ......................7 1.3. Set range ..........................7 1.4. Definition and abbreviations ....................8 2. SAFETY ...................... 9 3. TRANSPORT AND STORAGE ..............9 3.1. - Page 6 EN.IO.SGE.25.SMART LIST OF DRAWNINGS Figure 1. Set range and measurements limits..................7 Figure 2. Mounting brackets for probes..................... 11 Figure 3. Diaphragm cover for SGE-25C.Smart and SGE-25S.Smart probes........11 Figure 4. Electrical connection 4…20 mA of probes with HART communication....... 12 Figure 5.
-
Page 7: Introduction
INTRODUCTION 1.1. Purpose of the document The subject of manual are smart level probes: SGE-25.Smart, SGE-25S.Smart, SGE-25C.Smart and SGE-25S.Smart/Titan hereinafter referred to as probes in the manual. The manual applies to the fol- lowing versions: standard and intrinsically safe Exi. -
Page 8: Definition And Abbreviations
EN.IO.SGE.25.SMART 1.4. Definition and abbreviations Table 1. Definition and abbreviations. L.P. Abbreviation Meaning "Lower Range Value" – the value of the set range expressed in physical units corresponding to the current of 4,000 mA, i.e. 0% of the output setpoint. The set range cannot exceed the set range limits. The minimum width of the set range |(URV-LRV)| is limited to 10% of the base range (URL-LRL). -
Page 9: Safety
3.1. Delivery check After receiving the delivery, please refer to the general terms and conditions of contracts available on the manufacturer website: https://aplisens.com/ogolne_warunki_umow.html. 3.2. Transport Transport of probes shall be carried out with the use of covered means of transport, in original packages with diaphragm provided with protection. -
Page 10: Identification
EN.IO.SGE.25.SMART IDENTIFICATION 5.1. Manufacturer address APLISENS S.A. 03-192 Warsaw Morelowa 7 St Poland 5.2. Probe identification Depending on the version of the probe, the nameplates may differ in the amount of information and parameters. Table 2. Symbols appearing on the probe’s. -
Page 11: Installation
The probe may be hung on the supply cable using Aplisens SG cable hanger (item 1 on Fig. 2). In case of frequent removal of the probe or when there is a risk of catching on protruding elements during pulling up, it is recommended to hang the probe on a steel cable using the carrying eye (item 2 on Fig. -
Page 12: Electrical Connection
PP type manufactured by Aplisens S.A., to connect the probe cable with the further part of the transmission line. The junction box should have IP65 protection grade and at the same time it should be unsealed enough to ensure "breathing"... -
Page 13: Level Probe With Internal Temperature Sensor Pt
Table 3. Permissible power supply voltage. Output Minimum power Maximum power Probe type signal supply voltage supply voltage SGE-25.Smart, SGE-25S.Smart, 55 V DC 4…20 mA 7,5 V DC SGE-25C.Smart, 30 V DC* SGE-25S.Smart/Titan *For probes in intrinsically safe version Exi (not applicable SGE-25S.Smart/Titan). -
Page 14: Shielding
(which are not protected by diodes connected between the line conductors), the probes in standard versions and Exi in SA version are equipped with additional protection in the form of surge arresters. For systems with long signal transmission lines, it is recommended the using of an additional Aplisens UZ-2 overvoltage protection circuit. -
Page 15: Start-Up
EN.IO.SGE.25.SMART START-UP Probe identification The basic data of the probe can be read from the nameplate of the device (➔ 8.1. Alarm configuration Smart level probes have developed internal diagnostics that watch over the operation of their electronic circuits, process and environmental parameters. Diagnosed hazardous conditions or internal circuit malfunctions result in an alarm current setting depending on the configuration of I_AL<3,650 mA (nominally 3,600 mA) or I_AL>21,500 mA (nominally 22,000 mA). -
Page 16: Correction Of The Impact Of Working Position On The Object - Reset (Zeroing)
Probes can also be calibrated by relating their readings to an input pressure controlled by a reference instrument. Zeroing and calibration are collectively called "CALIBRATION". CONFIGURATION AND CALIBRATION of the probe is performed using the Aplisens KAP communi- cator, or a PC with HART/RS232 converter and Aplisens "Raport 2” software. -
Page 17: Maintenance
EN.IO.SGE.25.SMART 10. MAINTENANCE 10.1. Periodic inspections Periodic inspections should be carried out in accordance with the standards applicable to the user. Check the processing characteristics by following the steps appropriate to the calibration and configuration. 10.1.1. External overview During the inspection, check the condition of the separating membranes (tarnish, corrosion) and the electrical connection (check the condition of the cable), as well as the stability of the handle (if used). -
Page 18: Scraping, Disposal
EN.IO.SGE.25.SMART 11. SCRAPING, DISPOSAL Worn or damaged devices shall be scrapped in accordance with WEEE Directive (2012/19/EU) on waste electrical and electronic equipment or returned to the manufacturer. 12. HISTORY OF REVISION Revision Changing description E5/01.2020 Updating electrical parameters. E6/05.2020 Editorial changes 01.A.001/2021.09 New version of the document. -
Page 19: Explosion-Proof Device Manual En.ix.sge.25.Smart
EN.IO.SGE.25.SMART EN.IX.SGE.25.SMART Explosion-proof Device Manual EN.IX.SGE.25.SMART SMART LEVEL PROBES type: SGE–25.Smart, SGE–25S.Smart, SGE–25C.Smart INTRINSICALLY SAFE VERSION 1. Introduction Explosion-proof Device Manual EN.IX.SGE.25.SMART only applies to smart level probes: SGE–25.Smart, SGE–25S.Smart, SGE–25C.Smart in intrinsically safe version with marking as a point 2 on the nameplate and the Ex version in the Product Certificate. - Page 20 Ta- ambient temperature (measured medium) 4. Connection of probes in Ex version Figure 1.Ex. Connection for SGE-25.Smart, SGE-25S.Smart, SGE-25C.Smart probes in Ex version. Connections of the probe and devices in the probe measuring loop must be made in accordance with intrinsic safety and explosion protection standards and conditions of use in hazardous areas.
