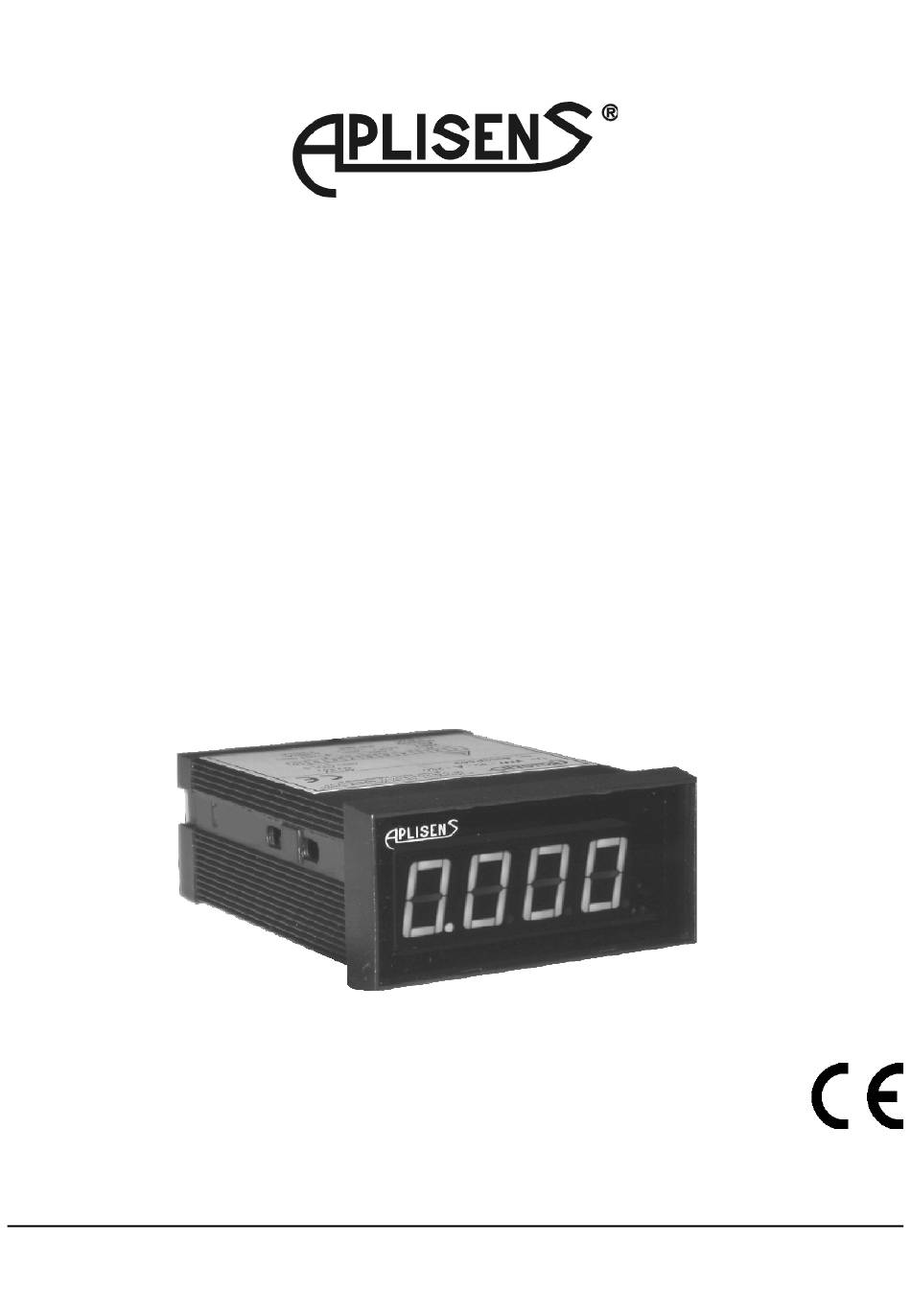

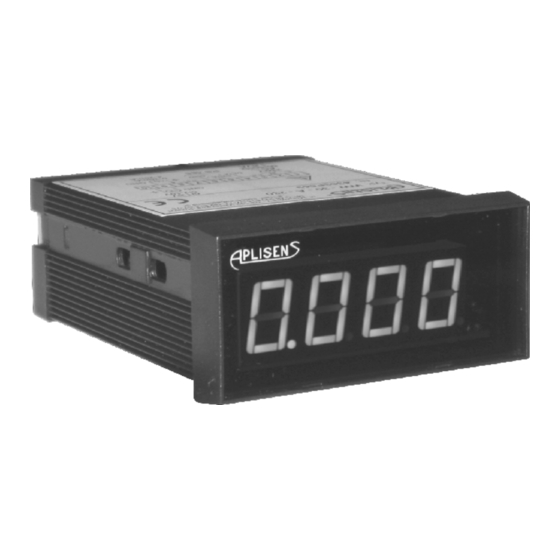

USER MANUAL for
digital indicator with Pt100/500/1000
input
WW-30Pt
type:
5.14
firmware version:
or higher
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
V.2.01
11.12.2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WW-30Pt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplisens WW-30Pt

Summary of Contents for Aplisens WW-30Pt

  • Page 1 USER MANUAL for digital indicator with Pt100/500/1000 input WW-30Pt type: 5.14 firmware version: or higher Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. V.2.01 11.12.2007...

  • Page 2: Table Of Contents

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt CONTENTS 1. BASIC REQUIREMENTS AND USER SAFETY..................3 2. GENERAL CHARACTERISTICS........................4 3. TECHNICAL DATA............................4 4. DEVICE INSTALLATION..........................6 4.1. UNPACKING............................6 4.2. ASSEMBLY............................6 4.3. CONNECTION METHOD........................8 4.4. MAINTENANCE..........................11 5. DESCRIPTION OF IR REMOTE CONTROLLER AND CONTROL SOFTWARE PUSH-BUTTONS..12...

  • Page 3: Basic Requirements And User Safety

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt Explanation of symbols used in the manual: - This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction.

  • Page 4: General Characteristics

    Modbus RTU protocol. Easy assembling, small dimensions, precision and reliability are the basic trumps of WW-30Pt indicators. IR remote controller is not a part of the WW-30Pt and must be ordered separately. 3. TECHNICAL DATA Power supply voltage 230V AC ±10%;...
  • Page 5 User manual for digital indicator with Pt100/500/1000 input WW-30Pt Baud rate 1200 bit/s ÷ 115200 bit/s Display LED, 4 digit, 13mm height, red Data memory non-volatile memory, EEPROM type Protection level IP 40 (from front) IP 20 (housing and connection clips)

  • Page 6: Device Installation

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 4. DEVICE INSTALLATION The unit has been designed and manufactured in a way assuring a high level of user safety and resistance to interference occurring in a typical industrial environment. In order to take full advantage of these characteristics installation of the unit must be conducted correctly and according to the local regulations.
  • Page 7 User manual for digital indicator with Pt100/500/1000 input WW-30Pt 66,5 mm max. 5 mm Figure 4.1. Mounting hole dimensions 92 mm 5 mm 12 mm 10 mm Figure 4.2. Installing of brackets, and dimensions of connectors. 91 mm Figure 4.3. Minimum distances when assembly of a number of units...

  • Page 8: Connection Method

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 4.3. CONNECTION METHOD Caution - Installation should be conducted by qualified personnel . During installation all available safety requirements should be considered. The fitter is responsible for executing the installation according to this manual, local safety and EMC regulations.
  • Page 9 User manual for digital indicator with Pt100/500/1000 input WW-30Pt Use of screened signal cables is recommended. Signal cable screens should be – connected to the earthing only at one of the ends of the screened cable. In the case of magnetically induced interference the use of twisted couples of signal –...
  • Page 10 User manual for digital indicator with Pt100/500/1000 input WW-30Pt FUSE 230V AC Figure 4.6. Connection of power supply a) for 230V AC version; b) for 24V DC version...

  • Page 11: Maintenance

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt Temperature sensor can be connected to the device in typical 4-wire circuit (Figure 4.7 a), 3-wire circuit (Figure 4.7 b) or 2-wire circuit (Figure 4.7 c). Due to precision of measurement 4-wire circuit is recommended.

  • Page 12: Description Of Ir Remote Controller And Control Software Push-Buttons

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 5. DESCRIPTION OF IR REMOTE CONTROLLER AND CONTROL SOFTWARE PUSH-BUTTONS infra-red transmitter MENU ENTER programming pushbuttons Symbols and functions of push-buttons: Symbol used in the manual: [ESC/MENU] Functions: MENU • Enter to main menu ( press and hold by at least 2 sec.) •...

  • Page 13: Detection Of The Peak Values

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 6.2. DETECTION OF THE PEAK VALUES The WW-30Pt controller is equipped with peaks detection function. It can detect a peaks of the input signal and display their values. Presets connected with this function are placed in ”HOLd”...

  • Page 14: Parameters Edition

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt Functions of the buttons while sub-menu and parameters choice: Selection of sub-menu or parameter for editing. Name of selected item (sub- menu or parameter) is displayed. Operation of [ENTER] button depend on present menu position: ENTER •...

  • Page 15: Switch Parameters ("List" Type)

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt in EEPROM) press [ENTER] button shortly after ”SEt?” is displayed. To cancel the changes press [ESC] button shortly after ”SEt?” is displayed. After that device returns to the menu. 7.2.3. Switch parameters (“LIST” type) Switch parameters can be described as a sets of values (a lists) out of which only one of the options available on the list can be selected for the given parameter.

  • Page 16: Menu Description

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 7.3. MENU DESCRIPTION “- - - -” - password checking. If some password different from „0000” is set, then every enter to main menu follows the entering of password. If entered password is correct then first menu position will be displayed else warning ”Err”, and unit...

  • Page 17: Scod" Parameter

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 7.3.4. ”Scod” parameter This parameter defines user password (4-digits number). If this parameter is set at value “0000”, user password is turned off. If the user do not remember his password, the access to the menu is possible by the “one-use password”.

  • Page 18: Edit" Parameter

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt “38.4” “57.6” “115.2” ”bAud” parameter “ 10c” “ 20c” “ 50c” ”rESP” parameter Tab.7.1. Settings of ”rESP” parameter 7.3.6. ”Edit” paramet er This parameter allows to change the edition mode of numerical parameters: ”dig”...

  • Page 19: Menu Structure

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 7.4. MENU STRUCTURE Measurement mode Press and hold at least 2 seconds MENU MENU 4-digit user password entering (if it is different from „0000”) 0 _ _ _ ENTER ENTER ENTER...

  • Page 20: The Modbus Protocol Handling

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 8. THE MODBUS PRO TOCOL HANDLING Transmission parameters: 1 start bit, 8 data bits, 1 or 2 stop bit (2 bits are send, 1 and 2 bits are accepted when receive), no parity control...

  • Page 21: List Of Registers

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 8.1. LIST OF REGISTERS Register Write Range Register description -999 ÷ 9999 Measurement value (no decimal point) The status of the current measurement; 0h - data valid; A0h - top 0h, A0h, 60h border of the measurement range is exceeded;...

  • Page 22: Transmission Errors Description

    Data byte count in answer frame DATA H,L Data byte (Hi and Lo byte) CRC L,H CRC error check (Hi and Lo byte) 1. Read of the displayed value (measurement), WW-30Pt device address = 01h: ADDR FUNC REG H,L COUNT H,L...
  • Page 23 User manual for digital indicator with Pt100/500/1000 input WW-30Pt b) The answer (if an error occur): ADDR FUNC ERROR CRC L,H ERROR - error code = 60h, bottom border of the measurement range is exceeded 2. Read of device ID code...
  • Page 24 User manual for digital indicator with Pt100/500/1000 input WW-30Pt 5. Read of the registers 1, 2 and 3 in one message (example of reading a number of registries in one frame): ADDR FUNC REG H,L COUNT H,L CRC L,H COUNT L - the count of being read registers (max.16)

  • Page 25: Default And User's Settings List

    User manual for digital indicator with Pt100/500/1000 input WW-30Pt 9. DEFAULT AND USER'S SETTINGS LIST Desc. Parameter Description Default value User's value page Configuration of measurement input (“inPt” menu) tYPE Input type „Pt 1” FiLt Filtering ratio toFS Shifting of measurement scale...
  • Page 26 User manual for digital indicator with Pt100/500/1000 input WW-30Pt...
  • Page 27 User manual for digital indicator with Pt100/500/1000 input WW-30Pt...
  • Page 28 APLISENS Sp. z o.o. , ul. Morelowa 7 PL - 03-192 Warszawa, Poland tel.: (+48 22) 814-07-77, fax: (+48 22) 814-07-78 http://www.aplisens.com.pl, e-mail: aplisens@aplisens.pl...
