DM-NAX-16AIN
DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs
The Crestron® DM NAX™ Audio-over-IP (AoIP) encoder (DM-NAX-16AIN) provides 16 local stereo audio inputs to a DM NAX Crestron multiroom audio
distribution network.

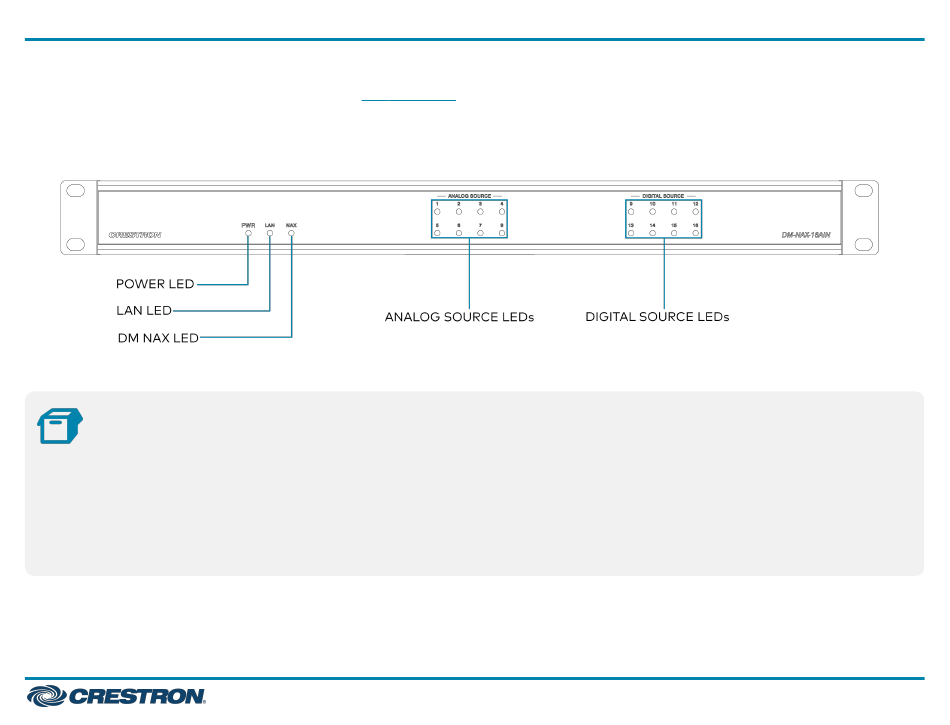

Front Panel

In the Box

1
DM-NAX-16AIN
Additional Items
2
Bracket, Rack Ear, 1U (2032122)
4
Connector, 5-Pin (2003577)
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-NAX-16AIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Crestron DM-NAX-16AIN

  • Page 1 DM-NAX-16AIN Quick Start DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs The Crestron® DM NAX™ Audio-over-IP (AoIP) encoder (DM-NAX-16AIN) provides 16 local stereo audio inputs to a DM NAX Crestron multiroom audio distribution network. Front Panel In the Box DM-NAX-16AIN...
  • Page 2 Quick Start DM-NAX-16AIN DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs Install in a Rack This device occupies 1U of rack space. Install the Device 1. Use a Phillips screwdriver (not included) to remove the three screws from each side of the device as shown in the illustration.
  • Page 3 Quick Start DM-NAX-16AIN DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs Rack Mounting Safety Precautions Elevated Operating Ambient Temperature: If installed in a closed or Connect the Device multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than the room ambient temperature.
  • Page 4 DM-NAX-16AIN Quick Start DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs Rear Panel...
  • Page 5 Quick Start DM-NAX-16AIN DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs Balanced/Unbalanced Audio Input Digital Inputs Refer to the following table and illustration for analog audio input pin assignments and connection information. Refer to the following illustration when connecting digital audio sources.
  • Page 6 Quick Start DM-NAX-16AIN DM NAX™ Audio-over-IP Network Encoder with 16 Stereo Inputs Reset the Device Observe the LED Indicators A network reset or factory restore may be performed when Refer to the following table for information about the LED indicators on troubleshooting.
  • Page 7 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
