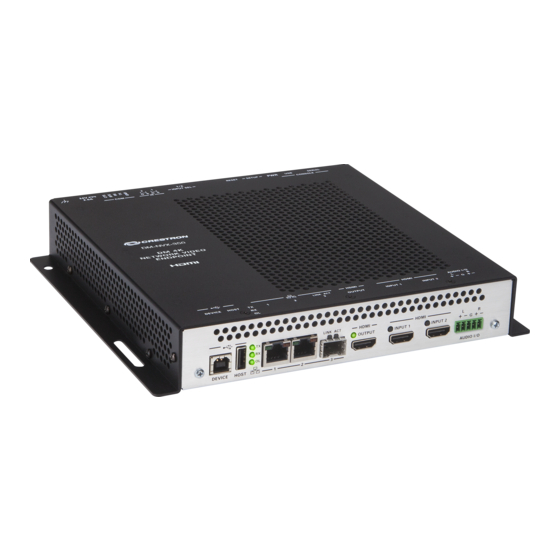

DM-NVX-350, DM-NVX-351, and DM-NVX-352
DM NVX® 4K60 4:4:4 HDR Network AV Encoders/Decoders
The Crestron® DM-NVX-350, DM-NVX-351, and
encoders/decoders transport ultra high-definition 4K60 4:4:4 HDR video
over standard Gigabit Ethernet.
In the Box
1
DM-NVX-350, DM-NVX-351, or DM-NVX-352 Network AV
Encoder/Decoder
Additional Items
1
Power Pack, 24 VDC, 2.5 A, 100-240 VAC (2045873)
1
Power Cord, 5 ft 10 in. (1.78 m) (2042043)
1
Connector, 4-Pin (2003576)
2
Connector, 5-Pin (2003577)
Install the Device
The DM NVX® device can be mounted onto a flat surface or rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat
surface such as a wall or the underside of a table.
NOTE:
Fan ventilation holes are provided on five sides of the device.
If the installation necessitates that another object be positioned flush
against the ventilation holes on one side of the device, leave a minimum
clearance of 2 inches of space on all other sides containing ventilation
holes.

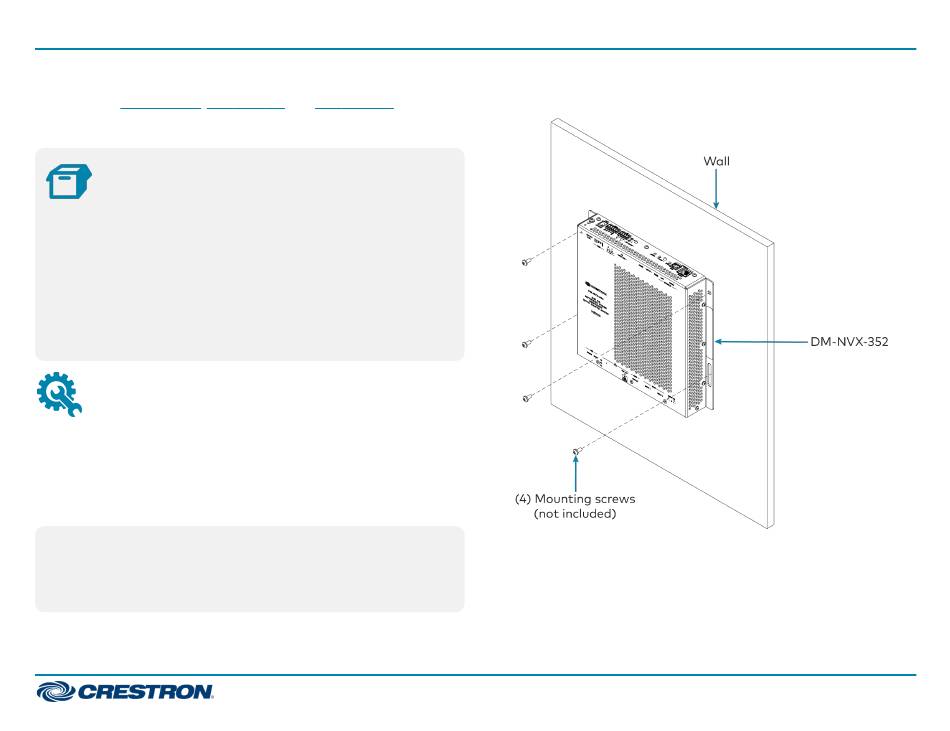

Wall Mounting (DM-NVX-352 Shown)
DM-NVX-352
network AV
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-NVX-350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron DM-NVX-350

  • Page 1 AV encoders/decoders transport ultra high-definition 4K60 4:4:4 HDR video over standard Gigabit Ethernet. In the Box DM-NVX-350, DM-NVX-351, or DM-NVX-352 Network AV Encoder/Decoder Additional Items Power Pack, 24 VDC, 2.5 A, 100-240 VAC (2045873) Power Cord, 5 ft 10 in. (1.78 m) (2042043)
  • Page 2: Connect The Device

    (not included). HOST port. Both ports cannot be used simultaneously. Rack Rail Mounting Example (DM-NVX-352 Shown) The DM-NVX-350 and DM-NVX-351 each provide three LAN ( ) ports. LAN ports 1 and 2 are 100BASE-TX/1000BASE-T ports. LAN port 3 is an SFP port.
  • Page 3 Quick Start DM-NVX-350, DM-NVX-351, and DM-NVX-352 DM NVX® 4K60 4:4:4 HDR Network AV Encoders/Decoders Front Panel Connections - DM-NVX-350, DM-NVX-351, and DM-NVX-352...
  • Page 4 Quick Start DM-NVX-350, DM-NVX-351, and DM-NVX-352 DM NVX® 4K60 4:4:4 HDR Network AV Encoders/Decoders Rear Panel Connections - DM-NVX-350 and DM-NVX-351...
  • Page 5 Quick Start DM-NVX-350, DM-NVX-351, and DM-NVX-352 DM NVX® 4K60 4:4:4 HDR Network AV Encoders/Decoders Rear Panel Connections - DM-NVX-352...
  • Page 6: Audio I/O Connector Pin Assignments

    Quick Start DM-NVX-350, DM-NVX-351, and DM-NVX-352 DM NVX® 4K60 4:4:4 HDR Network AV Encoders/Decoders AUDIO I/O Connector Pin Assignments Balanced/Unbalanced Audio Output Refer to the following table and diagrams for analog audio output pin The AUDIO I/O connector uses a 5-pin terminal block for balanced or assignments and connection information.
  • Page 7: Upgrade The Firmware

    Before using the device, upgrade the firmware. The latest firmware can be Green The device is in transmitter downloaded from the DM-NVX-350, DM-NVX-351, or DM-NVX-352 (encoder) mode product page on the Crestron website (www.crestron.com). Green The device is in receiver (decoder) mode.
  • Page 8 1. Record the MAC address and serial number that are labeled on the shipping box or rear panel of the device. The MAC address and serial DM-NVX-351 number are required in order to add the device to the Crestron XiO Cloud environment. 2. Do either of the following: If you have a Crestron XiO Cloud account, go to www.crestron.com/model/6507493...
  • Page 9 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, Crestron XiO Cloud, and DM NVX are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.
