DM-NVX-D200
DM NVX® 4K60 4:2:0 Network AV Decoder with Scaler
The Crestron
DM-NVX-D200
is a compact AV over IP decoder designed
to receive video with resolutions up to 4K60 4:2:0 over standard Gigabit
Ethernet. The DM-NVX-D200 is designed for use with the DM-NVX-E20
or DM-NVX-E10 encoder.

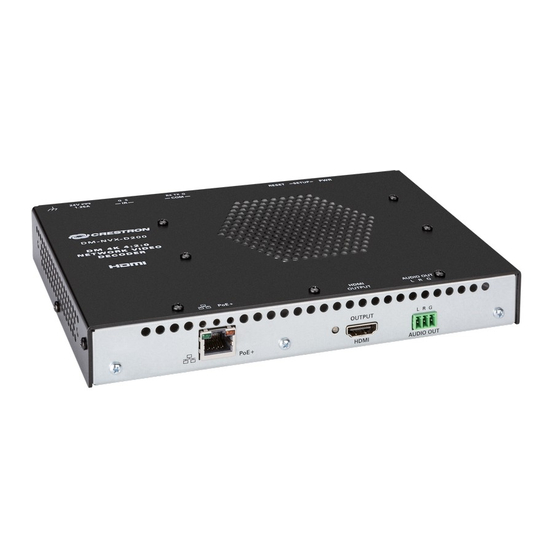

The DM-NVX-D200 provides a single HDMI® output that supports video
scaling. The device features secure web-based control and management,
an analog audio output, and copper LAN connectivity with PoE+ (Power
over Ethernet Plus) support.
In the Box
1
DM-NVX-D200
Additional Items
2
Bracket, Mounting (2057193)
4
Screw, 4-40 x 1/4 in. Pan Head, Phillips (2007158)
4
Screw, 6-32 x 3/4 in. Pan Head, Phillips (2007247)
4
Anchor, Wall, Plastic, #6 x 1-5/16 in. (2043585)
2
Connector, 3-Pin (2003575)
1
Connector, 2-Pin (2003574)
Install the Device
Using the two included mounting brackets, mount the device onto a flat
surface such as a wall or the underside of a table. The device can also be
mounted to a rack rail.
Attaching Mounting Brackets
Using the four included 4-40 x 1/4 in. Phillips pan head screws, attach the
two included mounting brackets to the device.
Bracket Attachment
Quick Start
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crestron DM-NVX-D200
Summary of Contents for Crestron DM-NVX-D200
- Page 1 4K60 4:2:0 over standard Gigabit Install the Device Ethernet. The DM-NVX-D200 is designed for use with the DM-NVX-E20 or DM-NVX-E10 encoder. Using the two included mounting brackets, mount the device onto a flat The DM-NVX-D200 provides a single HDMI®...
- Page 2 Quick Start DM-NVX-D200 DM NVX® 4K60 4:2:0 Network AV Decoder with Scaler Mounting onto a Wall Mounting onto a Rack Rail To mount the device onto a wall, use the four included anchors and To mount the device onto a front or rear rack rail: 6-32 x 3/4 in.
-
Page 3: Connect The Device
The Ethernet port must be connected to a 1000BASE-T Ethernet switch in order to stream network video. The DM-NVX-D200 can be powered via the Ethernet port, which is a PoE+ powered device (PD) port. In order for the device to receive PoE+, the Ethernet port must be connected to a PoE+ power sourcing equipment (PSE) port of an Ethernet switch. - Page 4 Quick Start DM-NVX-D200 DM NVX® 4K60 4:2:0 Network AV Decoder with Scaler Front Panel Connections Rear Panel Connections...
-
Page 5: Upgrade The Firmware
Crestron be managed and configured from one central and secure location in the website. cloud. Supported Crestron® devices are configured to connect to the service out of the box. Use of the service requires a registered XiO Cloud account. To register for an XiO Cloud account, refer to... -
Page 6: Additional Information
Power is being applied to the licensed to Crestron dealers, CSPs, and end-users under a separate End-User License device. The device is booting. Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. Green Power is being applied to the device.
