DM-NVX-363 and DM-NVX-360
DM NVX® 4K60 4:4:4 Network AV Encoders/Decoders

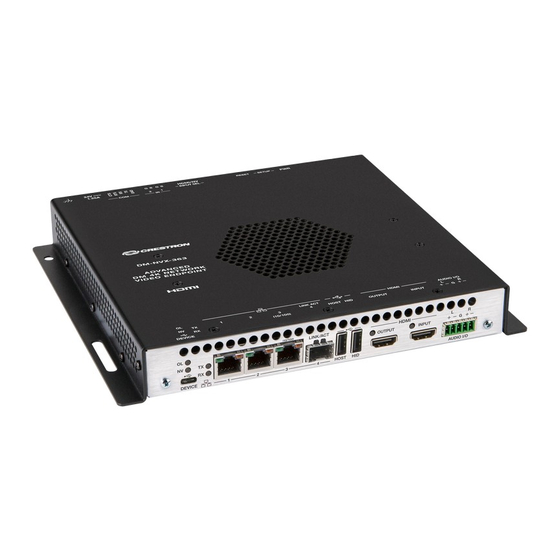

The
DM-NVX-363
and
DM-NVX-360
transport ultra high-definition 4K60 4:4:4 video over standard Gigabit
Ethernet. HDR10, HDR10+, and Dolby Vision® video formats are
supported.
In the Box
1
DM-NVX-363 or DM-NVX-360 Network AV
Encoder/Decoder
Additional Items
1
Connector, 4-Pin (2003576)
2
Connector, 5-Pin (2003577)
Install the Device
The DM NVX® device can be mounted onto a flat surface or rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat
surface such as a wall or the underside of a table.
NOTE: Fan ventilation holes are provided on five sides of the device.
If the installation necessitates that another object be positioned
flush against the ventilation holes on one side of the device, leave a
minimum clearance of 2 inches of space on all other sides containing
ventilation holes.
network AV encoders/decoders

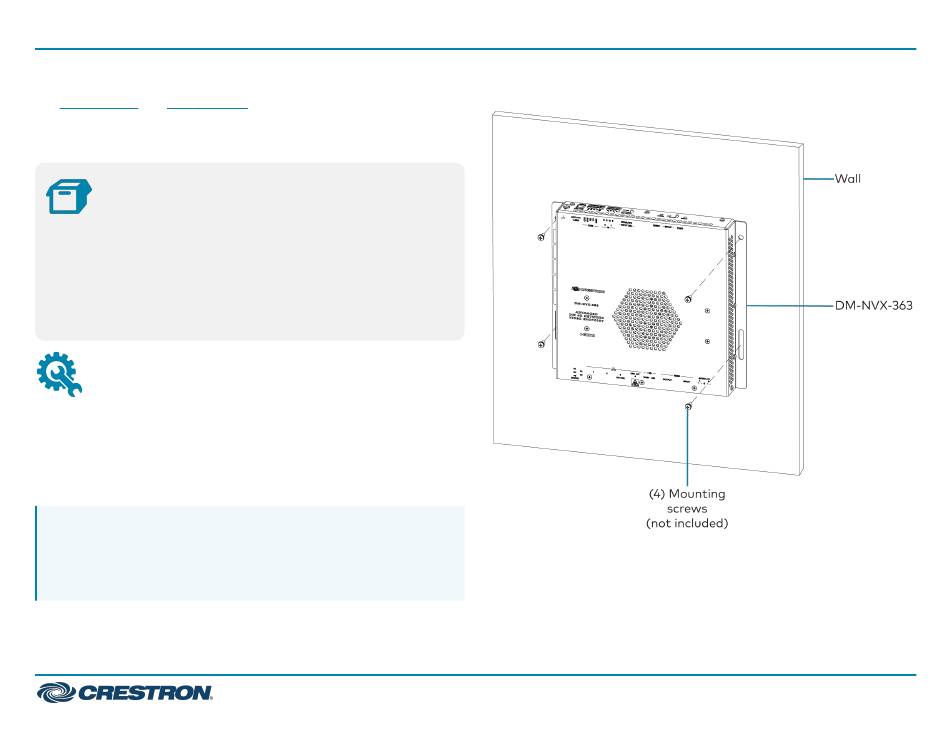

Wall Mounting (DM-NVX-363 Shown)
Quick Start
1
