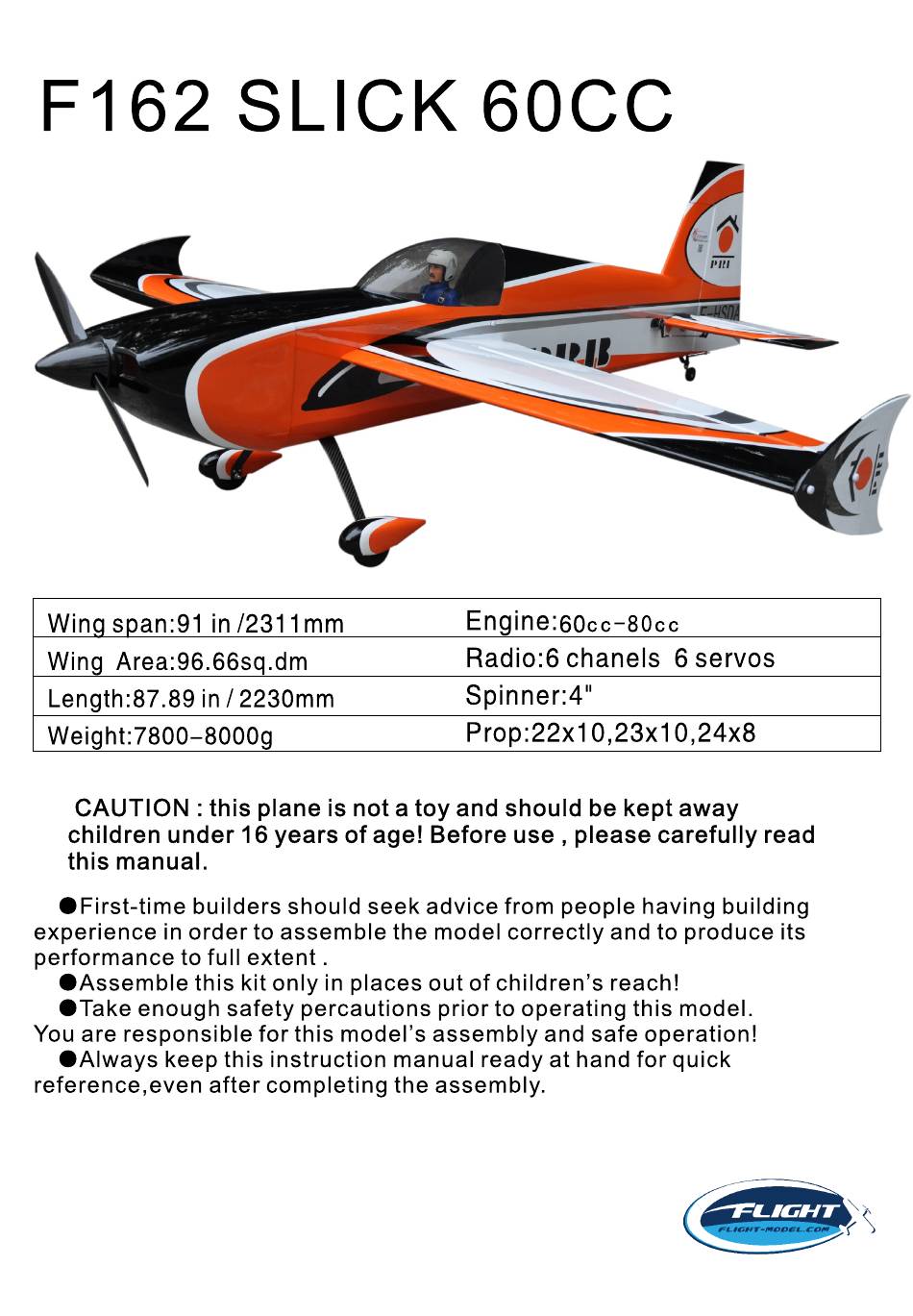

Summary of Contents for Flight Model F162 SLICK 60CC
- Page 2 Main wings: All the parts together...
- Page 3 INSTALL SERVO: Gather wing parts as shown. Apply epoxy into hinge hole of the wing Connect the aileron and the main wing by hinges. Cut the servo hole on the bottom of Cut the horn hole at the aileron the main wings...
- Page 4 INSTALL SERVO: Insert the fiberglass control horn and Install the servo and fix it with screws. glue with AB glue completed...
-
Page 5: Landing Gear
LANDING GEAR: Gather the parts for the main Use screw to fixed the landing gear landing gear. Install wheel pant Install the wheel as shown... - Page 6 LANDING GEAR: Install the wheel cover,and fix it up Install landing gear cover plate to landing gear with screw Install exhaust pipe plate...
- Page 7 STABILIZER AND RUDDER: Gather the parts for the rudder Put the steel wire in the hinges between the rudder and the connecter of vertail fin Cut a hole for install tail wheel langing Fixed steel wire gear...
- Page 8 TAIL WHE E L LAN D I N G EGA R : Use screws to lock the tail wheel onto Drill the hole for install spring fusalage Fixed with glue Connect the spring to the tail wheel Finished photo...
- Page 9 STABILIZER SERVO: Apply epoxy into hinge hole of the wing Gather the parts Insert the fiberglass control horn and glue with AB glue...
- Page 10 STABILIZER SERVO: Install elevator servo Fixed the stabilizer with screws...
-
Page 11: Rudder Servo
RUDDER SERVO: Gather the parts for install rudder servo. Glue the hinges Install rudder servo... - Page 12 ENGINE: Drill the hole at the engine mount Drill push rod hole for control the throttle...
- Page 13 ENGINE: Install servo at the throttle Finished Cut a hole in the cowl for install Install Engine Engine...
- Page 14 ENGINE: Install the cowl Connect the main wings and the fuselage with Carbon fiber tube.
- Page 15 Fuel: Install the fuel tank into the fuselage, and fixup it with belt. Install the battery,receiver and switch in place as shown.
- Page 16 1 7 5 m m 1 7 5 m m 8 i n...
