Caution:this plane is not a toy!
Before use ,please carefully read this
manual.

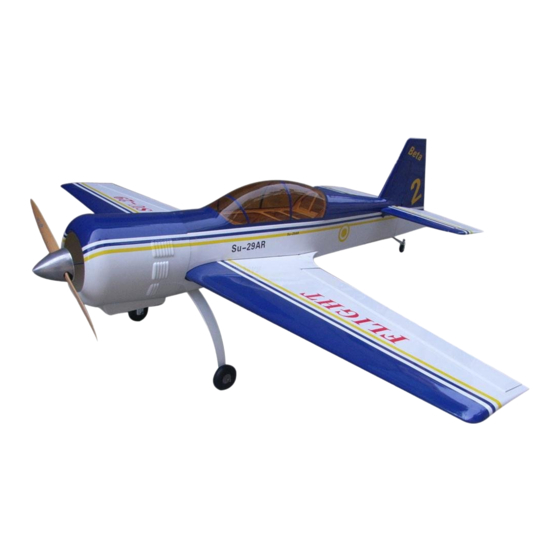

Wing Span:86.6in/2200mm;Flying Weight:3000g;
Wing Area:93sq.dm;
Length:72.8in/1850mm;
Radio:4channels 6servos;
Engine: 50CC GAS engine;

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU-29 50CC and is the answer not in the manual?

Questions and answers

Related Manuals for Flight Model SU-29 50CC

Summary of Contents for Flight Model SU-29 50CC

  • Page 1 Caution:this plane is not a toy! Before use ,please carefully read this manual. Wing Span:86.6in/2200mm;Flying Weight:3000g; Wing Area:93sq.dm; Radio:4channels 6servos; Length:72.8in/1850mm; Engine: 50CC GAS engine;...
  • Page 2 KIT CONTENS...

  • Page 3: Install The Aileron Servo

    Install The Aileron Servo Insert the hinge into the wing slot . Apply AB glue to each side. Cut away covering film for the servo.
  • Page 4 Put the servo into the hole and adjust the length of extention. pull out the servo extension from main wing. Install the servo and drill a hole for tri-horn assemble.
  • Page 5 The finished photo as shown. Adjust the horn and servo arm.Fix the servo in place firmly. Install the main wing by the carbon jointer, and fasten the wings by the screws provided. Pull the servo extensions into the fuselage from the main wing.
  • Page 6 Install The Rudder & Elevator Insert the hinge into the elevator slot . Apply AB glue to each side of elevator. Apply AB glue to each side of rudder.
  • Page 7 Cut away the film for elevator pushrod position. Drill the hole for servo arms. Loop the cable back through the brass swage tube as show.
  • Page 8 Crimp the brass tube with a criming tool or pliers. Attach an metal threaded RC link to each threaded coupler. Attach the RC links to the rudder servo arm and then attach the servo arm to the rudder servo as shown. Attach ball link to rudder control horn on both sides of the rudder.

  • Page 9: Install The Tail Wheel

    Install The Tail Wheel Fixup the struts as show. Mount the tail wheel steering tiller using two wood screws. Mount the tail wheel struts and springs using three wood screws. Install The Landing Gear Install the inner wheel collar next to axle bolt.Tighten the inner wheel collar in place.
  • Page 10 Use five TP screws to fixup the landing gear to the fuselage. Insert the wing decoration in the right position. Apply glue along the edge of the wing decoration as shown.

  • Page 11: Glow Engine Installation

    Glow Engine Installation Attach the escape-pipe to the engine. Install The Fuel Tank The process of the fuel tank assembly. Put the fuel tank in the right position.

  • Page 12: Assemble The Canopy

    ASSEMBLE THE CANOPY Use four screws to fixup the canopy . ASSEMBLE THE COWLING Install the cowling with four TP screws.
  • Page 13 CG & CONTROL SURFACE MOVEMENT...
  • Page 14 THE FINISHED PHOTO...
