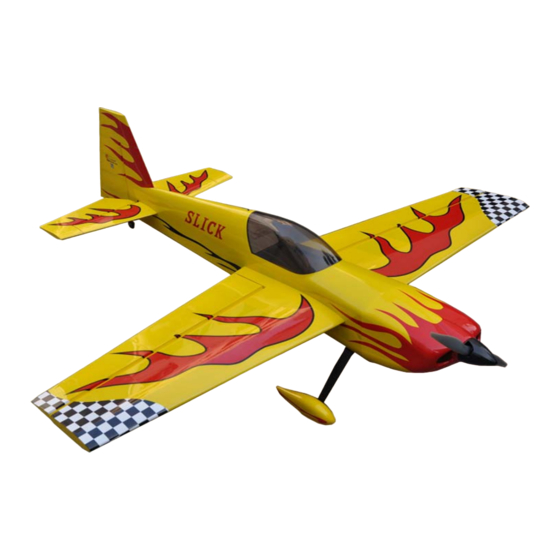

Wing Span:70"/1778mm; Flying Weight:3860-4210g;
Wing Area:63.3sq.dm;
Length:66.3"/1684mm;
CAUTION : this plane is not a toy and should be kept away
children under 16 years of age! Before use , please carefully read
this manual.
●First-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce its
performance to full extent .
●Assemble this kit only in places out of children's reach!
●Take enough safety percautions prior to operating this model.
You are responsible for this model's assembly and safe operation!
●Always keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
Radio:4Channel 4Servos;

Advertisement

loading
Need help?

Need help?

Do you have a question about the M067 Slick 70" EP and is the answer not in the manual?

Questions and answers

Summary of Contents for Flight Model M067 Slick 70" EP

  • Page 1 Wing Span:70"/1778mm; Flying Weight:3860-4210g; Wing Area:63.3sq.dm; Radio:4Channel 4Servos; Length:66.3"/1684mm; CAUTION : this plane is not a toy and should be kept away children under 16 years of age! Before use , please carefully read this manual. ●First-time builders should seek advice from people having building experience in order to assemble the model correctly and to produce its performance to full extent .
  • Page 2 Remove the covering over the aileron servo openings and the aileron control horn slots as shown Cut servo hole and Use epoxy to install aileron horns as shown Attached servo extensions to aileron servos,Use the string install in the wing to pull the servo wire through the wing...
  • Page 3 Install the wheel onto the axles and secure with the wheel collars,as shown Slide on wheel/axle assembly into a wheel pant,and install the wheel assembly on the landing geat leg,Tighten the locknut as shown to secure the assembly onto the gear leg Repeat for other side,Install the wheel cover,and fix it up to landing gear with screw.
  • Page 4 Fix up the landing gear on the fuselage bottom with 4 screws. Put the cover board in the right position,then fix up it. Install the tail landing gear Use screws to fix up the fuselage bottom.
  • Page 5 Apply epoxy into hinge hole of the rudder Use glue to fix up rudder horns. Finished photo...
  • Page 6 Cut the servo holes on the profile of the fuselage Install the rudder horns and connect servo with wire as shown. Install the rudder servo,servo,and hall links with locking nuts as shown...
  • Page 7 Crimp the servo end of the cables first,the cables cross once inside the fuselage to form an "X" Another way of Install rudder servo.. Using a tape measure or long ruler,measure from the stab to the wing tips. in the diagram Equalize that measurement right and left to be sure your stab is aligned...
  • Page 8 Drip thin glue onto the stab-to-fuselage joint top and bottom Hinge the elevators onto the horizontal stabilizer...
  • Page 9 Install the elevator,Before installing the ekevator with the slot which accepts the joiner,practice fitting it once,the joiner is very tight in the slot Install elevator horn as shown,using the same technique as for the rudder horns Install the motor.as shown...
  • Page 10 Drill a small hole, Fix the cowl with screw as the show. Apply one side of the self-adhesive velcro tape to the battery tray, for another to your battery use the Install your receiver as shown on the receiver tray...
  • Page 11 THE FINISHED PHOTO Another scheme for choice Dong Guang Flight Model CO.,Ltd ADD:No.10,Fu Ning Street,Xian Xi Industrial,Chang An Town DongGuan City,Guang Dong Province,China Tel: +86-769-85070618 / +86-769-89790965 Fax: +86-769-85091868 E-mail:info@flight-model.com Web: http:www.flight-model.com http://flight-model.preview.alibaba.com/...
