Dell 4610X User Manual

Dell projector user manual.
Hide thumbs

Advertisement

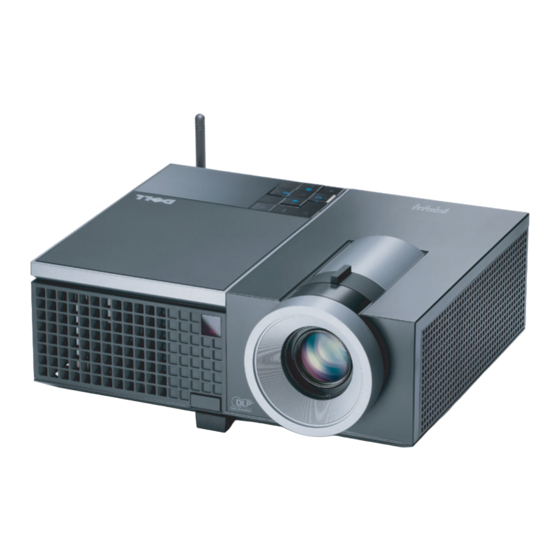

Dell™ 4610X WIRELESS PLUS
Projector
User's Guide

Advertisement

   Related Manuals for Dell 4610X

   Summary of Contents for Dell 4610X

  • Page 1

    Dell™ 4610X WIRELESS PLUS Projector User’s Guide...

  • Page 2

    Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP logo are trademarks of T Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 3: Table Of Contents

    HDMI Cable ..... To project an image and control the projector that is connected to a network through an RJ45 cable.

  • Page 4

    Turning Your Projector On Turning Your Projector Off Adjusting the Projected Image Raising the Projector Height Lowering the Projector Height Adjusting the Projector Zoom and Focus Adjusting Projection Image Size Using the Control Panel Using the Remote Control Installing the Remote Control Batteries...

  • Page 5

    OTHERS ..... . . Wireless Networking Installation 4610X WIRELESS PLUS Wireless Application Software Managing the Projector From Web Management Configuring the Network Setting...

  • Page 6: Your Dell Projector

    Your Dell Projector Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell™ if anything is missing. Package Contents Power cable Antenna CD User’s Guide & Documentation AAA Batteries (2) Your Dell Projector 1.8m VGA cable (VGA to VGA)

  • Page 7: About Your Projector

    Do not use the projector near appliances that generate a lot of heat. Do not use the projector in areas where there is an excessive amount of dust. The dust may cause the system to fail and the projector will automatically shutdown.

  • Page 8

    Do not try to touch the ventilation outlet as it can become very hot after the projector has been turned on or immediately after it is turned off. Do not look into the lens while the projector is on as it may cause injury to your eyes.

  • Page 9: Connecting Your Projector

    Connecting Your Projector Composite video connector S-video connector VGA-A output (monitor loop-through) VGA-A input (D-sub) connector VGA-B input (D-sub) connector HDMI connector USB remote connector RJ45 connector Antenna connector CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions as described on page 7.

  • Page 10: Installing The Antenna

    Installing the Antenna Your projector comes with a wireless antenna for wireless networking. Refer to "Wireless Networking Installation" on page 51. Screw the antenna to the antenna connector at the back of your projector. Raise the antenna to position as shown.

  • Page 11: Connecting To A Computer

    VGA to VGA cable USB-A to USB-B cable NOTE: The USB cable is not provided with your projector. NOTE: The USB cable must be connected if you want to use the Page Up and Page Down features on the remote control.

  • Page 12: Monitor Loop-through Connection Using Vga Cables

    Monitor Loop-Through Connection Using VGA Cables Power cord VGA to VGA cable NOTE: Only one VGA cable is shipped with your projector. An additional VGA cable can be purchased on the Dell website at dell.com. Connecting Your Projector...

  • Page 13: Connecting A Computer Using An Rs232 Cable

    Connecting a Computer Using an RS232 cable Power cord RS232 cable NOTE: The RS232 cable is not shipped with your projector. Consult a professional installer for the cable and RS232 remote control software. Connecting Your Projector...

  • Page 14: Connecting A Computer Using Wireless

    Connecting a Computer Using Wireless NOTE: Your computer must have wireless function and should be configured properly to detect the wireless connection. Refer to your computer’s documentation on how to configure wireless connection. Connecting Your Projector...

  • Page 15: Connecting A Dvd Player

    Connecting a DVD Player Using an S-video Cable Power cord S-video cable NOTE: The S-video cable is not shipped with your projector. You can purchase the S-Video extension (50 ft/100 ft) cable on the Dell website at dell.com. Connecting Your Projector...

  • Page 16: Connecting A Dvd Player Using A Composite Video Cable

    Connecting a DVD Player Using a Composite Video Cable Power cord Composite video cable NOTE: The Composite Video cable is not shipped with your projector. You can purchase the Composite Video Extension (50 ft/100 ft) cable on the Dell website at dell.com. Connecting Your Projector...

  • Page 17: Connecting A Dvd Player Using A Component Video Cable

    Power cord VGA to Component Video cable NOTE: The VGA to Component Video cable is not shipped with your projector. You can purchase the VGA to Component Video Extension (50 ft/100 ft) cable on the Dell website at dell.com. Connecting Your Projector...

  • Page 18: Connecting A Dvd Player Using An Hdmi Cable

    Connecting a DVD Player Using an HDMI Cable Power cord HDMI cable NOTE: The HDMI cable is not shipped with your projector. Connecting Your Projector...

  • Page 19: Connecting To Local Area Network

    Connecting to Local Area Network To project an image and control the projector that is connected to a network through an RJ45 cable. Power cord RJ45 cable NOTE: The RJ45 cable is not shipped with your projector. Local Area Network (LAN)

  • Page 20: Professional Installation Options: Installation For Driving Automatic Screen

    Power cord 12V DC Plug Automatic Screen NOTE: Use the dimension of 12V DC plug in 1.7 mm (ID) x 4.00 mm (OD) x 9.5 mm (shaft) to connect the automatic screen with the projector. Connecting Your Projector 12V DC Plug...

  • Page 21: Connection With Commercial Rs232 Control Box

    Connection With Commercial RS232 Control Box Power cord RS232 cable Commercial RS232 control box NOTE: The RS232 cable is not shipped with your projector. Consult a professional technician to obtain the cable. Connecting Your Projector...

  • Page 22: Using Your Projector

    "Connecting Your Projector" on page 9 for instructions to connect your source to the projector. By default, the input source of projector is set to VGA-A. Change the input source of projector if necessary. If you have multiple sources connected to the projector, press the Source button on the remote control or control panel to select the desired source.

  • Page 23: Adjusting The Projected Image

    To power off the projector quickly, press the Power button and hold for 1 second while the projector’s cooling fans are still running. NOTE: Before you turn on the projector again, wait for 60 seconds to allow the internal temperature to stabilize.

  • Page 24: Adjusting The Projector Zoom And Focus

    Rotate the zoom tab to zoom in and out. Rotate the focus ring until the image is clear. The projector focuses at distances ranging between 3.94 ft to 32.81 ft (1.2 m to 10 m).

  • Page 25: Adjusting Projection Image Size

    Adjusting Projection Image Size 307"(779.78 cm) 277"(703.58 cm) 215"(546.10 cm) 154"(391.16 cm) 92"(233.68 cm) 37"(93.98 cm) 30" (76.20 cm) 3.94'(1.2 m) Using Your Projector...

  • Page 26

    25.59" (65 cm) Min. 21.26" (54 cm) Distance 3.94' (1.2 m) 9.8' (3.0 m) * This graph is for user reference only. Using Your Projector 92" (233.68 154" (391.16 215" (546.10 77" (195.58 128" (352.12 179" (454.66 74.02" X 123.23" X 172.44"...

  • Page 27: Using The Control Panel

    • Lamp driver failure • Color wheel failure For more information, see "Troubleshooting Your Projector" on page 79 and "Guiding Signals" on page 83. If the TEMP amber indicator is on or blinking, one of the following problems could be occurring: •...

  • Page 28

    (OSD) Menu items. Press to adjust image distortion caused by tilting the projector (+40/-35 degrees). (OSD) Menu items. Press to synchronize the projector to the input source. NOTE: Auto Adjust does not operate if the on-screen display (OSD) is displayed.

  • Page 29: Using The Remote Control

    Using the Remote Control Power Enter Right Down Turns the projector on or off. For more information, see "Turning Your Projector On" on page 22 and "Turning Your Projector Off" on page 22. Press to confirm the selection. Press to navigate through the On-Screen Display (OSD) Menu items.

  • Page 30

    Press to move to previous page. NOTE: The USB cable must be connected if you want to use the Page Up feature. Press to mute or un-mute the projector speaker. Press to move to next page. NOTE: The USB cable must be connected if you want to use the Page Down feature.

  • Page 31

    19 Auto adjust 20 Keystone adjustment Press to adjust image distortion caused by tilting Press to synchronize the projector with the input source. Auto adjust does not operate if the OSD is displayed. the projector (+40/-35 degrees). Using Your Projector...

  • Page 32: Installing The Remote Control Batteries

    Check the polarity (+/-) marking on the batteries. Insert the batteries and align their polarity correctly according to the marking in the battery compartment. NOTE: Avoid mixing different types of batteries or using new and old batteries together. Slip the battery cover back. Using Your Projector...

  • Page 33: Operating Range With Remote Control

    Operating Range With Remote Control Operating range Angle ±30° Distance 10m/32.8feet Angle NOTE: Actual operating range may slightly differ from the diagram. Weak batteries will also prevent the remote control from properly operating the projector. Angle Using Your Projector...

  • Page 34: Using The On-screen Display

    Using the On-Screen Display • The projector has a multi-language On-Screen Display (OSD) Menu that can be displayed with or without an input source. • To navigate through the tabs in the Main Menu, press the your projectors control panel or remote control.

  • Page 35: Input Select

    INPUT SELECT The Input Select menu allows you to select your projector’s input source. VGA-A—Press to detect VGA-A signal. VGA-B—Press to detect VGA-B signal. —Press to detect S-Video signal. IDEO —Press OMPOSITE IDEO HDMI—Press to detect HDMI signal. —Wireless and Network must be On. See page 43. Press...

  • Page 36: Picture (in Pc Mode)

    PICTURE (in PC Mode) Using the Picture menu, you can adjust the display settings of your projector. The Picture menu, provides the following options: —Allows you to optimize the display image: Presentation, Bright,...

  • Page 37: Picture (in Video Mode)

    —Allows you to optimize the display image: Presentation, Bright, IDEO MODE Movie, sRGB (provides more accurate color representation), and Custom (set your preferred settings). NOTE: If you adjust the settings for Brightness, Contrast, Saturation, Sharpness, Tint, and Advanced, the projector automatically switches to Custom. —Use RIGHTNESS —Use ONTRAST —Allows you to adjust the video source from black and white to fully...

  • Page 38: Display (in Pc Mode)

    OLOR PACE YPbPr. DISPLAY (in PC Mode) Using the Display menu, you can adjust the display settings of your projector. The Picture menu, provides the following options: —Allows you to select the aspect ratio to adjust how the image SPECT ATIO appears.

  • Page 39

    —Press to activate Zoom Navigation AVIGATION to navigate projection screen. to move the image to the left and to move the image down and to view zoomed image. to move the to move the image Using Your Projector...

  • Page 40: Display (in Video Mode)

    DISPLAY (in Video Mode) Using the Display menu, you can adjust the display settings of your projector. The Picture menu, provides the following options: —Allows you to select the aspect ratio to adjust how the image SPECT ATIO appears. •...

  • Page 41: Lamp

    LAMP Using the Lamp menu, you can adjust the display settings of your projector. The Lamp menu provides the following options: —Allows you to select between Normal and ECO mode. Normal mode operates at full power level. ECO Mode operates at a lower power level which may provide longer lamp life, quieter operation, and dimmer luminance output on the screen.

  • Page 42

    Front Projection-Ceiling Mount — The projector turns the image upside down for ceiling-mounted projection. • Rear Projection-Desktop — The projector reverses the image so that you can project from behind a translucent screen. • Rear Projection-Ceiling Mount — The projector reverses and turns the image upside down.

  • Page 43

    The Wireless and Network menu allows you to configure the network connection settings. DHCP—If a DHCP server exists in the network to which the projector is connected, the IP address will automatically be acquired when you select DHCP On. If DHCP is Off, manually set the IP Address, Subnet Mask, and Gateway. Use to select the number of IP Address, Subnet Mask, and Gateway.

  • Page 44: Information

    INFORMATION The Information menu displays the current projector settings. OTHERS The Others menu allows you to change settings for Menu, Screen, Audio, Power, Security, and Closed Caption (for NTSC only). You can also perform Test Pattern and Factory Reset. —...

  • Page 45

    To capture a full image, ensure the input signal that is connected to the projector is 1024 x 768 resolution. — Select Dell to use the Dell logo as wallpaper. Select Captured to CREEN set the captured image as wallpaper.

  • Page 46

    — OWER AVING projector is set to enter power saving mode after 120 minutes of no activity. A warning message appears on screen showing a 60-second countdown before switching to power saving mode. Press any key buttons during countdown period to stop power saving mode.

  • Page 47

    NOTE: Before you turn on the projector again, wait for 60 seconds to allow the internal temperature to stabilize. The projector will take a longer time to turn on if you try to power on immediately. Its cooling fan will run at full speed for about 30 seconds to stabilize the internal temperature.

  • Page 48

    If you have entered an incorrect password, you will be given another 2 chances. After the three invalid attempts, the projector will automatically turn off. NOTE: If you forget your password, contact DELL™ or a qualified service personnel. To disable the password function, select Off to disable the function.

  • Page 49

    — Select On to enable close caption and activate the closed LOSED APTION caption menu. Select an appropriate closed captions option: CC1, CC2, CC3, and CC4. —Key in the original password, then enter the new Using Your Projector...

  • Page 50

    — Select and press ACTORY ESET warning message below appears. Reset items include both computer sources and video source settings. Using Your Projector buttons on the control panel to reset all settings to its factory default, the buttons on the...

  • Page 51: Wireless Networking Installation

    Ethernet adapter (10 / 100 bps) for an Ethernet connection A supported WLAN adapter for a WLAN connection (any NDIS-compliant 802.11b or 802.11g Wi-Fi device) Web browser Microsoft Internet Explorer 6.0 or 7.0 (recommended), Firefox 1.5 or 2.0, and Safari 3.0 and above Using Your Projector...

  • Page 52

    35. The Wireless Guide Screen shown below appears:. Take note of the LOGIN CODE, NETWORK NAME (SSID), and IP ADDRESS. You will need these information to login later. Connect your computer to the 4610X WIRELESS PLUS network. Using Your Projector...

  • Page 53

    • Your computer must have wireless network function to detect the connection. • When you connect to the 4610X WIRELESS PLUS network, you will lose wireless connectivity with other wireless networks. Open your internet browser. You will be automatically directed to the 4610X WIRELESS PLUS Web Management web page.

  • Page 54

    Click Run to proceed with the one-time installation of the software. NOTE: You may choose to save the file and install it at latter time. To do this, click Save. NOTE: The following warning messages may appear, select Run and Allow respectively. Using Your Projector...

  • Page 55: 4610x Wireless Plus Wireless Application Software

    The installation software will launch. Follow the on-screen instructions to complete setup. 4610X WIRELESS PLUS Wireless Application Software Once the installation is complete, 4610X WIRELESS PLUS Wireless Application software will launch and will search for the projector automatically. The screen below appears.

  • Page 56

    • To project the presenation, click any of the projection buttons • To pause the presentation, click • To continue the presentation, click • To stop the presentation, click Using Your Projector Description Displays IP and LOGIN CODE information. Click to activate the application menu.

  • Page 57

    (hibernate mode) when running a wireless presentation. Using the Menu Click to display the menu. —Click to open the Web Management page. See "Managing the ANAGEMENT Projector From Web Management" on page 59. Estimated frame per second ≤ 2 Using Your Projector...

  • Page 58

    — Click to search and connect to wireless projector.. EARCH FOR ROJECTOR — Click to make application token. See "Make PPLICATION OKEN Application Token" on page 78. — Click to display system information. — Click to display the application version.

  • Page 59: Managing The Projector From Web Management

    Managing the Projector From Web Management Configuring the Network Setting If the projector is connected to a network, you can access the projector using a web browser. For configuring the network setting, refer to "WIRELESS AND NETWORK" on page 43.

  • Page 60

    Download the Wireless Application Software See also "Wireless Networking Installation" on page 51. Click the Download button of the corresponding operating system of your computer. Using Your Projector...

  • Page 61

    Conference Control This allows you to host conference presentations from different sources without using projector cables and lets you control how each presentation will appear on screen. Computer Name: Lists the computers logged for conference control. Play Control: Click the buttons to control how each computer’s projection will appear on screen.

  • Page 62: Managing Properties

    Managing Properties Admin An administrator password is required to access the Admin page. • Admin Password: Enter the administrator password then click Login. The default password is "admin". To change the password, see "Change Passwords" on page 67. Using Your Projector...

  • Page 63

    System Status Displays the Network Status, Connection Status, and Projector Status information. Using Your Projector...

  • Page 64

    See OSD section on page 43. IP Setup • Choose Obtain an IP address automatically to assign an IP address to the projector automatically, or Use the following IP address to assign an IP address manually. DHCP Server Setup • Choose Auto to automatically setup the Start IP , End IP , Subnet Mask, Default Gateway, and DNS Server address from a DHCP server, or Disable to disable this function.

  • Page 65

    All Block: Block users to access all office network via wireless projector. Internet Only: Block users from office network but still reserve Internet connection capability. Click the Apply button to save and apply changes. The projector must be restarted for the changes to take effect. Using Your Projector...

  • Page 66

    • Setup the Model Name, Projector Name, Location, and Contact information (up to 21 characters for each field). Click the Apply button to save and apply changes. The projector must be restarted for the changes to take effect. Using Your Projector...

  • Page 67

    This page allows you to change the administrator password. • Enter New Password: Enter the new password. • Confirm New Password: Enter the password again and click Apply. NOTE: Contact Dell if you forget your administrator password. Using Your Projector...

  • Page 68

    Reset to Default Click the Apply button to restore all wireless/network setup to its factory default settings. Using Your Projector...

  • Page 69

    Firmware Update Use the Firmware Update page to update your projector’s firmware. To start firmware update, do the following steps: Press Browse to select the file to update. Click the Update button to start. Wait while the system updates the firmware in your device.

  • Page 70

    Projector Control Panel Projector Information • Projector Status: There are 4 status: Lamp On, Standby, Power Saving, and Cooling. Click the Refresh button to refresh the status and control settings. • Power Saving: Power Saving can be set to Off, 30, 60, 90, or 120 minutes. For more information, see "Power Saving"...

  • Page 71

    • Operation Mode: Allows you to select the operation mode. The two options are: Normal Mode and ECO Mode. • Projector Mode: Allows you to select the projector mode, depending on how the projector is mounted. There are 4 projection modes: Front Projection- Desktop, Front Projection-Ceiling Mount, Rear Projection-Desktop and Rear Projection-Ceiling Mount.

  • Page 72

    Alert Condition • You can select the abnormalities or warnings to be notified by email. When any of the alert conditions occur, an email will be sent to the recipients (To/Cc). Click the Save button to save settings. Using Your Projector...

  • Page 73

    Reboot System Click Reboot to reboot the system. Using Your Projector...

  • Page 74

    TIPS: I would like remote access the projector via Internet. What is the better setting for the browser? I would like to remote access the projector via Internet. What socket port number should I open for it in the firewall?

  • Page 75

    Some SMTP servers will check whether the mail address of "From" correlates with the "User name" and "Password". For example, you use test@dell.com as the mail address in "From". You should also use test@dell.com account information for the User name and the password to log in the SMTP server.

  • Page 76

    Programs > McAfee > McAfee Security Center). On the personal firewall plus tab, click View the Internet Applications List. Find and select Dell 4610X Wireless Plus Projector from the list. Right click on its Permissions column. Select Allow Full Access from the pop-up menu.

  • Page 77

    On the Exceptions tab, click the Add Program... button. Find and select Dell 4610X Wireless Plus Projector from the list of programs, then click OK. Click OK to confirm exceptions settings. Open Zone Alarm Firewall (Start > All Programs >...

  • Page 78: Make Application Token

    The following screen appears. Click Next. Plug a flash drive into any of the USB ports on your computer. Select the drive from the list, then click Next. Click Finish to close the wizard. Using Your Projector > Make Application Token.

  • Page 79: Troubleshooting Your Projector

    Troubleshooting Your Projector If you experience problems with your projector, see the following troubleshooting tips. If the problem persists, contact Dell™ (see Contacting Dell™ on page 92). Problem No image appears on the screen Missing Input Source. Cannot switch to particular Input Source.

  • Page 80

    Possible Solution Press the Auto Adjust button on the remote control or the control panel. If you are using a Dell™ portable computer, set the resolution of the computer to XGA (1024 x 768): Right-click the unused portion of your ®...

  • Page 81

    When the lamp reaches its end of life, it may burn out and may make a loud popping sound. If this occurs, the projector does not turn back on. To replace the lamp, see "Changing the Lamp" on page 85.

  • Page 82

    (continued) Problem TEMP light is blinking amber A projector fan has failed and the projector The OSD does not appear on the screen The remote control is not operating smoothly or works only within a limited range Troubleshooting Your Projector...

  • Page 83: Guiding Signals

    Ensure that the air vents are not blocked and that the ambient temperature is within operational range. If the problem persists, contact Dell. Lamp The lamp is overheated. The air vents overheated may be blocked. The projector automatically shuts down.

  • Page 84

    Power supply has been interrupted. The supply (+12V) projector automatically shuts down. Unplug the power cord after three minutes and then turn on the projector. If this problem persists, contact Dell. Fault - DC Power supply has been interrupted. The supplies projector automatically shuts down.

  • Page 85: Changing The Lamp

    Replace the lamp when the message "Lamp is approaching the end of its useful life in the operation. Replacement suggested! www.dell.com/lamps" appears on the screen. If this problem persists after replacing the lamp, contact Dell™. For more information, see Contacting Dell™on page 92. CAUTION: Use an original lamp to ensure safe and optimal working condition of your projector.

  • Page 86

    LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, GO TO WWW.DELL.COM/HG OR CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION CHECK WWW.LAMPRECYCLE.ORG.

  • Page 87: Specifications

    Specifications Light Valve Brightness Contrast Ratio Uniformity Number of Pixels Displayable Color Color Wheel Speed Projection Lens Projection Screen Size Projection Distance Video Compatibility Power Supply Power Consumption 0.55" XGA DMD Type X, DarkChip2™ 3500 ANSI Lumens (Max.) 2000:1 Typical (Full On/Full Off) 85% Typical (Japan Standard - JBMA) 1024 x 768 (XGA) 16.7M colors...

  • Page 88

    Audio Noise Level Weight Dimensions (W x H x D) Environmental I/O Connectors Specifications 2 speakers x 5watt RMS 35 dB(A) Normal mode, 32 dB(A) Eco mode 6.55 ± 0.05 lbs (2.97 ± 0.02 kg) 11.26 x 4.33 x 9.76 inches (286 x 110 x 247.8 mm) 4.33"(110mm) Operating temperature: 5 Humidity: 80% maximum...

  • Page 89

    Lamp NOTE: The lamp life rating for any projector is a measure of brightness degradation only, and is not a specification for the time it takes a lamp to fail and cease light output. Lamp life is defined as the time it takes for more than 50 percent of a lamp sample population to have brightness decrease by approximately 50 percent of the rated lumens for the specified lamp.

  • Page 90

    Example: Power ON Command (Send low byte firstly) --> 0xBE, 0xEF, 0x10, 0x05, 0x00, 0xC6, 0xFF, 0x11, 0x11, 0x01, 0x00, 0x01 • Control Commands List To view the latest RS232 code, go to the Dell Support site at: support.dell.com. Specifications RS232 Pin Assignment Value...

  • Page 91

    Compatibility Modes (Analog/Digital) Resolution 640 x 350 640 x 480 640 x 480 p60 720 x 480 p60 720 x 576 p50 720 x 400 640 x 480 848 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1280 x 720 p50...

  • Page 92: Contacting Dell

    Dell product catalog. Dell™ provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Visit support.dell.com.

  • Page 93: Appendix: Glossary

    Compressed Resolution — If the input images are of higher resolution than the native resolution of the projector, the resulting image will be scaled to fit the native resolution of the projector. The nature of compression in a digital device means that some image content is lost.

  • Page 94

    (usually a wide-top narrow-bottom effect) of a projected image caused by improper projector to screen angle. Maximum Distance — The distance from a screen the projector can be to cast an image that is usable (bright enough) in a fully darkened room.

  • Page 95

    Zoom Lens Ratio — Is the ratio between the smallest and largest image a lens can projector from a fixed distance. For example, a 1.4:1 zoom lens ratio means that a 10 foot image without zoom would be a 14 foot image with full zoom.

  • Page 96

    Audio output connector 9 Composite video connector 9 Power cord connector 9 RS232 connector 9 Security cable slot 9 S-video connector 9 USB remote connector 9 VGA-A input (D-sub) connector VGA-A output (monitor loop-through) 9 VGA-B input (D-sub) connector Contact Dell 6...

  • Page 97

    Control Panel 27 DC Adapter 9 Dell contacting 92 HDMI 9 Main Unit 7 Control panel 7 Elevator button 7 Focus ring 7 IR receiver 7 Lens 7 Zoom tab 7 Menu Position 45 Menu Settings 44 Menu Timeout 45...

  • Page 98

    Power Supply 87 Projection Distance 87 Projection Lens 87 Projection Screen Size 87 RS232 Protocol 90 Uniformity 87 Video Compatibility 87 Weight 88 support contacting Dell 92 telephone numbers 92 Test Pattern 50 Troubleshooting 79 Contact Dell 79 Index Volume 46...
