Summary of Contents for Compliance West HT-5000P

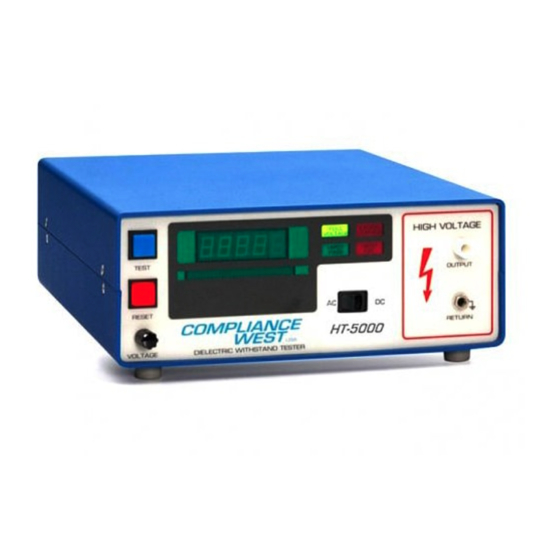

- Page 3 Dear Customer: Congratulations! Compliance West USA is proud to present you with your Dielectric Withstand Tester. Your instrument features a groundbreaking microcontroller circuit design and ergonomic front panel, and represents the latest in high voltage laboratory testing. To fully appreciate all the features of your new meter, we suggest that you take a few moments to review this manual.
-
Page 5: Table Of Contents
High Voltage Dielectric Withstand Test ..................3 High Voltage Discharge .......................4 Introduction and Specifications ........................5 Specifications ..........................6 Operation ..............................7 Receiving the HT-5000P ACDC 200mA TD ................7 AC Line Voltage Requirements and Fuse Replacement ..............7 Front Panel Features ........................7 Initial Checkout Procedure ......................9 Leakage Functionality Test ......................9 Setting Testing Parameters ......................10... -
Page 8: An Introduction To Dielectric Withstand Testing
Leakage Current, and watches for Dielectric Breakdown during the test. To aid in testing, the HT-5000P ACDC 200mA TD can be configured with or without a test duration timer, and can be set to deliver high voltage after an arc has been detected to pinpoint an area of arcing. -
Page 9: High Voltage Discharge
High Voltage Discharge The HT-5000P ACDC 200mA TD has an internal circuit designed to remove the high voltage, after completion of the dielectric withstand test. The HT-5000P ACDC 200mA TD should remain connected to the circuit until the front panel meter shows that the output voltage has dropped... -
Page 10: Introduction And Specifications
- Test results are determined quickly, without operator intervention. - The HT-5000P ACDC 200mA TD allows custom setups for test time and leakage limit. Your Tester has a warranty for a period of one year upon shipment of the instrument to the original... -
Page 11: Specifications
Specifications Table 2-1. HT-5000P ACDC 200mA TD Specifications... -
Page 12: Operation
Section 3 Operation This section describes how to set up and test with the HT-5000P ACDC 200mA TD unit. We recommend that you read the entire section carefully so that you can use all of its features. Receiving the HT-5000P ACDC 200mA TD The HT-5000P ACDC 200mA TD is shipped in a special protective crate that should prevent damage during shipping. - Page 13 Fuse Protection for low voltage components. TEST Button When lit, indicates the HT-5000P ACDC 200mA TD is ready to test; press to begin testing. When lit, indicates that the HT-5000P ACDC 200mA TD is unarmed. When the RESET RESET Button button is pressed the test is immediately terminated and the TEST switch will lit.
-
Page 14: Initial Checkout Procedure
Initial Checkout Procedure Use this procedure to verify that the HT-5000P ACDC 200mA TD tester is ramping up and down correctly. CAUTION High voltage, risk of shock, use with care. 1. Plug the tester to a rated source as specified on the ratings label. -
Page 15: Setting Testing Parameters
Setting Testing Parameters This section describes how to change settings for testing. Turn Power ON and after a few seconds of initialization the main screen will display. The main screen will display status of the tester, settings status, Voltage and Current output. When the REDY indicator is green, the operator can press TEST button to star the testing, always make sure the settings are correct to your testing requirements and enforce all safety precautions around the testing area. - Page 16 To modify steps 3 and 4 settings press next to move to the “SETTINGS PAGE 2” screen. Once all settings have been entered press next to move to “SETTINGS PAGE 4” to select AC or DC and to enable the Time and Breakdown Defeat if desired. AC/DC - To set AC or DC test.
- Page 17 While running a test, the display background changes to red to indicate HV is on, this when testing in “automatic mode”, time defeat OFF. When Time defeat is enable the main testing screen will show as follows, indicating the time defeat is ON, “manual mode”. To start the test the operator needs to hold press the TEST button with the left hand and increase or decrease the voltage with the “UP”...
-
Page 18: Safety Interlock
DUT cage. The tester rear door access is connected to the interlock signal and will activate the interlock if the door is open. Factory Settings The HT-5000P ACDC 200mA TD is configured as shown when shipped from Compliance West USA: FACTORY SETTINGS... -
Page 19: Operating Techniques
The following paragraphs describe how to operate the HT-5000P ACDC 200mA TD Dielectric Withstand Tester. CAUTION: High voltage is generated by the HT-5000P ACDC 200mA TD tester. Although the chassis of the equipment under test is grounded by the tester, a risk of shock exists. Testing Products This section describes how to conduct a test. -
Page 20: Maintenance And Calibration
Section 2. Service Information The HT-5000P ACDC 200mA TD is warranted to the original purchaser for a period of 1 year. This warranty does not cover problems due to misuse or neglect. Malfunctions which occur within the limits of the warranty will be corrected at no charge. -
Page 21: Technical Assistance
Section 5 Technical Assistance Technical Assistance from Compliance West USA is available: Phone: (800) 748-6224 Hours: 8:30 AM - 4:30 PM Pacific Time. Also available on our web site at: www.compwest.com Contact: Compliance West USA 650 Gateway Center Way, Suite D, San Diego, CA., 92102...
