Summary of Contents for Compliance West HTT-1R
- Page 1 HTT-1R FUNCTION CHECKER Instruction Manual...
- Page 3 Dear Customer: Congratulations! Compliance West USA is proud to present you with your HTT-1R. The operating instructions are included in the Manual, so please retain this information for future use. Thank you for your trust and confidence. Rev. 0, August 2011...
-
Page 5: Table Of Contents
Theory of Operation ........................1 Introduction and Specifications ........................2 Introduction ..........................2 Specifications ..........................2 Operation ..............................3 Setting up the HTT-1R .........................3 Front Panel Features ........................3 Setup Procedure: Hipot Tester ....................6 Setup Procedure: Ground Bond Tester ..................8 Unanticipated Results ........................10 Troubleshooting the HTT-1R ........................11... -
Page 6: Operating Instructions
While all three switches can be simultaneously set for failing modes, we recommend that the HTT-1R be set with one failure at a time to ensure that your testers are functioning correctly. -
Page 7: Introduction And Specifications
The instrument is a portable function tester used to verify proper operation of hipot and ground continuity testers. The HTT-1R is intended to be used as a calibration verification tool. The HTT-1R is warranted for a period of one year upon shipment to the original purchaser. Specifications... -
Page 8: Operation

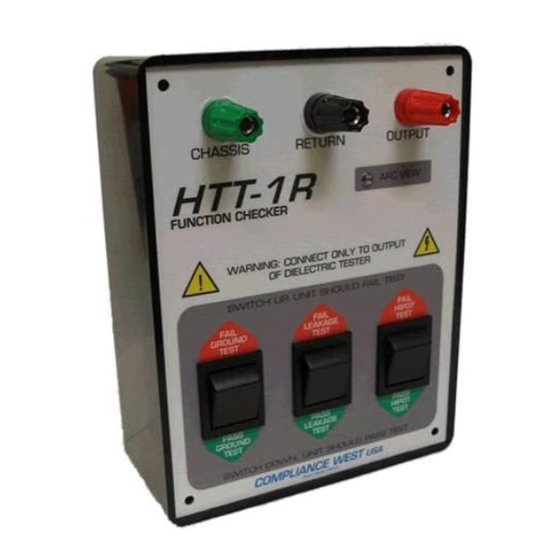

Output and chassis cable (P/N: 00-HTTRHV) Remove the HTT-1R from the container and place it on a non-conductive test bench. Plug the cables; follow instructions on Set up procedure. To begin testing, follow the directions in Section 1 above. Note: This setup will work for any hipot / ground bond tester having a standard wall receptacle and return banana jack connectors. - Page 9 Figure 1: HTT-1R Front Panel Features...
- Page 10 When set to FAIL, a dielectric breakdown will be simulated and a spark Hipot Test can be seen in the Arc View window. When set to PASS, a normal Switch passing result is simulated. Used for Dielectric Testers only. Table 2: HTT-1R front panel Controls, Indicators, and Connectors...
-
Page 11: Setup Procedure: Hipot Tester
Return jack receptacle of the HTT-1R. 2) Conduct a simulated PASSING test by setting all three switches of the HTT-1R to the PASS (green) setting and initiating a hipot test by starting your hipot tester. - Page 12 Figure 2: Connection to a hipot tester...
-
Page 13: Setup Procedure: Ground Bond Tester
On your ground bond tester, plug the high current output into the HTT-1R chassis green banana receptacle. 2) Conduct a simulated PASSING test by setting all three switches of the HTT-1R to the PASS (green) setting and initiating a ground bond test by starting your ground bond tester. - Page 14 Figure 3: Connection to a Ground bond tester *Note: It is highly recommended to use the cables that are currently used when testing products with the ground bond tester and not the cables supplied with the HTT-1R.
-
Page 15: Unanticipated Results
Unanticipated Results The HTT-1R test may cause your tester to give results not consistent with those anticipated by the switch setting of the HTT-1R. Until the problem is resolved, your tester should be removed from service. If there is an unexpected leakage or ground result, first check the hipot or ground bond trip limit setting are correct. -
Page 16: Troubleshooting The Htt-1R
Section 4 Troubleshooting the HTT-1R The HTT-1R requires an annual calibration. If the HTT-1R does not operate as described in the Theory of Operation section, and the equipment connected to the HTT-1R has been verified to be in good working condition, then the HTT-1R should be returned to Compliance West USA for inspection and/or repair. -
Page 17: Technical Assistance
Section 5 Technical Assistance For Technical Assistance Phone: (800) 748-6224 Technical Assistance is available from Compliance West USA between the hours of 8:30 AM and 4:30 PM Pacific Time Monday through Friday. Compliance West USA 2120 Jimmy Durante Blvd., Suite 118...
