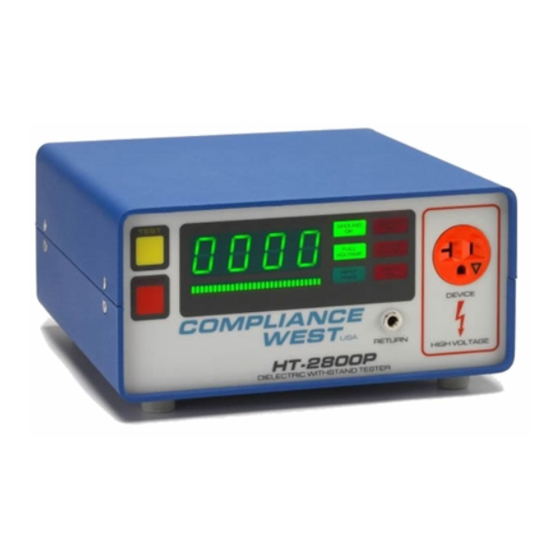

- Page 1 HT-2800 Dielectric Withstand Tester 0-2800 Volts DC Output Instruction Manual COMPLIANCE WEST...
- Page 2 To fully appreciate all the features of your new meter, we suggest that you take a few moments to review this manual. Compliance West USA stands by your instrument with a full one- year warranty and a loaner instrument policy. If the need arises, please don't hesitate to call on us.
-
Page 3: Table Of Contents
Table of Contents An Introduction to Dielectric Withstand Testing with the HT-2800 ..............1 Safety Precautions ............................1 Test Personnel..........................1 Testing Area ..........................1 Safety Techniques ........................2 Using the HT-2800 Dielectric Withstand Tester..................2 Continuity Check.........................2 Ground Check Failures ....................2 Defeating the Ground Check..................3 Leakage Test..........................3... - Page 4 Introduction ..............................21 Service Information.............................21 General Maintenance..........................21 Interior Access ..........................21 Calibration Access......................21 Cleaning............................22 Performance Test............................22 Calibration Procedure ..........................23 Voltage Calibration Adjustment....................23 Continuity Calibration Adjustment ..................24...
-
Page 5: An Introduction To Dielectric Withstand Testing With The Ht-2800
The dielectric withstand test generates voltages of up to 2800 volts dc at potentially lethal current levels. Currents of as little as 5 mA at 120 volts can cause death, and the HT-2800 is capable of generating 5 mA at up to 2800 volts. Because there is no zero volts crossing point as there is for ac voltage, dc voltage is considered the more dangerous of the two. -
Page 6: Safety Techniques
The equipment under test should be connected to the HT-2800 and then left alone by the operator. After the operator is clear of the Tester and the equipment under test, he should press the RESET Button, then the TEST Button, with his right hand. -
Page 7: Defeating The Ground Check
In some cases where the leakage current of the equipment under test is high, but still within the testing parameters of the HT-2800, and the ground continuity of the chassis at the point of attachment of the Test Return Lead clip is marginal (within 1% of the three ohm failing point), the ground continuity test light may trigger after the test has commenced. -
Page 8: Leakage Current Failures
The test time is counted from the time the Full Voltage LED is lit to the comp letion of the test. If the green Hipot Pass LED lights, the test cycle has been successfully completed. The equipment under test is in accordance with the preset test parameters. The HT-2800 is ready to test the next piece of equipment. -
Page 9: Introduction And Specifications
The Return Lead is directly connected to The HT-2800 meets all safety agency criteria for ground potential for operator safety. automatic production line dielectric withstand In case of trouble, the test can be testers. - Page 10 Operating Temperature 15-40?C Relative Humidity Range 0-90% non-condensing GENERAL Input power requirements Model HT-2800: 114-127 volts, 50/60 Hz Model HT-2800L: 98-120 volts, 50/60 Hz Weight 10½ lbs Dimensions 9¼ in. wide, 4¾ in. high, 10 in. deep. SAFETY AGENCY TOPICS Transformer Output <...
-
Page 11: Operation
The front panel Remove the Tester from its container and place it features of the HT-2800 are shown in Figure 2 on a test bench. and described in Table 2. The rear panel features of the HT-2800 are shown in Figure 3 and... - Page 12 Figure 2. Controls, Indicators, Connectors - Model HT-2800 Front Panel...
- Page 13 RESET Button / Red Indicator When lit, indicates that the HT-2800 is unarmed. This button must be pushed before the TEST Button is functional. When the RESET Button is pressed, the red lamp goes out and the yellow TEST lamp is lit.
- Page 14 Figure 3. Controls, Indicators, Connectors - Model HT-2800 Rear Panel...
- Page 15 Use supplied cordset to connect Tester to appropriate source of supply. Replace line fuse. Turn Tester Power Switch ON/OFF. Fuse replacement warning / Specifies replacement fuse and required supply voltage. Rating of supply Table 3. Control, Indicators, Connectors - Model HT-2800 Rear Panel...
-
Page 16: Initial Checkout Procedure
Test Return Lead and insert the High voltage (up to 2800 Volts other end into one of the vertical parallel DC) generated by the HT-2800 is slots in the High Voltage Device receptacle exposed during this test. A risk on the front panel. -
Page 17: Setting Up The Ht-2800 For Production Line Testing
Adjustment of the Leakage Current Level Passage of these tests indicates that the HT-2800 is functioning properly and that it is safe DC Leakage Current can be set to levels to use. up to 5 mA. If the results of the performance test are... -
Page 18: Adjustment Of The High Voltage Ramp Time
Off. procedure Adjustment of the High Voltage Connect the HT-2800 to a correctly rated Level, and the test time is to be reset using source of supply and turn the power the procedure Adjustment of the High switch to the I or ON position. -
Page 19: Adjustment Of The High Voltage Test Duration
Defeat the Ground Check by turning the we recommend that the short test be used. The rear panel switch Off. HT-2800 is factory set for 1700 volts, a voltage Connect the HT-2800 to a correctly rated level used for the one second duration test for source of supply and turn the power many types of equipment. -
Page 20: Operating Techniques
HTT-1. operation. Set all three switches on the HTT-1 to ‘PASS’. Run a test with the HT-2800 and verify Operating Techniques passing result on the HT-2800. The following paragraphs describe how to Set Continuity switch on the HTT-1 to operate your HT-2800 Dielectric Withstand ‘FAIL’;... -
Page 21: Test Results
Ground OK LED and the test shipped. General interpretations of test failures will continue. are included in Section 1, "Using the HT-2800 b. Ramp the voltage at the rate set by Dielectric Withstand Tester". the Ramp Time procedure. -
Page 22: Technical Assistance
Technical Assistance For Technical Assistance Phone: (800) 748-6224 Technical Assistance is available from Compliance West USA between the hours of 8:30 AM and 4:00 PM Pacific Time. Compliance West USA 2120 Jimmy Durante Blvd., Suite 124 Del Mar, CA 92014... -
Page 23: Maintenance And Calibration
Service Information cleaning procedures given later in this section. The HT-2800 is warranted to the original purchaser for a period of 1 year. This warranty Calibration Access does not cover problems due to misuse or neglect. -
Page 24: Cleaning
instrument fails any part of the performance test, Remove the two upper screws on each side repair is indicated. of the unit. Allow the instrument to stabilize and perform the test at an ambient temperature of 23?C ?5?C (73?F Grasp the top of the enclosure clamshell and ?9?F). -
Page 25: Calibration Procedure
Before starting the Calibration procedure, perform tests "Hipot Breakdown" the Calibration access procedure given earlier in circuit of the HT-2800 and involves this Section. high voltage. Proceed with caution. NOTE Make sure the Test Return Lead is still Allow the instrument to stabilize for plugged into the Return jack on the front approximately five minutes. -
Page 26: Continuity Calibration Adjustment
Perform the voltage calibration adjustment procedure above. Remove all test leads from the HT-2800. Connect the banana plug end of one lead to the RETURN jack and the alligator clip end to the 3 ohm resistor.
