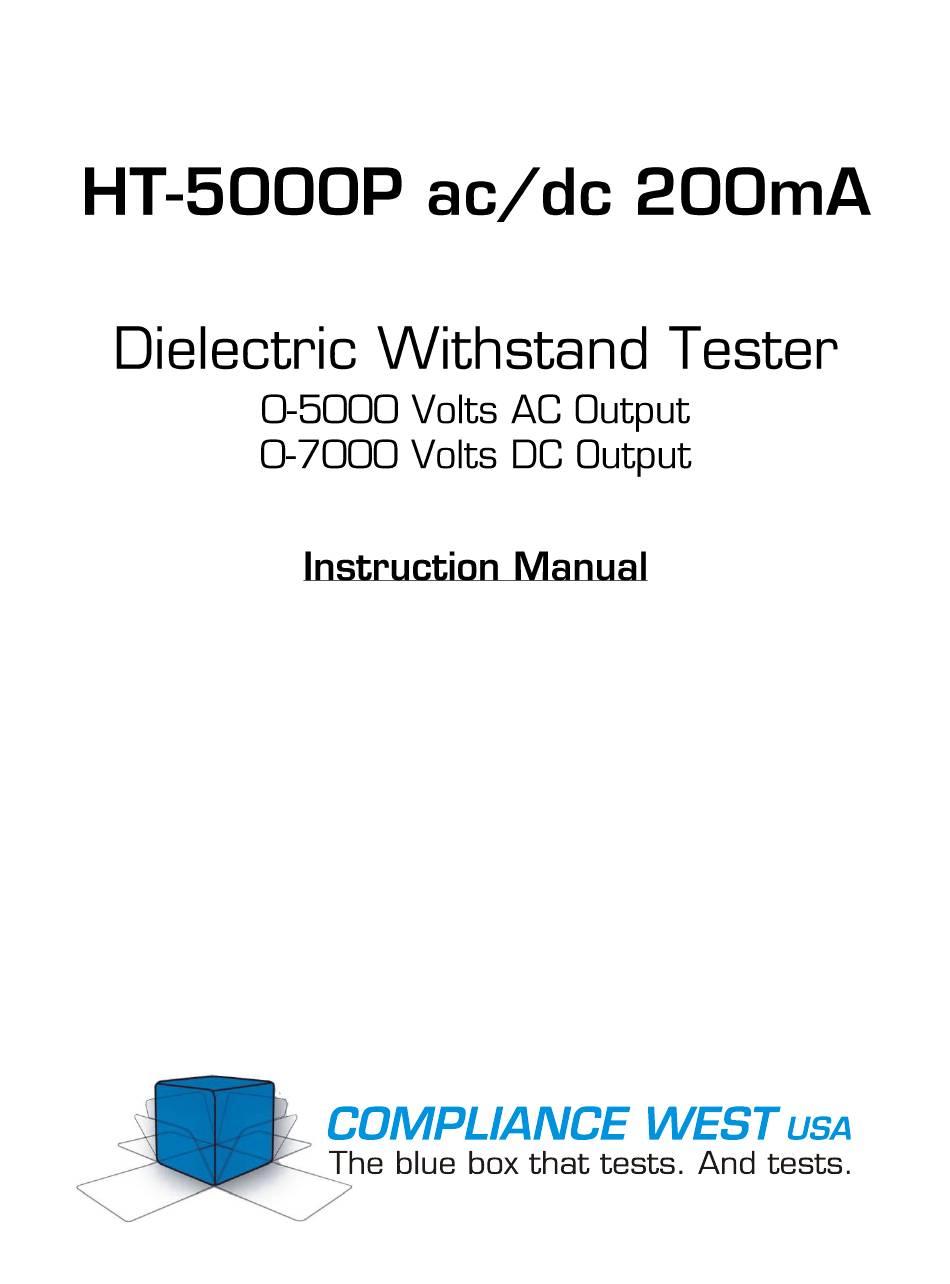

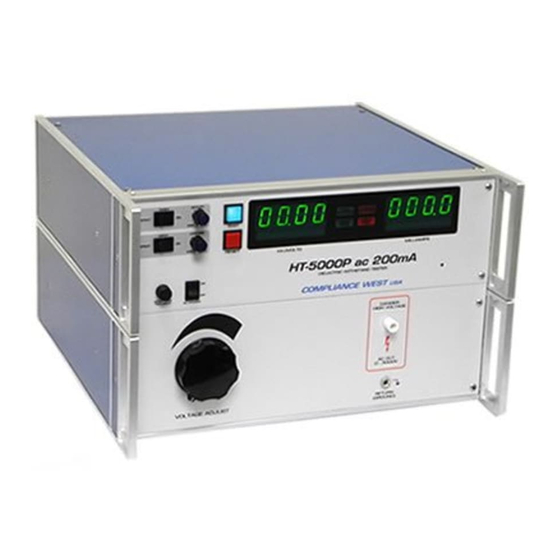

Compliance West HT-5000P ac/dc 200mA Instruction Manual

Dielectric withstand tester
Hide thumbs Also See for HT-5000P ac/dc 200mA:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-5000P ac/dc 200mA and is the answer not in the manual?

Questions and answers

Related Manuals for Compliance West HT-5000P ac/dc 200mA

Summary of Contents for Compliance West HT-5000P ac/dc 200mA

  • Page 3 To fully appreciate all the features of your new meter, we suggest that you take a few moments to review this manual. Compliance West USA stands by your instrument with a full one- year warranty. If the need arises, please don't hesitate to call on Thank you for your trust and confidence.

  • Page 5: Table Of Contents

    Table of Contents An Introduction to Dielectric Withstand Testing with the HT-5000P ac/dc 200mA ........2 Leakage Test ..........................2 High Voltage Dielectric Withstand Test ..................2 High Voltage Discharge .......................3 Introduction and Specifications ........................4 Specifications ..........................5 Operation ..............................6 Setting up the HT-5000P ac/dc 200mA ..................6 AC Line Voltage Requirements and Fuse Replacement ...............6...

  • Page 7: An Introduction To Dielectric Withstand Testing With The Ht-5000P Ac/Dc 200Ma

    Full Voltage indicator is lit to the completion of the test. The Timer Control Switch must be set to ON, or the HT-5000P ac/dc 200mA will test only while the Test Button is pressed. The minimum test time is one second regardless of the setting of the...

  • Page 8: High Voltage Discharge

    High Voltage Discharge The HT-5000P ac/dc 200mA has an internal circuit designed to remove the high voltage, after completion of the dielectric withstand test. The HT-5000P ac/dc 200mA should remain connected to the circuit until the front panel meter shows that the output voltage has dropped to a...

  • Page 9: Introduction And Specifications

    - Test results are determined quickly, without operator intervention. - The HT-5000P ac/dc 200mA allows custom setups for test time and leakage limit. Your Tester has a warranty for a period of one year upon shipment of the instrument to the...

  • Page 10: Specifications

    Test can be automatically terminated on failure Leakage Test Provided; 5 mA AC factory set pass/fail point, user adjustable. Zero Voltage Start It will NOT let to start the test until the voltage adjustment knob is at the minimum position. Table 2-1. HT-5000P ac/dc 200mA Specifications...

  • Page 11: Operation

    The AC Power switch should be turned off while the fuse is being replaced. Front and Rear Panel Features Before using the HT-5000P ac/dc 200mA tester, take a few minutes to become familiar with the use of its controls, indicators, and connectors. The front panel features of the HT-5000P...
  • Page 12 Figure 3-1. Front Panel Controls, Indicators and Connectors...
  • Page 13 Adjusts the test duration. For details see “Test Time Adjust”. TIMER ADJUST When lit, indicates that the HT-5000P ac/dc 200mA is unarmed. When the RESET button is pressed, the TEST switch is RESET Button lit. PRESSING THE RESET BUTTON AT ANY TIME IMMEDIATELY STOPS TESTING.

  • Page 14: Initial Checkout Procedure

    Initial Checkout Procedure Use this procedure to verify that the HT-5000P ac/dc 200mA tester is working correctly. Refer to table 3-1, figure 3-1 and table 3-2 for location of items. CAUTION High voltage, risk of shock, use with care. 1. Turn the Tester on using the AC Power switch.

  • Page 15: Setting Up The Ht-5000P Ac/Dc 200Ma For Laboratory Testing

    2 seconds, and the meter will display “d” with the Test Duration set time in seconds. Leakage Current Level Adjust 1. Connect the HT-5000P ac/dc 200mA to a correctly rated source of supply and turn ON the tester.

  • Page 16: Voltage Adjust

    6. Push the RESET button to terminate the test. High Voltage Test Time Adjust This procedure sets the length of time the HT-5000P ac/dc 200mA will conduct the high voltage test. The test time is specified by the safety agencies, and is tied to the test voltage. Most safety agencies will allow a much shorter test (usually 1 second vs.

  • Page 17: Setting The Failure Shutdown Switch

    Set up tester to correct parameters for unit to be tested using the previously described procedures. Connect the HT-5000P ac/dc 200mA to a correctly rated source of supply and turn it on. Plug the black lead into the Return receptacle. Plug the red lead into the Output receptacle.

  • Page 18: Test Results

    HT-5000P ac/dc 200mA. If the Timer Control switch is set to ON, the HT-5000P ac/dc 200mA will conduct the high voltage test for the amount of time set in the Test Duration procedure.
  • Page 19 Test will continue only as long as the TEST button is held in, minimum one second. The HT-5000P ac/dc 200mA will NOT shut down on a dielectric failure, but the front panel Hipot Fail light will flash to indicate a dielectric breakdown. The Hipot Pass light will not light at the completion of a successful test.

  • Page 20: Maintenance And Calibration

    Section 2. Service Information The HT-5000P ac/dc 200mA is warranted to the original purchaser for a period of 1 year. This warranty does not cover problems due to misuse or neglect. Malfunctions which occur within the limits of the warranty will be corrected at no charge.

  • Page 21: Entering Calibration Mode

    ALL ADJUSTMENTS. Entering Calibration Mode NOTE Only enter into this mode if the HT-5000P ac/dc 200mA unit needs a re-calibration on any of the parameters of Voltage Meter or Leakage. Zero voltage start option will be deactivated during this mode.

  • Page 22: Voltage Meter Verification

    Turn the Voltage Adjust on the front panel to minimum (counterclockwise). Press the Test button and a voltage number will be displayed on the front panel meter (04.00 for AC or 06.00 for DC). Be careful as the HT-5000P ac/dc 200mA will be putting out voltage at this point.

  • Page 23: Leakage Meter Verification

    Turn the Voltage Adjust on the front panel to minimum (counterclockwise). Press the Test button and a voltage number will be displayed on the front panel meter (00.50 for AC and DC). Be careful as the HT-5000P ac/dc 200mA unit will be putting out voltage at this point.

  • Page 24: Leakage Current Re-Calibration

    Turn Off the HT-5000P ac/dc 200mA unit. Select the type of output voltage with the AC/DC Switch. Connect the output of the HT-5000P ac/dc 200mA unit through a 1000 watt high voltage load resistor (25k in series with an external current meter returning to the Return jack on the front panel of the HT-5000P ac/dc 200mA as is shown on figure 4-2.

  • Page 25: Technical Assistance

    Section 5 Technical Assistance Technical Assistance from Compliance West USA is available: Phone: (800) 748-6224 Hours: 8:30 AM - 4:30 PM Pacific Time. Also available on our web site at: www.compwest.com Contact: Compliance West USA 650 Gateway Center Way, Suite D, San Diego, CA., 92102...
