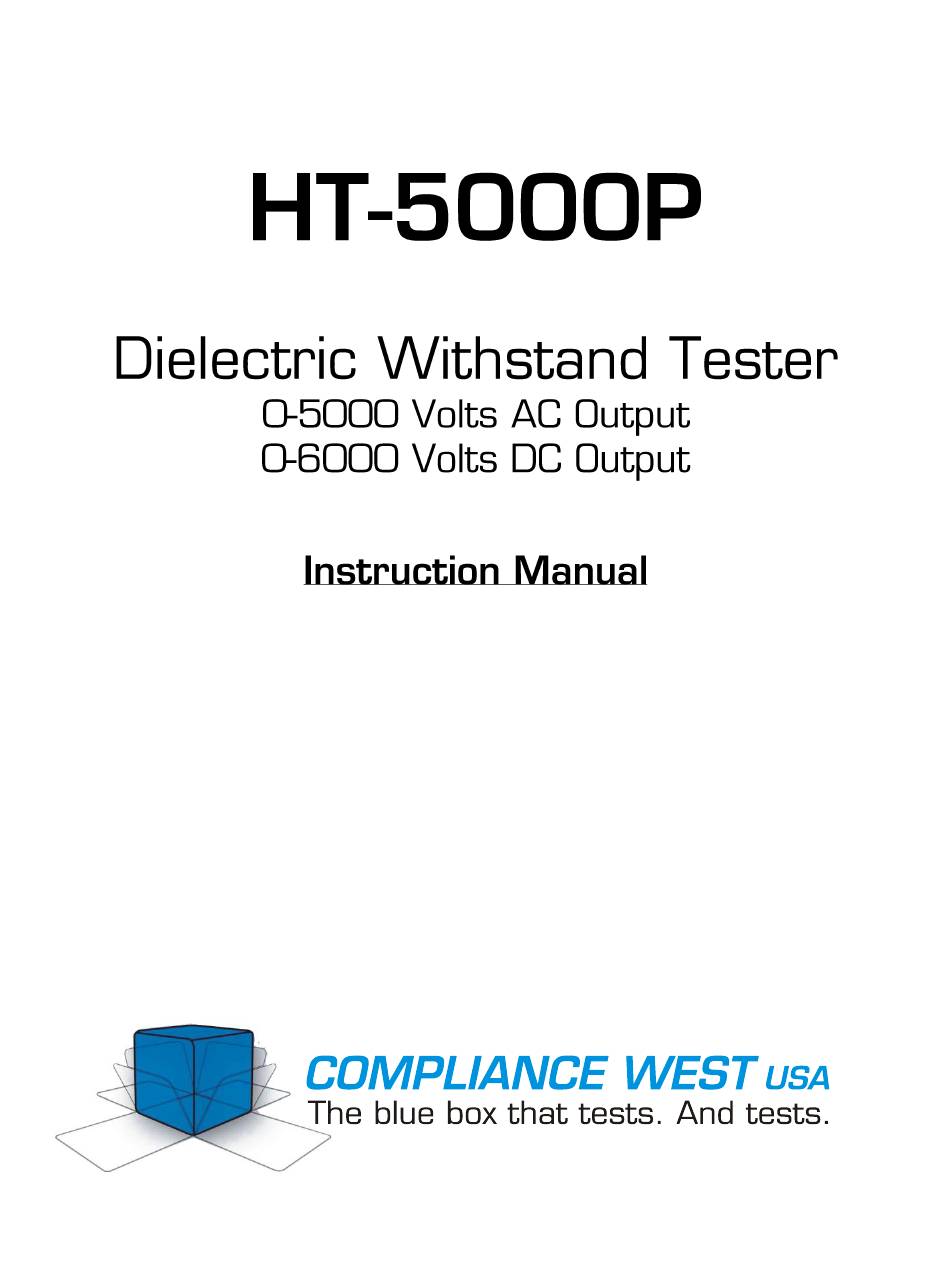

Compliance West HT-5000P Instruction Manual

Dielectric withstand tester
Hide thumbs Also See for HT-5000P:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-5000P and is the answer not in the manual?

Questions and answers

Related Manuals for Compliance West HT-5000P

Summary of Contents for Compliance West HT-5000P

  • Page 3 Dear Customer: Congratulations! Compliance West USA is proud to present you with your Dielectric Withstand Tester. Your instrument features a groundbreaking logic-controlled circuit design and ergonomic front panel and represents the latest in high voltage production line testing. To fully appreciate all the features of your new meter, we suggest that you take a few moments to review this manual.

  • Page 5: Table Of Contents

    Fuse Replacement ......................7 Front and Rear Panel Features ..................8 Figure 1. Controls, Indicators, Connectors - Model HT-5000P Front Panel ..8 Table 2. Controls, Indicators, Connectors - Model HT-5000P Front Panel ..8 Figure 2. Controls, Indicators, Connectors - Model HT-5000P Rear Panel..9 Table 3.

  • Page 6: An Introduction To Dielectric Withstand Testing With The Ht-5000P

    Currents of as little as 5 mA at 120 volts can cause death, and the HT- 5000P can generate up to 10 mA AC and 5000 volts, and 5 mA DC at up to 6000 volts. The HT-5000P has been designed to minimize exposure to high voltages.

  • Page 7: Safety Techniques

    If the lead is not properly connected, a dielectric withstand test failure may energize exposed dead metal of the equipment being tested. Additionally, the HT-5000P may not recognize the failure. The test will continue for its normal length of time, and the HT-5000P may show a "PASS".

  • Page 8: Sporadic Leakage Current Failures

    If the leakage current adjustment of the HT-5000P is set to 10 mA AC and almost all examples of the model being tested are still failing, the primary circuit capacitance of the equipment may be too high to allow the AC dielectric withstand test to be used.

  • Page 9: High Voltage Dielectric Withstand Test Failures

    The HT-5000P is designed to discharge the high voltage after completion of the dielectric withstand test. The equipment being tested should remain connected to the HT-5000P until the voltage has discharged to a safe level to protect the operator and to ensure that there is no energy stored in the...

  • Page 10: Introduction And Specifications

    If a failure is encountered, the high voltage is immediately shut down, a buzzer sounds, and any voltage stored in the equipment being tested is bled off by a resistor bank in the HT-5000P. The voltage discharge progress is shown by the front panel meter.

  • Page 11: Specifications

    Specifications Specifications for the HT-5000P V2 are listed in Table 1. TESTING CIRCUITRY Test Type: AC & DC. Max. Output Voltage: 5,000Vac / 6,000Vdc. Leakage Current: 10mAac & 5mAdc. Breakdown Detect: Independent High Frequency Circuit (50KHz–500KHz). Transformer Power: <500VA. Leakage Current Detect: Independent Low Frequency Circuit.

  • Page 12: Operation

    Your tester is shipped in a special protective container that prevents damage to the instrument during shipping. Check the shipping order against the contents of the container and report any damage or short shipment to Compliance West USA. If shipment of the instrument is necessary, please use the original shipping container. If the original shipping container is not available, be sure that adequate protection is provided to prevent damage during shipment.

  • Page 13: Front And Rear Panel Features

    Before using your tester, take a few minutes to become familiar with the use of its controls, indicators, and connectors. The front panel features of the HT-5000P are shown in Figure 1 and described in Table 2. The rear panel features of the HT-5000P are shown in Figure 2 and described in Table 3.
  • Page 14 Figure 2. Controls, Indicators, Connectors - Model HT-5000P Rear Panel ITEM NAME FUNCTION Voltage Ramp Switch When in ON position, high voltage ramp up time is as set by Ramp Time Adjustment, Item 14. When in DEFEAT position, high voltage is applied immediately.

  • Page 15: Factory Settings

    5.0 mA. To set the leakage limit follow the steps below. Connect the HT-5000P to a correctly rated source of supply and turn the power switch to the I or ON position. Push the RESET button. The yellow TEST indicator should light, indicating that the HT-5000P is ready to test.

  • Page 16: Adjustment Of The High Voltage Level

    Adjust the Test Time control to approximately the middle of its travel. Connect the HT-5000P to a correctly rated source of supply and turn the power switch to the I or ON position. Push the RESET button. The yellow TEST indicator should light, indicating that the HT-5000P is ready to test.

  • Page 17: Setting The Rear Panel Switches

    Total Defeat. Full voltage is produced at the output immediately. Test will continue only as long as the TEST button is held in. The HT-5000P will not shut down on a leakage or dielectric failure, but the front panel Excess Leakage or Hipot Fail lights will indicate a failure. The Hipot Pass light will not light at the completion of a successful test.

  • Page 18: Operating Techniques

    6. Push the TEST button. 7. The HT-5000P tester will conduct a test. The meter will read a voltage, hold, and return to zero. During the test, the voltage can be adjusted using the Voltage Adjustment knob. At the end of the test, the Full Voltage, Hipot Pass, and RESET switch indicators should be lit.

  • Page 19: Testing

    RESET button on the front panel. Test Procedure Example: Connect the HT-5000P to a correctly rated source of supply and turn the power switch to the I or ON position. Push the RESET button. The yellow TEST indicator should light, indicating that the HT-5000P is ready to test.

  • Page 20: Test Results

    Red LED/Buzzer: Any red LED/buzzer test result means the equipment being tested failed a test phase. The equipment should be set aside, reworked and retested with acceptable results before it is shipped. General interpretations of test failures are included in Section 1, "Using the HT-5000P V2 Dielectric Withstand Tester".

  • Page 21: Technical Assistance

    Section 4 Technical Assistance Technical Assistance from Compliance West USA is available: Phone: (800) 748-6224 Hours: 8:00 AM - 4:00 PM Pacific Time. Also available on our web site at: www.compwest.com Contact: Compliance West USA 650 Gateway Center Way, Suite D San Diego, CA., 92102...

  • Page 22: Maintenance And Calibration

    0-5000 Vac  1%, 0-6000 Vdc  1%. Service Information The HT-5000P is warranted to the original purchaser for a period of 1 year. This warranty does not cover problems due to misuse or neglect.

  • Page 23: Calibration Access

    Calibration and Software Version Information This will allow the user to see the version of the software as well as who performed the last calibration. Turn off the HT-5000P tester. Hold in the Reset button while turning on the tester.

  • Page 24: Voltage Calibration Adjustment

    14. Turn Off the HT-5000P tester. 15. The voltage can be verified by turning on the HT-5000P, running a test, and using the 1000:1 voltage probe to check the meter at different voltages. If the voltages are not within +/- 2% at each voltage, the voltage calibration must be performed again starting at step 1 above.

  • Page 25: Current Calibration Adjustment

    Turn the Voltage Adjust on the front panel to minimum (counterclockwise). Connect the output of the HT-5000P through a 60K ohm, 100-watt high voltage resistor in series with a calibrated DMM capable of measuring 10.0mA AC and returning to the Return jack on the front panel of the HT-5000P.
