STC Clear View Assembly Instructions Manual page 56

14.2A
Place S49 pin in bottom door hinges
G06K on both sides
of door frame.
S49
G06A
14.2B

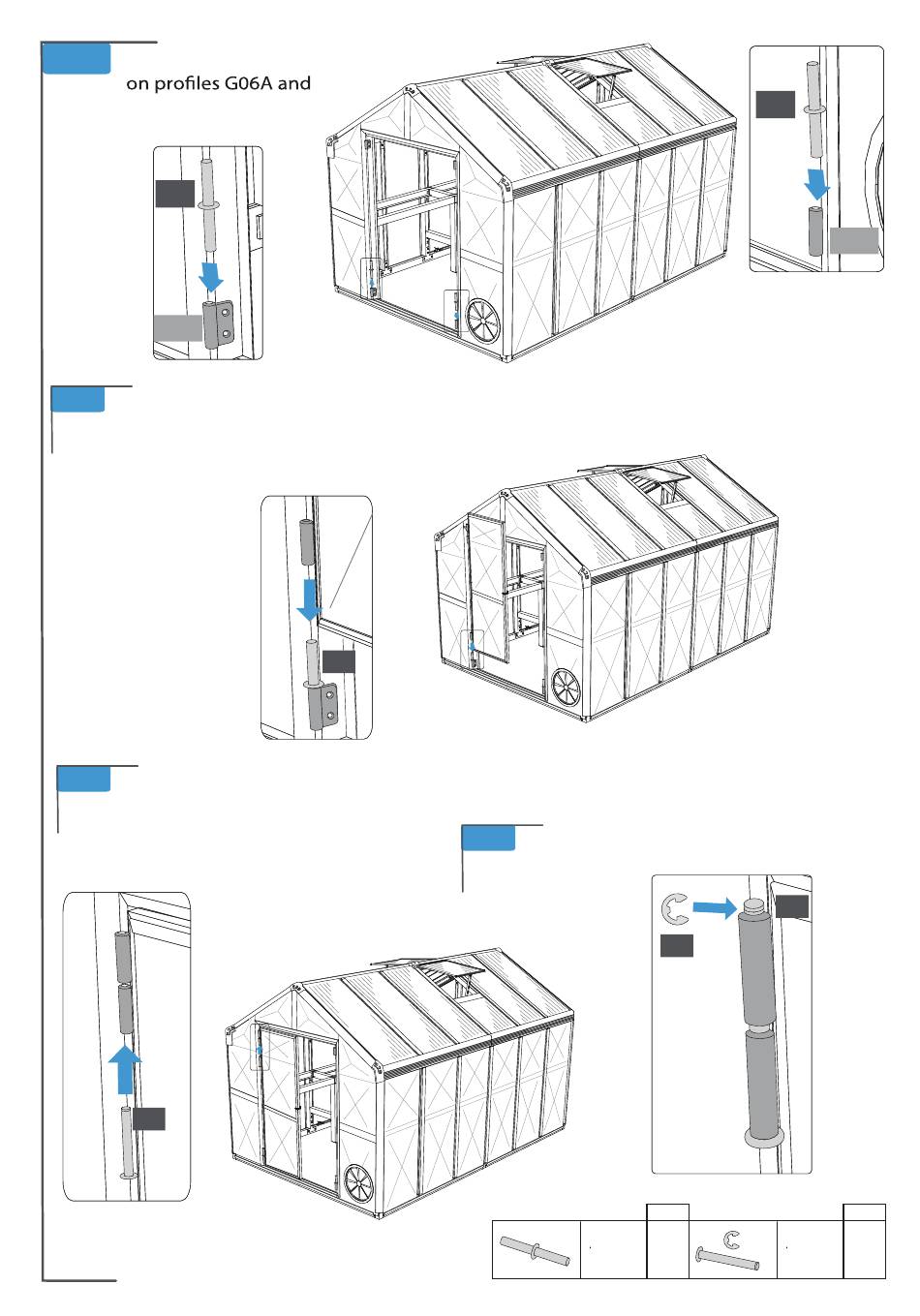

From the outside of the greenhouse, carefully line up hinge on bottom of DOOR 1G with
S49 pin on right side of door frame. Lower door frame onto pin until hinges
meet. Push top door back towards door
frame so top hinges line up.
14.2C
Line up top door hinge with top door frame hinge. From bottom of hinges, slide S51
pin through both hinges.
S51
www.stcny.com
S49
14.2D
53 of 56
Secure pin in place with S50 lock washer
as shown.
S50
Pin
QTY
#S49 2
S49
G06K
S51
Lock Washer/Pin
QTY
#S50 1
#S51 1
