STC Clear View Assembly Instructions Manual page 13

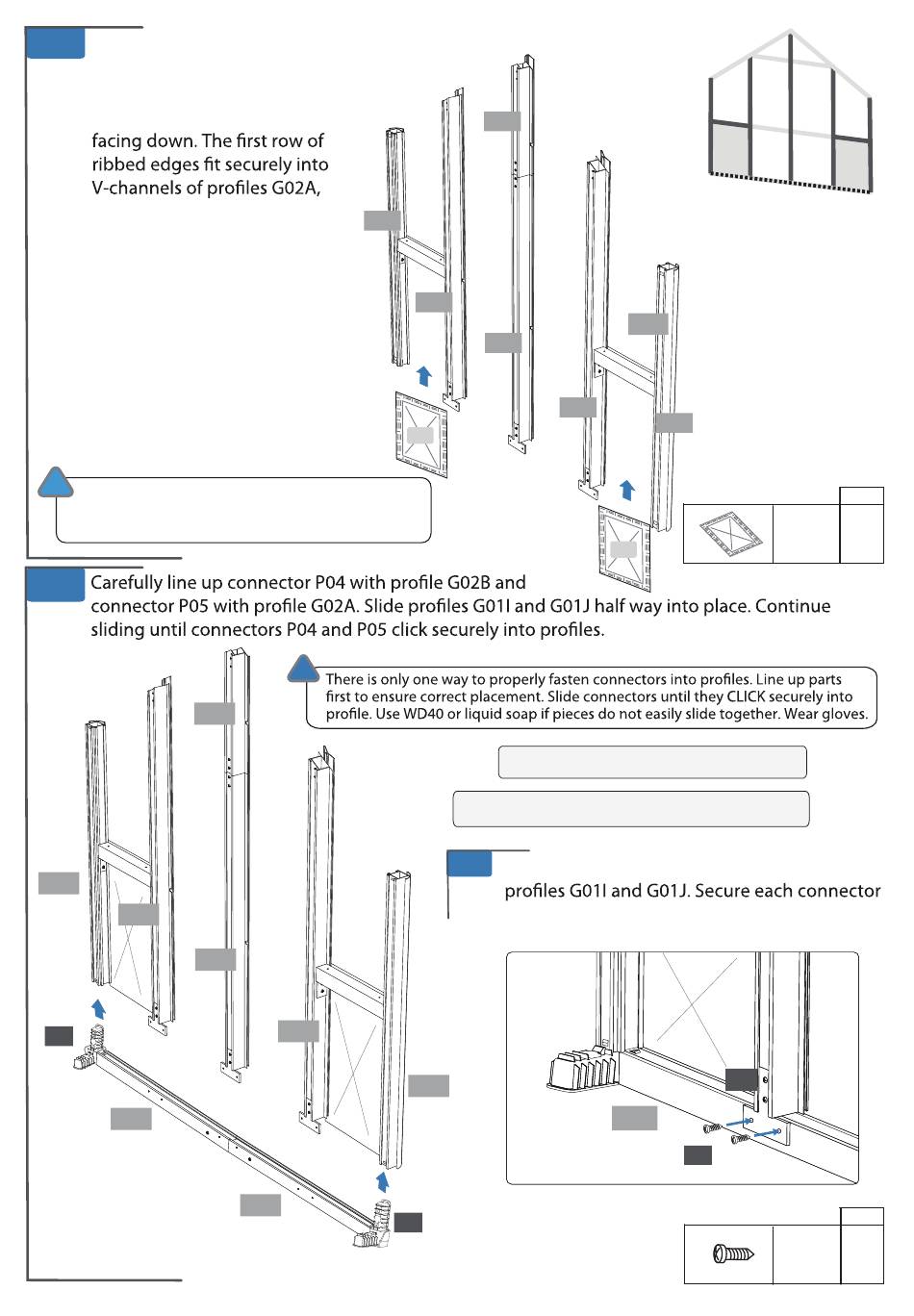

1.7
Remove protective plastic from both sides of panels
GY2 . The clear panels are designed with
window shapes that curve outward.
Place the outward curved side
G02B, G03C, G03D, G17C
and G17D.
!
Remove protective plastic from EACH side of clear
panels before installing. Dispose of plastic properly.
Install with outward curved side FACING DOWN.
1.8A
G03L
G02B
G03C
G03K
P04
G01I
www.stcny.com
G02B
GY2
!
G03D
G02A
G01J
P05
G03L
G03C
G03K
G03D
NOTE: ALL VIEWS ARE FROM INSIDE.
Connectors P04 and P05 CLICK into place.
1.8B
Line up holes on connectors S08 with holes in
with two S02 screws.
10 of 56
G17D
G02A
Clear Panel
#GY2
GY2
S08
G01I
S02
Screw
QTY
2
QTY
#S02 6
